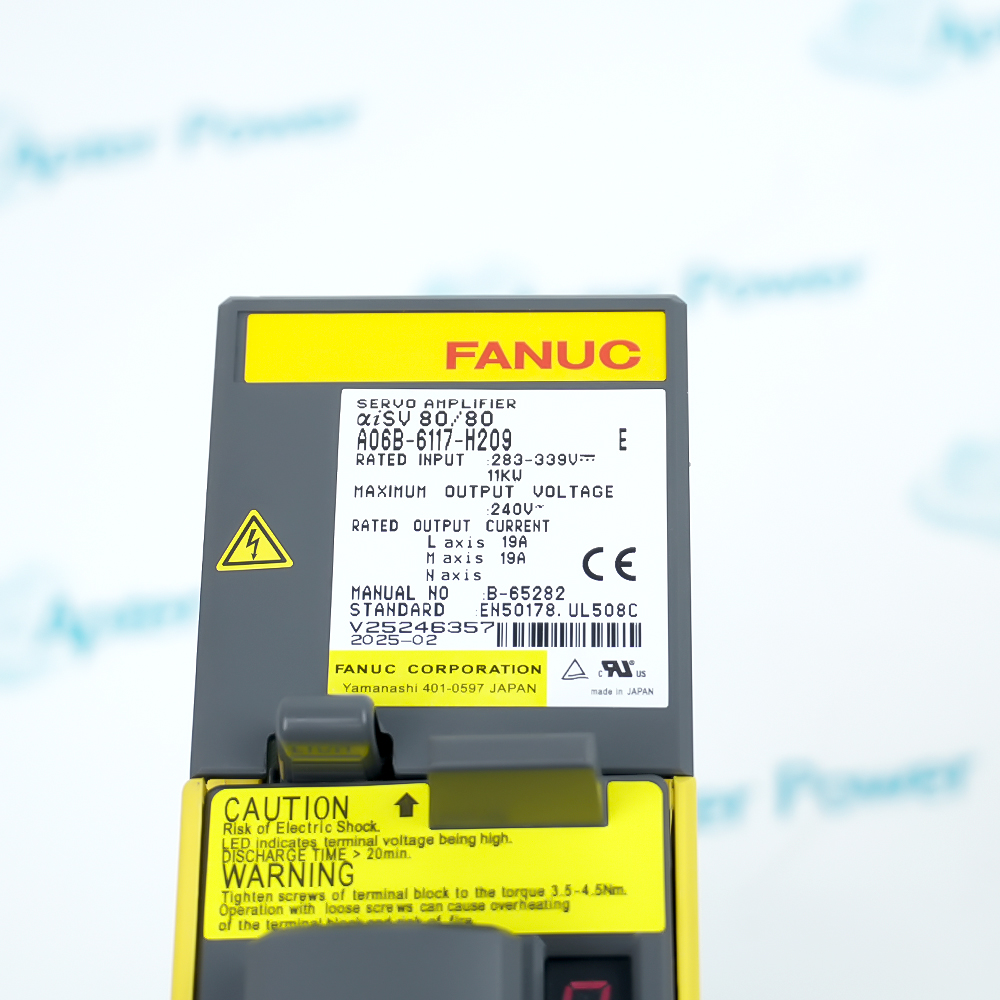

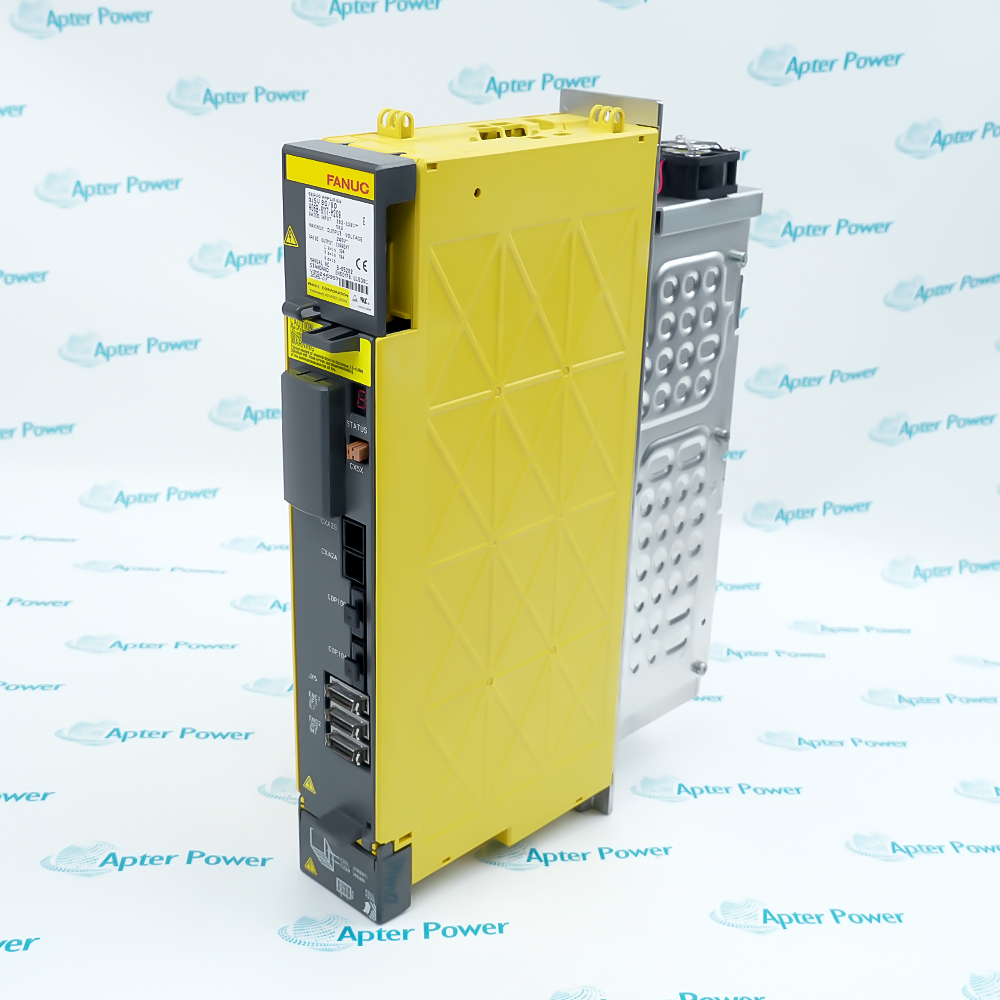

The A06B-6117-H209 is a dual-axis L and M axes servo amplifier module belonging to the FANUC Alpha i series. It is utilized in automated CNC machining and robotic automation systems to coordinate two motor outputs simultaneously using high-response vector HRV control algorithms. This specific hardware interface functions alongside FANUC Series 30i-MODEL B, 31i-MODEL B, 32i-MODEL B, and 0i-MODEL F controller platforms.
Utilizes proprietary FSSB technology
Delivers excellent noise immunity
Enables high-precision multi-axis synchronization
According to industrial hardware technical specifications the A06B-6117-H209 module is a dual-axis drive unit containing an L axis and an M axis in its physical structure. Its internal core circuit board assembly includes a power board model A16B-2203-0673 and a control printed circuit board model A16B-2101-048x. In addition the external interfaces of this hardware module include an FSSB optical fiber bus interface for communication and a built-in 7-segment LED digital display screen for showing status codes and fault codes.
Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description.
General Electric A06B-6117-H209 Servo Amplifier Module Manuals, Datasheets, Drivers, Link
Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description.
Automotive Manufacturing
Controls spot-welding robots and handling manipulators on stamping and body assembly lines for precise picking and point-to-point synchronous positioning of car body panels.
CNC Machine Tool Processing
Serves as the main drive module to control the feed motion and interpolation compensation of the X and Y axes in high-precision CNC milling machines or multi-axis machining centers.
Aerospace Manufacturing
Drives servo motors in gantry-type five-axis linkage machining tools to cut and process titanium alloy aircraft fuselage structural parts and wing skins.
Mold & Die Manufacturing
Controls electrode or tool axes for micron-level depth feed and trajectory movement in CNC electrical discharge machines (EDM) and precision engraving machines.
Semiconductor Manufacturing
Drives multi-axis high-speed linear slides in wafer dicing machines and automatic die bonders to complete chip positioning, picking, and alignment packaging.
Lithium Battery Manufacturing
Controls dual servo axes in winding and stacking machines to maintain constant tension delivery and edge alignment of electrode sheet materials, preventing displacement.

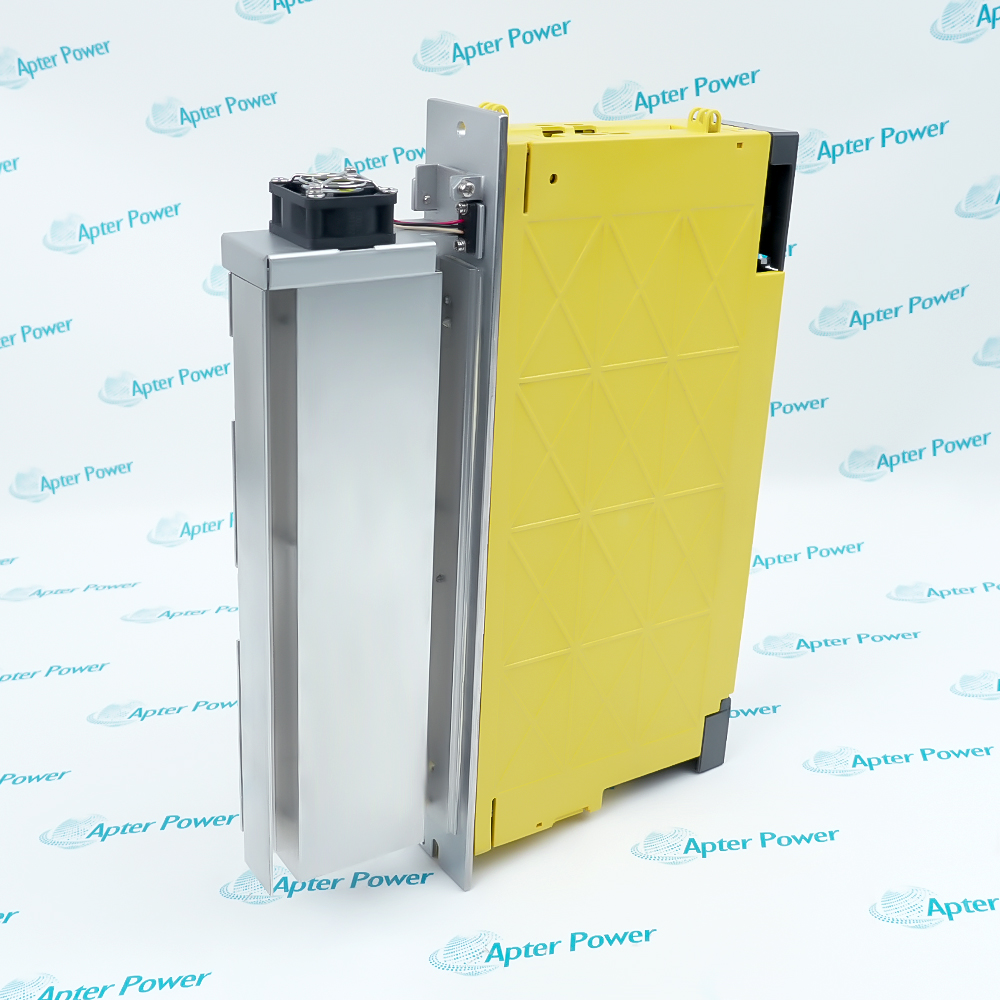

During wiring, strictly prevent misconnections between the heavy-current DC Bus and the FSSB optical fiber bus, and safeguard the internal cooling fan and rear heatsinks from being clogged by metal dust or oil mist. Additionally, parameter configurations inside the CNC system must absolutely match the specifications of the paired FANUC Ai series servo motor to prevent driver or motor burnouts caused by unexpected overloads.
A06B-6117-H209, integrates IPM and overcurrent protection with a dynamic DC Bus design. It ensures exceptional transient response and stability under high-speed cutting, ideal for precision retrofits.
It is a FANUC αi series dual-axis servo amplifier module.
What is A06B-6117-H209 primarily used for?
Mainly used in CNC machine tools to precisely control the speed and position of two servo motors.
How does A06B-6117-H209 connect to the control system?
Communicates with the main CNC controller via the proprietary FANUC Serial Servo Bus optical fiber.
How many axes can a single A06B-6117-H209 module control?
It is a dual-axis drive that can power two servo motors simultaneously.
