      General Electric IC200ALG322
      General Electric IC200ALG322
      General Electric IC200ALG322
      General Electric IC200ALG322
      General Electric IC200ALG322
      General Electric IC200ALG322

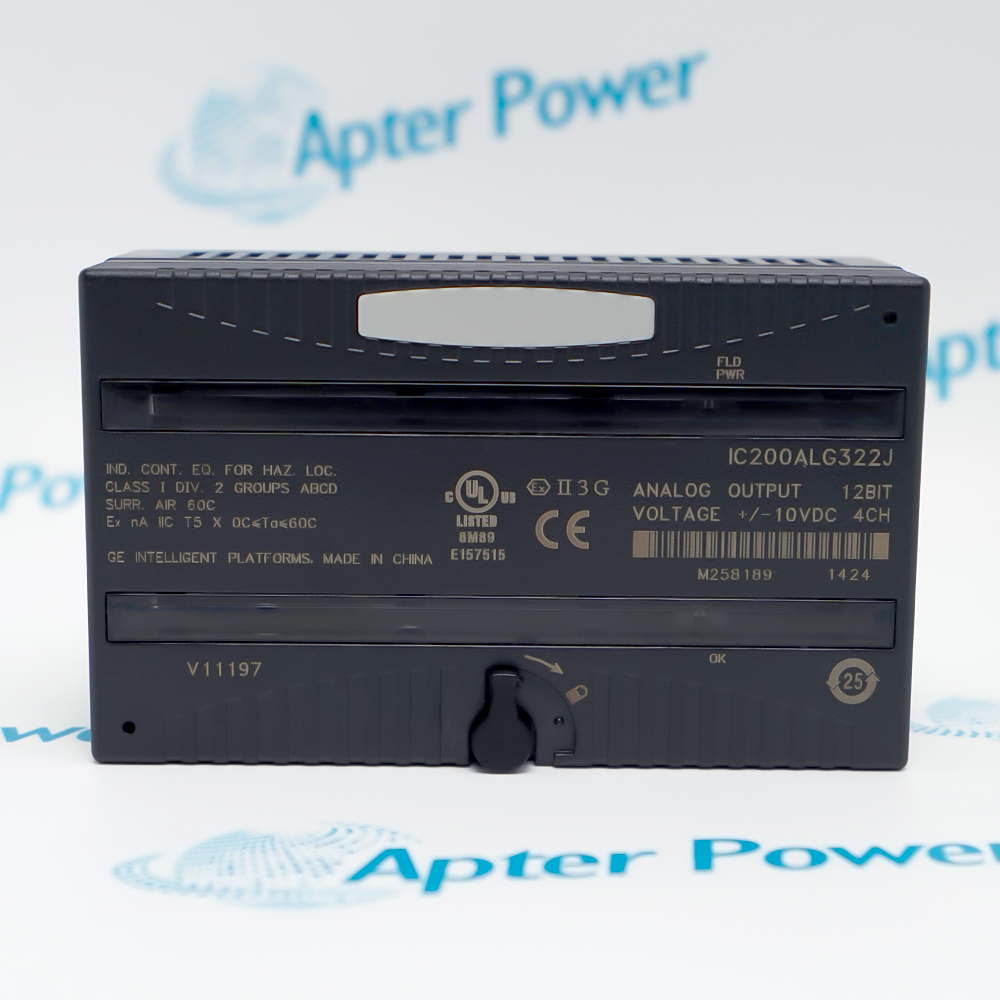

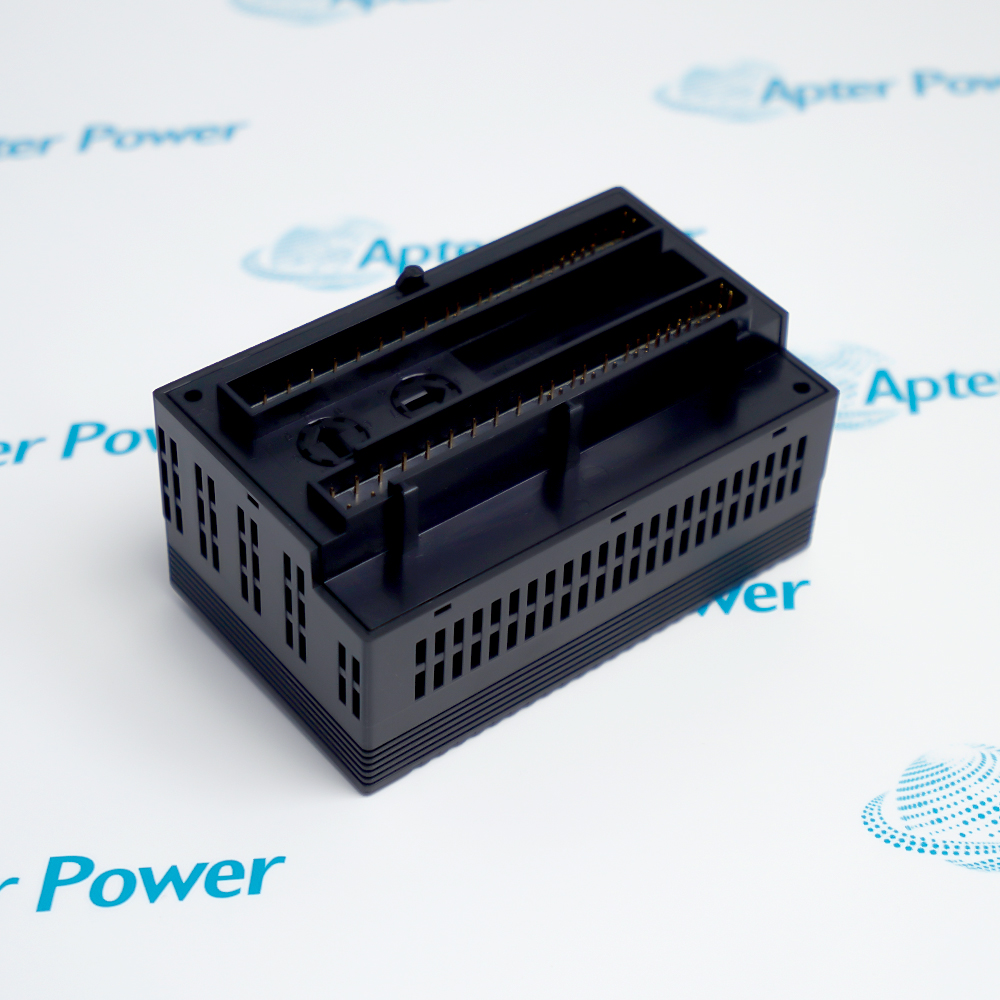

      Product image is representative; revision or series may vary. Contact us to request a specific version.

      IC200ALG322

      VersaMax 12-bit Analog Output Module
      In Stock
      Ships by Wednesday, October 14
      Fast Shipping Available

      Product Describe：

      GE IC200ALG322 is a VersaMax four-channel analog output module that provides 12-bit voltage outputs across the published +/-10 V range and requires a VersaMax I/O carrier for field-wiring termination.

      Ask our team:

      Get a quick price for： IC200ALG322
      Quantity*
      Upload (gif, jpg, jpeg, png, bmp, doc, docx, xls, xlsx, ppt, pdf, csv)
      Get a Quote
      For more information on how your data is processed and stored by Apterpower please read our privacy policy.
      Technical specifications Information Technical notes FAQ

      Technical specifications for IC200ALG322

      Technical specifications for IC200ALG322

      • Manufacturer:
        General Electric
      • Product Category:
        PLC Systems
      • Spare Part Number:
        IC200ALG322
      • Estimated shipping dimensions:
        15.5x15x8.3cm
      • Weight:
        0.26 kg
      • Tariff Code:
        8537101190
      • Counliy of origin:
        USA
      • Manufacturer:
        GE Intelligent Platforms / Emerson
      • Product family:
        VersaMax Modular I/O and Control
      • Module type:
        Analog voltage output module
      • Output channels:
        4
      • Output resolution:
        12 bit
      • Output voltage range:
        +/-10 V
      • Wiring termination:
        Requires a VersaMax I/O carrier
      • VersaMax platform mounting:
        DIN rail
      • VersaMax platform hot swap:
        Supported
      • VersaMax platform enclosure rating:
        IP20
      • VersaMax platform environment:
        0-60 deg C; -40 to 60 deg C options are listed at platform level
      • VersaMax platform conformal coating:
        Options available
      • VersaMax platform maximum wire gauge:
        14 AWG
      • VersaMax platform channel density:
        4-32 points
      • Supported control contexts:
        Compact PLC, distributed I/O or distributed control
      • Official product-page identity:
        VersaMax Analog Output module, 12 bit +/-10 VDC voltage, 4 channel
      • Official data-sheet identifier:
        00813-0100-0112, June 2020型号的
      View as PDF Ask for Quote

      Information

      Information

      Overview Manuals Common Applications Product Precautions
      GE IC200ALG322 is a VersaMax four-channel analog output module that provides 12-bit voltage outputs across the published +/-10 V range and requires a VersaMax I/O carrier for field-wiring termination.
      • Provides four analog voltage output channels
      • Uses 12-bit output resolution across the published +/-10 V range
      • Installs on a VersaMax I/O carrier for wiring termination
      • Integrates into the modular VersaMax control and I/O platform

      Exact-model claims are limited to Emerson's IC200ALG322 product page and VersaMax data sheet; platform-level mounting, hot-swap and environmental values are identified separately and must be checked against the installed configuration.

      Important Notice: Confirm the complete IC200ALG322 identity, installed-system configuration, approved isolation and functional acceptance record before service release.

      GE IC200ALG322 Manuals & Downloads
      GE IC200ALG322 Technical Reference (PDF)GE IC200ALG322 Installation & Commissioning Guide (PDF)

      Important Notice: The first document presents model-specific technical data and engineering questions. The second provides a separate installation, commissioning and acceptance workflow.

      Four-channel analog command output
      Supplies independent +/-10 V command signals for documented field devices.
      Drive and actuator references
      Provides voltage references where the controlled drawing specifies a compatible +/-10 V input.
      Distributed VersaMax I/O
      Adds analog output capability to a VersaMax remote or distributed I/O node.
      Machine setpoint generation
      Generates four configured analog setpoints from the approved control application.
      Read the applicable GE installation instructions before work. Verify IC200ALG322 and the installed-system configuration before commissioning.
      1
      Verify the complete IC200ALG322 catalog number and the assigned VersaMax node before work.
      2
      Place the machine, node and controlled outputs in the approved maintenance state before removal or insertion.
      3
      Confirm that the project requires four 12-bit voltage outputs across the +/-10 V range.
      4
      Use an approved VersaMax I/O carrier and preserve the documented field-wiring termination.
      5
      Record channel assignments, scaling, polarity, commanded values and connected loads before replacement.
      6
      Check field wiring against the controlled drawing; do not infer terminal assignments from another VersaMax analog model.
      7
      During commissioning, force or command one output at a time under an approved test procedure and compare the measured response.
      8
      Review node diagnostics and record the final zero, span, polarity and application response before service release.

      Technical notes

      Technical notes

      Emerson IC200ALG322 official product page and VersaMax Modular I/O and Control data sheet 00813-0100-0112. Evidence boundary: Exact-model claims are limited to Emerson's IC200ALG322 product page and VersaMax data sheet; platform-level mounting, hot-swap and environmental values are identified separately and must be checked against the installed configuration.

      FAQS

      • What type of module is IC200ALG322?
        It is a VersaMax analog voltage output module.
      • How many output channels are provided?
        The official Emerson catalog lists four analog output channels.
      • What output range is published?
        The documented voltage range is +/-10 V.
      • What is the output resolution?
        The published resolution is 12 bit.
      • Does the module require a separate carrier?
        Yes. Emerson's ordering table states that the I/O modules require an I/O carrier for wiring termination.
      • Can a different VersaMax analog model be configured the same way?
        Not by assumption. Channel count, signal type and resolution differ across the VersaMax analog range, so the exact IC200ALG322 identity and project mapping must be used.
      • What should be recorded before replacement?
        Record the node position, carrier, channel-to-terminal mapping, scaling, polarity, commanded values, connected loads and current diagnostics.
      • What confirms successful commissioning?
        Verify the exact identity and carrier, prove each channel through an authorized test, compare measured output and controlled-device response, and record the accepted baseline.
      Trusted by 5,000+ plants worldwide | Backed by our vast inventory of top-tier control parts, modules and cards, fast shipments are dispatched to cover your urgent needs. ABOUT US >>
