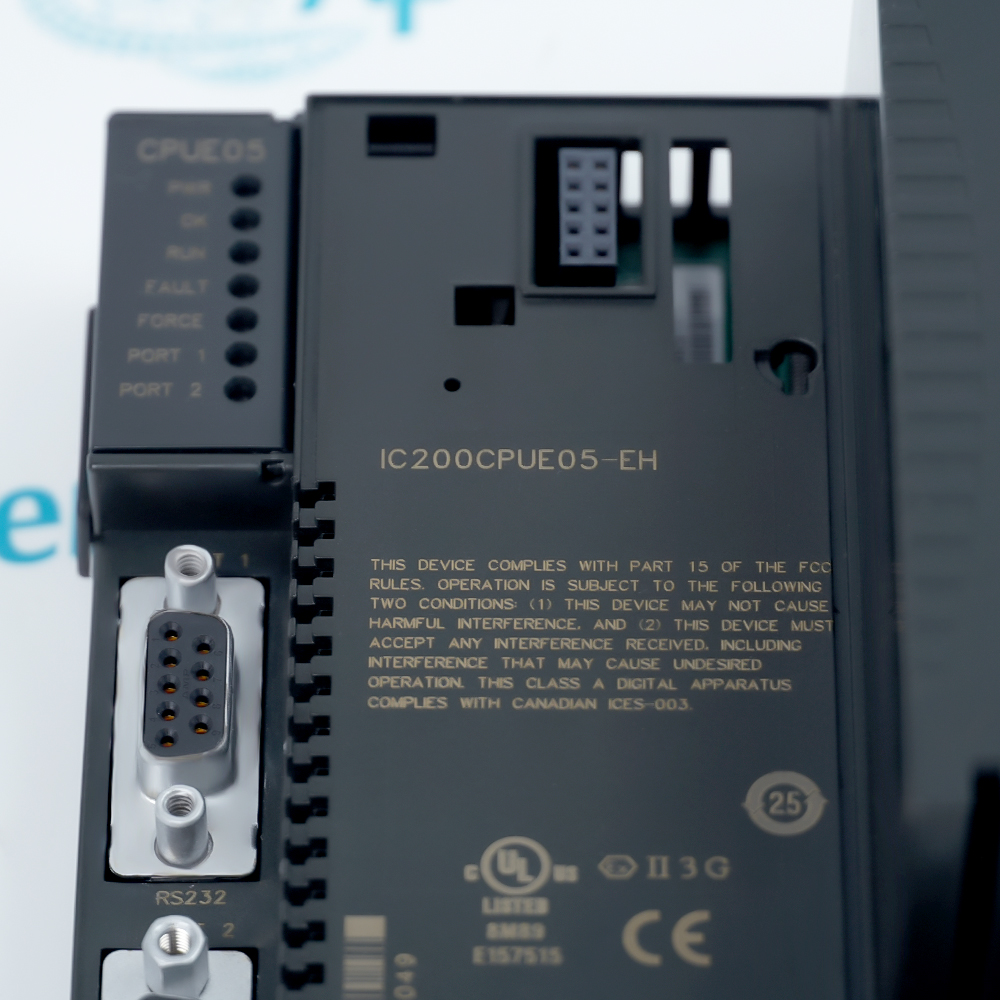

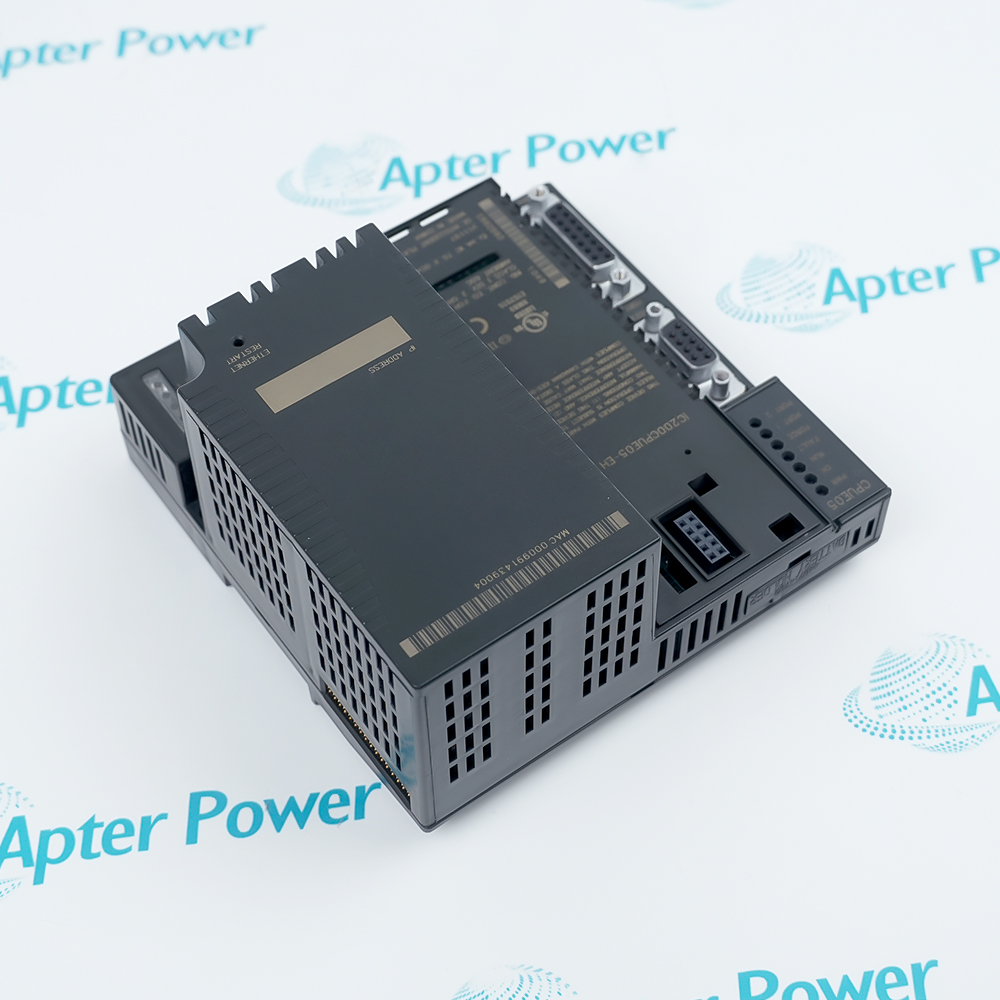

Product image is representative; revision or series may vary. Contact us to request a specific version.
Get a quick price for IC200CPUE05
For more information on how your data is processed and stored by Apterpower please read our privacy policy
Technical specifications for IC200CPUE05
-
Manufacturer:General Electric
-
Product Category:PLC Systems
-
Spare Part Number:IC200CPUE05
-
Estimated shipping dimensions:12.5x13x7cm
-
Weight:0.3 kg
-
Tariff Code:8537101190
-
Counliy of origin:USA
-
Module Capacity:64 Modules
-
I/O Point Capacity:2048 I/O Points
-
Number of Serial Ports:2 Serial Ports
-
Serial Communication Options:RS-232 and RS-485
-
Local Station Manager Applications:Supported with RS-232 port
-
Configurable Memory Capacity:128 KB
-
Auto-Configuration:Supported
-
Program Storage Option:Non-Volatile Flash Memory
-
Ethernet Data Rate:10 Mbps (full-duplex or half-duplex)
Information
Overview
Manuals
Common Applications
Product Precautions
The IC200CPUE05 shares the basic features of the other VersaMax PLC CPUs. It provides powerful PLC functionality in a small, versatile system. CPUE05 can serve as the system controller for up to 64 modules with up to 2048 I/O points. Two serial ports provide RS-232 and RS-485 interfaces for serial communications. CPUE05 also provides a built-in Ethernet Interface.
- Supports up to 64 modules with up to 2048 I/O points
- Non-volatile flash memory for program storage
- Can be either auto-configured or configured from a programmer using configuration software
The IC200CPUE05 also includes a run/stop switch, providing users with direct control. Floating point data functions are supported, enhancing the processing capabilities for various applications. This unit communicates over an Ethernet network at rates of 10 Mbps, capable of operating in either full-duplex or half-duplex modes.
In terms of memory capacity, this module boasts 128 KB, which can be configured as needed. It supports an auto-configuration feature, streamlining the setup process. Programs can be stored in non-volatile flash memory, ensuring that critical data is preserved even during power interruptions. Furthermore, a battery backup system maintains necessary information, including programmed data and the time clock.
Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description.
General Electric IC200CPUE05 CPU with Ethernet Interfac Manuals, Datasheets, Drivers, Link
Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description.
Oil & Gas Transmission
Placed in block valve stations along long-distance pipelines to function as a smart remote terminal unit (RTU) that runs pipeline pressure safety interlocks and communicates over Modbus TCP.
Automotive
Governs lighting, ventilation, and pneumatic power auxiliary panels around robotic welding cells, interlocking safety gates with the main production network.
Thermal Power
Applied to fuel conveyor belts and ash handling subsystems to execute start-stop sequencing and interlock protection for heavy motors.
Hydroelectric Power
Operates the opening and closing logic of spillway gates and intake valves based on reservoir level sensors, communicating with the main plant station via Ethernet.
Rail Transit
Monitors water level switches in metro station sump pits to automatically switch duty and standby pumps, outputting operational states to the station BAS system.
Water & Wastewater Treatment
Serves as the main controller for regional pumping stations to execute sequence logic for lifting pumps and transmit real-time flow and level data to the central SCADA system via its embedded Ethernet port.
When operating the IC200CPUE05 CPU module, you must ensure a stable 24 VDC input supply and verify that the internal backup battery is actively connected prior to any power loss to prevent the erasure of the real-time clock and program data stored outside the non-volatile flash memory, while strictly distinguishing the pin definitions between the RS-232 and RS-485 serial ports during wiring, and maintaining awareness of its 10 Mbps speed limitation during network operations, and finally, utilizing its auto-configuration feature when adding or removing hardware to confirm that the total number of connected modules does not exceed 64 and the total managed I/O capacity stays within 2048 points.
Revisions
Revision Part #
Also known as
Alternative Names
1C200CPUE05
1C2OOCPUEO5
IC200CPUEO5
IC20OCPUE05
IC2O0CPUE05
IC2OOCPUEO5
Technical notes
The IC200CPUE05 is a modular central processing unit with an integrated Ethernet interface from the Emerson / GE Fanuc Versamax series. This CPU supports the connection of up to 64 independent modules and can directly manage 2048 I/O points, boasting 128 KB of configurable user memory while supporting program storage via non-volatile flash memory and the retention of the real-time clock and critical data through a battery backup system. In terms of communication and control, it is equipped with two serial ports supporting RS-232/RS-485 protocols and can perform network transmission via a 10 Mbps full/half-duplex Ethernet interface, while also compatible with advanced floating-point mathematical operations. Furthermore, the module panel integrates an intuitive physical run/stop switch and an Ethernet hardware restart pushbutton, features an auto-configuration capability, and simultaneously supports standard 35mm DIN rail snapping and vertical panel bolt mounting.
FAQ View All FAQ
-
What is the IC200CPUE05?The IC200CPUE05 is a CPU module with Ethernet interface capabilities from the VersaMax series, formerly under GE Fanuc and currently under Emerson.
-
What types of serial communication interfaces are available on the IC200CPUE05?It features two serial ports that provide both RS-232 and RS-485 serial communication options.
-
What is the memory capacity of the IC200CPUE05, and can it be adjusted?The IC200CPUE05 possesses a memory capacity of 128 KB, which can be configured based on operational needs.
-
How to quickly complete the initial setup process of the IC200CPUE05?The setup process can be streamlined by utilizing the module's built-in auto-configuration feature.
-
How does the IC200CPUE05 preserve internal data during a plant power interruption?Programs are stored in non-volatile flash memory, ensuring critical data is preserved when power is lost.
