Technical specifications for IC200CHS022
-
Manufacturer:General Electric
-
Product Category:Gas Turbine Control
-
Spare Part Number:IC200CHS022
-
Estimated shipping dimensions:16.5x6.5x7cm
-
Weight:0.24 kg
-
Tariff Code:8537101190
-
Counliy of origin:USA
-
Product Type:Compact Box-Style I/O Carrier
-
Series:VersaMax
-
Module Capacity:One VersaMax I/O Module
-
Terminal Type:36 IEC Box-Style Screw Terminals
-
Mounting:35 mm DIN Rail or Panel Mount
-
Module Orientation:Vertical
-
Field Wiring:Integrated
-
Wiring Style:Local Box Clamp
Information
Overview
Manuals
Common Applications
System Integration

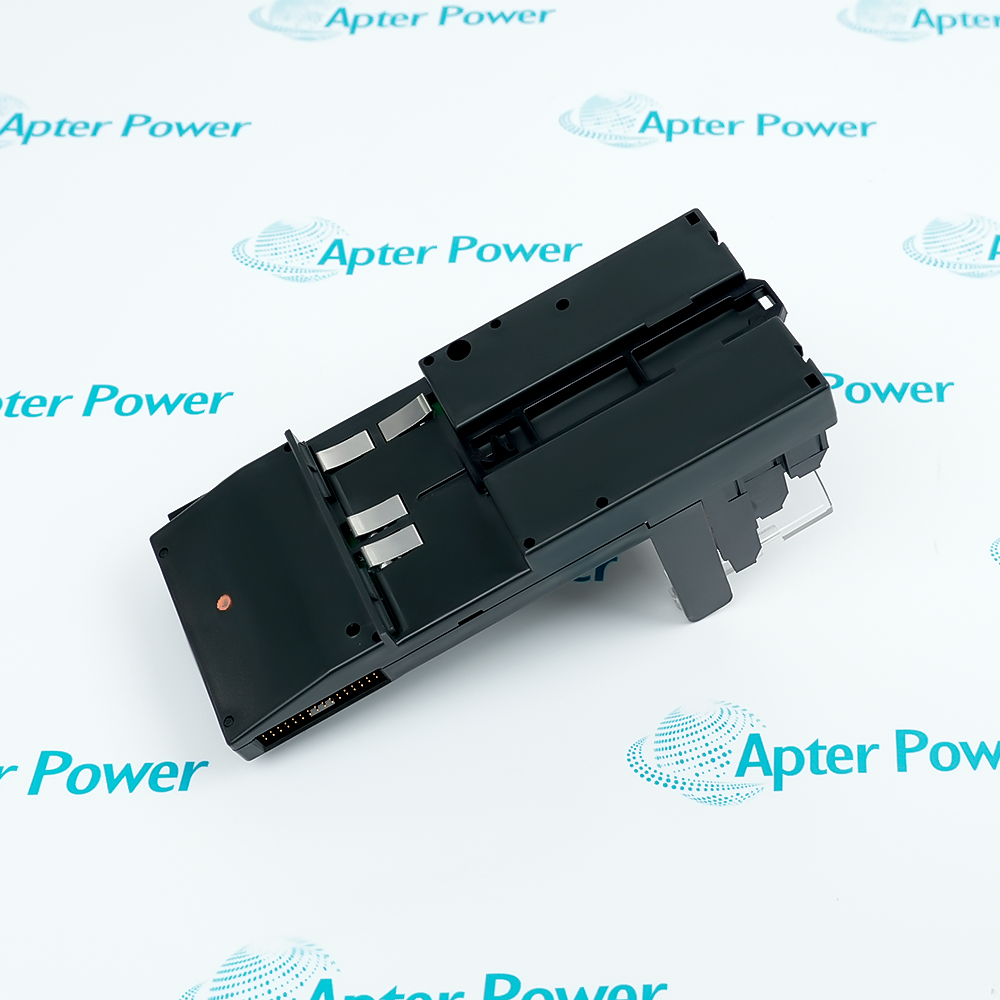

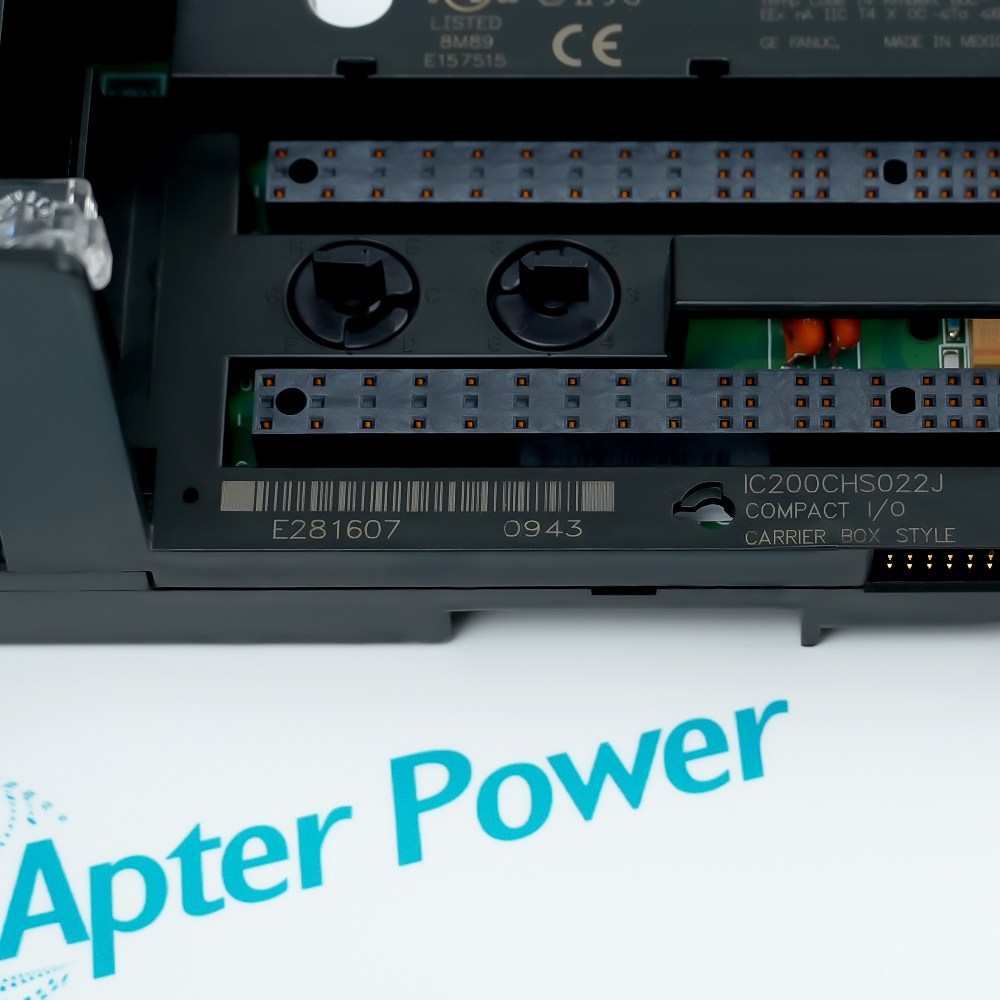

The IC200CHS022 is a compact box-style I/O carrier that belongs to the GE Fanuc VersaMax series. This hardware component provides the mounting, backplane communications, and field wiring connections for a single I/O module. It features 36 IEC box-style terminals and accommodates wiring configurations for up to 32 I/O points alongside 4 common power connections.
- GE VersaMax series component
- 2 Amps rated current per point
- Toolless backplane interconnect plugs
The IC200CHS022 carrier establishes a direct electrical backplane connection between adjacent VersaMax modules, transferring power and logic data across the system. This base unit operates with a maximum rated current of 2 Amps per point or 8 Amps per common terminal point.
Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description.
General Electric IC200CHS022 VersaMax Compact I/O Carrier Box Style Manuals, Datasheets, Drivers, Link
Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description.
Metallurgy & Steel Industry
Installed in control cabinets of steelmaking blast furnaces or rolling lines, carrying distributed I/O modules to collect conveyor limit switch and blast furnace valve statuses.
Petrochemical & Refining Industry
Deployed in refinery auxiliary control hazardous area enclosures or operator stations to terminate input/output control wires for motorized valves, solenoid valves, and temperature transmitters.
Cement & Building Materials Industry
Used in remote distributed I/O boxes for cement clinker batching stations and kiln-head control systems, terminating load cell transmitters and feeder control cables.
Pharmaceutical & Biotechnology Industry
Provides modular field wiring in fermenter control systems or cleanroom environmental monitoring, connecting differential pressure transmitters and peristaltic pump control lines.
Pulp & Paper Industry
Deployed in remote I/O distributed cabinets within the dryer or press sections of paper machines, collecting field sensor wiring from sizing and drying processes locally.
Oil & Gas Pipeline Transmission
Used inside Remote Terminal Unit (RTU) cabinets at intermediate compressor stations or valve locations along long-distance pipelines, connecting pipeline pressure transmitters and Emergency Shutdown (ESD) valves.
The IC200CHS022 serves as the mounting base and field wiring interface for a single VersaMax I/O module. It provides backplane communication, integrated wiring terminals, and mechanical support while allowing I/O modules to be installed or replaced without disturbing field wiring, improving maintenance efficiency and reducing system downtime.
Revisions
Revision Part #
Also known as
Alternative Names
1C200CHS022
1C2OOCHSO22
IC200CHSO22
IC20OCHS022
IC2O0CHS022
IC2OOCHSO22
Technical notes
This module features an IEC box style assembly with 36 connection terminals distributed across three terminal strips to terminate field wiring and deliver power. It accepts a single solid or stranded wire from AWG 14 to AWG 22, or up to two AWG 18 wires per terminal. Designed for DIN rail or panel mounting, it is rated at 2 A per point and 8 A per power or ground section.
FAQ View All FAQ
-
How many terminals does the IC200CHS022 have?The IC200CHS022 has a total of 36 terminals.
-
What are supported modules by the IC200CHS022?The IC200CHS022 is compatible to any VersaMax module.
-
What is the voltage and current rating of the carrier module’s terminals?The IC200CHS022 is rated 0-264 VAC, 2 Amperes per terminal.
-
What is the transient voltage rating of the IC200CHS022?The IC200CHS022 has 300 VAC transient voltage rating.
-
What is the supported mounting method of the IC200CHS022?The IC200CHS022 may be mounted to a DIN rail or Panel mounting.
-
