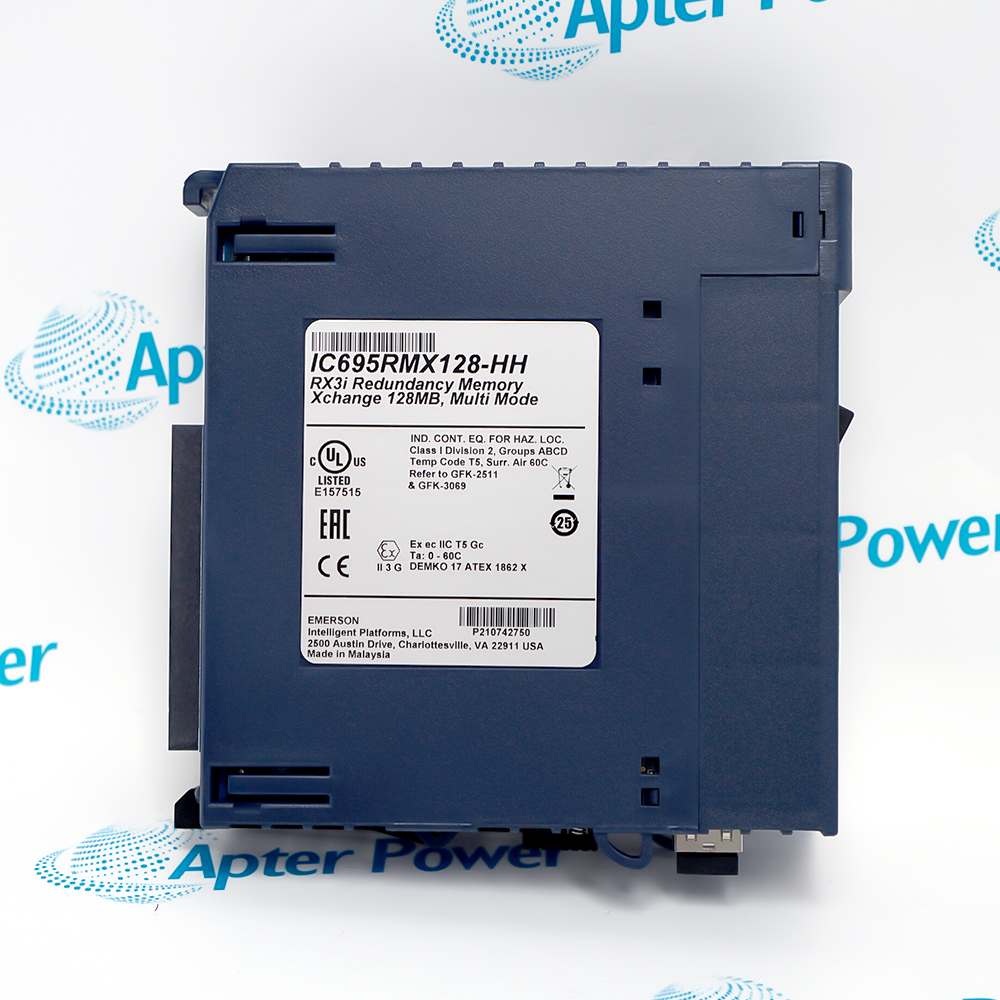

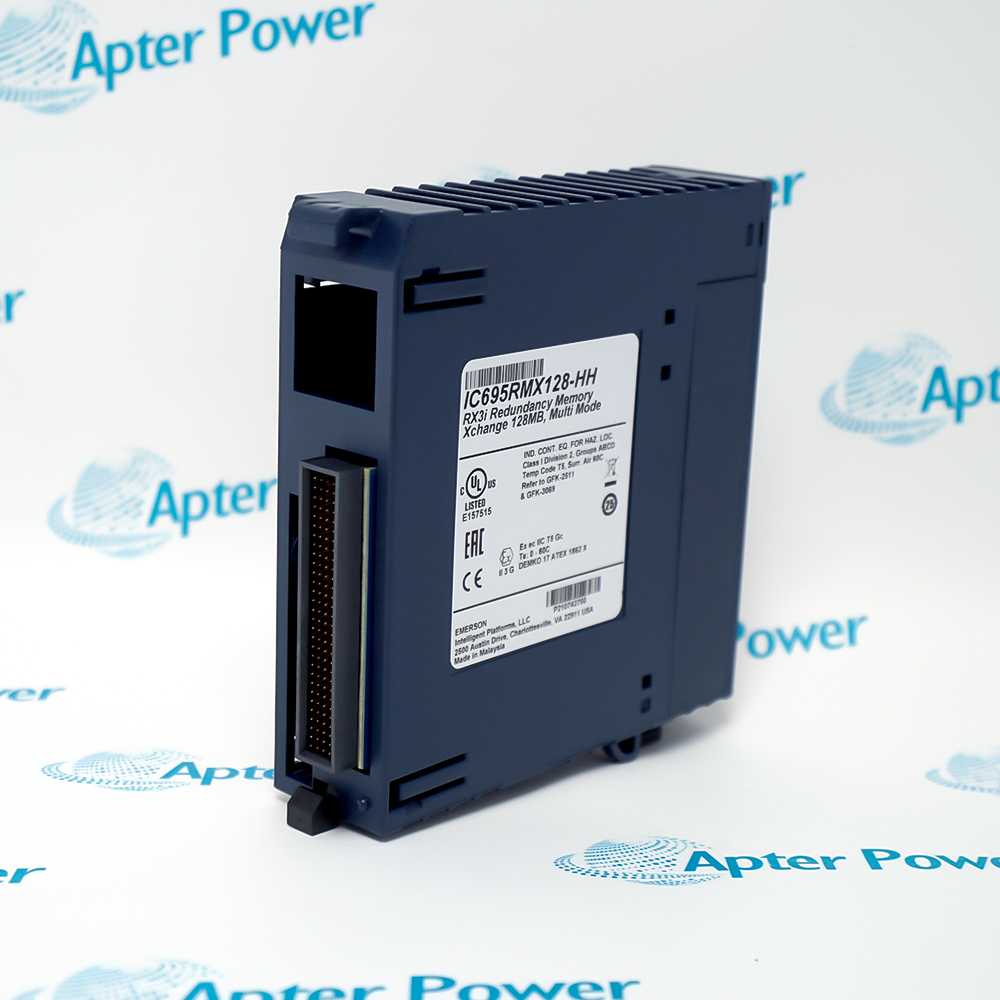

      General Electric IC695RMX128
      General Electric IC695RMX128
      General Electric IC695RMX128
      General Electric IC695RMX128
      General Electric IC695RMX128
      General Electric IC695RMX128
      Product image is representative; revision or series may vary. Contact us to request a specific version.

      IC695RMX128

      Reflective Memory Module
      In Stock
      Ships by Wednesday, October 14
      Fast Shipping Available

      Product Describe：

      GE IC695RMX128 is a PACSystems RX3i redundant-memory exchange module that shares 128 MB of reflective memory through a multimode fiber network.

      Ask our team:

      Get a quick price for： IC695RMX128
      Quantity*
      Upload (gif, jpg, jpeg, png, bmp, doc, docx, xls, xlsx, ppt, pdf, csv)
      Get a Quote
      For more information on how your data is processed and stored by Apterpower please read our privacy policy.
      Technical specifications Information Alternative names Technical notes FAQ

      Technical specifications for IC695RMX128

      Technical specifications for IC695RMX128

      • Manufacturer:
        General Electric
      • Product Category:
        PLC Systems
      • Spare Part Number:
        IC695RMX128
      • Estimated shipping dimensions:
        3.5x13.2x13.6cm
      • Weight:
        0.22 kg
      • Tariff Code:
        8537101190
      • Counliy of origin:
        USA
      • Platform:
        PACSystems RX3i
      • Function:
        Redundant Memory Xchange / reflective memory
      • Memory:
        128 MB SDRAM
      • Transfer model:
        Packet-based dynamic data exchange
      • Power at 3.3 V DC:
        580 mA
      • Power at 5 V DC:
        220 mA
      • Fiber connector:
        LC, IEC 61754-20
      • Fiber type:
        Multimode
      • Maximum fiber segment:
        300 m
      • Connector ferrule:
        Zirconium ceramic
      • Maximum insertion loss:
        0.35 dB
      • Return loss:
        -30 dB
      • CMX128 packet size:
        4 to 68 bytes
      • General-purpose network interrupts:
        4
      • Maximum network nodes:
        256
      • Configuration:
        Configurable network offset and redundant-transfer mode
      View as PDF Ask for Quote

      Information

      Information

      Overview Manuals Common Applications Product Precautions
      GE IC695RMX128 is a PACSystems RX3i redundant-memory exchange module that shares 128 MB of reflective memory through a multimode fiber network.
      • Provides 128 MB shared reflective memory
      • Uses multimode fiber with LC connectors
      • Supports redundant data transfer
      • Provides programmable network interrupts

      IC695RMX128 operates within the documented GE PACSystems RX3i reflective-memory network configuration and approved field interfaces.

      Engineered applications include High-availability controller exchange, Deterministic shared-memory data, Fiber-connected control nodes, RX3i RMX replacement.

      Important Notice: Export the RX3i hardware configuration, record node and network offsets, isolate the rack, protect the LC fiber ends and verify every redundant-transfer setting.

      GE IC695RMX128 Manuals & Downloads
      GE IC695RMX128 Technical Reference (PDF)GE IC695RMX128 Installation & Commissioning Guide (PDF)

      Important Notice: The first document consolidates verified product and system data. The second provides installation, connection, commissioning and acceptance guidance.

      High-availability controller exchange
      Shares selected controller data across a redundant architecture.
      Deterministic shared-memory data
      Reflects configured memory updates to the network with controlled packet behavior.
      Fiber-connected control nodes
      Links separated control cabinets over the documented multimode fiber segments.
      RX3i RMX replacement
      Restores the exact node while retaining offsets, interrupts and transfer configuration.
      Read the applicable GE instructions before work. Verify IC695RMX128, the installed system and every configured interface before isolation, wiring or commissioning.
      1
      Verify the complete IC695RMX128 marking and its assigned GE PACSystems RX3i reflective-memory network position before work.
      2
      Place the connected high-availability controller exchange process in the approved maintenance state.
      3
      Isolate every documented power, signal and stored-energy source before disconnecting conductors or cables.
      4
      Record the installed slot, node, network offsets, interrupts and redundant-transfer configuration before removal.
      5
      Use ESD-safe handling and protect every LC fiber end from dust and damage.
      6
      Confirm the installed PACSystems RX3i universal backplane and compatible reflective-memory nodes against the approved project.
      7
      Restore power in a controlled sequence and review module, network and controller diagnostics.
      8
      Prove the intended deterministic shared-memory data function and retain the final acceptance result.

      Alternative Names

      Alternative Names

      IC695RMX128 GE IC695RMX128

      Technical notes

      Technical notes

      Export the RX3i hardware configuration, record node and network offsets, isolate the rack, protect the LC fiber ends and verify every redundant-transfer setting.

      FAQS

      • Which PACSystems platform accepts GE IC695RMX128?
        IC695RMX128 is an RX3i specialty module for a compatible PACSystems universal backplane.
      • How much reflective memory is provided by GE IC695RMX128?
        The module provides 128 MB of SDRAM for configured shared-memory exchange.
      • Which optical medium is required by GE IC695RMX128?
        Use the documented multimode fiber network with LC connectors and protect every optical end face during service.
      • What fiber-segment length applies to GE IC695RMX128?
        The documented multimode segment limit is 300 m; verify the complete network loss budget as well as length.
      • Which backplane currents must be allowed for GE IC695RMX128?
        Allow 580 mA from 3.3 V DC and 220 mA from 5 V DC in the RX3i power budget.
      • How many nodes can participate with GE IC695RMX128?
        The reflective-memory network supports up to 256 configured nodes, subject to the approved system design.
      • Which interrupt resources are available on GE IC695RMX128?
        The module provides a programmable interrupt and four general-purpose network interrupts for the configured application.
      • What must be restored when replacing GE IC695RMX128?
        Restore the exact slot, node and network offsets, redundant-transfer mode, interrupt mapping and fiber-ring order, then prove memory exchange and diagnostics.
      Trusted by 5,000+ plants worldwide | Backed by our vast inventory of top-tier control parts, modules and cards, fast shipments are dispatched to cover your urgent needs. ABOUT US >>
