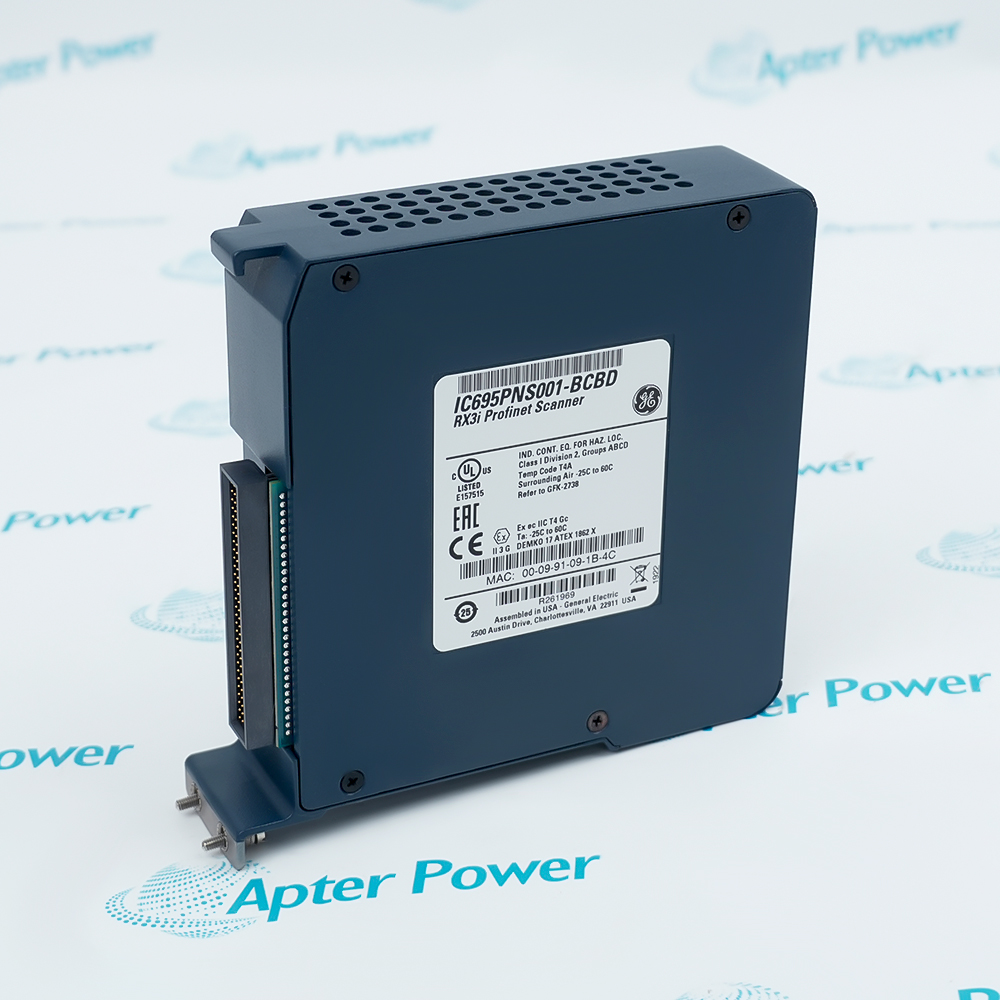

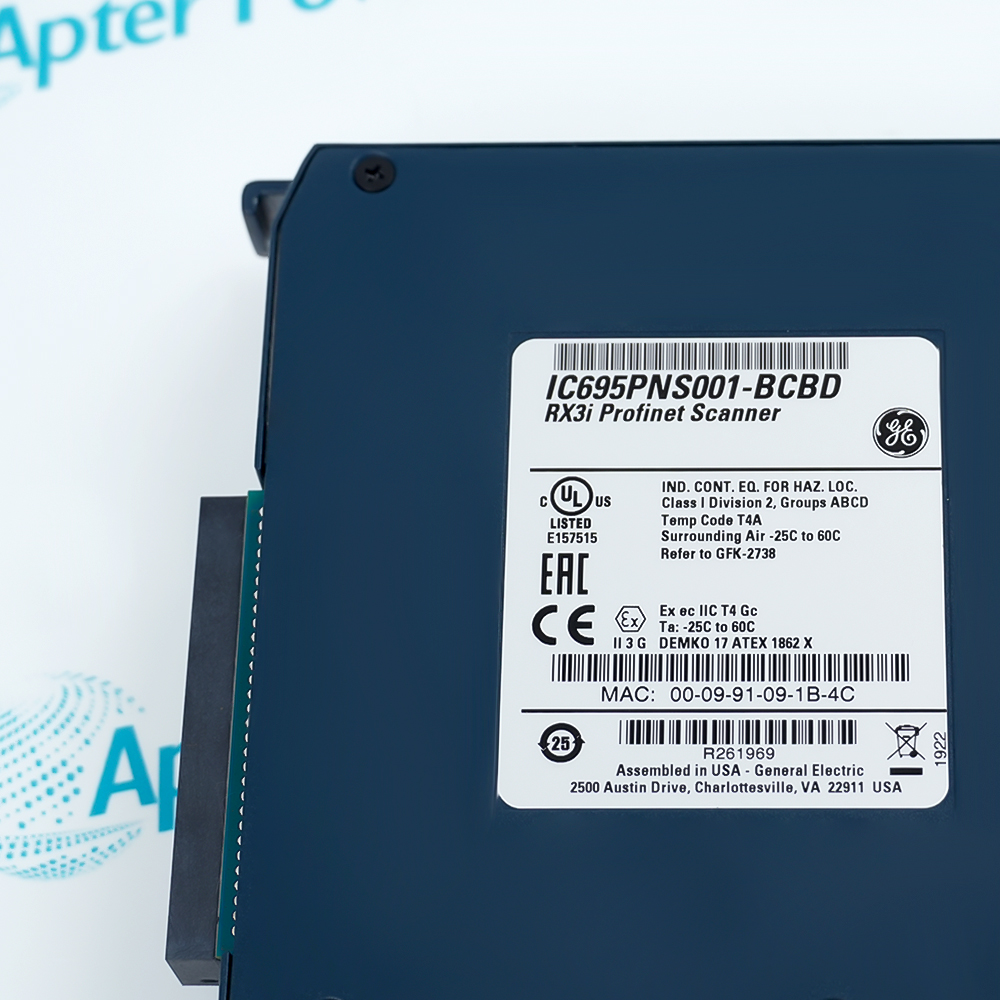

The IC695PNS001 is a high-performance PROFINET Network Scanner module within the PACSystems RX3i control family. Functioning as a high-density network bridge, this component interfaces a remote decentralized I/O backplane directly onto a deterministic PROFINET infrastructure, enabling high-speed variable exchange with the host controller rack. The hardware features a dedicated micro-USB interface for secure local firmware flashes, alongside four integrated Ethernet ports capable of autosensing 10/100/1000 Mbps line speeds to support flexible and robust topologies.
Support for daisy-chain/line, star, or ring (PROFINET Media Redundancy Protocol (MRP)) topologies
The network can include media interfaces of more than one type
Support for transfer of I/O Device Name to another PNS module using an SD card
The PACSystems IC695PNS001 RX3i PROFINET Scanner and IC695PNS101 RX3i Advanced PROFINET Scanner modules connect a remote universal RX3i I/O rack of Series 90-30 or RX3i modules to a PROFINET I/O Controller. The PROFINET Scanner scans the modules in its rack, retrieving input data and providing output data, and exchanges that data on the PROFINET I/O LAN at the configured production rate. The PNS manages PROFINET communication and module configuration between an I/O Controller and modules in the remote rack. If network communications are lost, the PNS manages I/O states according to the individual module configurations. The PNS001 and PNS101 support 10/100/1000 Mbps Copper, 100/1000 Mbps Multi mode Fiber, and 100/1000 Mbps Single-mode Fiber. PROFINET communications on the network require 100 or 1000 Mbps link speed. Although 10 Mbps cannot be used for PROFINET communications, 10 Mbps can be used for other types of Ethernet traffic such as PING.
Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description.
General Electric IC695PNS001 PROFINET Scanner Module Manuals, Datasheets, Drivers, Link
Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description.
Semiconductor Wafer Manufacturing
Serving as a remote I/O hub inside cleanrooms to aggregate data from gas flowmeters, temperature/humidity sensors, and wafer-handling manipulator positions.
Oil & Gas Long-Distance Pipelines
Installed inside unattended off-take stations or valve room control enclosures along pipelines to remotely transmit pipe pressure, leak detection, and valve position data via fiber optic networks.
PROFINET Substation BAS/ECS in Rail Transit
Aggregating operational statuses and control loops from distributed remote chassis of platform fans, pumps, lighting, and chillers within subway stations.
Pharmaceutical Fermentation & Filling Workshops
Connecting aseptic material conveyor lines, multi-stage pump groups, and weighing units, maintaining regulatory fail-safe states via local configuration if the main network disconnects.
Offshore Drilling Rig Emergency Shutdown Systems
Distributed inside cabinets across hazardous platform zones to connect wellhead fire/gas detectors and explosion-proof valve actuators, ensuring local I/O state locking during network faults.
Large Food Warehousing & Cold Chain Logistics
Connecting stacker cranes, shuttle cars, and multi-zone scattered cold storage temperature monitoring nodes within large automated storage and retrieval systems (AS/RS).
When commissioning the IC695PNS001 distributed scanner module, you must ensure it is seated within a high-capacity RX3i Universal Backplane, and hot-swapping the card while powered on is strictly prohibited. For network routing, the four onboard Ethernet ports must be accurately mapped into a star or MRP ring topology per the active configuration, blind cross-connections must be forbidden to prevent localized broadcast storms inside the cabinet.
Furthermore, firmware flashes must be executed locally via the dedicated micro-USB service port under steady-state conditions; isolating the power supply or forcibly unplugging the cable during updates is strictly prohibited to avoid permanent corruption of the underlying bootloader.
The GE Fanuc IC695PNS001 is a PROFINET scanner module developed within the PACSystems RX3i platform. This hardware establishes the network link between remote RX3i universal I/O chassis—containing either Series 90-30 or RX3i series modules—and designated PROFINET I/O controllers.
It is a PROFINET scanner module within the PACSystems RX3i series, used to establish network connections between remote I/O chassis and a main controller.
Which control system platform is the IC695PNS001 primarily used for?
It is dedicated to the PACSystems RX3i automation control system from General Electric (now Emerson).
How do you use the IC695PNS001 module?
Insert it into a slot of a remote RX3i universal chassis, connect it to a PROFINET I/O controller via network or fiber cables, and configure it within the programming software.
What types of physical network media does the IC695PNS001 support?
It supports 10/100/1000 Mbps copper, 100/1000 Mbps multimode fiber, and 100/1000 Mbps single-mode fiber.
Which series of I/O modules can the IC695PNS001 interface with in a remote chassis?
It supports Series 90-30 modules and RX3i series I/O modules installed in the remote chassis.
