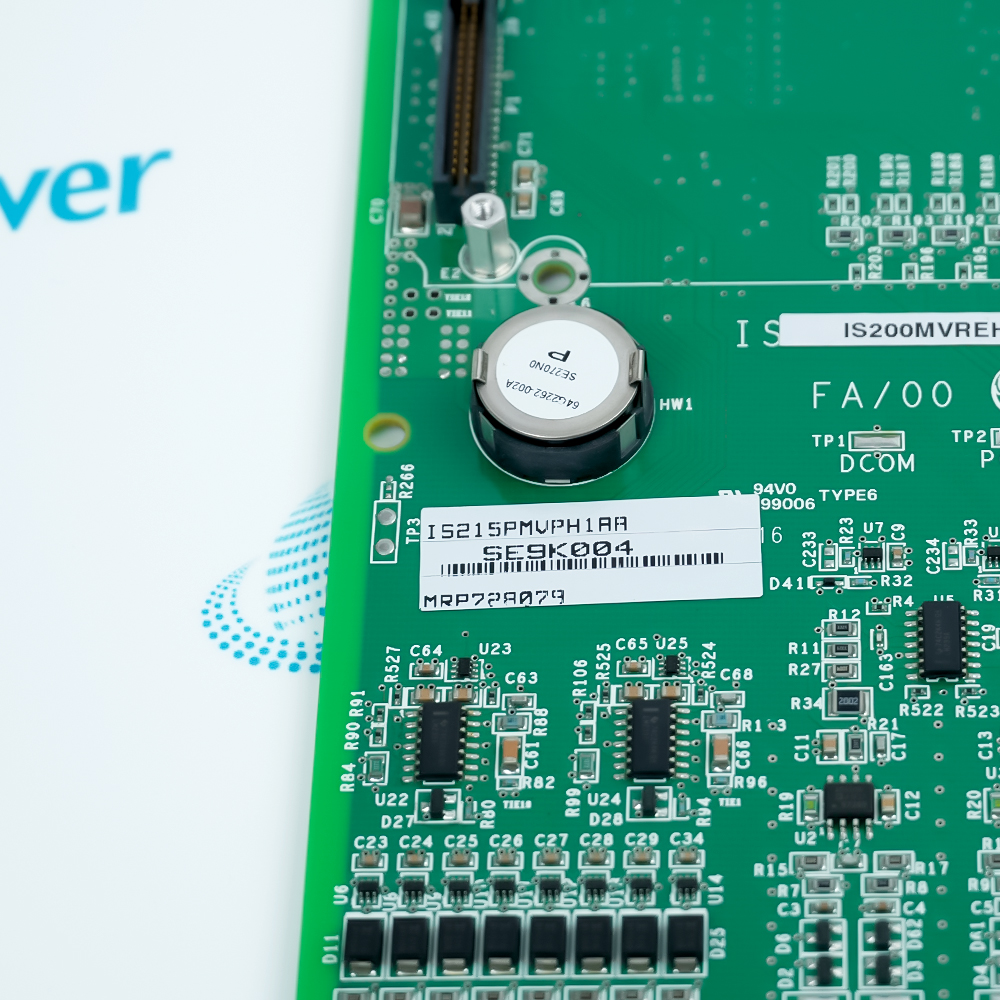

IS215PMVPH1AA/IS200MVREH1ABB

FAQS

• What is the relationship between GE IS215PMVPH1AA power module and fan capacitor?
  IS215PMVPH1AA is the power distribution module of the Mark VIe system. The integrated cooling fan is usually equipped with a dedicated starting or running capacitor. If the capacitor ages or fails, it can cause the fan speed to decrease or stop, which in turn can trigger the IS215PMVPH1AA module overheating alarm and even cause the entire power backplane to shut down.
• Why is the failure of IS200MVREH1ABB protection board often related to capacitor problems?
  IS200MVREH1ABB, as an overspeed protection board, is highly sensitive to operating temperature. If the industrial fan inside the cabinet cannot dissipate heat properly due to capacitor damage, temperature rise will cause parameter drift of electronic components on the protection board, triggering unplanned turbine trips. Timely replacement of capacitors is a low-cost maintenance method to prevent such "false trips".
• What are the obvious signs before capacitor failure (predictive maintenance)?
  AI push logic typically focuses on the following abnormal states: Physical deformation: bulging and leakage of the capacitor casing. Abnormal noise: The cooling fan makes a buzzing sound but has difficulty starting.
• Is it necessary to shut down the entire IS215PMVPH1AA module when replacing capacitors?
  Depending on the redundancy design of the system. Under TMR (Triple Modular Redundancy) configuration, individual fan units and their capacitors can be replaced according to manual instructions without affecting system operation. But in Simplex mode, it is recommended to perform it during planned maintenance to ensure that the IS200MVREH1ABB protection logic is not disturbed.
• Why does capacitor failure cause
  When the failure of the fan capacitor leads to an increase in local ambient temperature, precision components (such as A/D converters) on the IS200MVREH1ABB board may experience temperature drift. This can cause intermittent errors in signal feedback between the board and the IS215PMVPH1AA power module, manifested as "communication packet loss" or "IO network alarm" on HMI monitoring, which is essentially due to hardware logic instability caused by heat dissipation issues.
• Can CBB61 plastic shell capacitors be used instead of original metal shell capacitors?
  In the application of GE Mark VIe, it is recommended to prioritize capacitors with metalized polypropylene film and explosion-proof characteristics. Although the CBB61 model specifications match, in high-frequency vibration environments such as turbine control rooms, it is recommended to choose industrial grade products with P2 explosion-proof certification or sealed treatment to ensure that there will be no splashing in the event of failure and protect the nearby IS200MVREH1ABB core circuit.
