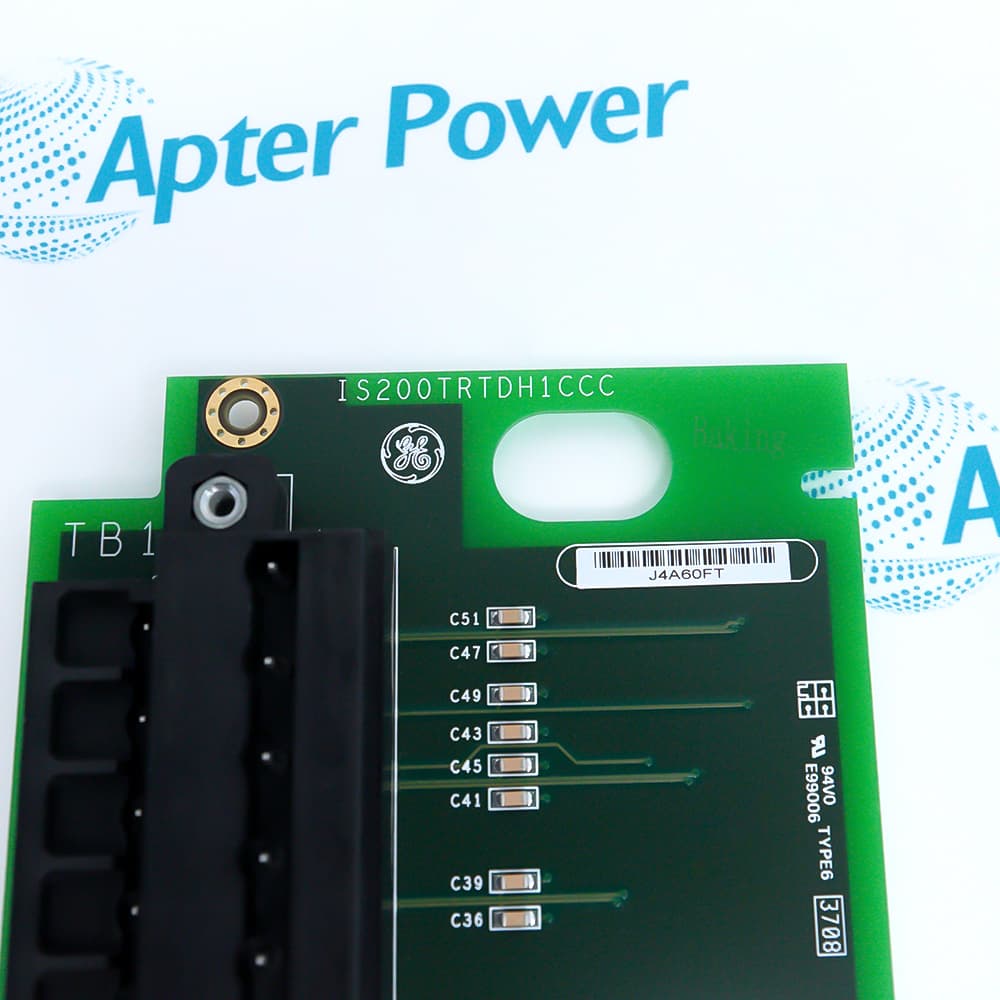

      General Electric IS200TRTDH1CCC
      General Electric IS200TRTDH1CCC
      General Electric IS200TRTDH1CCC
      General Electric IS200TRTDH1CCC
      General Electric IS200TRTDH1CCC
      General Electric IS200TRTDH1CCC
      Product image is representative; revision or series may vary. Contact us to request a specific version.

      IS200TRTDH1CCC

      RESISTANCE TEMPERATURE DEVICE
      In Stock

      Product Describe：

      RESISTANCE TEMPERATURE
      DEVICE
      MARK VI
      SPEEDTRONIC SERIES

      Ask our team:

      Get a quick price for： IS200TRTDH1CCC
      Quantity*
      Upload (gif, jpg, jpeg, png, bmp, doc, docx, xls, xlsx, ppt, pdf, csv)
      Get a Quote
      For more information on how your data is processed and stored by Apterpower please read our privacy policy.
      Technical specifications Information FAQ More Details

      Technical specifications for IS200TRTDH1CCC

      Technical specifications for IS200TRTDH1CCC

      • Manufacturer:
        General Electric
      • Product Category:
        Gas turbine control
      • Spare Part Number:
        IS200TRTDH1CCC
      • Estimated shipping dimensions:
        43.3x28x3.5cm
      • Weight:
        1.5 kg
      • Tariff Code:
        8537101190
      • Counliy of origin:
        USA
      • Number of channels:
        8
      • Span:
        0.3532 to 4.054 V
      • Temperature:
        -30 to+65 oC
      • Technology:
        Surface mount
      • Series:
        Mark VI
      • Number of channels:
        8 independent channels
      • Input type:
        Supports 3-wire RTD configuration
      • Measurement range:
        The voltage range is 0.3532 to 4.054 V.
      Ask for Quote

      Information

      Information

      Overview Manuals Core functions and applications
      The IS200TRTDH1CCC is a resistance temperature device developed by GE. It is a part of the Mark VI controI system. The Resistance Temperature Device (RTD) termina board boasts the capability to accommodate up to 16 three-wire RTD inputs efficiently.
        • Two removable terminal blocks
        • 24 screw connections per block
        • RTD input connects to terminal blocks using three wires
      These inputs are meticulously wired to two barrier-type terminal blocks, ensuring a streamlined and organized connection process.
      Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description.
      GE IS200TRTDH1CCC RESISTANCE TEMPERATURE DEVICE Manuals, Datasheets, Drivers, Link Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description.
      Signal processing: This board serves as the interface between RTD sensors and Mark VI control systems, converting resistance signals into digital temperature values for real-time process adjustment by the controller. Multi channel support: The board is usually configured with 8 channels, but in some configurations it can support up to 16 three wire RTD inputs. Industry applications: Widely used in petrochemical, metallurgical, industrial automation, and laboratory testing facilities to monitor the temperature of equipment such as motors, reducers, reactors, and heat exchangers.

      FAQS

      • What is IS200TRTDH1CCC?
        It is a resistance temperature device developed by GE under the Mark VI series
      • What is the purpose of system limit checking?
        System limit checking sets configurable high and low levels for RTD inputs. It helps generate alarms for out-of-limit conditions, providing a means to monitor and control temperature variations
      • How does it handle out-of- limit signals?
        It features a RESET sys command to reset out-of-limit signals, allowing the system to clear faults and return to normal operation after addressing any temporary deviations
      • Why is the resistance of each RTD checked?
        It checks the resistance of each RTD and creates a fault if values are too high or too low. This feature helps identify potential issues with RTDs, ensuring accurate temperature measurements.
      • What information is stored in the ID device for each connector in the module?
        The ID device for each connector in TRTD contains information like the terminal board's serial number, board type, revision number, and the J00 connector location. It is interrogated by the I/O processor to ensure proper identification and compatibility. If a mismatch is detected, the system responds accordingly to prevent errors.
      • What types of significant revisions does this IS200TRTDH1ccc device make use of?
        This IS200TRTDH1CCC PCB has two functional revisions and a sole artwork configuration revision, all rated at similar-appearing C functional grades by GE.
      • Where exactly was this IS200TRTDH1CCC device first manufactured?
        This IS200TRTDH1CCC product was manufactured in General Electric's Salem, Virginia factory plant location.
