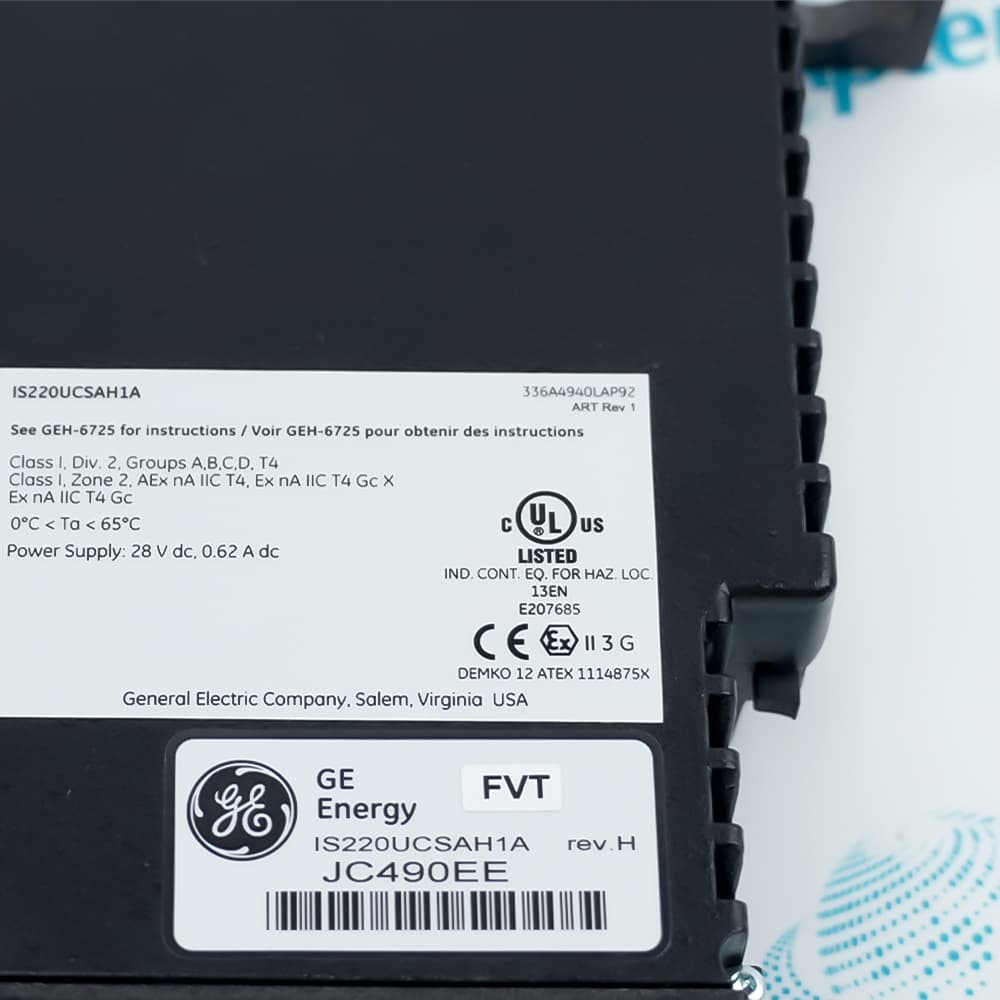

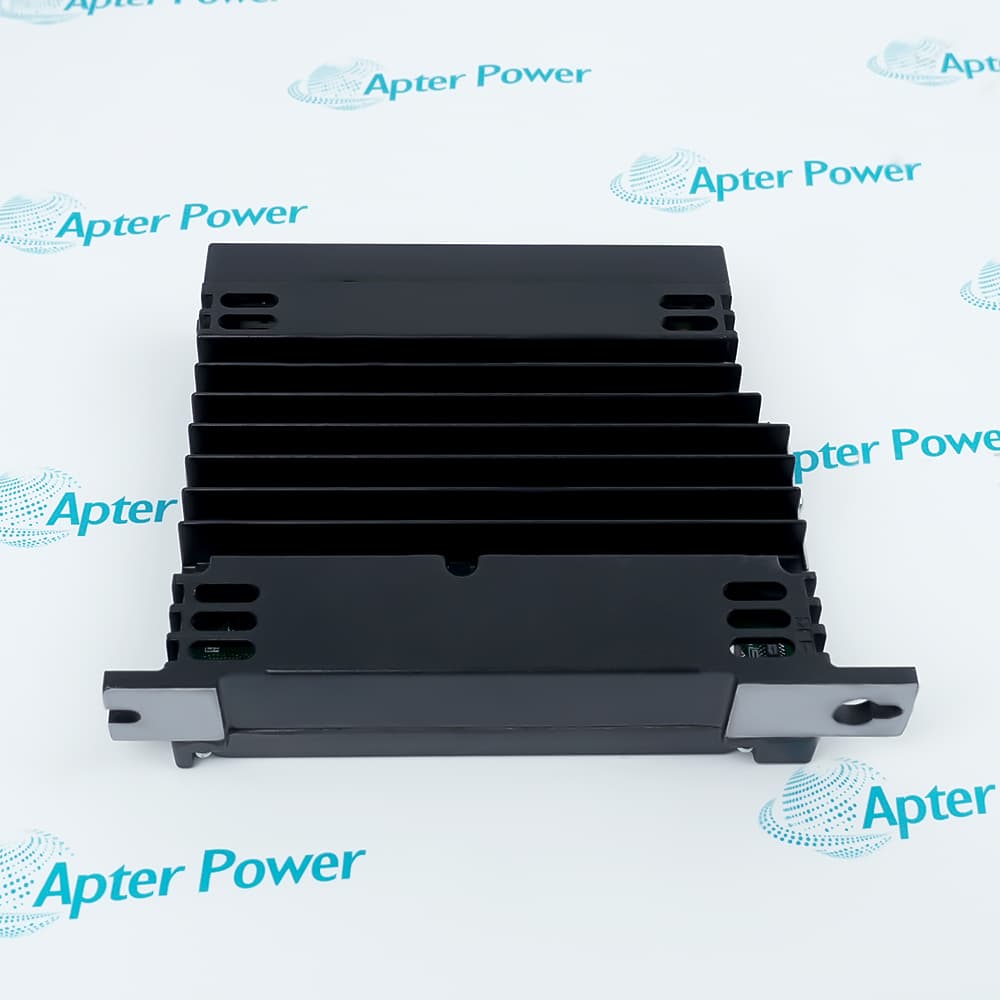

The IS220UCSAH1A is the core embedded controller/processor module of the Mark VIe system manufactured by General Electric. It is a "standalone central controller" specifically designed for globalized control systems of critical rotating machinery such as large gas turbines, steam turbines, and wind turbines.
Single module
No jumper settings required
ToolboxST programmatically updates the host application board programmable devices
GE Vernova’s Mark VIe control system is an integrated control system that is widely used in a diverse range of applications including gas and steam turbines, safety systems, wind turbines, gasification, hydro, nuclear, and combined cycle power plants. These diverse applications require a controller that can deliver the high performance and flexibility needed to run application specific control reliably.It is loaded with software specific to its application. As a turbine or balance of plant (BoP) controller, it runs the Mark VIe firmware and blockware applications and utilizes Mark VIe IONet interfaces. IONet is a private special-purpose Ethernet that only supports Mark controls I/O packs and controllers. IEEE 1588 protocol is used through the IONet interfaces to synchronize the clock of the I/O modules and controllers to within ±100 microseconds. External data is transferred to and from the IO Packs the controller over the IONet Ethernet interfaces. This includes process inputs/outputs to the I/O modules. In a redundant set, all I/O networks are attached to each controller, providing them with all input data.
Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description.
General Electric IS220UCSAH1A STANDALONE PROCESSOR MODULE Manuals, Datasheets, Drivers, Link
Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description.
Gas Turbine Power
Runs complex thermodynamic control algorithms and coordinates the fuel valve regulation for heavy-duty gas turbines.
Nuclear Power
Delivers high-reliability, redundant speed control and overspeed safety trip monitoring for secondary steam turbine generators.
Liquefied Natural Gas
Regulates massive gas turbine-driven or motor-driven main refrigeration compressors running in hostile volatile ambients.
Oil & Gas
Safeguards remote compressor stations along transcontinental pipelines against mechanical failure and process line pressure spikes.
Petroleum Refineries
Manages critical process air blowers and un-interrupted catalyst circulation turbomachinery.
Geothermal Power Facilities
Runs governor systems for specialized low-pressure organic rankine cycle (ORC) or direct-steam geothermal turbines.
When using the IS220UCSAH1A controller, it is critical to ensure a stable dual 28V DC power supply and strictly handle network connections through the dedicated high-speed IONet private Ethernet ports—never connect it to a standard commercial LAN to prevent cyber-attacks or network storms. Since this module operates on a QNX real-time operating system, you must verify that the firmware version of the new replacement matches your ControlST configuration software version exactly, and never plug or unplug interface cables under power. Additionally, maintain a strict anti-static grounding and well-ventilated enclosure environment to prevent the core PowerPC processor from triggering thermal over-temperature protection.
What operating system does the IS220UCSAH1A run on?
The IS220UCSAH1A is primarily used in GE distributed control systems (DCS) to manage gas and steam turbines, wind turbine generation, and Balance of Plant (BoP) operations.
How does the IS220UCSAH1A communicate with field I/O modules?
It communicates via onboard I/O Network (IONet) interfaces, using a dedicated Ethernet network for controllers and I/O packs.
What microprocessor and memory specifications does the IS220UCSAH1A feature?
The module is equipped with a Freescale PowerPC 8349 processor running at 667 MHz, backed by 256 MB of DDR SDRAM and 1 GB of CompactFlash storage.
How many communication interfaces are on the IS220UCSAH1A faceplate?
The front faceplate of the IS220UCSAH1A provides six female jack connectors (Ethernet ports) and one USB port for local data exchanges and diagnostics.
