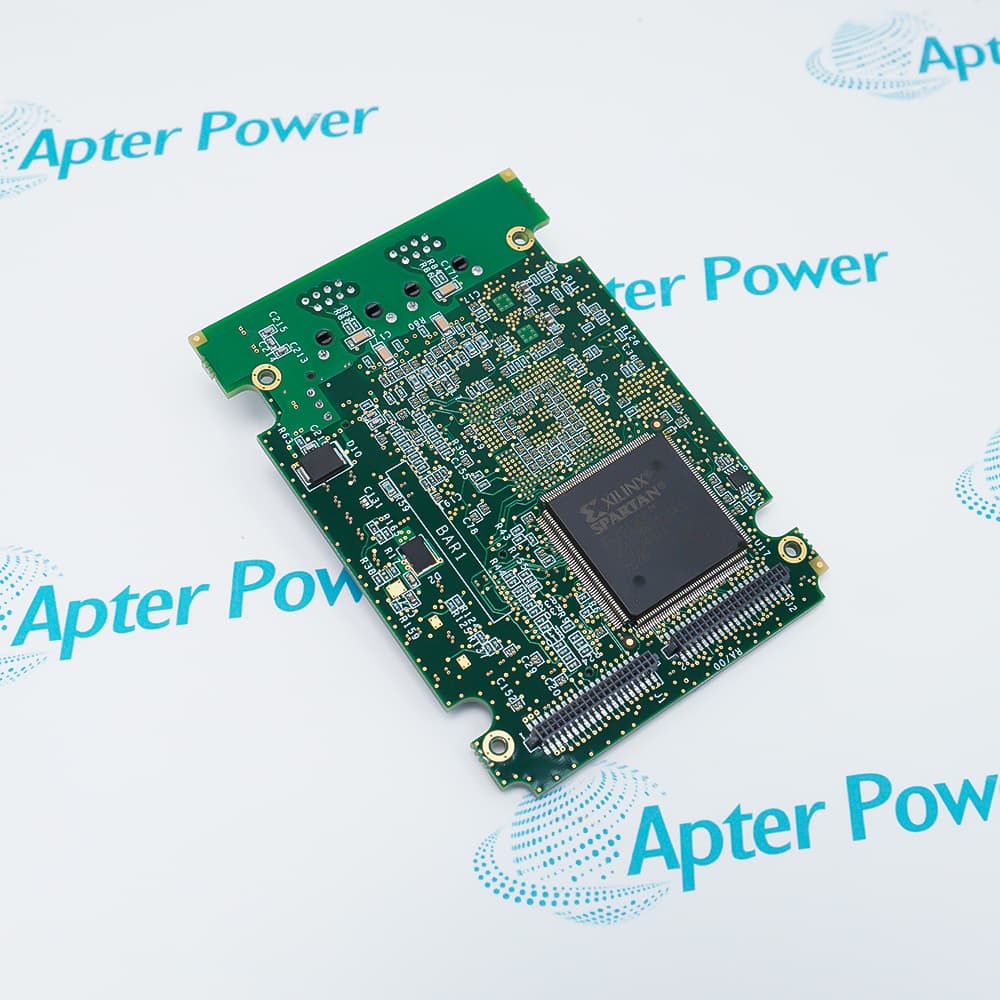

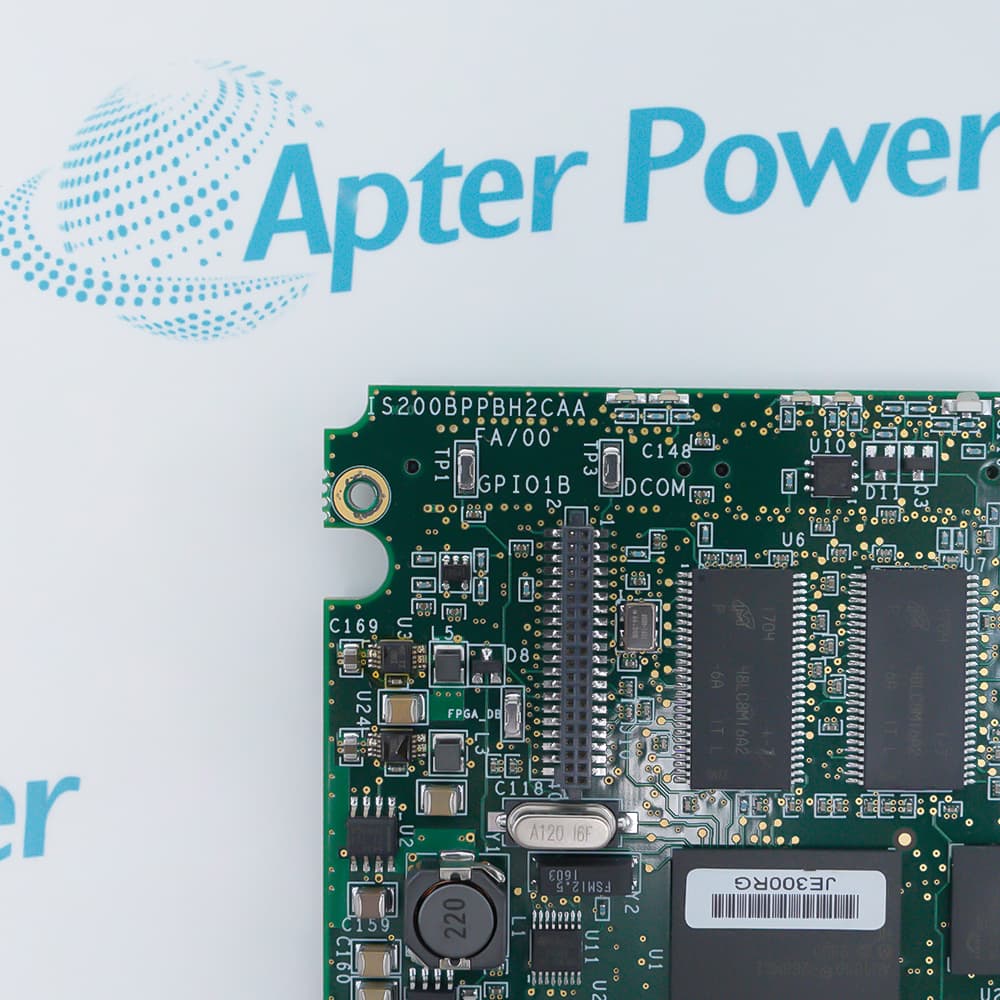

      General Electric IS200BPPBH2CAA
      General Electric IS200BPPBH2CAA
      General Electric IS200BPPBH2CAA
      General Electric IS200BPPBH2CAA
      General Electric IS200BPPBH2CAA
      General Electric IS200BPPBH2CAA
      Product image is representative; revision or series may vary. Contact us to request a specific version.

      IS200BPPBH2CAA

      Analog I/O Core Processor
      In Stock

      Product Describe：

      Analog I/O Core Processor
      Supports TMR
      Triple Modular Redundancy
      Architecture (R, S, T cores)

      Ask our team:

      Get a quick price for： IS200BPPBH2CAA
      Quantity*
      Upload (gif, jpg, jpeg, png, bmp, doc, docx, xls, xlsx, ppt, pdf, csv)
      Get a Quote
      For more information on how your data is processed and stored by Apterpower please read our privacy policy.
      Technical specifications Information FAQ More Details

      Technical specifications for IS200BPPBH2CAA

      Technical specifications for IS200BPPBH2CAA

      • Manufacturer:
        General Electric
      • Product Category:
        Gas turbine control
      • Spare Part Number:
        IS200BPPBH2CAA
      • Estimated shipping dimensions:
        11x7.5x2.2cm
      • Weight:
        0.05 kg
      • Tariff Code:
        8537101190
      • Counliy of origin:
        USA
      • Coating process:
        H (Conformal Coating) moisture-proof and corrosion-resistant coating, suitable for harsh industrial environments
      • Group/Revision:
        Group 2, Revision CAA
      • Redundancy support:
        Supports TMR (Triple Modular Redundancy) architecture (R, S, T cores)
      • Processor architecture:
        Integrated digital signal processor (DSP) and field programmable gate array (FPGA) for high-speed analog computing
      • Analog inputs:
        Thermocouple, 4-20 mA current loop, ± 10V voltage signal
      • Sensor excitation:
        specifically used for excitation and feedback of LVDT/RVDT (linear/rotary variable differential transformer) displacement sensors
      • Vibration monitoring:
        Seismic vibration sensor input
      • Servo control:
        The output signal is used to drive the servo coils of the gas/steam turbine
      • Working temperature:
        0 ° C to+60 ° C (32 ° F to 140 ° F)
      • Storage temperature:
        -40 ° C to+85 ° C (-40 ° F to 185 ° F)
      • Relative humidity:
        5% to 95% (non condensing state)
      • Seismic grade:
        Complies with industrial grade impact and vibration resistance standards
      Ask for Quote

      Information

      Information

      Overview Manuals Core functionality
      The IS200BPPBH2CAA is a GE Mark VI Speedtronic BOP (Balance of Plant) Processor Card designed for steam or gas turbine control systems.
        • Signal Versatility
        • Processing Architecture
        • Redundancy & Reliability
      As the analog center of the Mark VI system, IS200PPPBH2CAA has powerful signal conversion and excitation capabilities. It can accurately process various key sensing signals input from the terminal board, including but not limited to: thermocouple temperature monitoring, 4-20mA/± 10V standard current voltage loop, and seismic vibration signals for turbine swing monitoring.
      Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description.
      GE IS200BPPBH2CAA Analog I/O Core Processor Manuals, Datasheets, Drivers, Link Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description.
      This board is mainly responsible for processing analog input and output signals in the control system. Its main functions include: Signal processing: As the core processor, it receives raw analog signals (such as pressure, temperature, flow rate, etc.) from on-site sensors, processes them digitally, and transmits them to the controller. Multi type support: Supports multiple analog I/O types, including 4-20 mA current input, 0-200 mA current output (commonly used in Mark VIe systems), and ± 5 VDC or ± 10 VDC voltage input. System redundancy: Supports Simplex, Dual, or TMR configurations to ensure high availability of systems in high demand industrial environments such as power, oil, and gas.

      FAQS

      • What is the function of the IS200BPPBH2CAA?
        It is a BOP (Balance of Plant) processor card used within the GE Mark VI Speedtronic control system to monitor and control turbines and their associated equipment.
      • What system is this board part of?
        It belongs to the GE Mark VI turbine control system series.
      • Is the IS200BPPBH2CAA reliable?
        Yes, it is known for being a very reliable board with low prone to damage.
      • What are the key features of this card?
        It features two side-by-side LED indicators, is labeled with the GE logo and codes such as Type 6, FA/00, and E99006, and supports operator interface functions for alarm status and maintenance.
      • How should I handle this IS200BPPBH2CAA circuit board?
        As a high-performance PCB, it should be handled with ESD (Electrostatic Discharge) safety precautions, ideally by holding it at the edges to minimize contact with conductive areas.
      • Where can I purchase or find technical details?
        It is available from specialized industrial hardware suppliers who offer new, used, and repaired components, such as directturbinecontrols.com and Axcontrol.
      Why Choose Apter Power?
      1.Full one year warranty on all components
      2.Professional after selling team
      3.Same-day dispatch payment come
      4.All units are fully tested well with certificate
      5.Speak With an Expert Sales Representative
      6.More than 20 years experience in automation
      7.Stable employees more than 10+ years working experience
      Common Applications
      • Power Generation
      • Gas Turbine Control
      • Steam Turbine Control
      • Heavy Industrial Drivers
      • Oil & Gas
      • Critical Process Control
