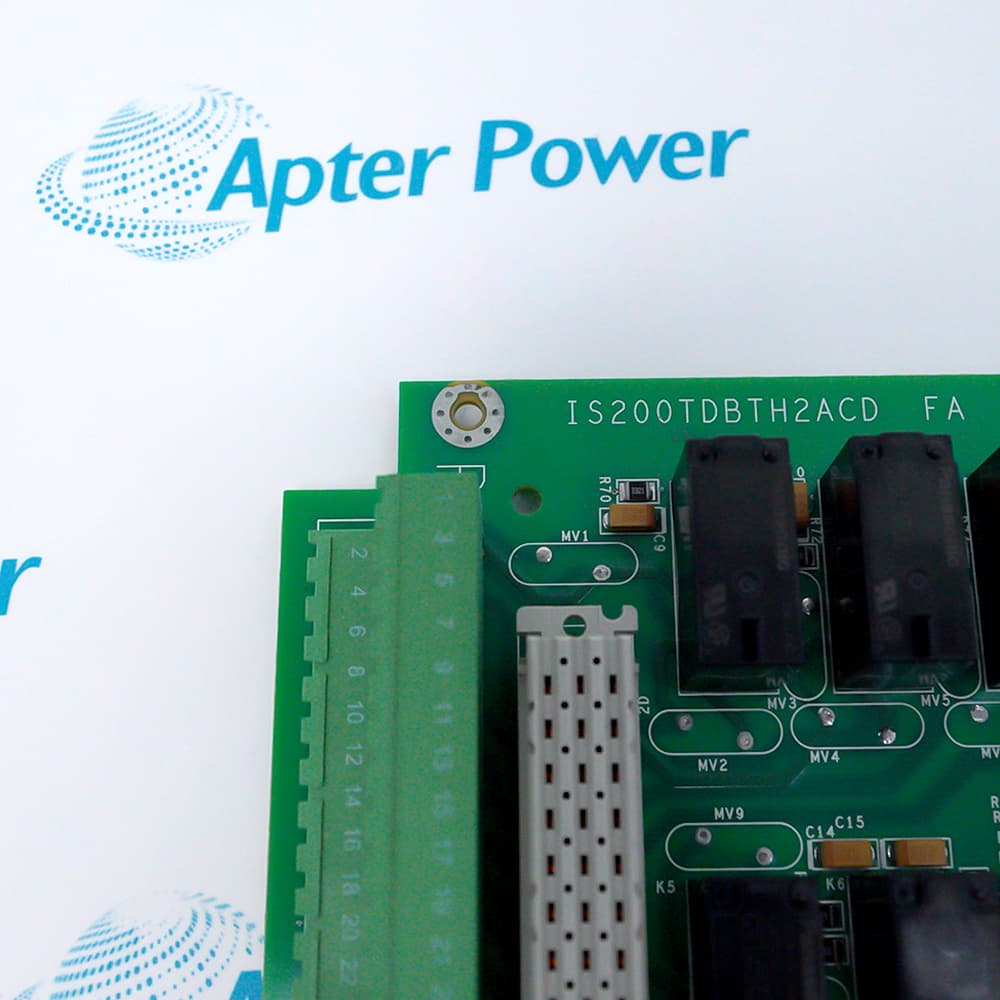

The IS200TDBTH2ACD is a discrete I/O terminal board for the GE Mark VIe control system. It provides 24 group-isolated contact inputs and 12 Form-C relay outputs. Featuring 24 VDC excitation, it supports Simplex, Dual, and TMR configurations by connecting up to three I/O packs.
Group 2 Grouping
One 3300 XL extension cable
TDBT Unique Product Number
The Mark VIe I/O modules consist of three basic parts, the terminal board, the terminal block, and an I/O pack. Barrier or box-type terminal blocks are mounted on a terminal board, which mounts on a DIN rail or base in the control cabinet. The I/O pack contains two Ethernet ports, a power supply, a local processor, and a data acquisition board. I/O capability grows as I/O packs are added to the control system, enabling use in a simplex, dual, or triple redundant configuration. Some process sub-systems require even more throughput. Therefore, the local processors in each I/O pack run algorithms at higher rates as required for the application.
Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description.
General Electric IS200TDBTH2ACD Terminal Board Manuals, Datasheets, Drivers, Link
Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description.
Thermal Power
Monitoring solenoid valve feedback and oil pressure switch status for Steam Turbine Emergency Trip Systems (ETS).
Gas Turbine
Managing isolation valve positions and ignition confirmation signals in Gas Turbine Fuel Control Systems.
Oil & Gas
Remote control and limit monitoring for inlet/outlet ball valves at Pipeline Pumping Stations.
Chemical
Coordinating Material Charging Sequences of reactors by controlling automatic valves via relay outputs.
Pulp & Paper
Monitoring Paper-break Detection signals to automatically control press roll lifting and speed adjustment.
Steel and Metallurgy
Monitoring low-pressure alarms in Lube Oil Stations and auto-switch logic for standby pumps in blast furnace blowers.
When using the IS200TDBTH2ACD terminal board, ensure correct polarity and secure wiring of the excitation voltage (typically 24 VDC) to prevent input failures. In TMR configurations, strictly verify the mapping between the three I/O packs and the JR1/JS1/JT1 connectors, never touch high-voltage relay components while energized, and utilize ToolboxST software to regularly monitor status alarms to ensure consistency in the system's voting logic.
It is a discrete input/output terminal board used in the GE Mark VIe control system to handle on/off signals.
What is the primary function of IS200TDBTH2ACD?
It provides 24 dry contact inputs and 12 relay outputs, acting as an interface between field devices and the controller.
How to use IS200TDBTH2ACD?
Mount it on a DIN rail, connect field switch signals to the terminal blocks, and plug in IS220PDIO packs for data processing.
Does IS200TDBTH2ACD support redundancy?
Yes. It features three connectors (JR1, JS1, JT1) to support simplex, dual, or triple redundant (TMR) configurations.
Which control platform does IS200TDBTH2ACD belong to?
It belongs to GE's Mark VIe and Mark VIeS safety control platforms.
