      General Electric IC698RMX016
      General Electric IC698RMX016
      General Electric IC698RMX016
      General Electric IC698RMX016
      General Electric IC698RMX016
      General Electric IC698RMX016

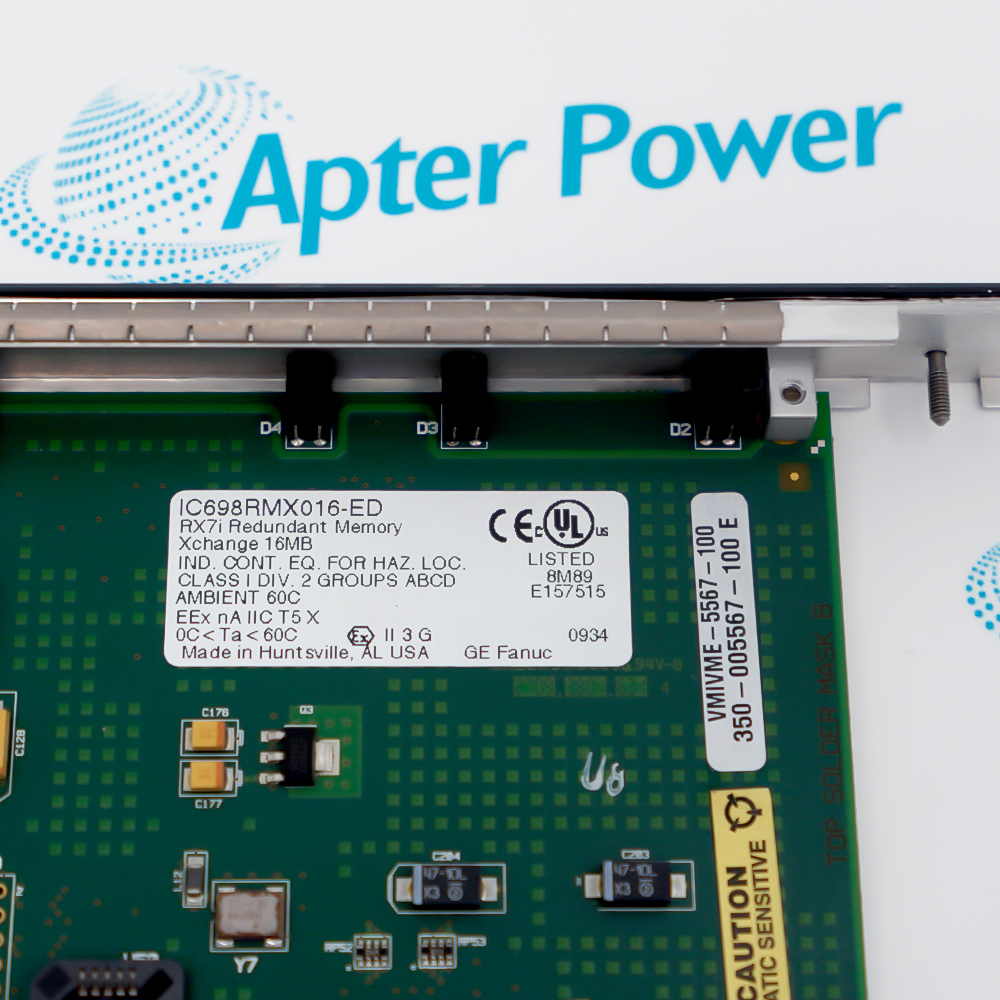

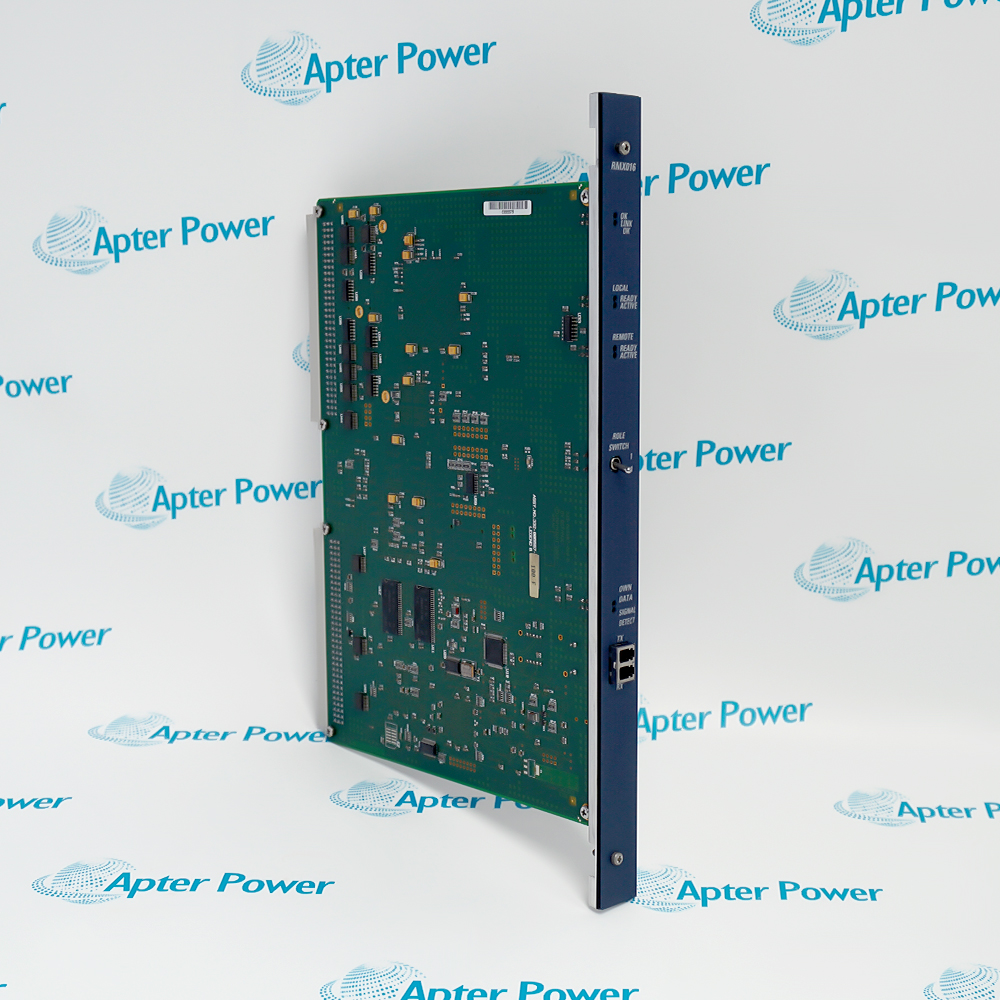

      Product image is representative; revision or series may vary. Contact us to request a specific version.

      IC698RMX016

      Memory Module
      In Stock
      Ships by Wednesday, October 14
      Fast Shipping Available

      Product Describe：

      GE IC698RMX016 is a single-slot PACSystems RX7i Memory Xchange module with 16 Mbytes of parity-protected reflective memory. It can operate as a redundancy link or as a reflective-memory network node using its multimode-fiber interface.

      Ask our team:

      Get a quick price for： IC698RMX016
      Quantity*
      Upload (gif, jpg, jpeg, png, bmp, doc, docx, xls, xlsx, ppt, pdf, csv)
      Get a Quote
      For more information on how your data is processed and stored by Apterpower please read our privacy policy.
      Technical specifications Information Technical notes FAQ

      Technical specifications for IC698RMX016

      Technical specifications for IC698RMX016

      • Manufacturer:
        General Electric
      • Product Category:
        PLC Systems
      • Spare Part Number:
        IC698RMX016
      • Estimated shipping dimensions:
        2.1x18x29.2cm
      • Weight:
        0.3 kg
      • Tariff Code:
        8537101190
      • Counliy of origin:
        USA
      • Controller family:
        PACSystems RX7i
      • Module type:
        Redundancy Memory Xchange
      • Reflective memory:
        16 Mbytes with parity
      • Form factor:
        Single slot
      • Fiber interface:
        Multimode fiber, LC transmit and receive ports
      • Network link speed:
        2.1 Gbps
      • Transfer rate:
        43 Mbps to 174 Mbps, packet-size dependent
      • Network capacity:
        Up to 256 nodes
      • CPU requirement:
        RX7i CPU firmware 2.0 or later
      • Programming software:
        PAC Machine Edition Logic Developer 4.5 or later
      View as PDF Ask for Quote

      Information

      Information

      Overview Manuals Common Applications Product Precautions
      GE IC698RMX016 is a single-slot PACSystems RX7i Memory Xchange module with 16 Mbytes of parity-protected reflective memory. It can operate as a redundancy link or as a reflective-memory network node using its multimode-fiber interface.
      • Provides 16 Mbytes of reflective memory with parity
      • Supports RX7i CPU redundancy links
      • Uses a 2.1 Gbps multimode-fiber network
      • Reports local, remote, link and signal status through front LEDs

      Apply GE IC698RMX016 only in the documented system position after checking its interfaces, companion hardware and configured values.

      Important Notice: Confirm the full IC698RMX016 marking, installed revision, compatible hardware and approved commissioning record before release.

      GE IC698RMX016 Manuals & Downloads
      GE IC698RMX016 Technical Reference (PDF)GE IC698RMX016 Installation & Commissioning Guide (PDF)

      The first document presents model-specific technical and system data. The second provides a separate installation, connection, commissioning and acceptance workflow.

      CPU redundancy link
      Transfers redundancy data between compatible RX7i controller units.
      Reflective-memory networking
      Shares deterministic data with compatible 5565-family network devices.
      High-speed controller exchange
      Moves 4- to 64-byte packets without PACS CPU processing.
      Legacy network maintenance
      Replaces an identical RMX016 after node, role and fiber checks.
      Read the applicable GE instructions before work. Verify GE IC698RMX016 and the installed system configuration before commissioning.
      1
      Verify the complete IC698RMX016 marking and do not substitute the CMX016.
      2
      Back up node, role, interrupt and memory-offset configuration before removal.
      3
      Confirm the RX7i CPU firmware and PAC Machine Edition versions.
      4
      Use only the documented redundancy-capable CPU when the module is a redundancy link.
      5
      Label TX and RX multimode-fiber connections before disconnection.
      6
      Protect LC fiber ends from contamination and excessive bend radius.
      7
      Restore the role switch and configured node parameters exactly.
      8
      Verify link, local/remote ready-active, own-data and signal-detect status before release.

      Technical notes

      Technical notes

      Use only the complete GE IC698RMX016 identity and the current manufacturer documentation. Verify the installed revision, companion hardware, wiring and saved configuration before replacement or release.

      FAQS

      • What is GE IC698RMX016?
        It is the RX7i Redundancy Memory Xchange module with 16 Mbytes of reflective memory.
      • Can GE IC698RMX016 operate as a redundancy link?
        Yes. Only the RMX module, paired with a CPU that supports redundancy, can provide the documented redundancy link.
      • What network interface does GE IC698RMX016 use?
        It uses LC transmit and receive ports for a 2.1 Gbps multimode-fiber network.
      • How many nodes can a GE IC698RMX016 network support?
        The official manual specifies up to 256 nodes.
      • Which software and CPU versions are required for GE IC698RMX016?
        The manual specifies RX7i CPU firmware 2.0 or later and PAC Machine Edition Logic Developer 4.5 or later.
      • What must be preserved before replacing GE IC698RMX016?
        Preserve the node number, role, memory offset, interrupts, redundancy settings and fiber routing.
      • What confirms successful commissioning of GE IC698RMX016?
        Normal OK, LINK, ready/active, own-data and signal-detect indications plus data-transfer tests confirm release.
