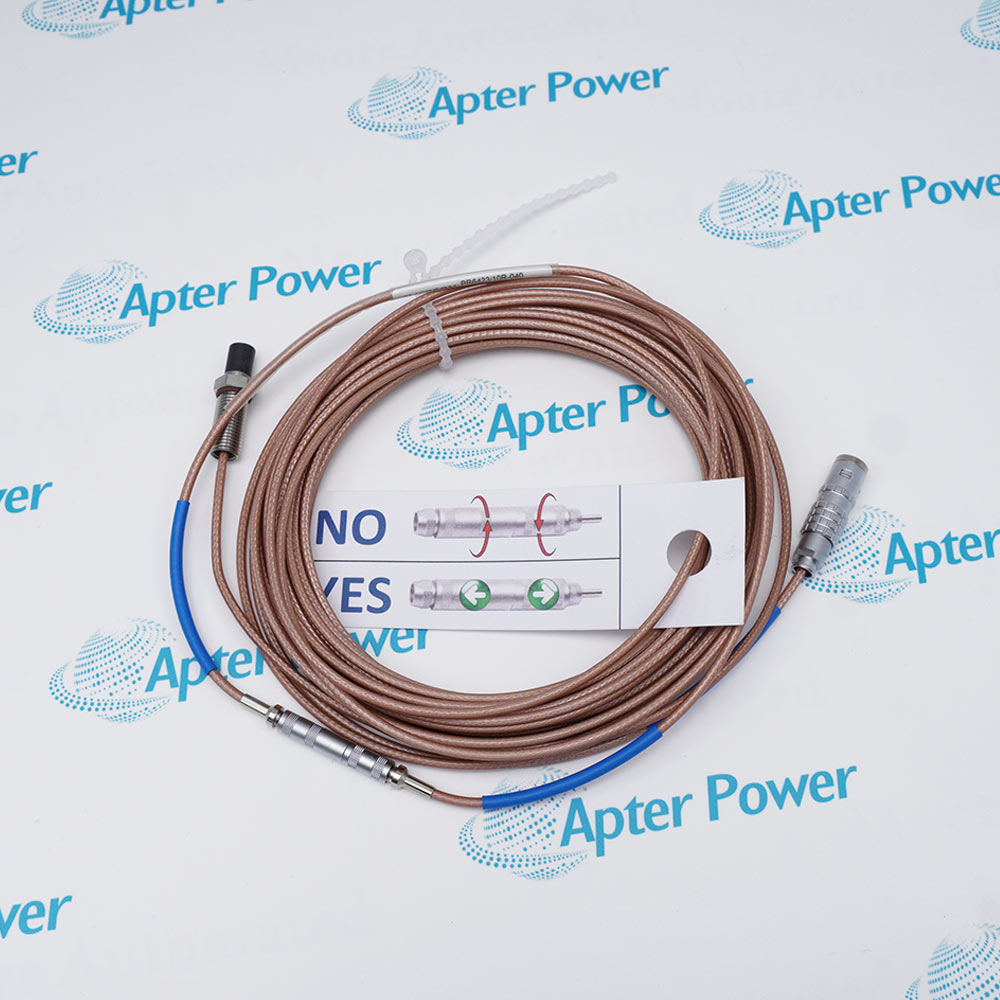

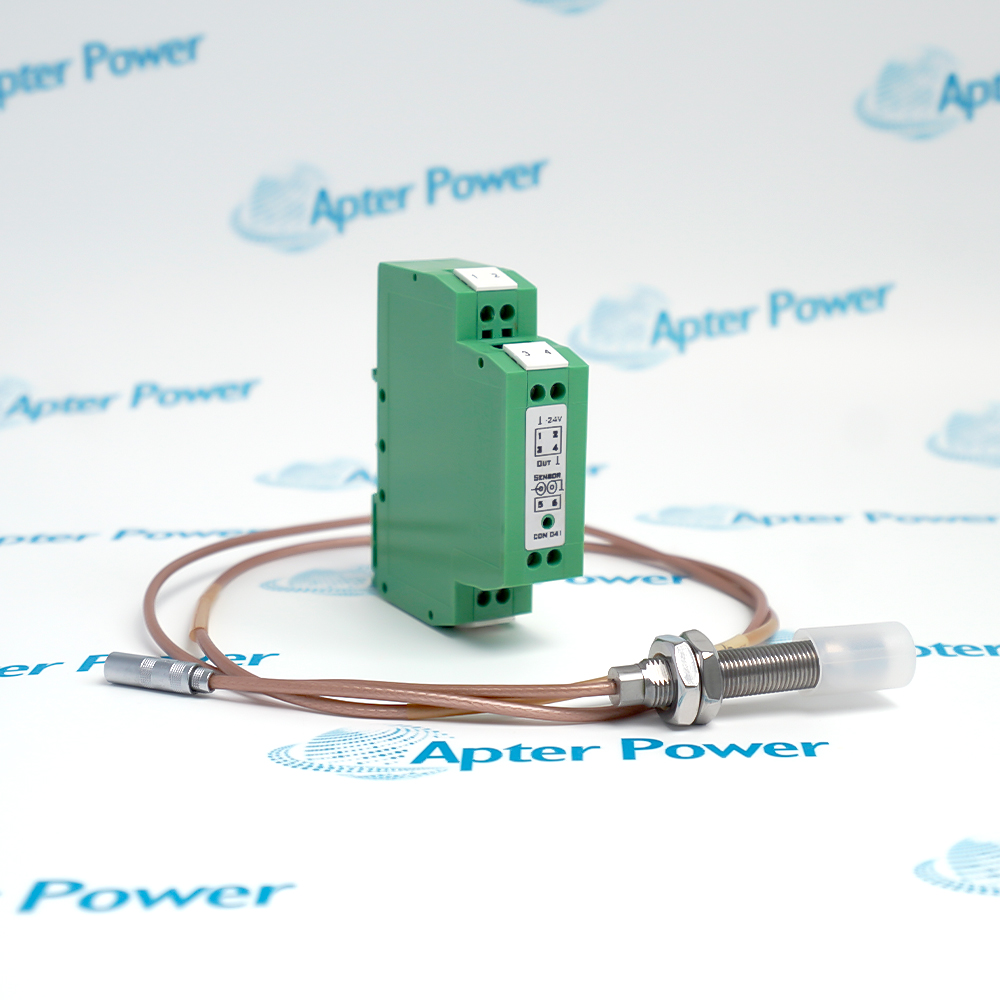

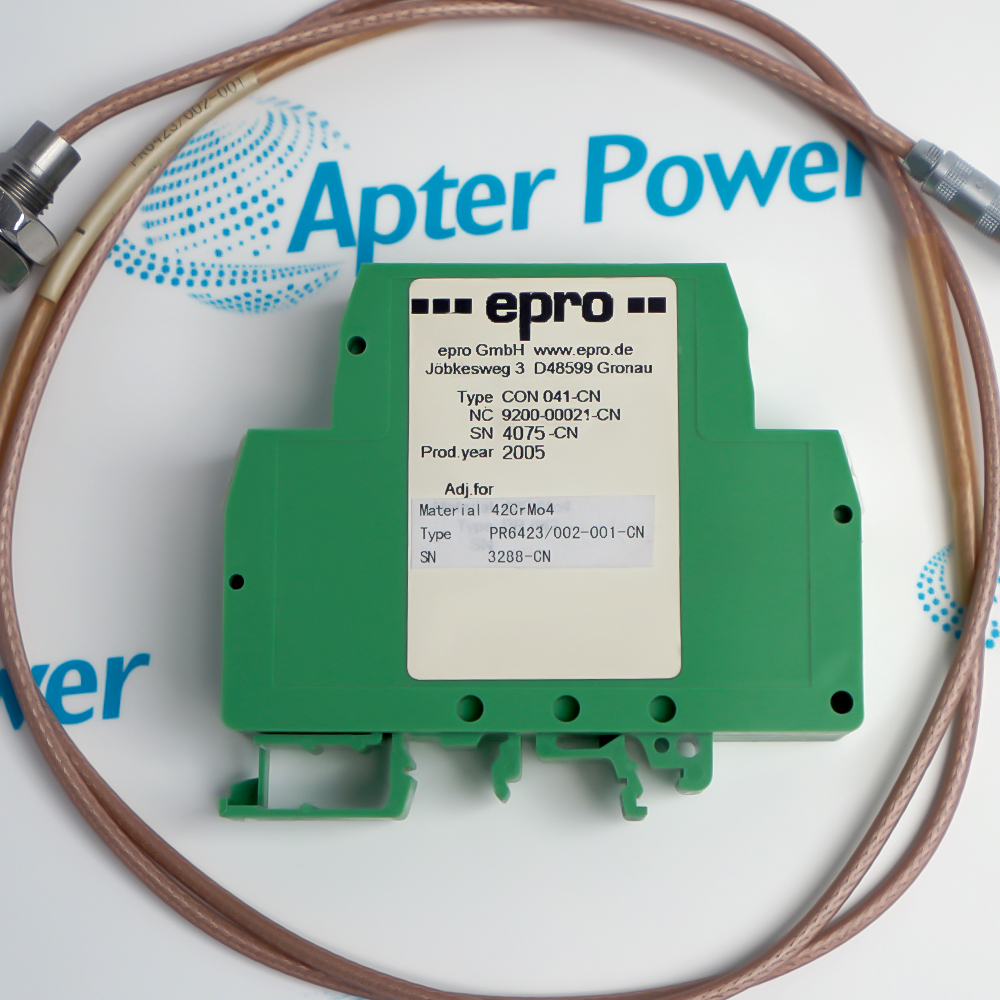

      Epro PR6423/002-001 CON041
      Epro PR6423/002-001 CON041
      Epro PR6423/002-001 CON041
      Epro PR6423/002-001 CON041
      Epro PR6423/002-001 CON041
      Epro PR6423/002-001 CON041
      Product image is representative; revision or series may vary. Contact us to request a specific version.

      PR6423/002-001 CON041

      Eddy Current
      In Stock
      Ships by Sunday, October 4
      Fast Shipping Available

      Product Describe：

      EPRO PR6423/002-001 CON041 combines an 8 mm PR6423 eddy-current sensor with a CON041 signal converter for non-contact shaft-displacement and position measurements. The documented PR6423 measuring range is 2 mm and the CON041 bandwidth extends to 20 kHz.

      Ask our team:

      Get a quick price for： PR6423/002-001 CON041
      Quantity*
      Upload (gif, jpg, jpeg, png, bmp, doc, docx, xls, xlsx, ppt, pdf, csv)
      Get a Quote
      For more information on how your data is processed and stored by Apterpower please read our privacy policy.
      Technical specifications Information Technical notes FAQ

      Technical specifications for PR6423/002-001 CON041

      Technical specifications for PR6423/002-001 CON041

      • Manufacturer:
        Epro
      • Product Category:
        Machinery Monitoring System
      • Spare Part Number:
        PR6423/002-001 CON041
      • Estimated shipping dimensions:
        16x15x2cm
      • Weight:
        0.15 kg
      • Tariff Code:
        8537101190
      • Counliy of origin:
        USA
      • Sensor:
        PR6423/002-001, 8 mm eddy-current sensor
      • Converter:
        CON041 DIN-rail signal converter
      • Linear measuring range:
        2 mm (80 mil)
      • Initial air gap:
        0.5 mm (20 mil)
      • Scale factor:
        8 V/mm (203.2 mV/mil) ±5% at 0 to 45 °C
      • Target material:
        42CrMo4 / AISI 4140 ferromagnetic steel
      • Converter frequency range:
        0 to 20,000 Hz (-3 dB)
      • Converter output range:
        -2 to -18 V or -4 to -20 V, configuration dependent
      • Converter supply range:
        -21 to -32 V or -23 to -32 V, output-range dependent
      • Converter mounting:
        DIN rail with screw terminals
      View as PDF Ask for Quote

      Information

      Information

      Overview Manuals Common Applications Product Precautions
      EPRO PR6423/002-001 CON041 combines an 8 mm PR6423 eddy-current sensor with a CON041 signal converter for non-contact shaft-displacement and position measurements. The documented PR6423 measuring range is 2 mm and the CON041 bandwidth extends to 20 kHz.
      • Measures shaft displacement without contact
      • Uses a 2 mm linear measuring range with an 8 mm sensor
      • Provides high-frequency response through the CON041 converter
      • Supports radial, axial, position, eccentricity and speed/key measurements

      Apply EPRO PR6423/002-001 CON041 only in the documented system position after checking its interfaces, companion hardware and configured values.

      Important Notice: Confirm the full PR6423/002-001 CON041 marking, installed revision, compatible hardware and approved commissioning record before release.

      EPRO PR6423/002-001 CON041 Manuals & Downloads
      EPRO PR6423/002-001 CON041 Technical Reference (PDF)EPRO PR6423/002-001 CON041 Installation & Commissioning Guide (PDF)

      The first document presents model-specific technical and system data. The second provides a separate installation, connection, commissioning and acceptance workflow.

      Radial shaft vibration
      Measures dynamic shaft displacement on critical rotating machinery.
      Axial position
      Monitors thrust position with a matched target and calibrated gap.
      Eccentricity monitoring
      Tracks low-speed shaft orbit and eccentricity through the eddy-current loop.
      Speed and key reference
      Provides a non-contact pulse signal from a suitable shaft target.
      Read the applicable EPRO instructions before work. Verify EPRO PR6423/002-001 CON041 and the installed system configuration before commissioning.
      1
      Verify the complete PR6423/002-001 and CON041 markings as a matched measurement loop.
      2
      Confirm the target material and minimum shaft requirements from the PR6423 data sheet.
      3
      Set the documented initial air gap before operation.
      4
      Use the correct CON041 supply and output-range configuration.
      5
      Route sensor and converter wiring away from high-energy interference sources.
      6
      Protect the sensor cable, connector and DIN-rail terminals from damage and contamination.
      7
      Do not interchange sensor or converter without recalibrating the complete loop.
      8
      Verify gap voltage, scale factor, frequency response and monitor indication before release.

      Technical notes

      Technical notes

      Use only the complete EPRO PR6423/002-001 CON041 identity and the current manufacturer documentation. Verify the installed revision, companion hardware, wiring and saved configuration before replacement or release.

      FAQS

      • What is EPRO PR6423/002-001 CON041?
        It is an 8 mm PR6423 eddy-current sensor matched with a CON041 signal converter.
      • What measuring range applies to EPRO PR6423/002-001 CON041?
        The PR6423 specification lists a 2 mm linear measuring range with a 0.5 mm initial air gap.
      • What scale factor is documented for EPRO PR6423/002-001 CON041?
        The sensor specification gives 8 V/mm, or 203.2 mV/mil, within the stated tolerance and temperature range.
      • What bandwidth does the CON041 in EPRO PR6423/002-001 CON041 provide?
        The converter frequency range is 0 to 20,000 Hz at the -3 dB point.
      • Which output ranges are available for EPRO PR6423/002-001 CON041?
        The CON041 supports -2 to -18 V or -4 to -20 V depending on the selected supply/output configuration.
      • Why must EPRO PR6423/002-001 CON041 be calibrated as a complete loop?
        Sensor, cable, converter, target material and gap together determine the measurement scale and linearity.
      • What confirms successful commissioning of EPRO PR6423/002-001 CON041?
        Correct gap voltage, scale factor, dynamic response and monitor indication under a controlled test confirm release.
