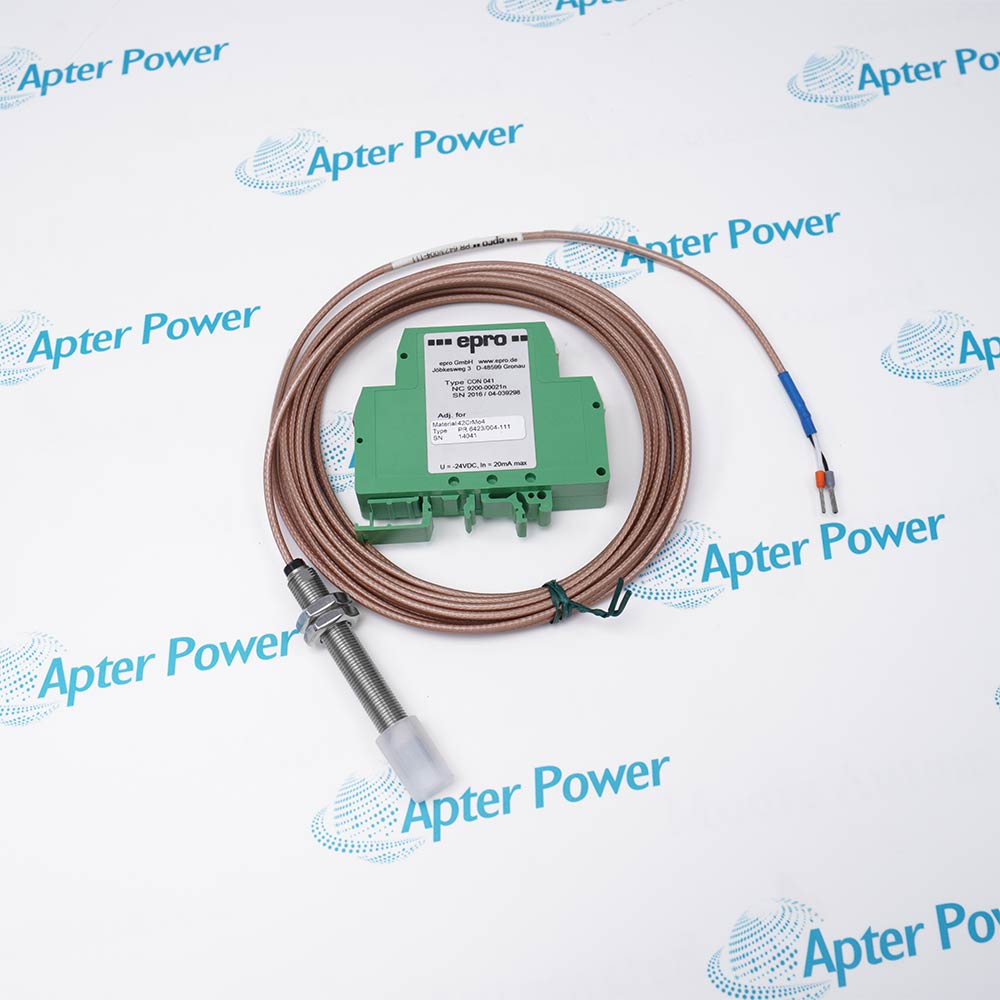

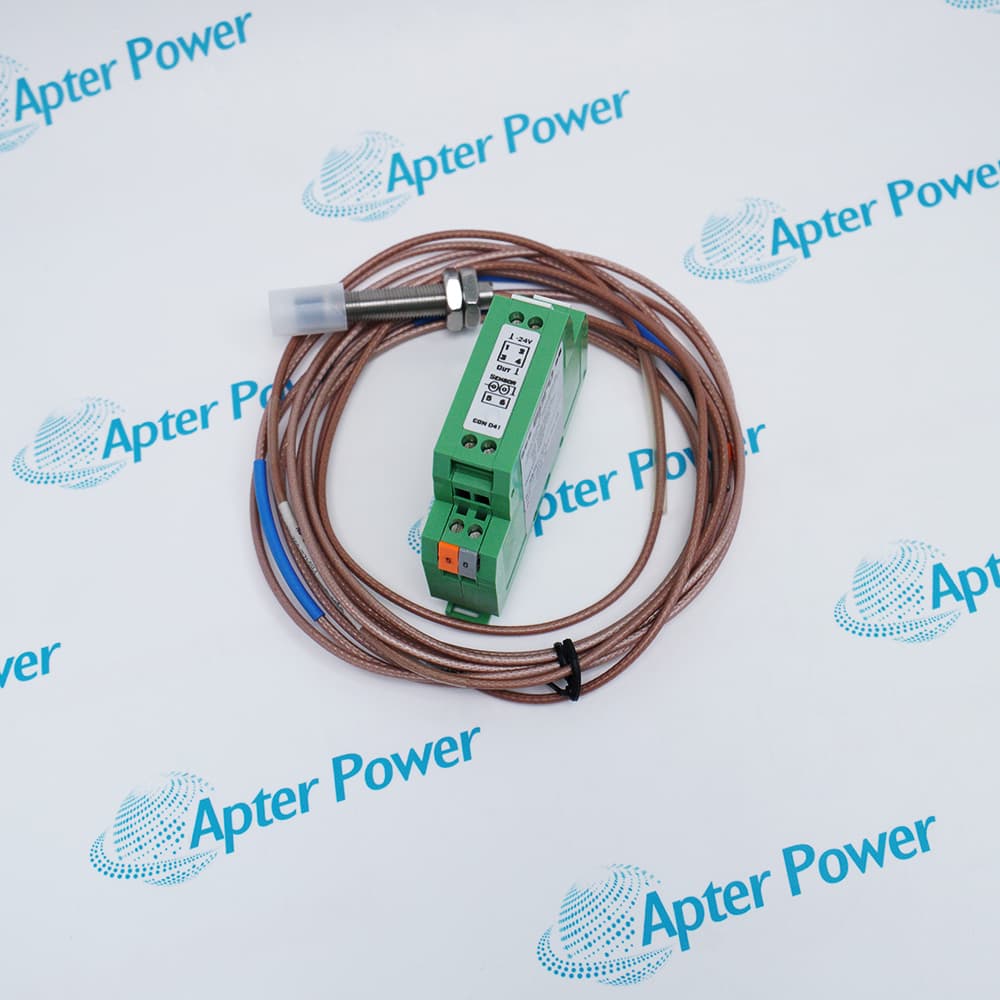

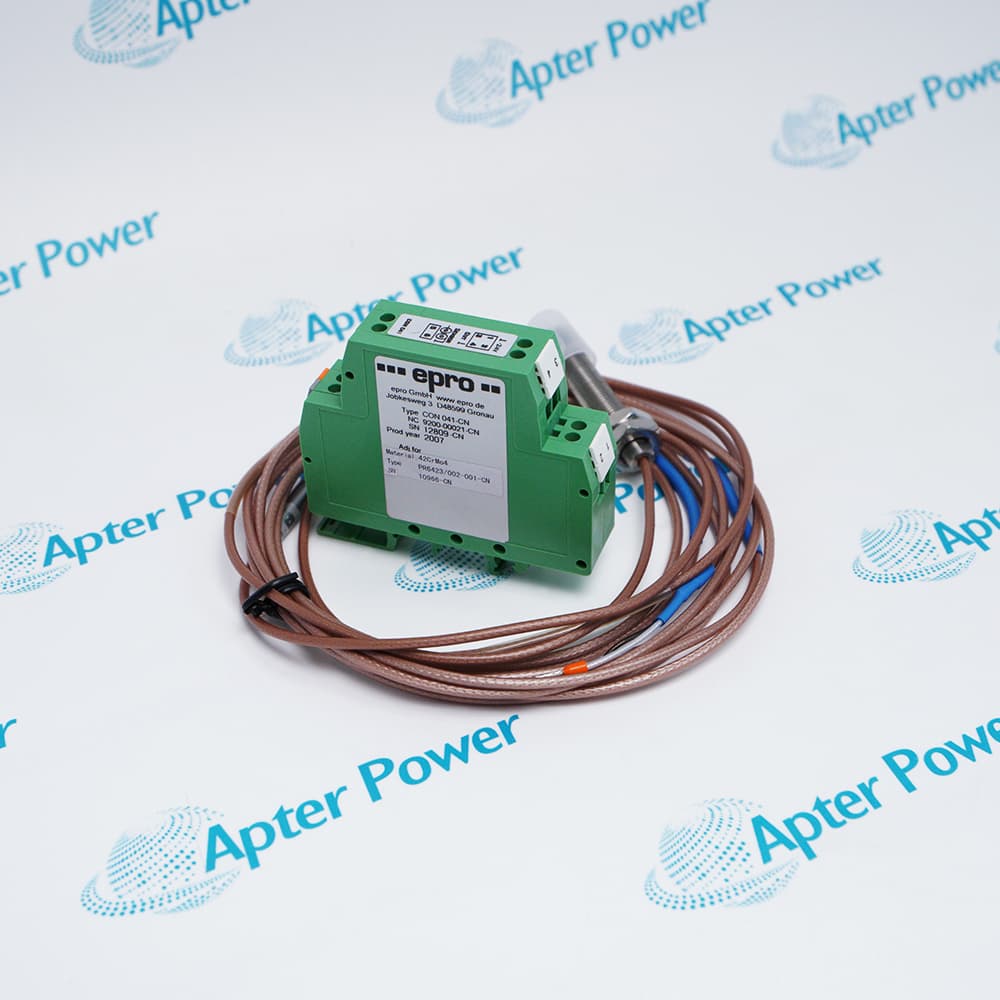

The PR6423/002-001-CN CON041 is a high-precision eddy current sensor designed for non-contact displacement and vibration measurement in industrial applications. It is typically used in turbomachinery monitoring systems, providing reliable signal transmission when combined with the CON041 signal converter.
High Precision
Wide Temperature
Non-contact Measurement
The sensor offers a measuring range of 0.1–1.0 mm, resolution of 0.01 mm, and operates within a wide temperature range of -40°C to +125°C. It supports 0–10 V or 4–20 mA output signals and a 12–30 V DC power supply, ensuring high accuracy, fast response, and stable performance in harsh industrial environments.
Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description.
Epro PR6423/002-001-CN CON041 Eddy Current Sensor Manuals, Datasheets, Drivers, Link
Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description.
Steam Turbines
Used for shaft vibration and displacement monitoring in steam turbine units. Provides real-time data to protect bearings and prevent rotor instability.
Gas Compressors
Monitors shaft position and vibration in high-speed gas compressors. Ensures stable operation under continuous load conditions. Helps detect imbalance, misalignment, and early mechanical faults.
Hydraulic Turbines
Measures shaft movement and vibration in hydroelectric turbine systems. Maintains operational stability under varying load conditions. Supports long-term equipment reliability in water power plants.
Centrifugal Pumps
Tracks shaft displacement and vibration in large industrial pumps. Enables early detection of cavitation, bearing wear, and imbalance. Improves maintenance planning and reduces unexpected shutdowns.
Gearbox Systems
Provides condition monitoring for high-load gearboxes in industrial machinery. Detects vibration changes caused by gear wear or misalignment. Enhances operational safety and equipment lifespan.
Electric Motors
Monitors rotor position and vibration in critical motor-driven systems. Ensures smooth operation and reduces risk of mechanical failure.
The PR6423 series eddy current sensor is designed for non-contact measurement of shaft displacement and vibration in turbomachinery applications. When used together with the CON041 signal converter, the system provides a calibrated output signal proportional to the measured displacement, typically in 0–10 V or 4–20 mA format. The sensor system requires a DC 12–30 V power supply and supports precise monitoring with a typical measuring range of 0.1–1.0 mm.
The system is intended for continuous operation in industrial environments and allows easy integration into monitoring systems such as PLC or DCS. Due to its non-contact measurement principle, no mechanical wear occurs, ensuring long service life and stable signal transmission even under high-speed rotating conditions.
What is the measurement range of Epro PR6423/002‑001‑CN CON041?
The sensor supports a non-contact displacement measurement range from 0.1 mm to 1.0 mm, suitable for high-precision industrial applications such as turbine shaft monitoring and vibration analysis.
What output signals does Epro PR6423/002‑001‑CN CON041 provide?
It provides analog outputs of 0–10 V DC or 4–20 mA, allowing easy integration into PLCs, DCS systems, or data acquisition units.
What is the operating temperature range of Epro PR6423/002‑001‑CN CON041?
It can operate reliably from -40 °C to +125 °C, allowing deployment in harsh industrial environments, including turbine housings and high-temperature machinery.
What protection class does Epro PR6423/002‑001‑CN CON041 have?
It has an IP67 rating, ensuring dust-tight and waterproof operation, suitable for outdoor or industrial applications with exposure to moisture and contaminants.
Can Epro PR6423/002‑001‑CN CON041 be used for vibration monitoring?
Yes, the high-resolution, non-contact measurement makes it ideal for vibration and shaft displacement monitoring in turbines, motors, and other rotating machinery.
