Technical specifications for 5X00059G01

  • Manufacturer:
    Emerson
  • Product Category:
    DCS Systems
  • Spare Part Number:
    5X00059G01
  • Estimated shipping dimensions:
    12x2.8x9.4cm
  • Weight:
    0.12 kg
  • Tariff Code:
    8537101190
  • Counliy of origin:
    USA
  • Product class:
    HART analog-input personality module
  • Channel count:
    8
  • Analog range:
    4-20 mA
  • Field devices:
    HART transmitters
  • Power arrangements:
    2-wire loop powered; 4-wire active source
  • Paired electronics:
    5X00058G01
  • Channel fuses:
    0.063 A, 125 V
  • Auxiliary fuse:
    0.5 A, 125 V on applicable later revision
  • Certification:
    CE-marked module configuration

Information

Overview Manuals Common Applications Product Precautions

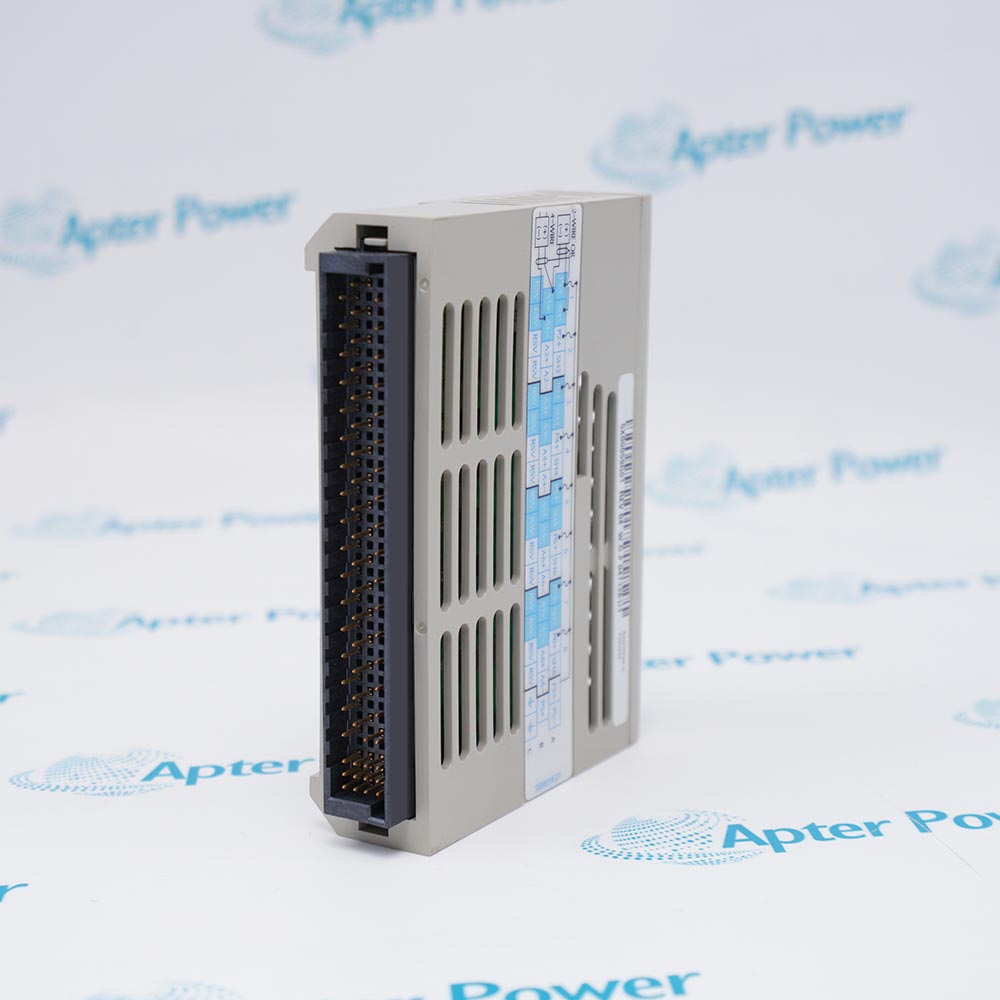

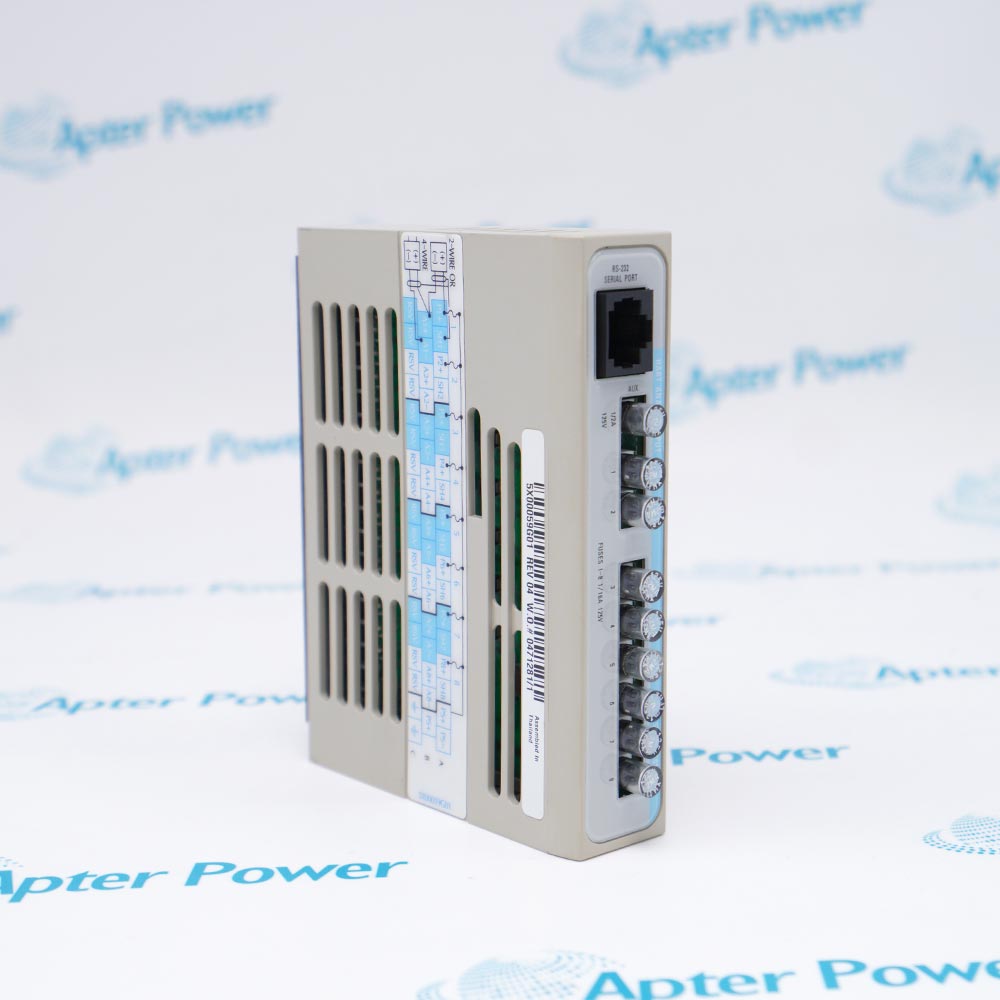

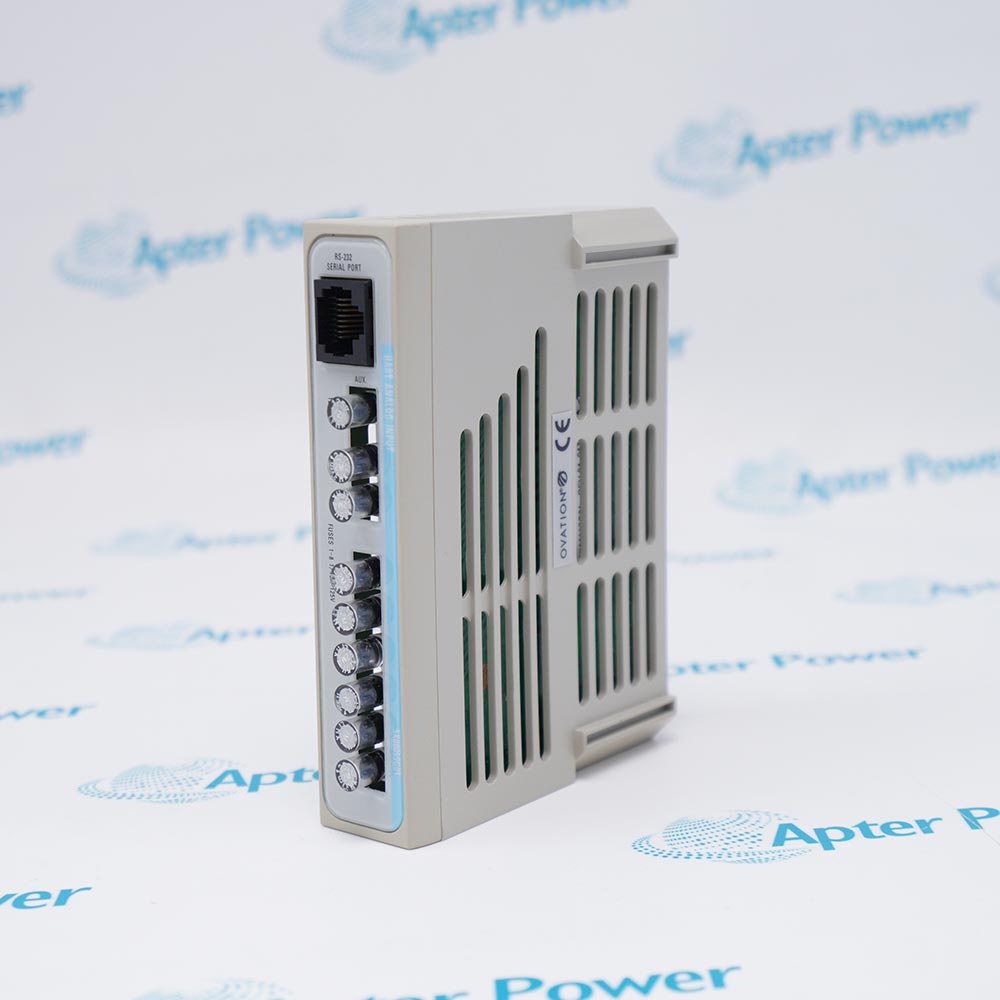

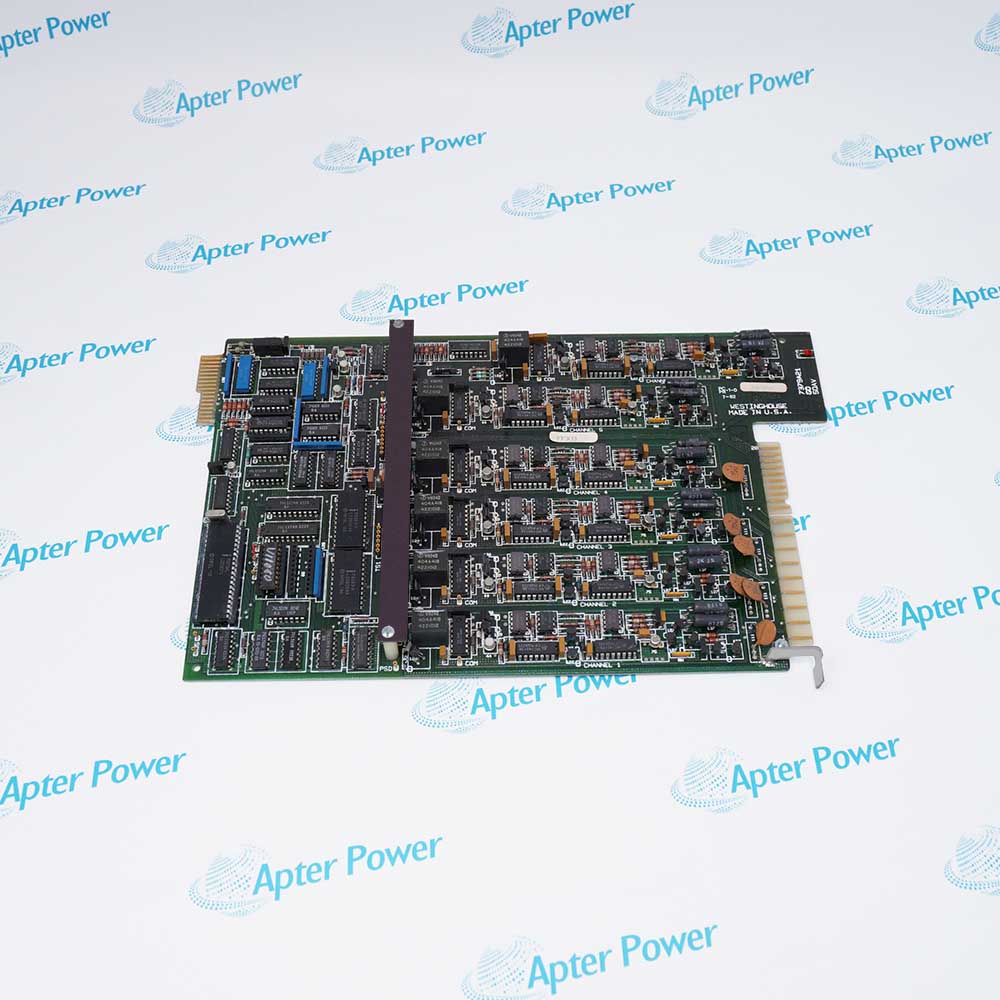

WESTINGHOUSE 5X00059G01 routes eight HART current loops into the Ovation analog-input electronics while preserving HART digital communication on the 4-20 mA signal. Channel power arrangement and fuse status must be verified individually.
  • Eight HART analog-input channels
  • 4-20 mA current-loop range
  • Two-wire and four-wire transmitter support
  • 5X00058G01 electronics pairing

The installed signal path is HART field transmitter → 5X00059G01 personality module → 5X00058G01 electronics → Ovation analog and HART data. Record the as-left channel assignment and verify the affected path before release.

Important Notice: Remove auxiliary loop power and confirm every channel is de-energized before handling WESTINGHOUSE 5X00059G01.

WESTINGHOUSE 5X00059G01 Manuals & Downloads
WESTINGHOUSE 5X00059G01 Official Technical Reference Excerpt (PDF)WESTINGHOUSE 5X00059G01 Installation & Commissioning Guide (PDF)

The Technical Reference presents the applicable model data and interface details; the Installation & Commissioning Guide organizes field preparation, controlled replacement and acceptance checks for WESTINGHOUSE 5X00059G01.

HART transmitter inputs
Collects analog process values and digital device data from eight loops.
Mixed two-wire and four-wire loops
Supports the documented loop-powered and active-source arrangements.
Legacy HART input replacement
Restores an existing 5X00059G01 field-interface position.
Loop fault isolation
Separates field power, fuse, current signal, HART communication and controller-reading checks.
Apply these controls to WESTINGHOUSE 5X00059G01 before isolation, removal, reconnection, energization and release.
1
Remove auxiliary loop power and confirm every channel is de-energized before handling WESTINGHOUSE 5X00059G01.
2
Verify the G01 identity and 5X00058G01 electronics pairing before replacement.
3
Record whether each channel is two-wire loop powered or four-wire active source.
4
Use only the documented fuse ratings and investigate the field-loop fault before fuse replacement.
5
Maintain shielded cable routing and the existing single-point shield termination.
6
Check polarity, loop resistance and transmitter supply before applying power.
7
Commission analog accuracy and HART communication independently on every used channel.
8
Prove configured open-loop, underrange and overrange alarms before returning the subsystem to service.

Technical notes

WESTINGHOUSE 5X00059G01 is an eight-channel Ovation HART analog-input personality module for 4-20 mA loop-powered or active-source transmitters.

FAQ View All FAQ

  • How many inputs does WESTINGHOUSE 5X00059G01 provide?
    It provides eight HART analog-input channels.
  • Which current range is used by WESTINGHOUSE 5X00059G01?
    The documented input range is 4-20 mA.
  • Which transmitters can connect to WESTINGHOUSE 5X00059G01?
    It supports two-wire loop-powered transmitters and four-wire active current sources.
  • Which electronics module pairs with WESTINGHOUSE 5X00059G01?
    The documented electronics module is 5X00058G01.
  • What fuse rating applies to the WESTINGHOUSE 5X00059G01 channel circuits?
    The channel fuse value is 0.063 A at 125 V.
  • What auxiliary fuse may be present on WESTINGHOUSE 5X00059G01?
    Applicable later hardware includes a 0.5 A, 125 V auxiliary-power fuse.
  • How should a WESTINGHOUSE 5X00059G01 loop be diagnosed?
    Check loop power, polarity, fuse continuity, measured current, analog reading and HART communication in that order.
  • Which tests close WESTINGHOUSE 5X00059G01 commissioning?
    Inject representative current points, verify HART access, and prove the configured open-loop and range alarms for each used channel.
