Technical specifications for 3500/42M 128229-01
-
Manufacturer:Bently Nevada
-
Product Category:Machinery Monitoring Systems
-
Spare Part Number:128229-01
-
Estimated shipping dimensions:2.5x11.2x24.2cm
-
Weight:0.4 kg
-
Tariff Code:8537101190
-
Counliy of origin:USA
-
Number of Channels:4 independent physical input channels
-
Power Consumption:7.7 W
-
Input Impedance:10 kΩ
-
Transducer Power Supply:-24 Vdc
-
DAC Resolution:0.3662 µA per bit (0.3662 µA/bit)
-
Operating Temperature:0°C to +65°C
Information
Overview
Manuals
Common Applications
Product Precautions
The 3500/42M 128229-01 by Bently Nevada is a 4-channel Proximitor/Seismic monitor. The 128229-01 is its corresponding I/O module with internal terminations, which processes vibration and position signals for critical machinery protection.
- Protects machinery by continuously comparing monitored parameters against configured alarm setpoints to drive alarms
- Communicates essential machine information to both operations and maintenance personne
- Direct sensor wiring saves cabinet space by eliminating external termination blocks
128229-01 serves as the foundational physical signal input link, continuously receiving analog voltage signals from field proximity displacement probes and seismic sensors. Through collaboration with the front-end mainboard, this module conditions the captured waveform signals and converts them into engineering measurement values such as relative shaft vibration, axial position, or absolute casing vibration.
On this basis, the system compares the conditioned data stream with user-configured alarm thresholds in real time, immediately driving logic interlocks to provide over-limit alarming and shutdown protection for rotating machinery.

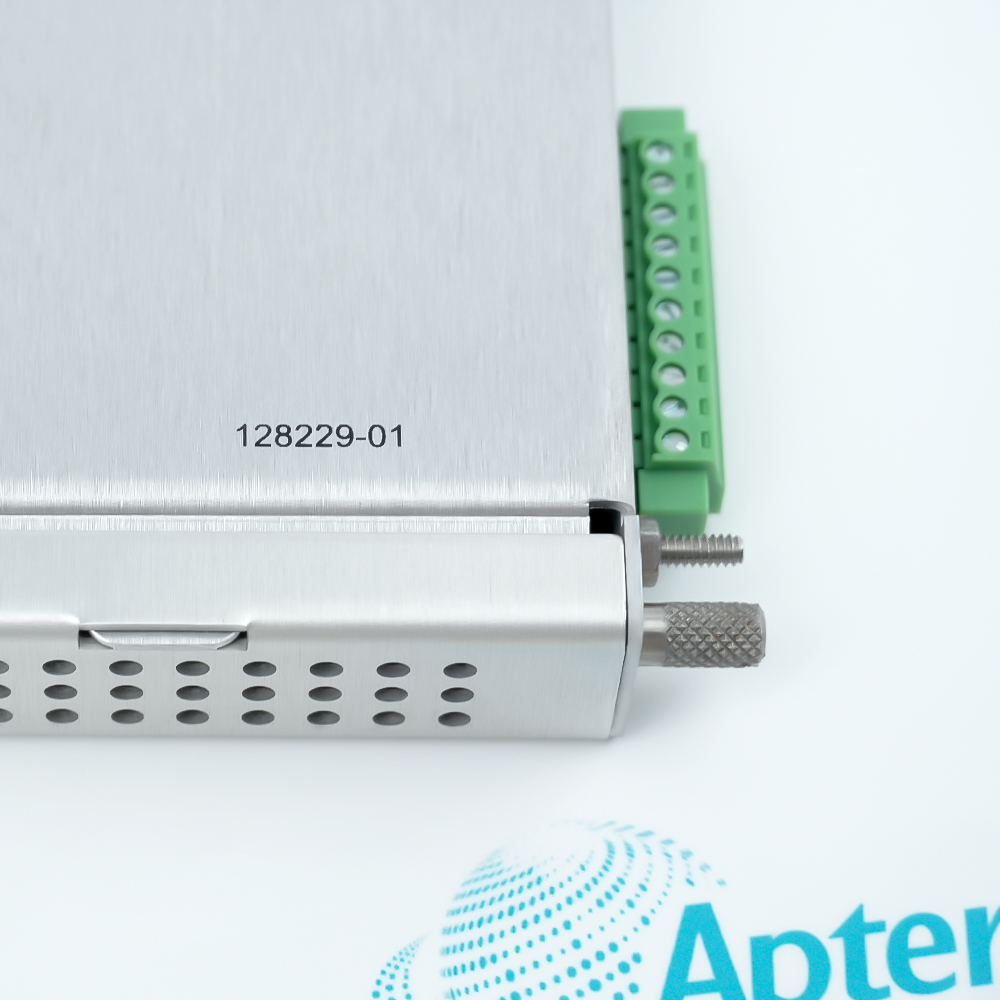

128229-01 utilizes an internal termination hardware architecture. The board surface directly integrates standardized screw terminal blocks, allowing direct physical wiring of various sensor shielded twisted-pair cables routed from the field, which eliminates the procurement requirements for external termination blocks and intermediate interconnecting cables. The module is slotted directly into the rear position of the 3500 rack, drawing operating power and completing bus data interconnection through the rack backplane.
Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description.
Bently Nevada 3500/42M 128229-01 Proximitor I/O Module Manuals, Datasheets, Drivers, Link
Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description.
Oil & Gas Exploration
Monitors bearing vibration of large natural gas injection compressors on offshore drilling platforms to prevent mechanical wear destruction.
Petrochemical & Refining
Acquires shaft radial displacement from the main air blower of heavy oil catalytic cracking units, transferring status variables directly to the control loop.
Thermal Power Plants
Mounted on 300MW/600MW supercritical steam turbine generator sets to continuously monitor axial shaft position (thrust displacement).
Nuclear Power Plants
Obtains seismic intensity and vibration amplitude data from the bearing housings of nuclear island primary loop coolant pumps to provide hardware-level data feeds.
Hydroelectric Power Plants
Measures the eccentricity and radial runout of large vertical hydro-generator shafts to prevent physical rubbing between the rotor and stator.
Iron & Steel Smelting
Continuously receives acceleration and velocity signals from blast furnace blower units, driving relay operations when vibration limits are exceeded.
When installing and maintaining the 3500/42M 128229-01, the module must be inserted or removed only after disconnecting the rack main power or verifying that the associated channel protection interlocks are fully bypassed to prevent false tripping.
During operation, channel configuration parameters including sensor type, system length, and full-scale range must be verified via the 3500 configuration software, running the module under mismatched hardware impedance (10kΩ/1MΩ) is strictly prohibited. When connecting field diagnostic testing instruments to the front panel Buffered Outputs, non-isolated coaxial test cables must be used, and physical short-circuits between terminals are strictly forbidden.
During operation, channel configuration parameters including sensor type, system length, and full-scale range must be verified via the 3500 configuration software, running the module under mismatched hardware impedance (10kΩ/1MΩ) is strictly prohibited. When connecting field diagnostic testing instruments to the front panel Buffered Outputs, non-isolated coaxial test cables must be used, and physical short-circuits between terminals are strictly forbidden.
Alternative Names
3500/42M
128229-01
3500/42M 128229-O1
35OO/42M 128229-01
3500/42M 128229-0I
3500/42M I28229-01
3500/42M I28229-OI
35OO/42M I28229-OI
Technical notes
3500/42M 128229-01, as the internal terminations variant, features integrated standard screw terminal blocks on its surface, allowing direct physical wiring of field proximity probes for axial displacement/shaft vibration, velocity transducers, or accelerometers without external termination blocks. It operates in tandem with the 3500/42M monitor mainboard to deliver the foundational hardware signal link for continuous monitoring and safety interlocking of rotating machinery.
FAQ View All FAQ
-
What is the 3500/42M 128229-01?The 128229-01 is the Proximitor/Seismic I/O Module with Internal Terminations, operating as the rear component of the Bently Nevada 3500/42M monitor system.
-
What is the primary hardware function of the 3500/42M 128229-01?It serves as the physical wiring link that receives electrical signals from field sensor probes, routing them to the front monitor mainboard where mechanical motion metrics are processed and calculated.
-
What types of sensor signals can the 3500/42M 128229-01 accept?It accepts voltage inputs from eddy-current proximity probes, accelerometers, and velocity transducers.
-
How to configure and parameterize the 3500/42M 128229-01?It must be configured via the 3500 Rack Configuration Software running on a computer to set channel types and full-scale ranges.
-
How does the 3500/42M 128229-01 hardware transfer machinery status to upper-level systems?It sends processed digital variables directly to a communication gateway module via the 3500 rack backplane bus, or outputs 4-20 mA current signals via the rear I/O module.
