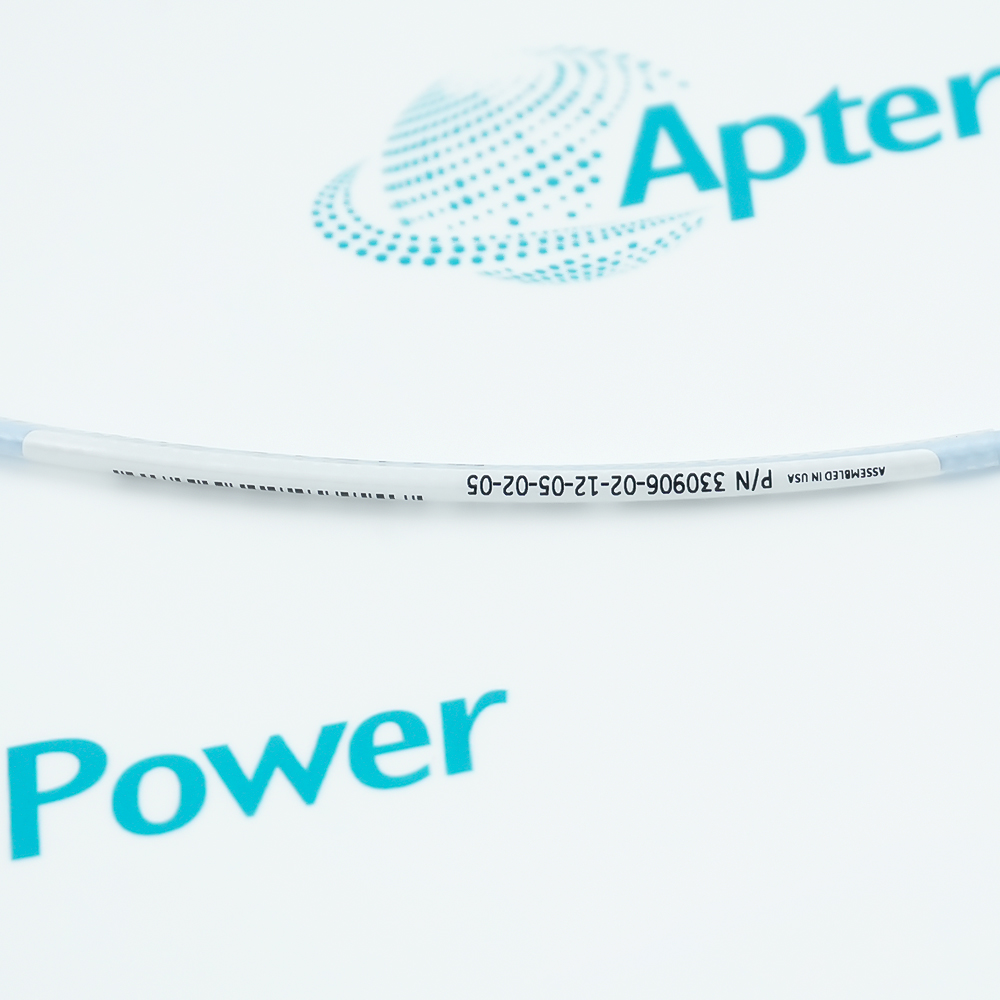

The 330906-02-12-05-02-05 is a Bently Nevada non-contact eddy current reverse mount probe within the 3300 XL NSv Proximity Transducer System series instrumart.com. This model features a 3/8-24 UNF threaded case with a 0.2-inch unthreaded length, a 1.2-inch overall case length, a 0.5-meter unarmored coaxial cable, and a miniature coaxial ClickLoc connector. It carries hazardous area agency approvals.
Axial (thrust) position measurements
Phase reference (Keyphasor signals)
Tachometer and zero speed measurements
The probe acquires radial vibration, axial thrust position, speed, and phase reference signals. The hardware is applied to centrifugal air compressors, refrigeration compressors, and process gas compressors with tight installation constraints where counterbore, sideview, or rearview restrictions limit standard transducer deployment. The configuration is utilized on small target applications, including shafts smaller than 51 mm and flat targets smaller than 15 mm. Within the complete transducer system, it operates with a scale factor of 7.87 V/mm and a 1.5 mm linear range.
Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description.
Bently Nevada 330906-02-12-05-02-05 Reverse Mount Probe Manuals, Datasheets, Drivers, Link
Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description.
Oil and Gas Refining
Measuring radial vibration in high-speed centrifugal compressors with restricted internal bearing clearances.
Power Generation
Tracking axial thrust position on small-scale industrial gas turbines within tight housing structures.
Petrochemical Processing
Capturing Keyphasor phase reference signals on high-speed ethylene compressor shafts smaller than 51 mm.
Chemical Manufacturing
Monitoring shaft displacement on high-capacity process gas compressors under strict space constraints.
Industrial Refrigeration
Measuring rotor dynamics in compact refrigeration screw compressors where counterbore space is limited.
Air Separation
Tracking speed and tachometer references on high-pressure main air compressor shafts.
330906-02-12-05-02-05 maintenance requires establishing the initial gap voltage within the 1.5 mm linear range. Install the hardware from the rear of the bracket, maintaining clearances to avoid structural interference. Route the 0.5-meter unarmored cable without modifying the ClickLoc connector, keeping it clear of high-voltage lines. Ensure deployment matches hazardous area approvals and AISI 4140 steel calibration.
330906-02-12-05-02-05 is specifically used for non-contacting shaft vibration and displacement measurements in space-constrained or small-target environments, calibrated based on AISI 4140 steel and equipped with multiple international hazardous area agency approvals.
It is a non-contacting eddy current proximity probe for vibration and displacement monitoring.
What is the thread type of the 330906-02-12-05-02-05?
The probe body features a 3/8-24 UNF English thread.
What is the cable length of the 330906-02-12-05-02-05?
Option 05 specifies a 0.5-meter (20-inch) integrated probe cable.
What type of cable configuration is used on the 330906-02-12-05-02-05?
Suffix 02 designates a standard coaxial cable without stainless steel armor.
