The 330104-15-25-10-02-05 is a non-contact eddy current proximity probe belonging to the 3300 XL 8mm probe series. It monitors the condition of industrial machinery in real time by measuring gap changes between the probe tip and the rotating metallic shaft surface.
One 3300 XL 8 mm probe
One 3300 XL 8 mm probe
One 3300 XL Proximitor Sensor
The system provides an output voltage that is directly proportional to the distance between the probe tip and the observed conductive surface and can measure both static (position) and dynamic (vibration) values. The system’s primary applications are vibration and position measurements on fluid-film bearing machines, as well as Keyphasor reference and speed measurements.
The 3300 XL 8 mm system delivers the most advanced performance in our eddy current proximity transducer systems. The standard 3300 XL 8 mm 5-meter system also fully complies with the American Petroleum Institute’s (API) 670 Standard for mechanical configuration, linear range, accuracy, and temperature stability.
All 3300 XL 8 mm proximity transducer systems provide this level of performance and support complete interchangeability of probes, extension cables, and Proximitor sensors, eliminating the need to match or bench calibrate individual components. Each 3300 XL 8 mm Transducer System component is backward compatible and interchangeable with other non XL 3300 series 5 mm and 8 mm transducer system components. This compatibility includes the 3300 5 mm probe, for applications in which an 8 mm probe is too large for the available mounting space.
Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description.
Bently Nevada 330104-15-25-10-02-05 Proximity Probe Manuals, Datasheets, Drivers, Link
Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description.
Power Generation Industry
Used in large steam and gas turbine generators to monitor shaft vibration and axial displacement, preventing catastrophic friction rub between rotating and stationary components.
Oil & Gas
Employed on offshore drilling platforms and land pipelines to continuously monitor shaft tilt and speed of high-pressure water injection pumps and crude oil export pumps.
Petrochemical Industry
Monitors shaft vibration in core high-power centrifugal compressors, such as ethylene cracking gas compressors, ensuring the safety of continuous, high-risk production lines.
Coal Chemical Industry
Tracks bearing conditions of critical fans in gasification islands and large centrifugal air compressors in air separation units to prevent downtime from overloads.
Cement Manufacturing Industry
Tracks bearing chamber displacement in high-value drive equipment under heavy dust and harsh environments, like vertical roller mill gearboxes and high-temperature exhaust fans.
Paper & Pulp Industry
Evaluates the mechanical status of large paper machine dryer bearings and fan pumps to mitigate spontaneous web-break risks.
The total length of the probe and extension cable must strictly match (5 m or 9 m) to avoid severe measurement errors. Adjust the initial gap to approximately 1.0 mm (around -10 VDC) using a multimeter to locate the linear center.

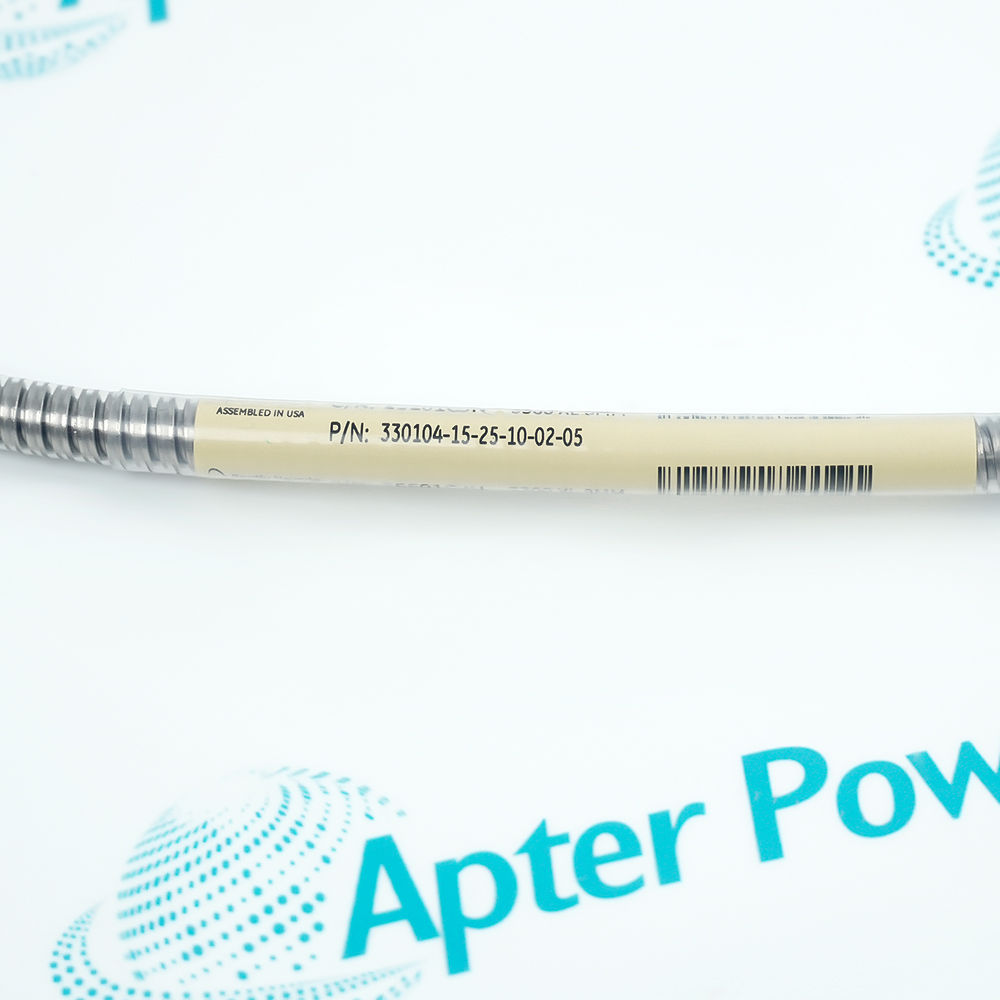

The Bently Nevada 330104-15-25-10-02-05 is a 3300 XL 8mm non-contact eddy current proximity probe featuring an M10×1 metric thread, a 15mm unthreaded length, a 25mm overall case length, and a 1.0-meter integral cable. Equipped with a miniature coaxial connector and connector protector, this probe holds multiple hazardous area certifications and monitors shaft vibration and axial displacement of rotating machinery.
Yes. We ship globally, and we are able to quickly deliver parts globally to any corner of the world. Unless otherwise specified, we will ship your order via (DHL). We can also ship through FedEx, UPS, and TNT. We can also use your account.
How many parts do you have in stock?
We have an extensive stock base consisting of ten thousands of new and discontinued automation parts including those from leading manufacturers such as:Control Systems (DCS, PLC, CNC) ,Panel Controllers,HMI and Display Panels,Drives,Encoders and Resolvers,Power Supplies.
What product is 330104-15-25-10-02-05?
This is a non-contact eddy current proximity probe from the 3300 XL 8mm series, used to measure shaft vibration and axial displacement in rotating machinery.
How does 330104-15-25-10-02-05 work?
The proximitor sensor generates a high-frequency excitation signal to create an electromagnetic field around the probe tip; as the metallic shaft surface approaches, eddy currents form, changing the system impedance and outputting a voltage proportional to the gap.
What thread specification does 30104 represent in the model number?
It represents that the probe casing features an M10×1 metric thread and the cable is without a rigid protective armor sleeve.
