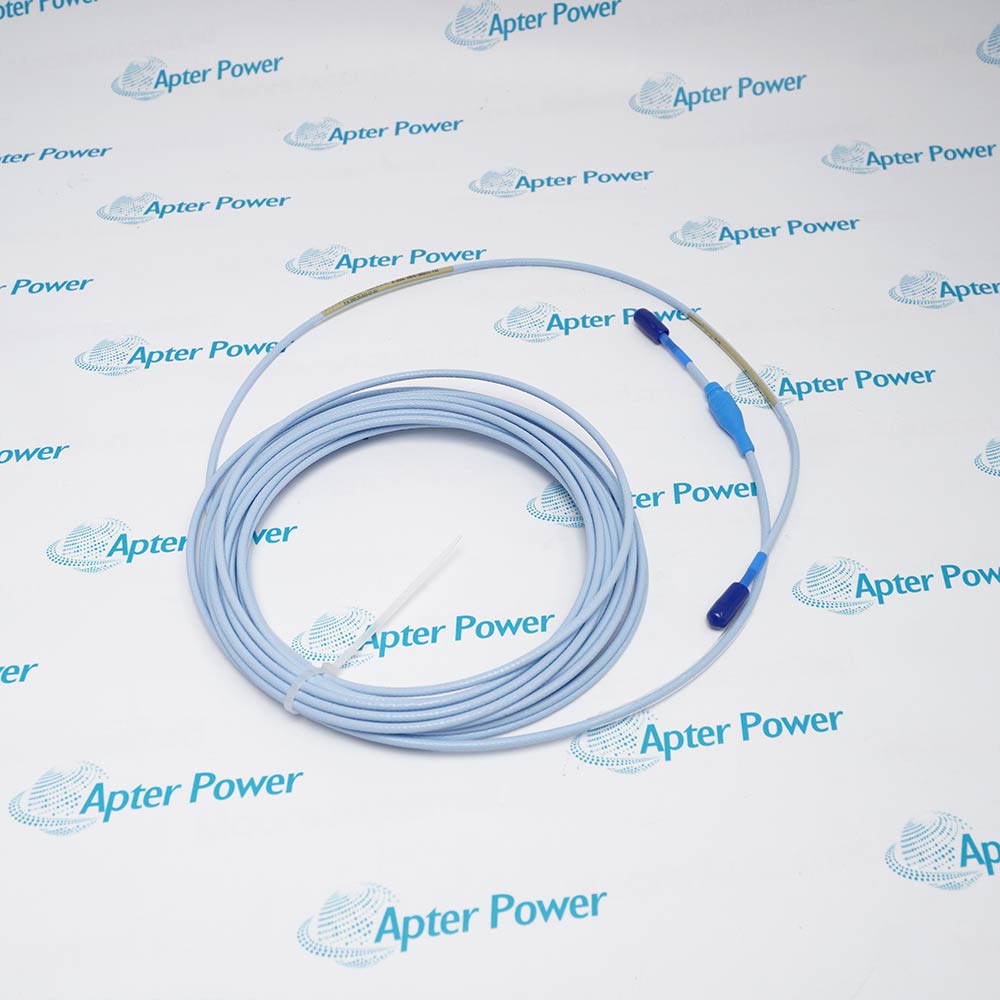

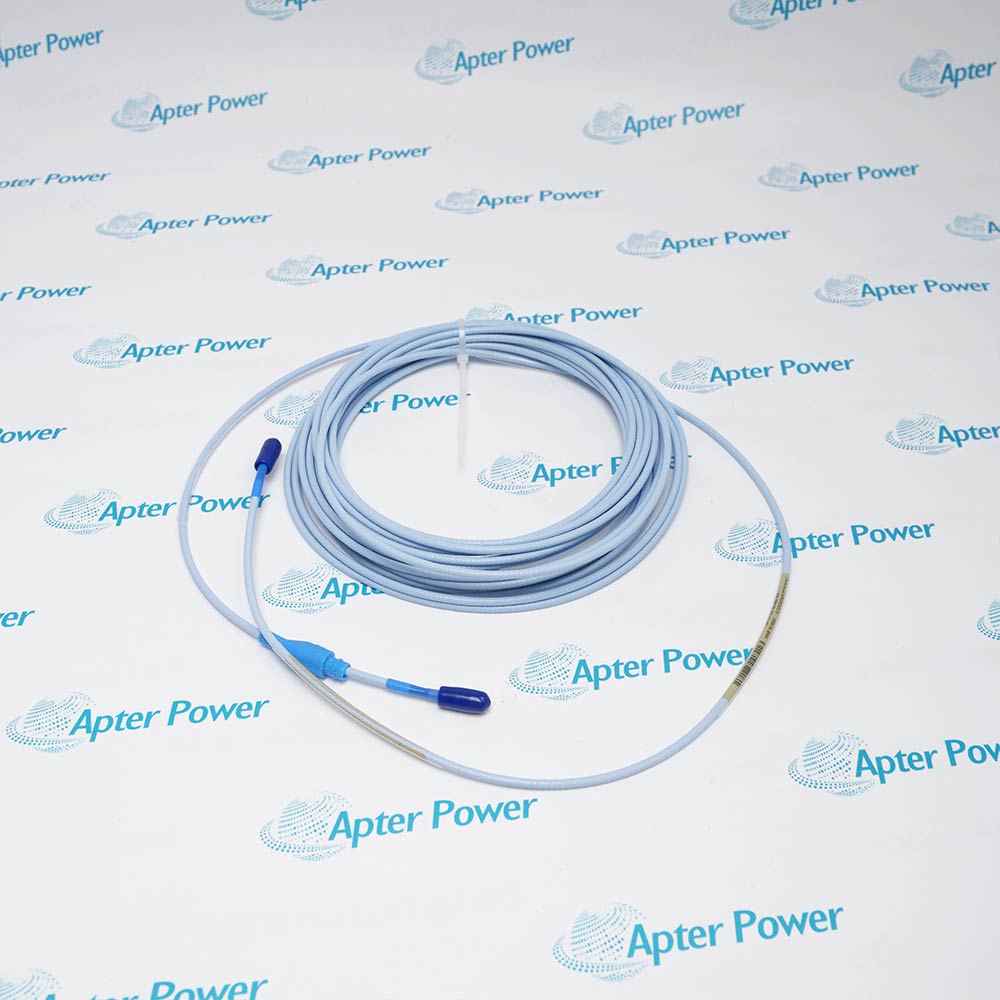

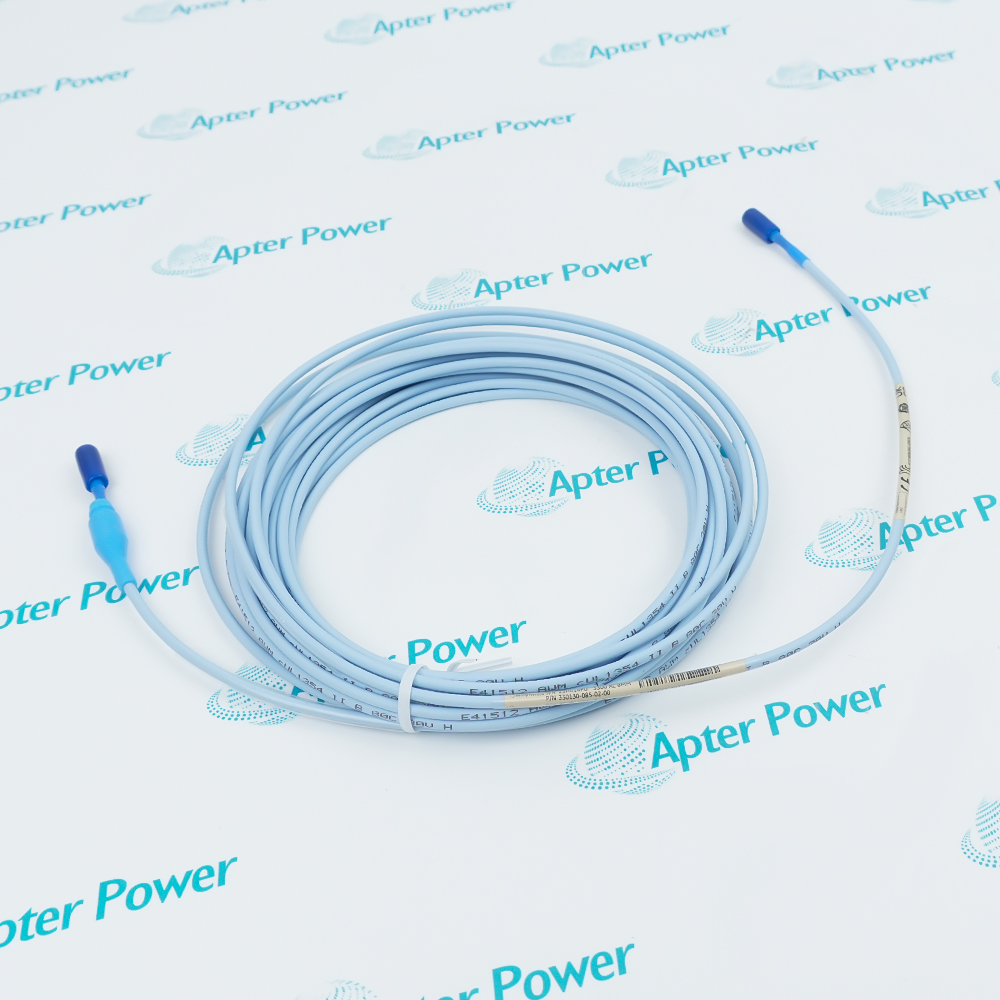

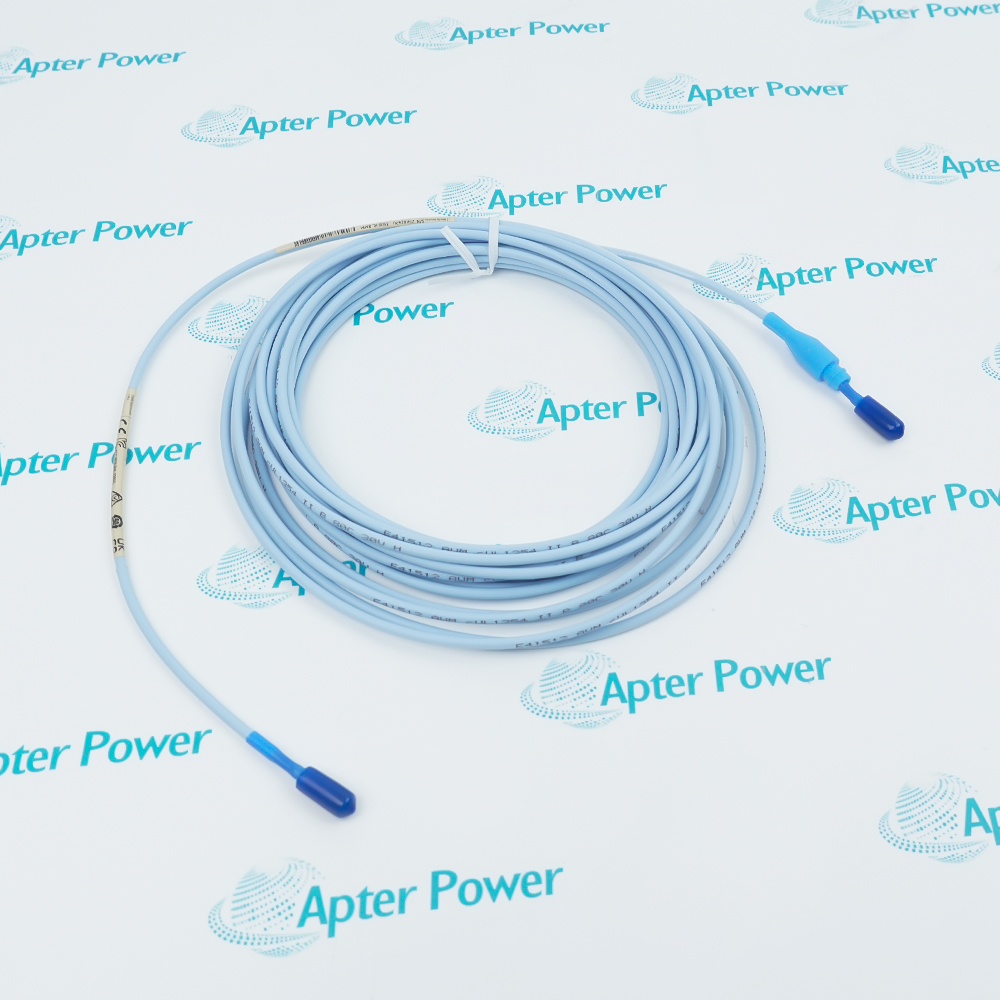

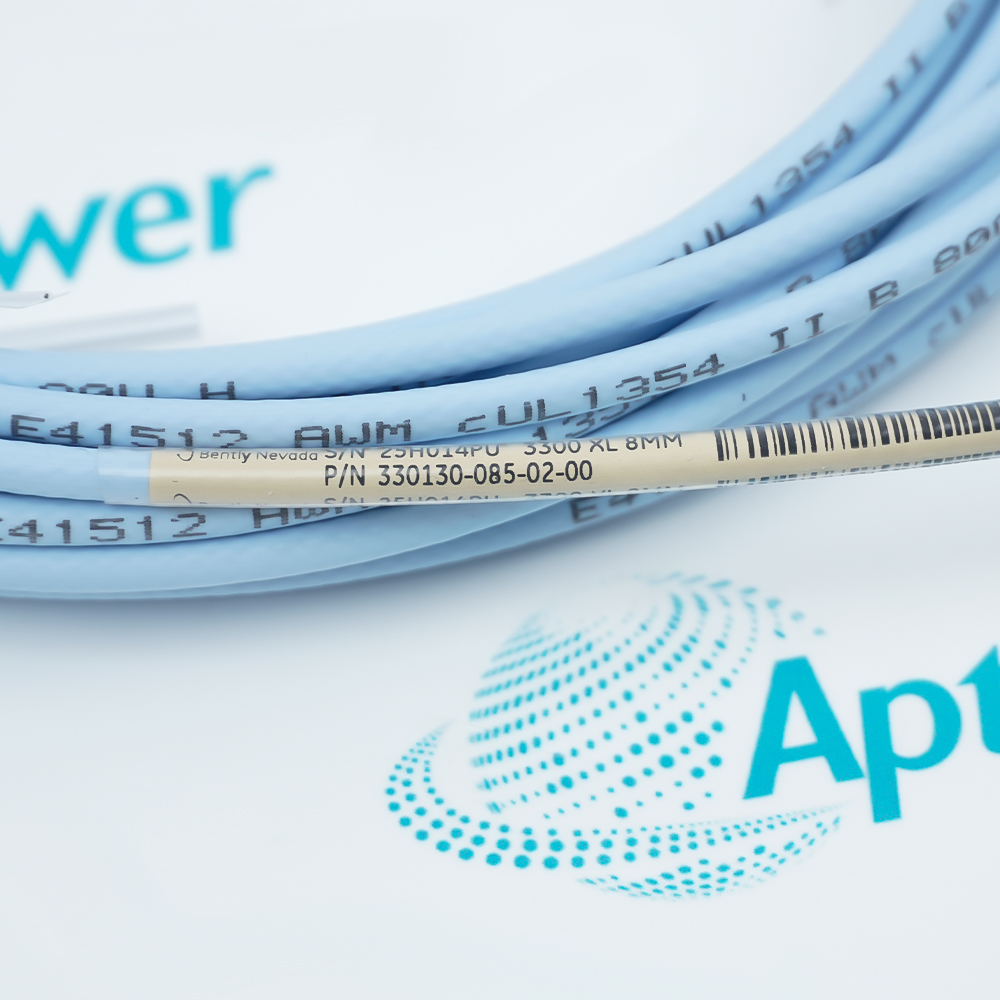

The 330130-085-02-00 is an 8.5-meter standard extension cable with connector protectors for the Bently Nevada 3300 XL 8mm Proximity Transducer System.
Integrated Connector Protectors
Excellent Environmental Resistance
Seamless System Compatibility
As a component of the 3300 XL 8 mm system, it supports a configuration that complies with the American Petroleum Institute’s (API) 670 Standard for mechanical configuration, linear range, accuracy, and temperature stability. The 3300 XL 8 mm proximity transducer systems allow full interchangeability of probes, extension cables, and Proximitor sensors, which removes the requirement to match or bench calibrate individual components.
Each 3300 XL 8 mm system component is backward compatible and interchangeable with other non-XL 3300 series 5 mm and 8 mm transducer system components. This compatibility includes the 3300 5 mm probe for applications where an 8 mm probe exceeds the available mounting space.
Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description.
Bently Nevada 330130-085-02-00 Standard Extension Cable Manuals, Datasheets, Drivers, Link
Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description.
Oil & Gas Refining
Connecting proximity probes to measure radial vibration of high-power bearings in catalytic cracking units.
Petrochemical Industry
Used for transmitting shaft vibration and Keyphasor (speed) signals in high-speed centrifugal ethylene compressors.
Thermal Power Plants
Measuring shaft growth and relative casing displacement of main shafts on large steam turbine generator sets.
Hydroelectric Power Plants
Monitoring the runout and vibration of large-diameter vertical shafts on hydro-generator units.
Nuclear Power Plants
Providing high-reliability shaft displacement signal transmission in conventional island main feed pumps and turbine units.
Steel & Metallurgy
Transmitting axial float data of main shafts on large high-load reduction gearboxes in high-speed rolling mills.
Do not cut or splice the 330130-085-02-00 to maintain impedance and system length matching. Use tools to tighten connectors and seal protectors against oil and moisture. Route inside a protective conduit with the required bend radius, avoiding tension, pinching, or parallel placement next to power cables to prevent mechanical damage and EMI.
The system provides an output voltage that is directly proportional to the distance between the probe tip and the observed conductive surface and can measure both static (position) and dynamic (vibration) values. The system’s primary applications are vibration and position measurements on fluid-film bearing machines, as well as Keyphasor reference and speed measurements.
What is the purpose of the 3300 XL Extension Cable?
The 3300 XL Extension Cable is a dedicated signal transmission component in the Bently Nevada 3300 XL machinery monitoring system. Its core purpose is to provide a high-fidelity, high-reliability signal transmission link for the eddy current displacement sensor system, ensuring the accuracy of mechanical vibration and displacement monitoring data and system stability.
How to connect and use the 330130-085-02-00?
Connect one end to the 8mm probe lead and the other end to the 3300 XL proximitor.
What does the -00 in 330130-085-02-00 mean?
It means agency approval is not required.
What values can 330130-085-02-00 help measure?
It helps the system measure both static position and dynamic vibration.
