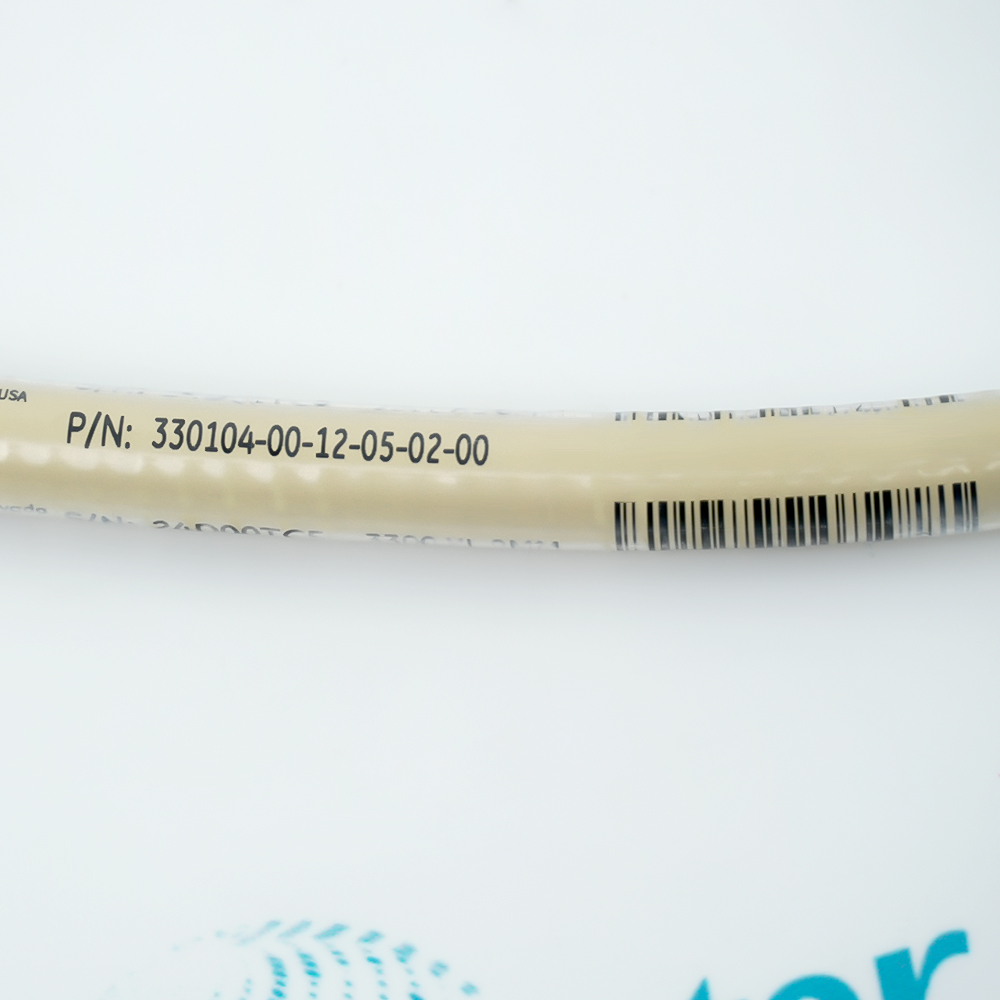

The 330104-00-12-05-02-00 is a component of the 3300 XL 8mm eddy current sensor system manufactured by Bentley Industries, Inc. It belongs to the 3300 XL series of proximity probes and is specifically designed for measuring vibration, axial displacement, key phase, and rotational speed in industrial rotating machinery. It is commonly used in the power, petroleum, and chemical industries.
One 3300 XL 8 mm probe
One 3300 XL extension cable
One 3300 XL Proximitor Sensor
The system provides an output voltage that is directly proportional to the distance between the probe tip and the observed conductive surface and can measure both static (position) and dynamic (vibration) values. The system’s primary applications are vibration and position measurements on fluid-film bearing machines, as well as Keyphasor reference and speed measurements. The 3300 XL 8 mm system delivers the most advanced performance in our eddy current proximity transducer systems. The standard 3300 XL 8 mm 5-meter system also fully complies with the American Petroleum Institute’s (API) 670 Standard for mechanical configuration, linear range, accuracy, and temperature stability. All 3300 XL 8 mm proximity transducer systems provide this level of performance and support complete interchangeability of probes, extension cables, and Proximitor sensors, eliminating the need to match or bench calibrate individual components.
Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description.
Bently Nevada 330104-00-12-05-02-00 3300 XL 8 mm Proximity Probes Manuals, Datasheets, Drivers, Link
Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description.
Petroleum Refining
Monitoring oil film clearance and axial position of centrifugal compressor bearings.
Hydropower Generation
Monitoring the runout (radial vibration) of the main shaft in hydro-generator units.
Steel & Metallurgy
Monitoring the dynamic operational status of long shaft systems in blast furnace blowers.
Offshore Engineering
Monitoring thermal expansion and displacement of generator unit rotors on offshore platforms.
Semiconductor
onitoring rotor status of large centrifugal chillers in facility management.
Cement Manufacturing
Monitoring shaft vibration within the bearing housings of large exhaust fans.
When using the 330104-00-12-05-02-00 proximity probe, it is critical to ensure the probe is positioned within the linear range by verifying the gap voltage (typically set to -10 VDC), during installation, avoid excessive torque on threads and ensure the probe tip is perpendicular to the target surface and free of scratches. Additionally, use connector protectors to prevent oil contamination, and strictly refrain from cutting or altering the cable length to maintain the system's calibrated accuracy.
It is a 3300 XL series 8mm proximity probe, a non-contacting sensor used to measure shaft vibration and displacement.
How to use 330104-00-12-05-02-00?
It is mounted on the machine bearing housing to output electrical signals by measuring the gap changes between the probe tip and the metal shaft.
What is the connector option for 330104-00-12-05-02-00?
The "02" code means it is equipped with a miniature coaxial connector with a connector protector.
What is the measurement principle of 330104-00-12-05-02-00?
It is based on the eddy current effect, detecting impedance changes on the metal surface.
What are the target requirements for 330104-00-12-05-02-00?
The target must be a conductive metal, typically calibrated for 4140 steel.
