Provides Non-contact Shaft Vibration and Position Measurement
Uses Eddy Current Technology for High-Precision Detection.

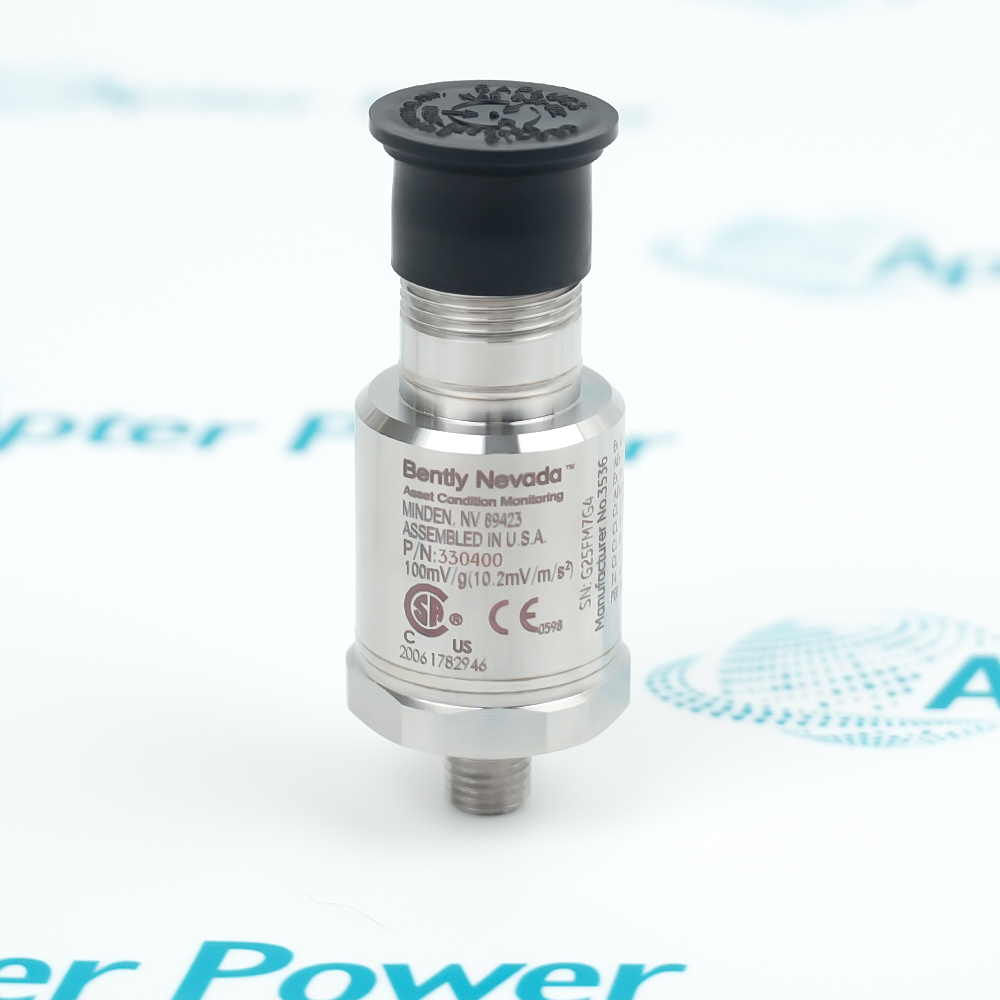

The BENTLY NEVADA 330400-02-05 is a 3_pin accelerometer designed for critical machinery casing acceleration measurements, featuring an M8 x 1 mounting stud and CSA/ATEX/lECEx approvals. It offers 100 mV/g sensitivity, a 50 g peak range, and a 10 Hz to 15 kHz frequency range. It requires -24 Vdc power.
These accelerometers are intended for critical machineryapplications where casing acceleration measurements arerequired, such as gear mesh monitoring. The 330400 isdesigned to address the requirements of AmericanPetroleum Institute Standard 670 for accelerometers.
Itprovides an amplitude range of 50 g peak and a sensitivity of100 mV/g. The 330425 is identical except it provides a largeramplitude range (75 g peak) and a sensitivity of 25 mV/g.
Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description.
Bently Nevada 330400-02-05 Accelerometer Manuals, Datasheets, Drivers, Link
Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description.
We know that questions arise, and that sometimes you need more details or a closer look to make the right decision. That’s why we make it easy for you to reach out directly—so you’re never left wondering.
With our team, you’re just a message away from clarity and confidence. Whether you have a specific question, need a particular image, or want more details, the request form puts you in control. Let us know what you need, and we’ll bring the answers straight to you—no guesswork required!
Oil & Gas Refining
Monitoring casing vibrations of catalytic cracking units and heavy compressors.
Power Generation
Monitoring high-frequency mechanical faults on steam turbine and generator bearing pedestals.
Petrochemical Industry
Continuous vibration protection for large ethylene compressors in explosive hazardous areas.
Steel & Metallurgy
Monitoring gear meshing conditions of high-speed rolling mills and large blowers.
Cement Manufacturing
Monitoring severe vibrations of rotary kiln drive gearboxes and large exhaust fans.
Pulp & Paper Industry
Monitoring high-frequency pitting on paper machine dryer bearings and high-speed press rolls.
Alternative Names
Alternative Names
330400 02 05330400-01-05330400-02-00
Technical notes
Technical notes
The suffix -02 specifies an M8×1 metric integral stud, and -05 indicates CSA/ATEX/IECEx intrinsic safety certifications for hazardous industrial environments.
Sensors that convert acceleration and vibration into electrical output. Strain gage acceleration sensors (transducers) can respond from static acceleration (0 Hz) and provide superior static/dynamic characteristics and temperature characteristics.
What monitoring systems is the 330400-02-05 compatible with?
It is compatible with Bently Nevada’s 3300/25, 3300/26, and 2201 monitors.
What 330400-02-05 cables can be used?
It supports the 16925 standard cable, 16710 armored cable, and 130539 cable.
What is the 330400-02-05 used for?
It is used for machinery protection, particularly in harsh, demanding industrial environments.
What is the function of the 330400-02-05 Acceleration Transducer?
It is designed to measure vibration acceleration in rotating machinery for condition monitoring and equipment protection.
