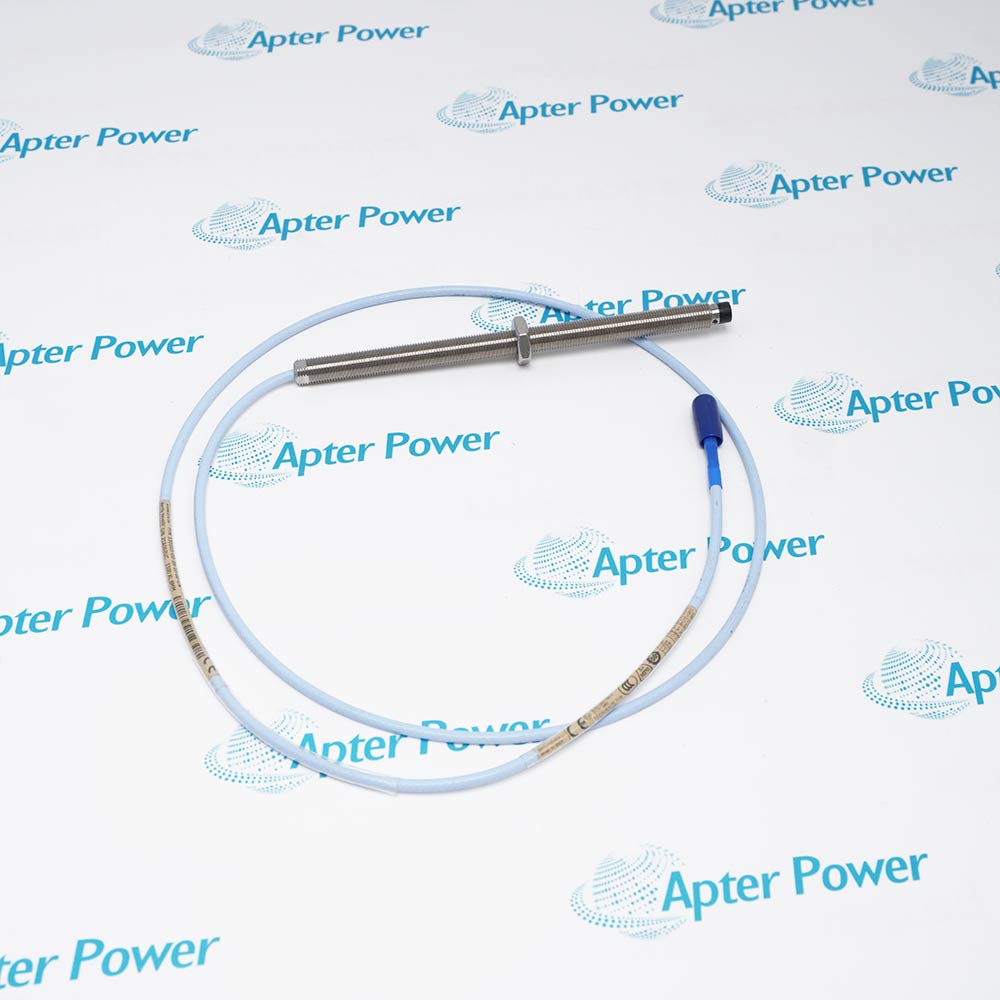

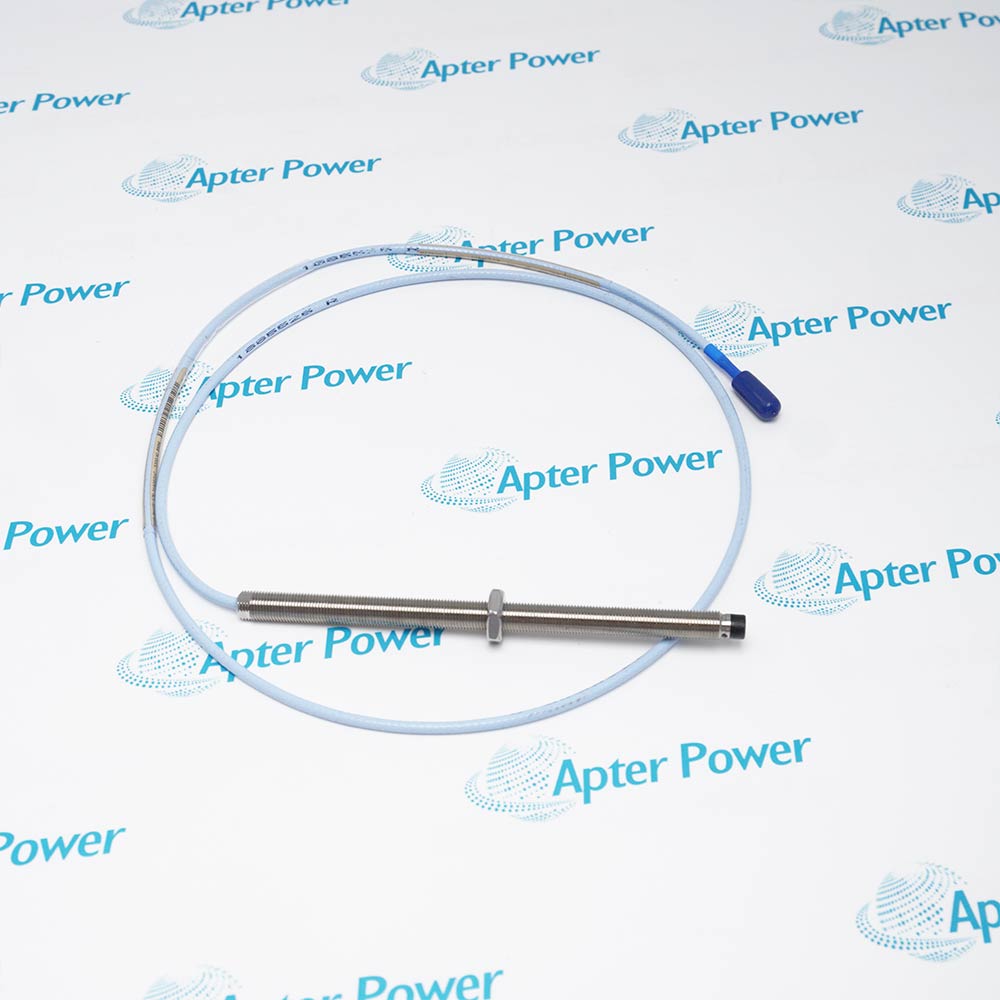

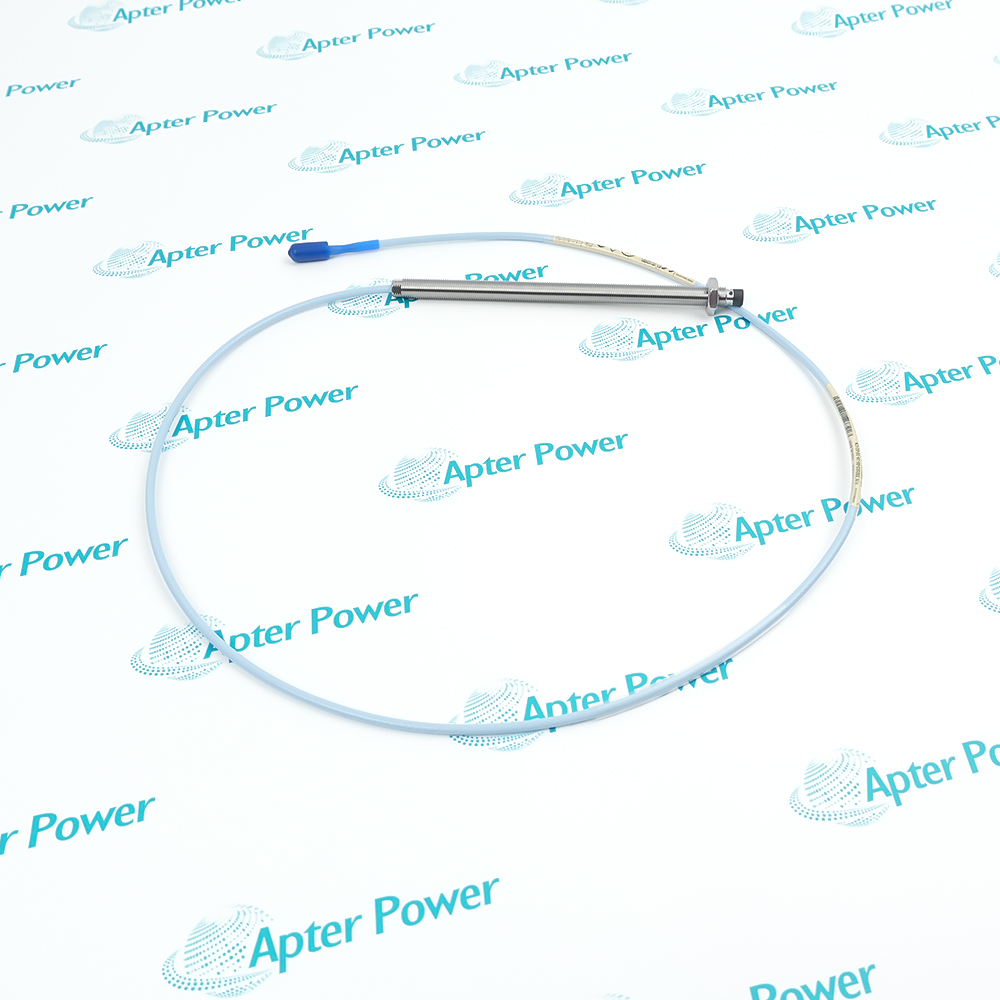

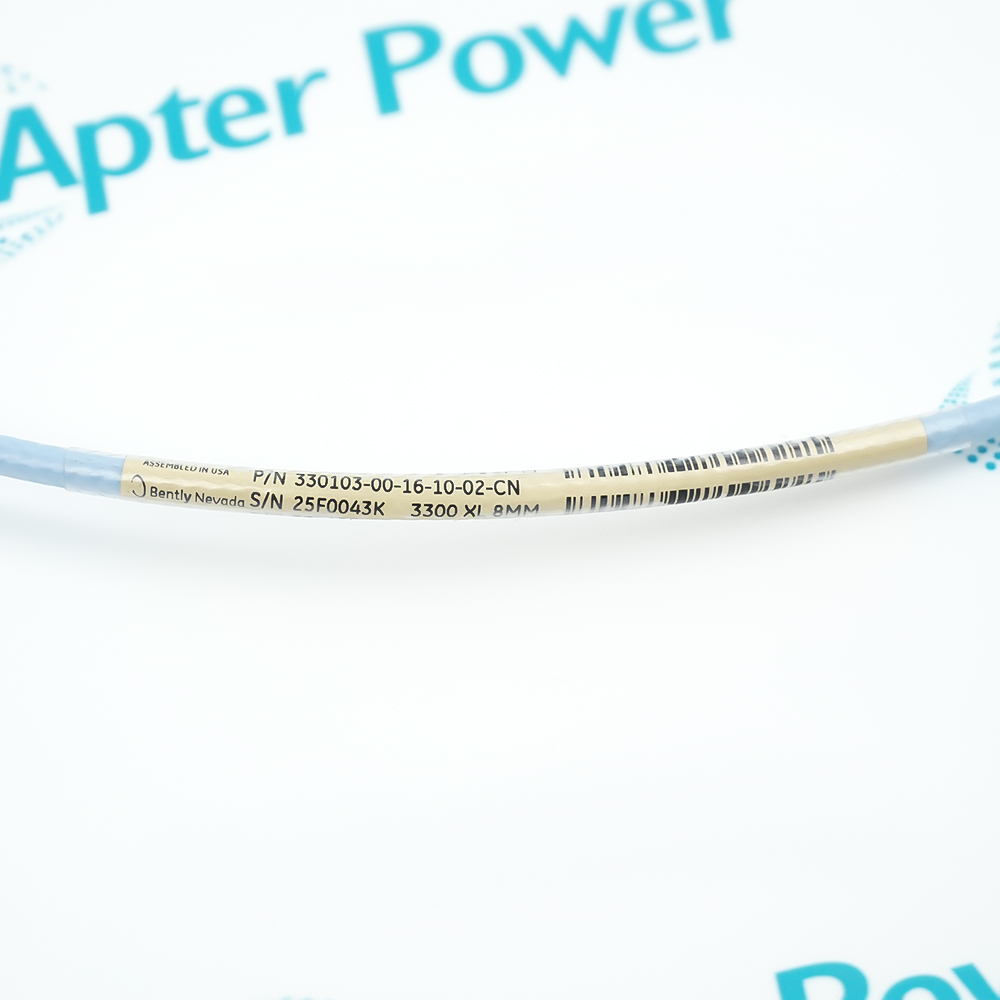

The 330103-00-16-10-02-CN is an API 670 compliant 3300 XL 8 mm eddy current proximity probe utilized for shaft vibration and displacement monitoring on major machinery.
One 3300 XL 8 mm probe
One 3300 XL extension cable
One 3300 XL Proximitor Sensor
The system provides an output voltage that is directly proportional to the distance between the probe tip and the observed conductive surface and can measure both static (position) and dynamic (vibration) values. The system’s primary applications are vibration and position measurements on fluid-film bearing machines, as well as Keyphasor reference and speed measurements.
The 3300 XL 8 mm system delivers the most advanced performance in our eddy current proximity transducer systems. The standard 3300 XL 8 mm 5-meter system (configured using this 1.0-meter probe and a 4.0-meter extension cable) fully complies with the American Petroleum Institute’s (API) 670 Standard for mechanical configuration, linear range, accuracy, and temperature stability.
All 3300 XL 8 mm proximity transducer systems provide this level of performance and support complete interchangeability of probes, extension cables, and Proximitor sensors, eliminating the need to match or bench calibrate individual components. Each 3300 XL 8 mm Transducer System component is backward compatible and interchangeable with other non-XL 3300 series 5 mm and 8 mm transducer system components. This compatibility includes the 3300 5 mm probe, for applications in which an 8 mm probe is too large for the available mounting space.
Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description.
Bently Nevada 330103-00-16-10-02-CN Proximity Probe Manuals, Datasheets, Drivers, Link
Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description.
Thermal Power Generation
Monitors the radial shaft vibration of large steam turbine generators to prevent physical wear and rubs on bearings during high-speed operation.
Iron & Steel Metallurgy
Monitors the dynamic rotor shaft vibration of blast furnace blowers (TRT) to prevent severe mechanical failure caused by aerodynamic excitation.
Petrochemical Refining
Measures the axial thrust position of high-pressure centrifugal compressors in hydrocracking units to monitor thrust bearing load and wear in real time.
Hydroelectric Power Generation
Installed on guide bearings of large vertical hydro-generators to measure shaft runout, ensuring hydraulic runout stays within safe limits.
Air Separation Plants
Measures the axial play of high-speed shafts inside oxygen/nitrogen turbo-compressor gearboxes to prevent rubs between multi-stage impellers and casings.
Nuclear Power Generation
Monitors the shaft running conditions of Reactor Coolant Pumps (MCP), providing a high physical-layer level of protection under extreme temperatures and interference.
When using the 330103-00-16-10-02-CN probe, strictly maintain system length matching and never cut the cable to avoid impedance failure. Precisely adjust the physical gap between the probe tip and the shaft surface by monitoring the output voltage to ensure operation within the linear zone.
Always use a torque wrench to strictly limit mechanical force during thread tightening, preventing damage to internal coils or threads from overtightening. Additionally, ensure the target shaft surface is smooth and free of residual magnetism, and seal the coaxial connectors with insulation boots to eliminate ground loop interference from casing contact.
This model features a 3/8-24 English fully threaded case (0 mm unthreaded length and 1.6-inch total case length), an integrated 1.0-meter cable with a miniature connector protector, a wide operating temperature capability, and the local China NEPSI explosion-proof certification.
What is the linear range of the 330103-00-16-10-02-CN probe?
The linear range of this probe is 2 mm (80 mils), starting approximately 0.25 mm (10 mils) from the target surface and ending at 2.3 mm (90 mils).
What is the operating temperature range of the 330103-00-16-10-02-CN probe?
The standard operating temperature range of this probe is -52°C to +177°C
What is the total length of the 330103-00-16-10-02-CN probe?
The total length of this probe is 1.0 meter.
Is the 330103-00-16-10-02-CN suitable for industrial environments?
Yes, it features wide operating temperature, high vibration resistance, and oil-resistant non-armored cable for rotating machinery monitoring.
What are the installation guidelines for the 330103-00-16-10-02-CN?
Mount using 3/8-24 UNF thread, set proper target gap, lock the ClickLoc connector, and route non-armored cable away from electrical interference.
