330104-00-06-10-02-00

Proximity Probe
In Stock
Ships by Saturday, November 21
Fast Shipping Available

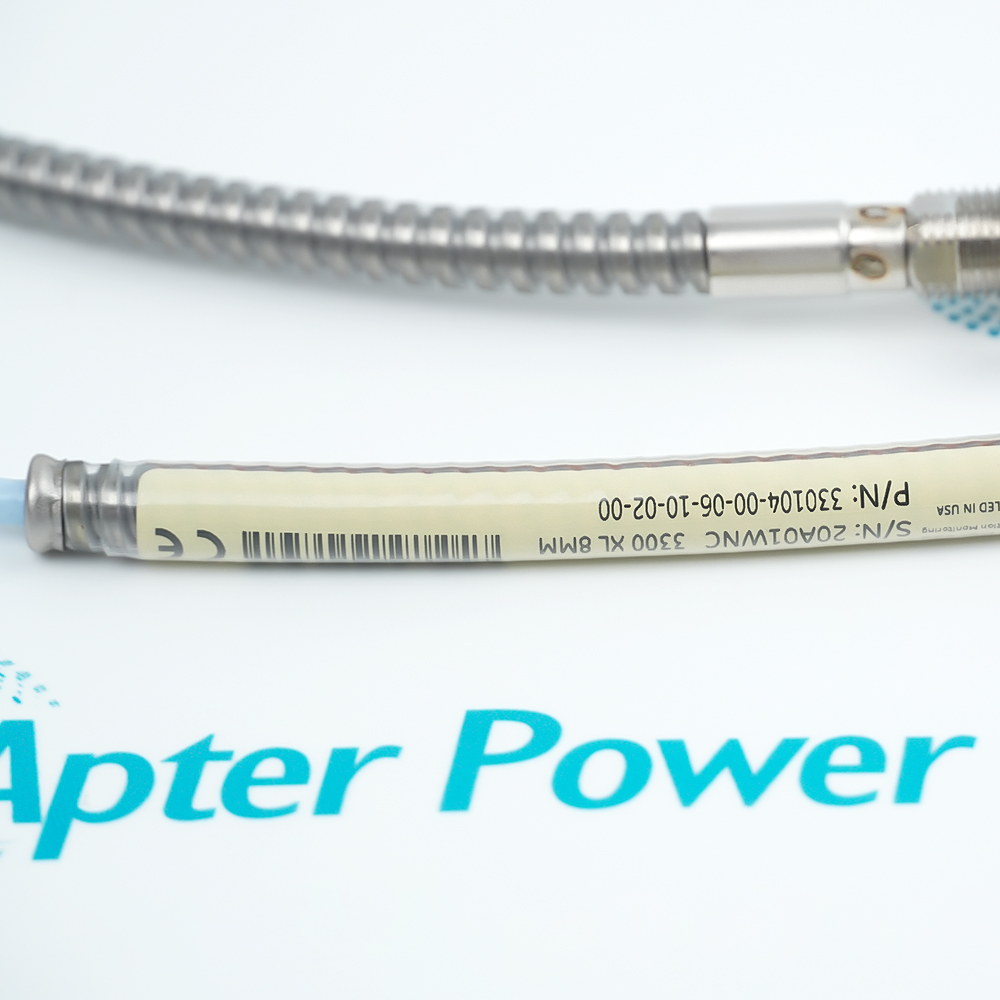

Bently Nevada 330104-00-06-10-02-00
Bently Nevada 330104-00-06-10-02-00
Bently Nevada 330104-00-06-10-02-00
Bently Nevada 330104-00-06-10-02-00
Bently Nevada 330104-00-06-10-02-00
Bently Nevada 330104-00-06-10-02-00
Product image is representative; revision or series may vary. Contact us to request a specific version.

Product Describe:

3300 XL 8 mm Probe
M10 x 1 thread, with armor
0% to 95% non-condensing
IP67
Get a quick price for 330104-00-06-10-02-00
E-mail *
Mobile
Company
Content *
Quantity *
Upload (gif, jpg, jpeg, png, bmp, doc, docx, xls, xlsx, ppt, pdf, csv)
For more information on how your data is processed and stored by Apterpower please read our privacy policy

What happens after you enquire

  • 1

    Requirement review

    We review the part number, quantity and delivery requirements and ask for any missing details.
  • 2

    Quotation and availability

    We confirm the proposed item, condition, availability, price and estimated lead time in the quotation.
  • 3

    Order confirmation and dispatch

    Once the quotation and purchasing details are agreed, your contact will coordinate the order and available dispatch information.

Technical specifications for 330104-00-06-10-02-00

  • Manufacturer:
    Bently Nevada
  • Product Category:
    Machinery Monitoring Systems
  • Spare Part Number:
    330104-00-06-10-02-00
  • Estimated shipping dimensions:
    20.5x22.4x3.3cm
  • Weight:
    0.29 kg
  • Tariff Code:
    8537101190
  • Counliy of origin:
    USA
  • Detection Distance:
    2.0 mm (80 mils)
  • Overall Case Length Option:
    60 mm
  • Total Length Option:
    1.0 meter (3.3 feet)
  • Connector and Cable-Type Option:
    Miniature coaxial ClickLoc connector, standard cable
  • Agency Approval Option:
    Not required
  • Unthreaded Length Option:
    0 mm

Information

Overview Manuals Common Applications Product Precautions
The 330104-00-06-10-02-00 is an eddy current proximity probe belonging to the 3300 XL 8 mm Transducer System series. The system includes a probe, extension cable, and Proximitor sensor, outputting a voltage proportional to the distance to the observed surface for vibration, position, Keyphasor, and speed measurements on fluid-film bearing machinery.
    • One 3300 XL 8 mm probe
    • One 3300 XL extension cable
    • One 3300 XL Proximitor Sensor
The 3300 XL 8 mm system delivers the most advanced performance in our eddy current proximity transducer systems. The standard 3300 XL 8 mm 5-meter system also fully complies with the American Petroleum Institute’s (API) 670 Standard for mechanical configuration, linear range, accuracy, and temperature stability. All 3300 XL 8 mm proximity transducer systems provide this level of performance and support complete interchangeability of probes, extension cables, and Proximitor sensors, eliminating the need to match or bench calibrate individual components.

Each 3300 XL 8 mm Transducer System component is backward compatible and interchangeable with other non XL 3300 series 5 mm and 8 mm transducer system components. This compatibility includes the 3300 5 mm probe, for applications in which an 8 mm probe is too large for the available mounting space.

Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description.
 Bently Nevada 330104-00-06-10-02-00 Proximity Probe Manuals, Datasheets, Drivers, Link Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description.
Power Generation
Monitoring steam turbine shaft vibration and axial position.

Oil & Gas Refining
Measuring centrifugal compressor rotor stability.

Chemical Processing
Tracking high-speed agitator and mixer shaft displacement.

Petrochemical
Monitoring ethylene compressor shaft position and speed.

Mining & Minerals
Monitoring heavy-duty crusher and mill pinion shaft alignment.

Marine Propulsion
Measuring ship propeller shaft axial thrust and Keyphasor reference.
 During use, ensure the probe tip and the observed surface are free of debris, oil, and condensation. Install it strictly based on gap voltage calibration to prevent accidental tip impact. Since this model features option 02 (standard cable without armor), avoid excessive pulling or sharp bends during routing; it must be protected within conduits to prevent mechanical wear or EMI, and all connections must be securely fastened via the ClickLoc mechanism for stable signal transmission.

Alternative Names

330104 00 06 10 02 00 330104-00-06-10-02-05 330104-00-06-10-02-CN 330104-00-06-10-02-BR 330104-00-06-10-02-RU 330104-00-06-10-02-0O 330104-00-06-10-02-O0 330104-00-06-10-O2-00 330104-00-06-1O-02-00 330104-00-06-I0-02-00 330104-00-O6-10-02-00 330104-0O-06-10-02-00 330104-O0-06-10-02-00 3301O4-00-06-10-02-00 330I04-00-06-10-02-00 33O104-00-06-10-02-00

Technical notes

The system outputs a voltage directly proportional to the distance between the probe tip and the observed conductive surface, measuring both static (position) and dynamic (vibration) values. As a Bently Nevada 3300 XL 8mm proximity sensor, the 330104-00-06-10-02-00 is designed for fluid-film bearing machinery vibration/position monitoring, Keyphasor referencing, and speed measurements.

FAQ View All FAQ

  • What is 330104-00-06-10-02-00?
    330104-00-06-10-02-00 is a Proximity Probes.
  • What are proximity probes used for?
    Proximity probes are sensors that measure relative proximity. Proximity probes use changes in voltage to measure rotating or reciprotcating shaft surfaces. Because proximity probes are non-contacting transducers, mount proximity probes on a reasonably stationary mechanical structure, such as a bearing housing.
  • What is the purpose of proximity?
    The proximity principle can often have a positive effect on our lives. When it comes to perception, it helps us make sense of the world around us and see things more coherently. In our social relationships, it helps promote harmony, cooperation, and closeness in groups
  • What is the purpose of a probe?
    A probe is a commonly used tool used for conducting electrical tests. They are usually made of metal and have an elongated shape that plugs into an interface or connection point in a circuit board or other electronic device.
