      330103-12-25-10-02-00

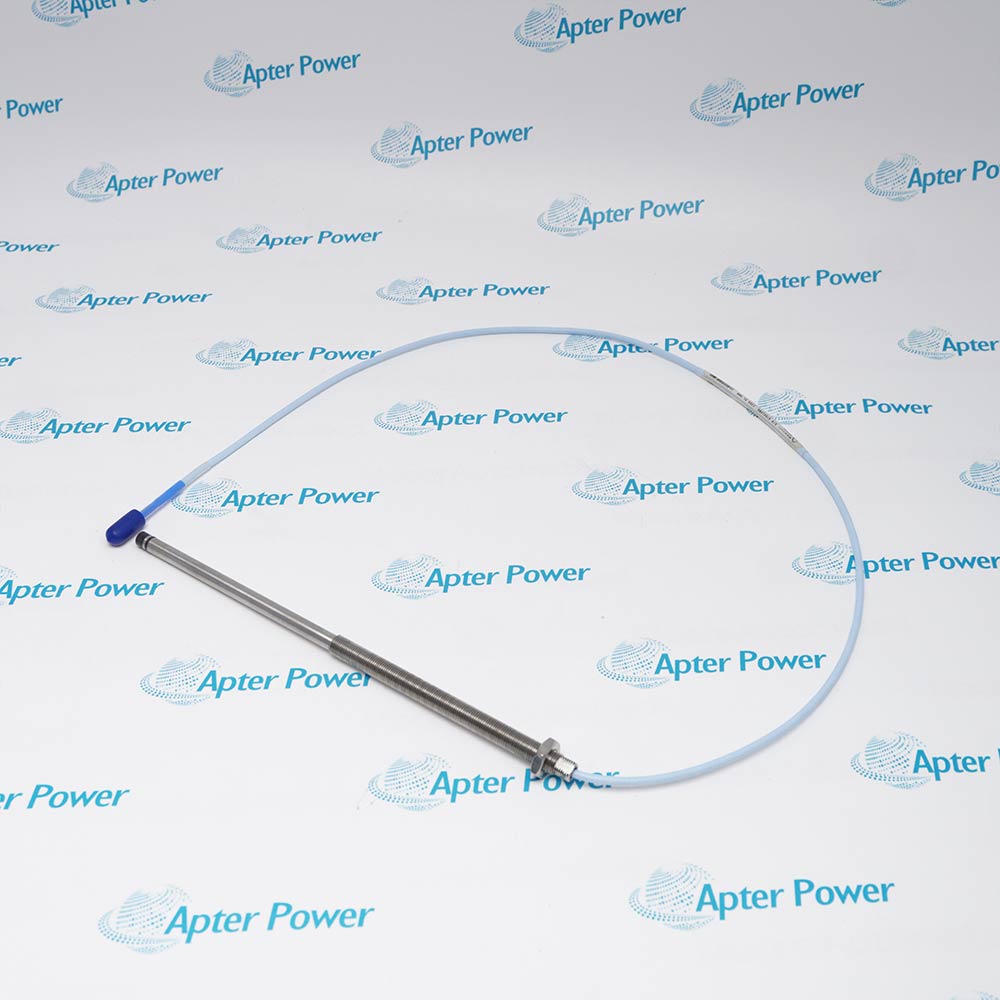

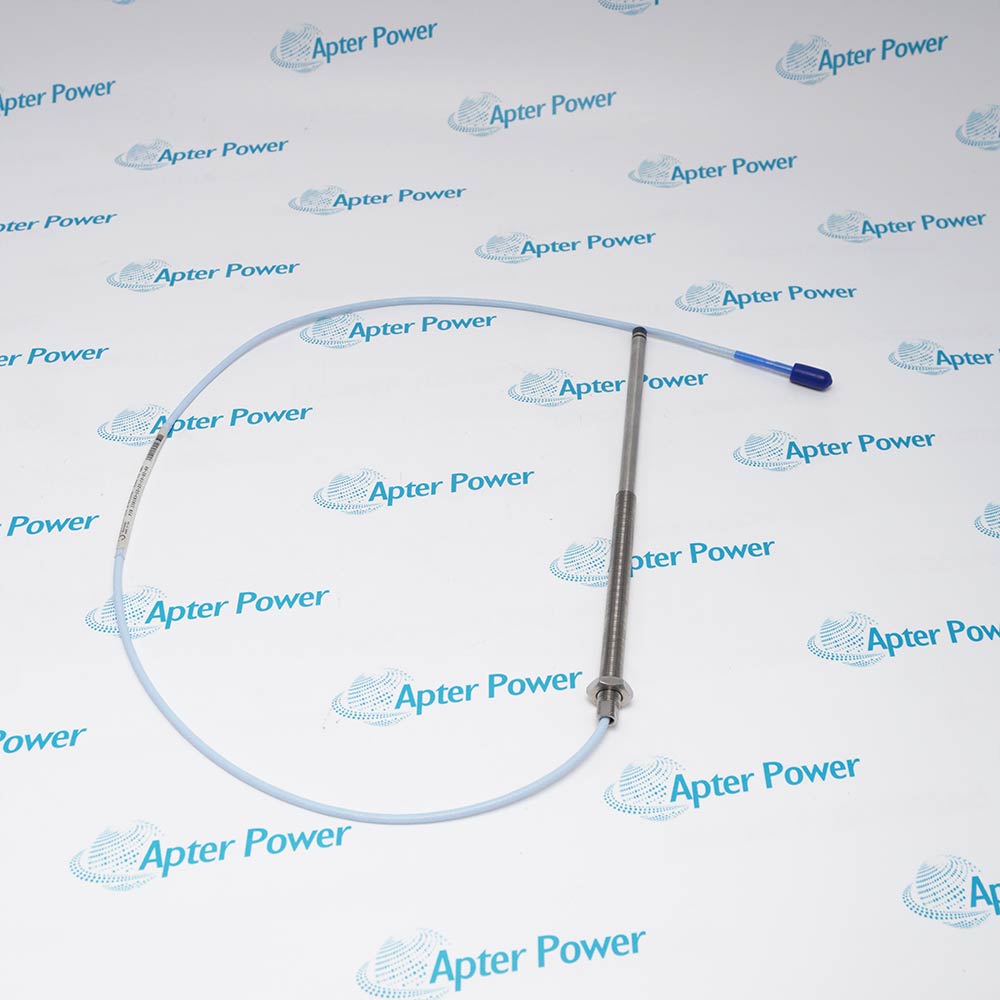

      3300 XL 8 mm Proximity Probe
      In Stock
      Ships by Wednesday, October 14
      Fast Shipping Available

      Product Describe：

      Bently Nevada 330103-12-25-10-02-00 is a M10 x 1 unarmored 3300 xl 8 mm proximity probe with a 1.0 m lead and Miniature coaxial ClickLoc connection. It senses shaft-to-bearing relative displacement in a matched proximity transducer system.

      Ask our team:

      Get a quick price for： 330103-12-25-10-02-00
      Quantity*
      Upload (gif, jpg, jpeg, png, bmp, doc, docx, xls, xlsx, ppt, pdf, csv)
      Get a Quote
      For more information on how your data is processed and stored by Apterpower please read our privacy policy.
      Technical specifications Information Technical notes FAQ

      Technical specifications for 330103-12-25-10-02-00

      Technical specifications for 330103-12-25-10-02-00

      • Manufacturer:
        Bently Nevada
      • Product Category:
        Machinery Monitoring System
      • Spare Part Number:
        330103-12-25-10-02-00
      • Estimated shipping dimensions:
        104x2x1.6cm
      • Weight:
        0.12 kg
      • Tariff Code:
        8537101190
      • Counliy of origin:
        USA
      • Probe construction:
        Without armor
      • Mounting thread:
        M10 x 1
      • Unthreaded length:
        120 mm
      • Case length:
        250 mm
      • Total lead length:
        1.0 m
      • Connector option:
        Miniature coaxial ClickLoc
      • Approval option:
        Not required
      • Probe-tip diameter:
        8.0 mm
      • System linear range:
        2.0 mm (80 mils)
      • Recommended gap:
        1.27 mm (50 mils)
      • Incremental scale factor:
        7.87 V/mm (200 mV/mil)
      • Frequency response:
        0 to 10 kHz, +0/-3 dB
      • Probe cable impedance:
        75 ohm
      • Probe temperature:
        -52 to +177 deg C
      • Proximitor supply:
        -17.5 to -26 VDC
      • Field wiring:
        0.2 to 1.5 mm2
      • Maximum field wiring:
        305 m
      View as PDF Ask for Quote

      Information

      Information

      Overview Manuals Common Applications Product Precautions
      330103-12-25-10-02-00 provides the documented unarmored sensing element for a matched Bently Nevada 3300 XL 8 mm Proximity Transducer System.
      • Detects shaft-to-bearing relative movement without mechanical contact
      • Forms the field sensing element of the matched eddy-current loop
      • Carries the probe signal through the specified service connection
      • Supports static-position and vibration measurements on rotating machinery

      The probe is fitted to the engineered M10 x 1 machine position and connected to the selected extension cable and Proximitor Sensor. Commissioning includes order-code, clearance, cable-route, total-system-length, static-gap and controlled response checks.

      Important Notice: Confirm 330103-12-25-10-02-00, M10 x 1 host thread, 120 mm unthreaded length, 250 mm case execution, without armor, Miniature coaxial ClickLoc, extension cable, Proximitor Sensor, total system length, target material, wiring, shielding, grounding, monitor configuration, static gap and controlled response-test results before commissioning.

      Apter Power 330103-12-25-10-02-00 Manuals and Guides

      The first document is the model-specific technical and system reference. The second is a distinct field workbook for installation, wiring, commissioning and acceptance records.

      Radial shaft-vibration measurement
      Measures shaft motion relative to the bearing housing in a matched proximity loop.
      Axial position monitoring
      Provides the field sensing point for a documented thrust-position channel.
      Machine shaft centerline observation
      Supplies slow-roll and static-position information for the configured monitor.
      Probe replacement in a matched loop
      Restores the exact mechanical and cable execution without changing system identity.
      Read the applicable Bently Nevada installation instructions before work. Verify 330103-12-25-10-02-00, the installed host system and all configured field interfaces before isolation, wiring or commissioning.
      1
      Confirm the complete 330103-12-25-10-02-00 marking, M10 x 1 thread and 250 mm case execution.
      2
      Place the monitored machine and associated protection channel in the approved maintenance state.
      3
      Protect the 8.0 mm probe tip and keep the mounting thread free from burrs and contamination.
      4
      Route the 1.0 m unarmored probe lead without sharp bends, crushing or tensile loading.
      5
      Keep the Miniature coaxial ClickLoc connection clean, dry and finger-tight.
      6
      Confirm the installed extension cable and Proximitor Sensor match the approved total system length.
      7
      Set the static gap within the documented linear region while maintaining target clearance.
      8
      Prove polarity, static position, dynamic response and alarm action before returning the channel to service.

      Technical notes

      Technical notes

      Install 330103-12-25-10-02-00 in the documented M10 x 1 position and preserve the 120 mm unthreaded length, 250 mm case execution and 1.0 m lead routing. Match the probe to the approved total system length and Proximitor Sensor, set the static gap in the linear region and verify polarity and response before enabling protection logic.

      FAQS

      • What makes 330103-12-25-10-02-00 the correct execution for this installation?
        Confirm 330103-12-25-10-02-00, M10 x 1 host thread, 120 mm unthreaded length, 250 mm case execution, without armor, Miniature coaxial ClickLoc, extension cable, Proximitor Sensor, total system length, target material, wiring, shielding, grounding, monitor configuration, static gap and controlled response-test results before commissioning.
      • Where is 330103-12-25-10-02-00 used within the documented Bently Nevada 3300 XL 8 mm Proximity Transducer System architecture?
        Detects shaft-to-bearing relative movement without mechanical contact. It senses shaft-to-bearing relative displacement in a matched proximity transducer system.
      • Which companion components must remain matched to 330103-12-25-10-02-00?
        The probe is fitted to the engineered M10 x 1 machine position and connected to the selected extension cable and Proximitor Sensor. Commissioning includes order-code, clearance, cable-route, total-system-length, static-gap and controlled response checks.
      • What pre-work evidence is needed before disconnecting 330103-12-25-10-02-00?
        Place the monitored machine and associated protection channel in the approved maintenance state. Protect the 8.0 mm probe tip and keep the mounting thread free from burrs and contamination.
      • How should the physical interface of 330103-12-25-10-02-00 be inspected?
        Confirm the installed extension cable and Proximitor Sensor match the approved total system length.
      • What configuration values must agree with the installed 330103-12-25-10-02-00?
        Set the static gap within the documented linear region while maintaining target clearance.
      • Which commissioning observations prove 330103-12-25-10-02-00 is operating normally?
        Confirm the complete 330103-12-25-10-02-00 marking, M10 x 1 thread and 250 mm case execution. Keep the Miniature coaxial ClickLoc connection clean, dry and finger-tight.
      • What maintenance evidence closes the work on 330103-12-25-10-02-00?
        Prove polarity, static position, dynamic response and alarm action before returning the channel to service.
