X20CP1485

CPU Module

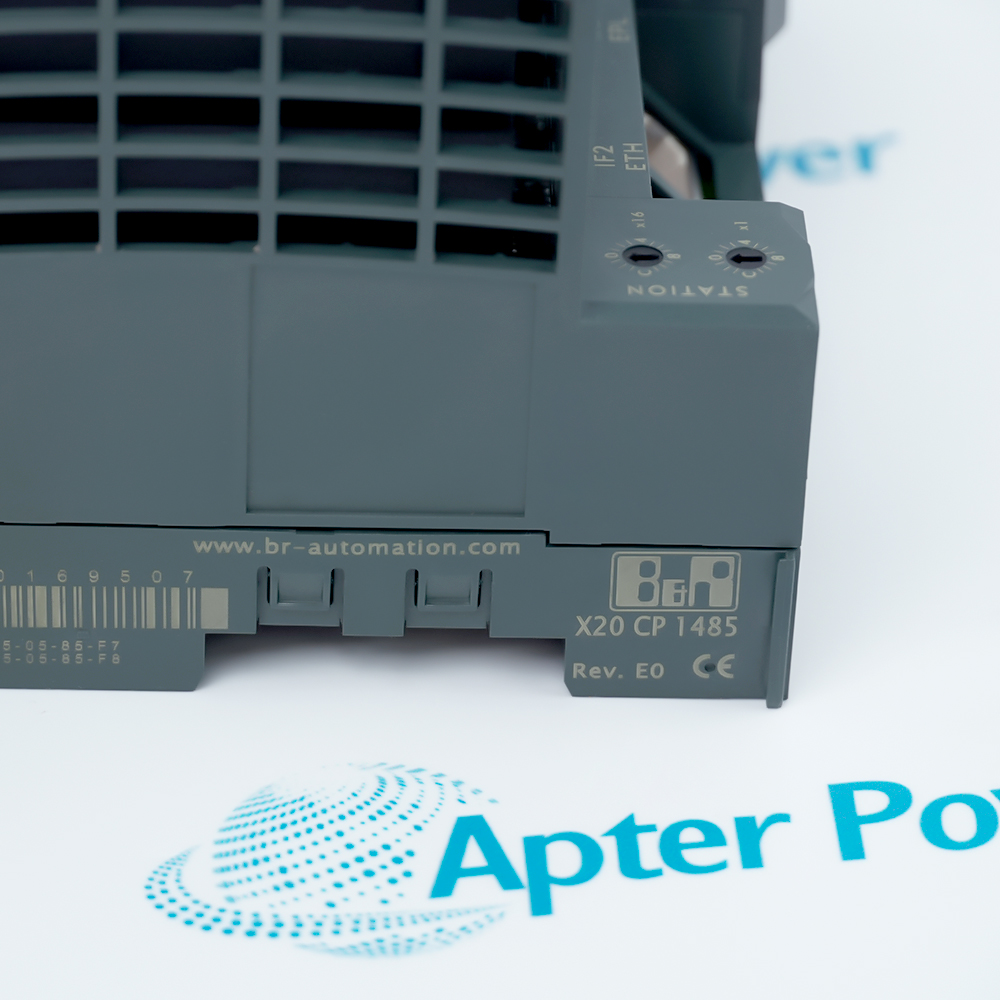

B&R X20CP1485
B&R X20CP1485
B&R X20CP1485
B&R X20CP1485
B&R X20CP1485
B&R X20CP1485
Product image is representative; revision or series may vary. Contact us to request a specific version.

Product Describe:

X20 Central Processing Unit
Celeron 400 MHz Processor
32 MB DRAM
Exchangeable CompactFlash Card
X20AC0SR1 Right-Side
End Plate included
Get a quick price for X20CP1485
E-mail *
Mobile
Company
Content *
Quantity *
Upload (gif, jpg, jpeg, png, bmp, doc, docx, xls, xlsx, ppt, pdf, csv)
For more information on how your data is processed and stored by Apterpower please read our privacy policy

What happens after you enquire

  • 1

    Requirement review

    We review the part number, quantity and delivery requirements and ask for any missing details.
  • 2

    Quotation and availability

    We confirm the proposed item, condition, availability, price and estimated lead time in the quotation.
  • 3

    Order confirmation and dispatch

    Once the quotation and purchasing details are agreed, your contact will coordinate the order and available dispatch information.

Technical specifications for X20CP1485

  • Manufacturer:
    B&R
  • Product Category:
    PLC Systems
  • Spare Part Number:
    X20CP1485
  • Estimated shipping dimensions:
    15.2x10.2x8.9cm
  • Weight:
    0.7 kg
  • Tariff Code:
    8537101190
  • Counliy of origin:
    USA
  • NVRAM:
    1 MB SRAM
  • Expansion Slot:
    1x Slot for X20 Interface Modules
  • USB Interface:
    2x USB Interfaces
  • Serial Interface:
    1x RS232 Interface
  • Ethernet Interface:
    1x Ethernet 10/100 Base-T Interface
  • Industrial Fieldbus:
    1x POWERLINK V1/V2 Interface
  • Field Terminal:
    TB12 Field Terminal Block included

Information

Overview Manuals Common Applications Product Precautions
The X20CP1485 is a powerful, compact CPU module in the B&R X20 series. It is designed for demanding, short-cycle automation applications that require large amounts of data processing or floating-point operations.
    • Deterministic POWERLINK Fieldbus
    • Versatile Onboard Interfaces
    • Integrated Rail Supply Terminal
Powered by an Intel Celeron 400 MHz processor, this unit is equipped with 32 MB DRAM system memory and 1 MB non-volatile SRAM for dependable real-time data processing and control. It utilizes exchangeable CompactFlash cards for flexible application program storage and provides one dedicated slide-in slot to accommodate an additional X20 interface module. For robust field connectivity, the controller integrates two USB interfaces, one RS232 serial port, one 10/100 Base-T Ethernet port, and one real-time industrial POWERLINK V1/V2 interface. This standard CPU controller package comes as a fully functional kit prepared for direct installation and immediate deployment. Each unit includes the integrated power supply module, a TB12 field terminal block, and all required slot covers. Additionally, the package comes complete with the X20AC0SR1 right-side end cover plate to ensure proper termination of the physical bus base assembly. Please note that the application program flash memory card is not included in the standard kit and must be ordered separately based on your specific software project requirements.

Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description.
 B&R X20CP1485 CPU Module Manuals, Datasheets, Drivers, Link Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description.
Rubber & Tire
Utilized in auxiliary control systems for tire building and curing machines, precisely managing internal mixer feeding and mold open/close movements under high-vibration factory conditions.

HVAC & Refrigeration
Manages large Air Handling Units (AHU) and screw chillers in industrial plants. It uses built-in PID algorithms to regulate frequency inverters and electronic expansion valves.

Plastics & Rubber Industry
Serves as the main controller for small injection molding machines or blow molding auxiliaries. Its X20IF slot allows easy expansion of a CANopen interface to manage temperature control units.

Packaging Machinery
Applied in high-speed vertical form fill seal (VFFS) machines and cartoners. It precisely coordinates film feeding servo axes, sealing cutters, and dosing systems to minimize material waste.

Pulp & Paper
Controls tissue paper cutters, rewinders, and finished bundle packing lines. It captures color-mark register signals via high-frequency pulse inputs for high-precision cutting and counting.

 When using the B&R X20CP1485, please note that the CompactFlash program card is not included and must be ordered separately, and it must never be inserted or removed while the system is powered. Additionally, the enclosed X20AC0SR1 right-side end plate must be properly installed to prevent short circuits on the exposed bus contacts, the hardware revision must match your software configuration precisely, and all 24VDC wiring must be executed with the power completely turned off.

FAQ View All FAQ

  • What is the B&R X20CP1485?
    The B&R X20CP1485 is a high-performance standard central processing unit (CPU) belonging to the modular X20 automation system series.
  • What type of processor powers the X20CP1485 controller?
    The X20CP1485 is powered by an industrial-grade Intel Celeron 400 MHz processor.
  • What are the memory capacities built into the X20CP1485?
    This CPU features 32 MB of DRAM system memory for executing operational programs and runtime tasks.
  • How is the application program stored on the X20CP1485?
    The application program on the X20CP1485 is stored on an exchangeable CompactFlash (CF) card.
  • Can I expand the communication capabilities of the X20CP1485?
    Yes. The X20CP1485 features 1x interface card slot (Einschubsteckplatz).
