What specific type of industrial automation hardware is the 2711-T10C8?

It is a PanelView 1000 series industrial touch-screen Human-Machine Interface (HMI) terminal manufactured by Allen-Bradley, utilized for the visual presentation of machine operating data and operator inputs.

What is the primary use of the 2711-T10C8 on the factory floor?

It is secured onto control cabinet panels to exchange variables with Programmable Logic Controllers (PLCs) via digital circuits, enabling operators to directly monitor and control the status of shop-floor machinery.

What physical operator input mechanism does the 2711-T10C8 utilize?

It receives mechanical press inputs via an integrated analog resistive touch screen using a finger or a dedicated stylus; it does not support physical keypad buttons.

What types of industrial communication interfaces are built into the 2711-T10C8?

It includes a native DH+ (Data Highway Plus) communication port for connecting to early PLC processors and an RS-232 serial port for printer or computer connections.

How are the screen logic and variable tags programmed and developed for the 2711-T10C8?

The text, buttons, and data link libraries must be configured on an external computer using Rockwell's dedicated PanelBuilder32 software, and the compiled project file is subsequently downloaded into the terminal.

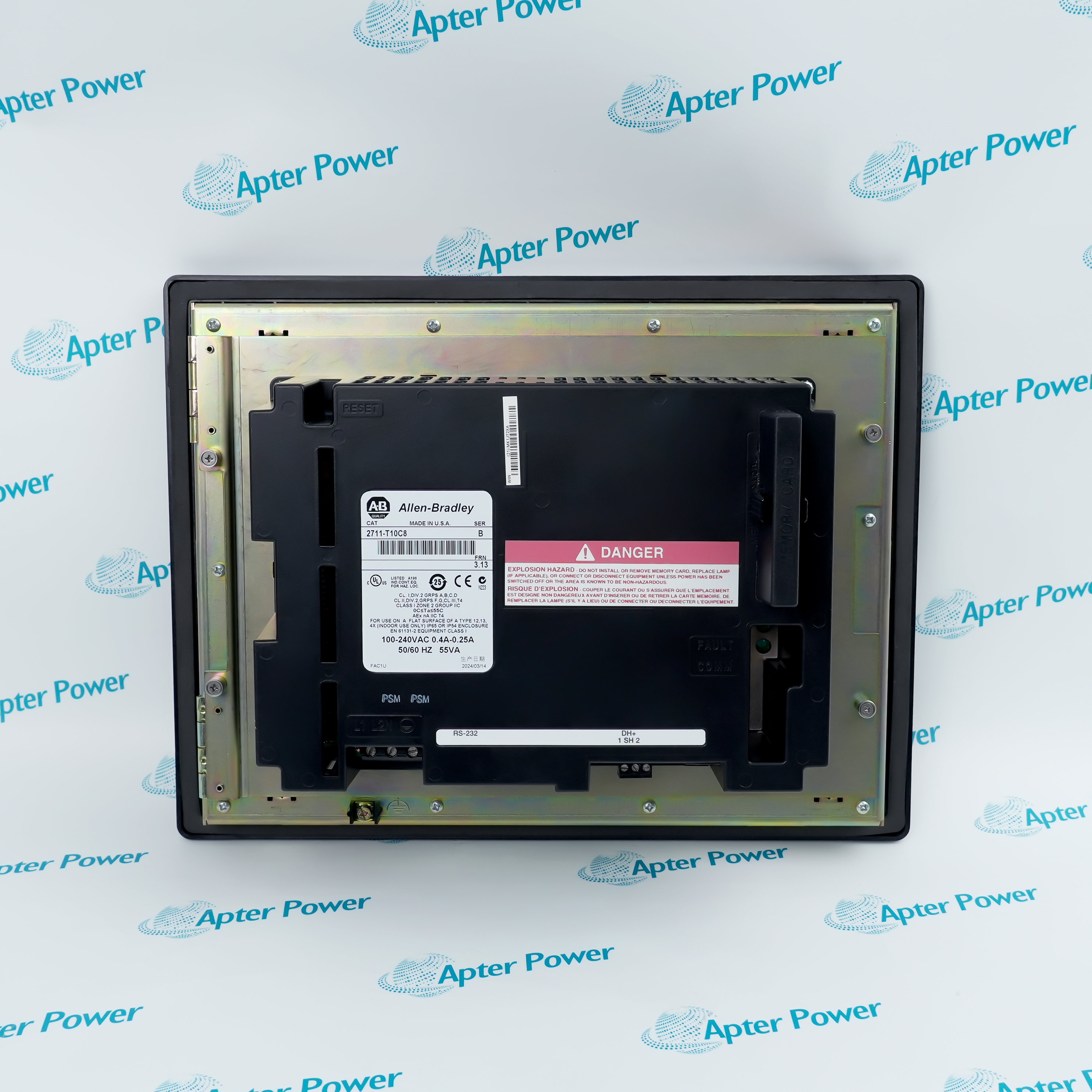

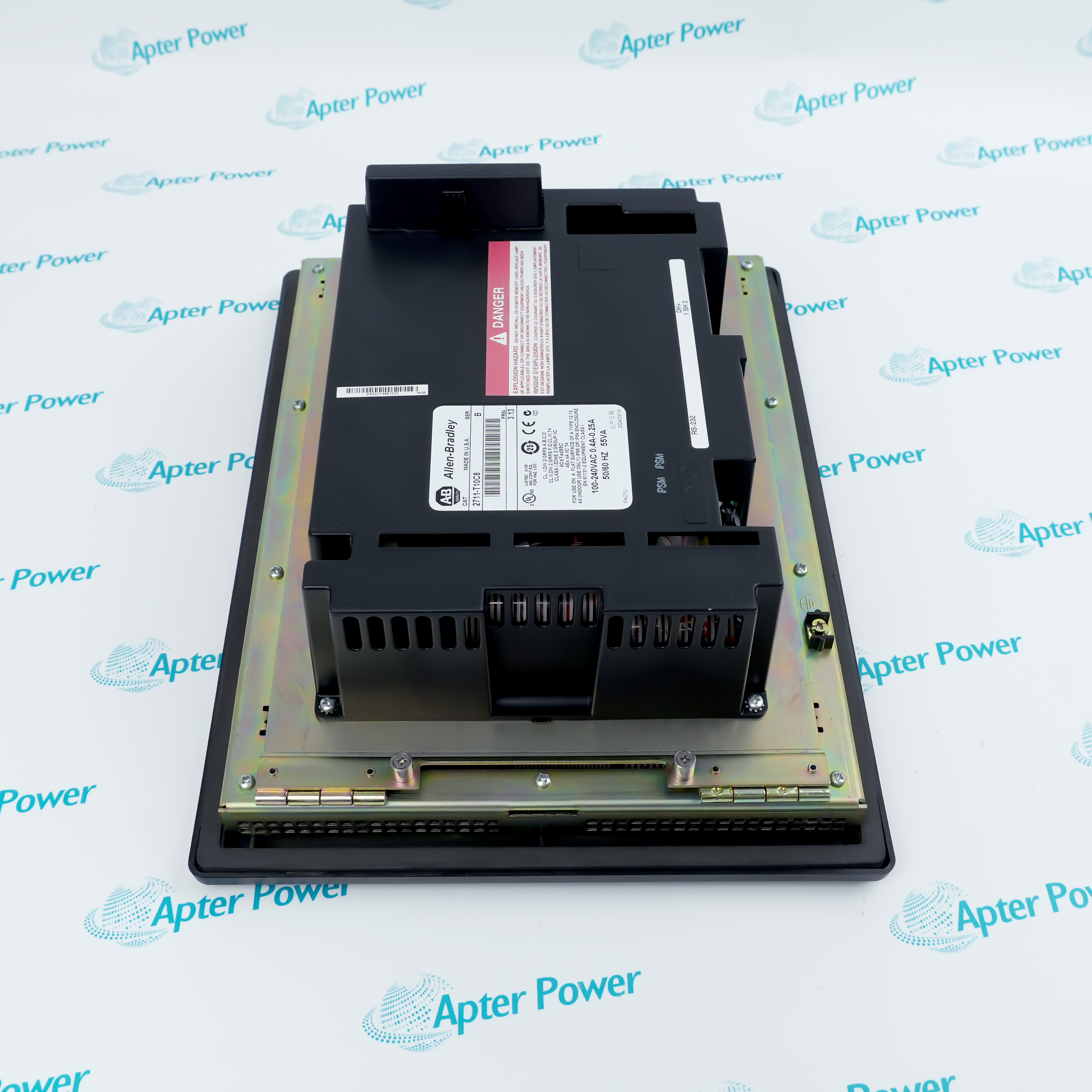

2711-T10C8

Name: 2711-T10C8
Brand: Allen-Bradley
SKU: 2711-T10C8

PanelView 1000 Touch

Product image is representative; revision or series may vary. Contact us to request a specific version.

Product Describe：

PanelView 1000 Standard
Color Touch Terminal
Product Family: PanelView
Standard Terminals

Ask our team:

Phone: +86 180 3023 5313 E-Mail: sales13@apterpower.com

Dispatch Planning
Confirm stock and lead time with our team.

Dedicated Manager
Personalized one-to-one VIP service

ISO 9001:2015 Certified
Trusted quality management

Warranty Policy

Review the applicable warranty coverage and claim process.
Return Notice

Check the return process and obtain approval before sending an item back.
Shipping Method

Review shipping arrangements, transit estimates and delivery responsibilities.
Parts Availability

Browse stock listings and confirm current availability with our team.
How to order

See how to submit an enquiry, review a quotation and confirm an order.

Get a quick price for 2711-T10C8

E-mail *

Mobile *

Company

Content *

Quantity *

Upload (gif, jpg, jpeg, png, bmp, doc, docx, xls, xlsx, ppt, pdf, csv)

Get a Quote

For more information on how your data is processed and stored by Apterpower please read our privacy policy

What happens after you enquire

1

Requirement review

We review the part number, quantity and delivery requirements and ask for any missing details.
2

Quotation and availability

We confirm the proposed item, condition, availability, price and estimated lead time in the quotation.
3

Order confirmation and dispatch

Once the quotation and purchasing details are agreed, your contact will coordinate the order and available dispatch information.

Technical specifications for 2711-T10C8

Manufacturer:

Allen-Bradley
Product Category:

PLC Systems
Spare Part Number:

2711-T10C8
Estimated shipping dimensions:

37x11.5x28.3cm
Weight:

2.78 kg
Tariff Code:

8537101190
Counliy of origin:

USA
Resolution:

640 x 480 pixels
Touchscreen:

384 (24 columns x 16 rows)
Touch Cell size:

26 x 30 pixels
Application memory:

1008K bytes (application screens)
Communication ports:

Data Highway Plus (DH+); RS232 (printer)
Input Voltage range:

85…264V AC, 47…63 Hz
Heat Dissipation:

39 W (132 BTU/HR)
Communication:

DH Plus (DH+) and Printer (RS-232) Port
Power Source Rating:

100-240 VAC
Memory:

256 Kilobytes

Ask for Quote

Information

Overview Manuals Common Applications Product Precautions

The 2711-T10C8 functions as an AC-powered operator terminal within the Allen-Bradley PanelView 1000 product line. The hardware features a 10.4-inch analog-resistive touchscreen that displays full-color graphics. For power supply integration, the terminal operates within an input voltage range of 85 to 264 Volts AC, matching a frequency block of 47 to 63 Hertz.

Data Highway Plus (DH+) industrial network communication port
Equipped with an independent 1008 KB nonvolatile flash memory
The colored touch screen provides a touch actuation lifespan of approximately 1 million presses

In terms of data storage and capacity allocation, this component includes 1008 Kbytes of built-in nonvolatile flash memory and is separately equipped with 310 Kbytes of application runtime memory. In addition to these two basic built-in storage options, the 2711-T10C8 features an external expansion slot that supports the use of ATA flash memory cards to provide additional external data storage volume for the factory floor. Besides acting as an excellent command input module, the device accomplishes its core external data interaction through the combination of its built-in Data Highway Plus (DH+) network communication port and a dedicated RS232 printer interface.

The integrated DH+ port is responsible for exchanging real-time data with on-site PLC5, SLC500, and other Allen-Bradley programmable logic controllers, and it also supports linking with any third-party hardware devices that are compatible with the DH+ protocol. This communication mode utilizes a three-wire shielded cable for physical connection, which easily accommodates long-distance wiring layouts and enables cluster communication between a single terminal and multiple controllers. Operating as an auxiliary channel, the RS232 interface is primarily utilized to connect alarm printers, enabling immediate printouts of on-site system alarms and vital events for historical archives and routine inspection reports.

Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description.

Allen-Bradley 2711-T10C8 PanelView 1000 Touch Manuals, Datasheets, Drivers, Link

Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description.

Automotive Manufacturing

Mounted on control cabinets within stamping shops or body welding lines to display robotic arm sequence steps, mold clamping statuses, and weld counts.

Pharmaceuticals & Biotechnology

Integrated into material weighing and capsule filling machinery to monitor batch formulation ratios, cleanroom differential pressures, and environmental temperature/humidity alarm logs.

Petrochemical & Refining

Placed on local control boxes of long-distance pipeline booster stations or centrifugal separation skids to provide on-site visual monitoring of pipeline pressure, compressor speed, and safety shutdown valve status.

Power Generation

Serves as a local operator terminal in power plant auxiliary control systems (e.g., boiler makeup water, ash handling systems) for screen navigation and manual/automatic valve open-close controls.

Mining & Mineral Processing

Positioned on the exterior of explosion-proof electrical cabinets in coal washing plants or ore crushing units to display belt conveyor overload alarms and silo material level heights.

Pulp & Paper

Integrated into the wire, press, or reeler consoles of paper machines, enabling operators to alter dryer cylinder steam pressure parameters and monitor paper thickness and basis weight indicators.

When using the 2711-T10C8 touch terminal, a minimum safety clearance of 51 mm (2 inches) must be strictly maintained on all sides to ensure air convection, and its Data Highway Plus (DH+) 3-wire network wiring requires proper terminating resistor matching, meaning direct cross-plugging with standard Ethernet cables is strictly forbidden.

Additionally, field replacement of removable components like the clock battery or backlight assembly must be executed under total power-down conditions to avoid short-circuiting the circuit boards, and projects inside the 1008 KB flash memory should be backed up regularly using an external ATA flash memory card completely offline, while the use of chemically corrosive solvents to wipe down the 1-million-press touch panel is strictly prohibited.

Revisions

Revision Part #

Also known as

2711-T10C8 Ser A

2711-T10C8/A, Series A, Rev A

Get Parts Quote

2711-T10C8 Ser B

2711-T10C8/B, Series B, Rev B

Get Parts Quote

2711-T10C8 Ser C

2711-T10C8/C, Series C, Rev C

Get Parts Quote

2711-T10C8 Ser D

2711-T10C8/D, Series D, Rev D

Get Parts Quote

2711-T10C8 Ser E

2711-T10C8/E, Series E, Rev E

Get Parts Quote

2711-T10C8 Ser F

2711-T10C8/F, Series F, Rev F

Get Parts Quote

2711-T10C8 Ser X

2711-T10C8/X, Series X, Rev X

Get Parts Quote

Alternative Names

2711-T10CB 2711-T1OC8 2711-TI0C8 2711T10C8 2711T10CB 2711T1OC8 2711TI0C8 271I-T10C8 271IT10C8 27I1-T10C8 27I1T10C8 27II-TI0C8

Technical notes

The 2711-T10C8 is an Allen-Bradley PanelView Standard 1000 graphic color touch terminal featuring a 640 x 480 pixel 10.4-inch display and 1008 Kbytes internal flash memory, equipped with a built-in DH+ network port and an RS232 printer interface to facilitate long-distance, multi-node communication with PLC5 or SLC500 controllers via a 3-wire cable alongside automated alarm logging. Configured exclusively for horizontal flush-mounting, it requires a 51 mm (2-inch) cooling and working clearance on all sides within an indoor enclosure rated NEMA 12/13/4X and IP54/IP65, and it must operate within environment thresholds of 0 to 55 °C, 15 g shock, and 2 g vibration (up to 2,000 Hz) supported by proper thermal and vibration mitigation devices to secure maximum operational lifespan.
