1794-IM8

Flex 16 Point Digital Input Module
In Stock

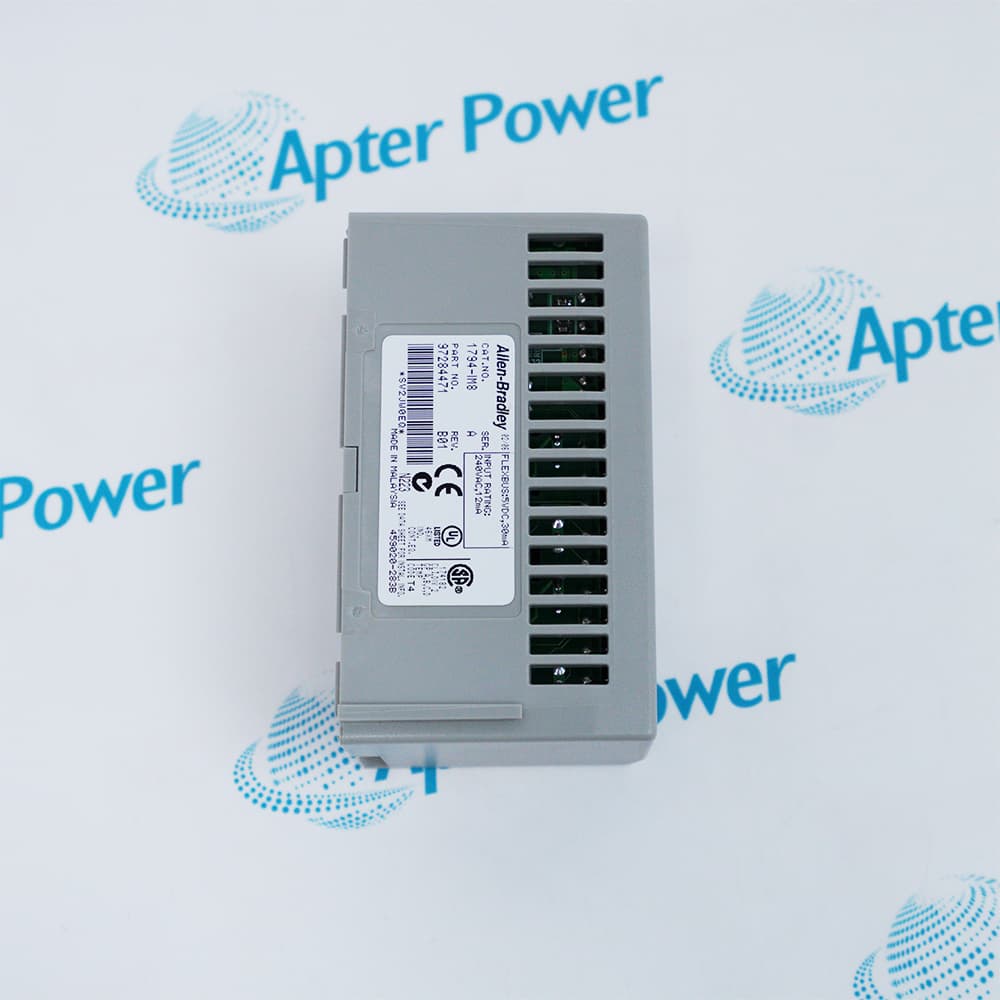

Allen-Bradley 1794-IM8
Allen-Bradley 1794-IM8
Allen-Bradley 1794-IM8
Allen-Bradley 1794-IM8
Allen-Bradley 1794-IM8
Allen-Bradley 1794-IM8
Product image is representative; revision or series may vary. Contact us to request a specific version.

Product Describe:

1794IM8
INPUT MODULE
FLEX I/O
DISCRETE
AC
8 POINTS 240VAC INPUT
OPEN STYLE
DIN MOUNT
IP20
Get a quick price for 1794-IM8
E-mail *
Mobile
Company
Content *
Quantity *
Upload (gif, jpg, jpeg, png, bmp, doc, docx, xls, xlsx, ppt, pdf, csv)
For more information on how your data is processed and stored by Apterpower please read our privacy policy

What happens after you enquire

  • 1

    Requirement review

    We review the part number, quantity and delivery requirements and ask for any missing details.
  • 2

    Quotation and availability

    We confirm the proposed item, condition, availability, price and estimated lead time in the quotation.
  • 3

    Order confirmation and dispatch

    Once the quotation and purchasing details are agreed, your contact will coordinate the order and available dispatch information.

Technical specifications for 1794-IM8

  • Manufacturer:
    Allen-Bradley
  • Product Category:
    PLC Systems
  • Spare Part Number:
    1794IM8 1794-IM8/A
  • Estimated shipping dimensions:
    9.3x5.5x4.8cm
  • Weight:
    0.1 kg
  • Tariff Code:
    8537101190
  • Counliy of origin:
    USA
  • Number of Inputs:
    8 non-isolated input points
  • Input impedance:
    22.3 kΩ
  • Flexbus bus current:
    30 mA @ 5 V DC
  • Maximum power:
    4.7 W @ 264 V AC
  • Operating temperature:
    0…55 °C (32…131 °F)

Information

Overview Manuals Common Applications User Guide
The 1794-IM8 is a FLEX™ I/O 220 V AC digital input module, designed for industrial automation systems. It connects field AC devices directly to a PLC via the FLEX I/O backplane, providing reliable monitoring of discrete input signals.
    • Compact Design
    • High Reliability
    • Easy Troubleshooting
The 1794‑IM8 supports 8 non-isolated digital input channels with a nominal 240 V AC supply, offering precise signal acquisition and low power dissipation (max 4.7 W). Its compact design allows easy installation in FLEX I/O systems, with status indicators for simple troubleshooting.

Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description.
Allen-Bradley 1794-IM8 Flex 16 Point Digital Input Module Manuals, Datasheets, Drivers, Link Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description.
 Power Systems
Used in power generation and distribution systems to monitor AC signals from switches and relays. Ensures reliable input detection for control of turbines and electrical equipment.

 Factory Automation
Applied in automated production lines to collect discrete AC input signals from sensors and control devices. Improves system efficiency and reduces manual intervention.

 Water Facilities
Used in water and wastewater treatment plants for monitoring pumps, level switches, and alarms. Provides reliable signal acquisition in control systems.

 Oil & Gas
Deployed in refineries and pipeline systems to interface with AC-powered field instruments. Maintains signal integrity in demanding environments.

 Building Control
Applied in building automation systems to monitor HVAC equipment and electrical systems. Enables centralized control and energy management.

 Equipment Monitoring
Used to monitor ON/OFF status of industrial equipment such as motors, conveyors, and control panels. Provides real-time feedback to control systems.
The Allen-Bradley 1794-IM8 FLEX™ I/O digital input module is designed for installation on a FLEX I/O terminal base unit, providing a simple plug-in solution for distributed I/O systems. The module features 8 non-isolated AC input channels and operates at a nominal 240 V AC, allowing direct interfacing with field devices such as switches and relays. Proper installation requires mounting in a suitable enclosure and following all wiring instructions outlined in the installation manual.

The module includes field-side status indicators for each input channel, enabling quick visual diagnostics during operation. With a maximum power dissipation of approximately 4.7 W and operating temperature range of 0 to 55 °C, it is suitable for standard industrial environments. These features help ensure reliable performance and simplify maintenance in distributed control systems.

FAQ View All FAQ

  • What is the Allen‑Bradley 1794‑IM8?
    The Allen‑Bradley 1794‑IM8 is a FLEX™ I/O 220 V AC digital input module designed to interface AC field devices with a PLC via the FLEX I/O system. It provides 8 digital input points for monitoring discrete AC signals.
  • How many inputs does the 1794‑IM8 support?
    The 1794‑IM8 module supports 8 non‑isolated digital input channels, allowing connection of up to 8 independent AC input devices to the control system. This makes it suitable for standard discrete signal monitoring.
  • Can the 1794‑IM8 be used in hazardous locations?
    According to the installation instructions, the 1794‑IM8 (like other FLEX I/O AC modules) is approved for Class I Division 2 hazardous locations when appropriately installed in a certified enclosure with correct wiring methods.
  • What should users do before installing the 1794‑IM8?
    Users must read and understand the installation and wiring instructions and comply with all applicable codes and standards before installing, configuring, operating, or maintaining the module to ensure safety and proper function.
  • What is the rated supply and operating temperature?
    The 1794‑IM8 is designed for a nominal 240 V AC supply and operates in industrial environments with a temperature rating of 0…55 °C (32…131 °F). It must be mounted in a suitable enclosure for safe operation.
