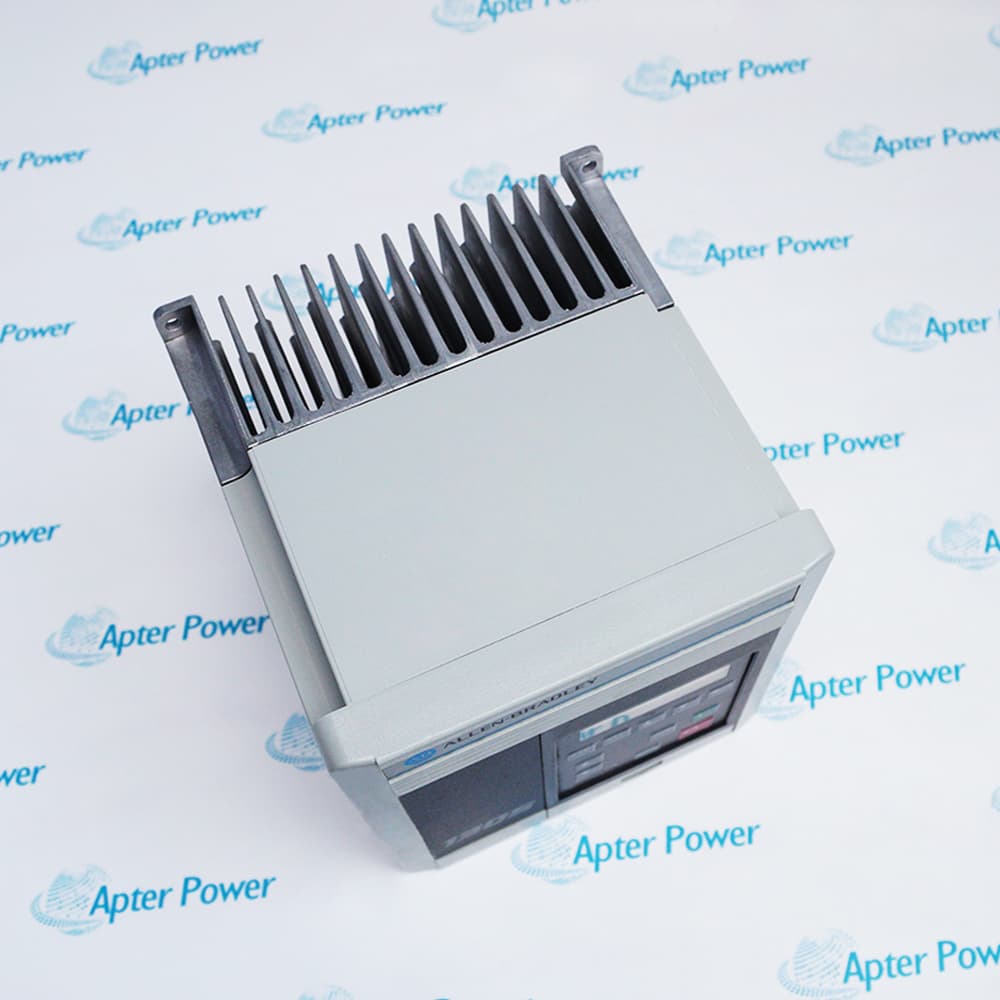

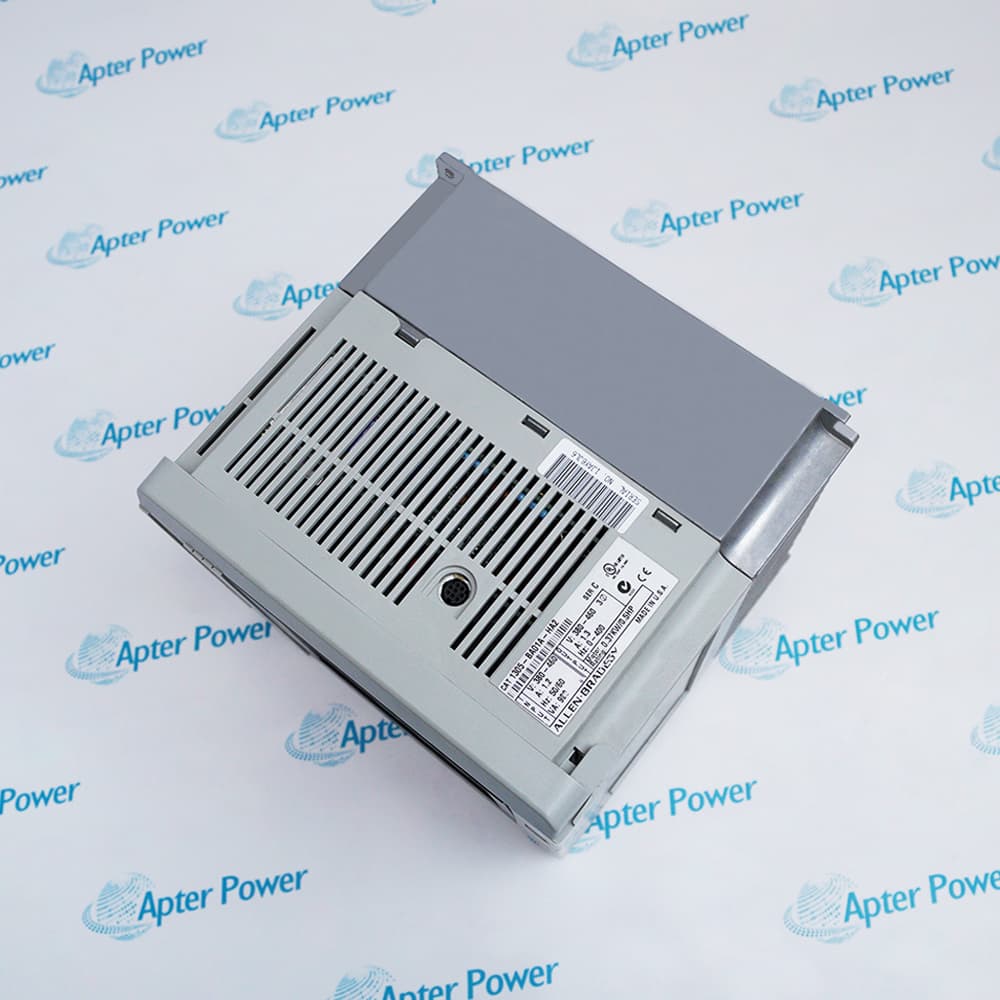

The 1305-BA01A-HA2 is an adjustable frequency AC drive from the Allen-Bradley 1305 series, rated for 380-460V AC 3-phase input and providing a 0.37 kW (0.5 HP) power output. This specific configuration includes a factory-installed Human Interface Module (HIM) with a digital display and programming keys, housed in an IP20 rated enclosure for versatile industrial motor control.
Integrated HIM Programming
Wide Voltage Compliance
Compact Efficient Footprint
This drive delivers a continuous output current of 1.3 Amps and is designed to handle intermittent overload currents up to 2.0 Amps for one minute. It features a programmable carrier frequency range of 2 to 8 kHz and utilizes pulse width modulation (PWM) technology to provide high-efficiency speed and torque control for 3-phase induction motors across a wide operating frequency range of 0 to 400 Hz.
Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description.
Allen-Bradley 1305-BA01A-HA2 Variable Speed Drive Manuals, Datasheets, Drivers, Link
Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description.
HVAC Systems
Controls fan and blower speeds in commercial heating and cooling units. The drive utilizes pulse width modulation (PWM) to provide energy-efficient airflow control and maintain precise ambient temperatures.
Food and Beverage
Manages small centrifugal pumps and sorting conveyors in processing plants. It provides a wide operating frequency range of 0 to 400 Hz to ensure consistent motor speed for automated bottling and packaging lines.
Material Handling
Regulates low-power motorized rollers and belt conveyors in warehouse distribution centers. The integrated Human Interface Module (HIM) allows for immediate parameter adjustment of acceleration and deceleration times for smooth product transport.
Textile Manufacturing
Drives precision winding machines and spinning frames requiring constant torque. It features a programmable carrier frequency of 2 to 8 kHz to reduce audible motor noise and improve operational efficiency in high-density production environments.
Water Treatment
Operates small chemical metering pumps and agitators in municipal treatment facilities. The IP20 (NEMA 1) rated enclosure and 380-460V AC input capability ensure reliable performance for localized liquid handling applications.
Machine Tooling
Controls spindle speeds for small industrial drills and specialized milling equipment. It handles intermittent overload currents up to 2.0 Amps for one minute, providing the necessary torque for varied metalworking and fabrication tasks.
The 1305-BA01A-HA2 requires a 3-phase input voltage of 380-460V AC with a frequency of 48 to 62 Hz, and users must ensure the branch circuit protection does not exceed a 10 Amp rating using Class J or CC fuses to prevent equipment damage. During installation, the drive must be mounted on a vertical, metallic surface to act as a heat sink, maintaining an ambient temperature between 0°C and 50°C, while personnel must wear a grounding wrist strap to protect internal ESD-sensitive parts from electrostatic discharge.
The drive features a power dissipation of approximately 23 Watts and requires the removal of the front cover and Human Interface Module (HIM) to access the power (TB1) and control (TB2) terminal blocks for secure wiring. To ensure proper operation and motor protection, the programmable carrier frequency should be set between 2 to 8 kHz, and all chassis power must be disconnected before attempting any service or part replacement to avoid electrical shock or unintended motor rotation.
What are the input voltage and frequency ratings for the 1305-BA01A-HA2 module?
The 1305-BA01A-HA2 has a voltage rating of 380-460V AC, 3-phase, with an input frequency range of 48 to 62 Hz and an operational input voltage range of 342-506V AC.
What is the output power and current rating for the 1305-BA01A-HA2 drive?
The module provides a nominal output of 0.37 kW (0.5 HP) with a continuous output current of 1.3 Amps and a 1-minute intermittent overload current of 2.0 Amps.
What does the "HA2" suffix signify in the 1305-BA01A-HA2 catalog number?
The "HA2" suffix indicates that the drive is equipped with a Human Interface Module (HIM) featuring a digital display and UP/DOWN buttons for programming and control.
What are the storage and operating temperature limits for the 1305-BA01A-HA2?
The drive must be stored between -40°C and 70°C and operated in ambient temperatures between 0°C and 50°C without derating, assuming a non-condensing atmosphere.
What is the maximum heat dissipation for the 1305-BA01A-HA2 during operation?
Total power dissipation for this 0.37 kW (0.5 HP) rated module is approximately 23 Watts, which must be considered when designing enclosure ventilation.
