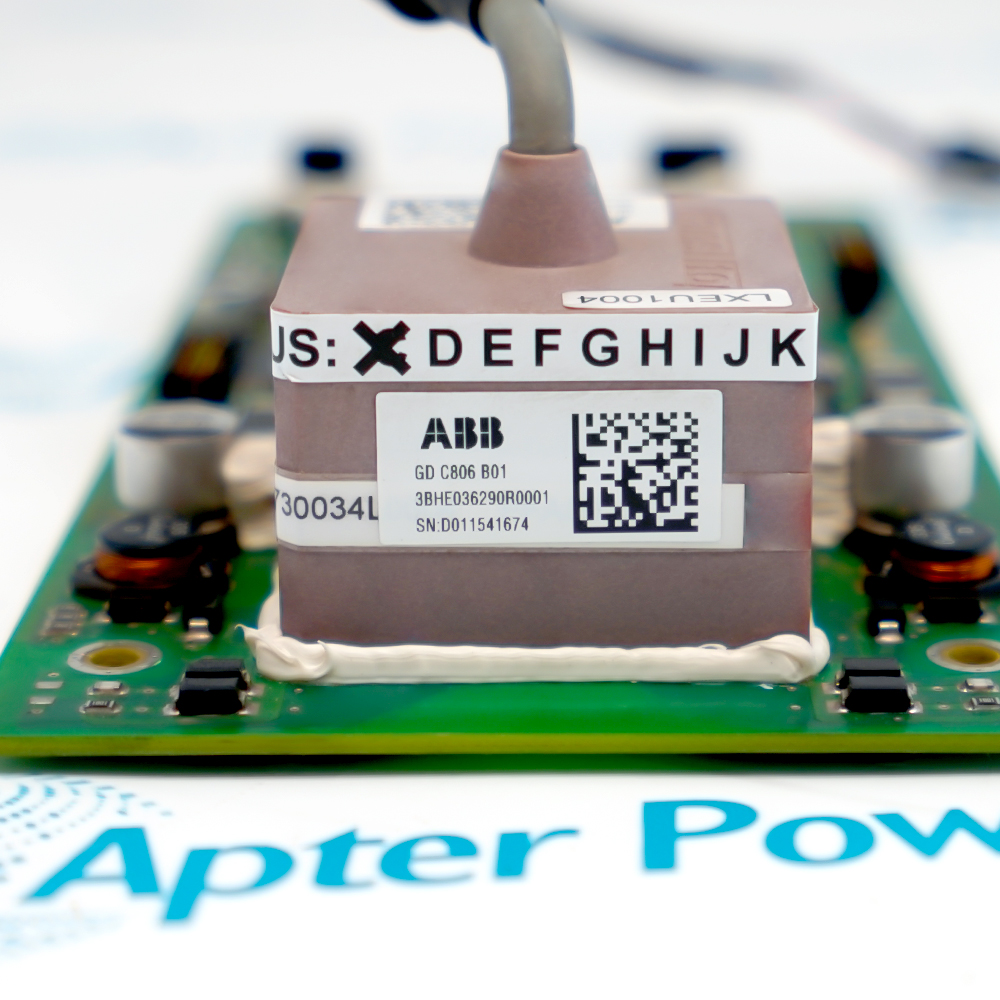

The 3BHE036290R0001 GDC806 B01 is a drive board or high-voltage control module commonly used in ABB industrial automation systems. This module is often part of large industrial drive systems and is considered a high-quality spare part.
Designed for demanding, high-voltage industrial environments
Used within specific ABB drive platforms (often for ACS or similar series)
Often available through industrial automation suppliers, with options for new, boxed, or refurbished units
The ABB 3BHE036290R0001 (GDC806 B01) serves as an indispensable control core within high-power excitation or drive systems. By receiving commands via fiber optic communication, it precisely triggers power semiconductors while integrating rigorous galvanic isolation and real-time diagnostics, ensuring the efficient and secure operation of the entire industrial system even in complex electromagnetic environments.It acts as the critical interface between control logic and power semiconductors, providing precise triggering, electrical isolation, and real-time diagnostic feedback. It is a standard component within the UNITROL 6000 excitation systems and large-scale ABB drives, engineered for high reliability in demanding industrial environments.
Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description.
ABB 3BHE036290R0001 GDC806 B01 Circuit Board Manuals, Datasheets, Drivers, Link
Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description.
Nuclear Power
Integrated into specialized nuclear excitation systems to provide ultra-high system availability and safety.
Steel & Metallurgy
Driving high-power DC or AC drives in large rolling mills to achieve precise torque control.
Oil & Gas
Powering heavy-duty frequency conversion systems for centrifugal compressors or pumps to minimize downtime.
Chemical Industry
Controlling excitation for large industrial motors used in reactor agitation or material handling.
Water & Wastewater
Optimizing the operational efficiency and grid power factor of high-power synchronous motors in pumping stations.
Marine Propulsion
Driving the excitation bridges of propulsion motors in electric marine propulsion systems for flexible navigation control.
When using the 3BHE036290R0001 (GDC806 B01), strictly adhere to ESD protection standards to safeguard sensitive components and ensure fiber optic interfaces are clean and securely connected to prevent signal attenuation. Additionally, regularly verify the stability of the power supply and monitor environmental temperature and humidity to ensure the board operates under specified cooling conditions, maintaining precise triggering of power devices and long-term system reliability.
It is a high-performance Gate Drive Control Board designed by ABB for power electronics applications, specifically for controlling large-scale industrial drives and excitation systems.
What is the primary function of the GDC806 B01?
Its main role is to process control logic and generate precise firing pulses (gate signals) to trigger power semiconductors like thyristors or IGBTs.
In which systems is the 3BHE036290R0001 GDC806 B01 typically used?
It is widely utilized in ABB UNITROL 6000 excitation systems, DCS800/DCS880 DC drives, and various high-power rectifier units.
How should the 3BHE036290R0001 GDC806 B01 be installed?
The board must be securely mounted into a designated control rack slot. Ensure all fiber optic cables and electrical connectors are firmly seated to maintain signal integrity.
What are the wiring requirements for the GDC806 B01?
Wiring should strictly follow the system's schematic diagram. It usually includes a 24V DC power supply, pulse output channels, and high-speed communication interfaces.
