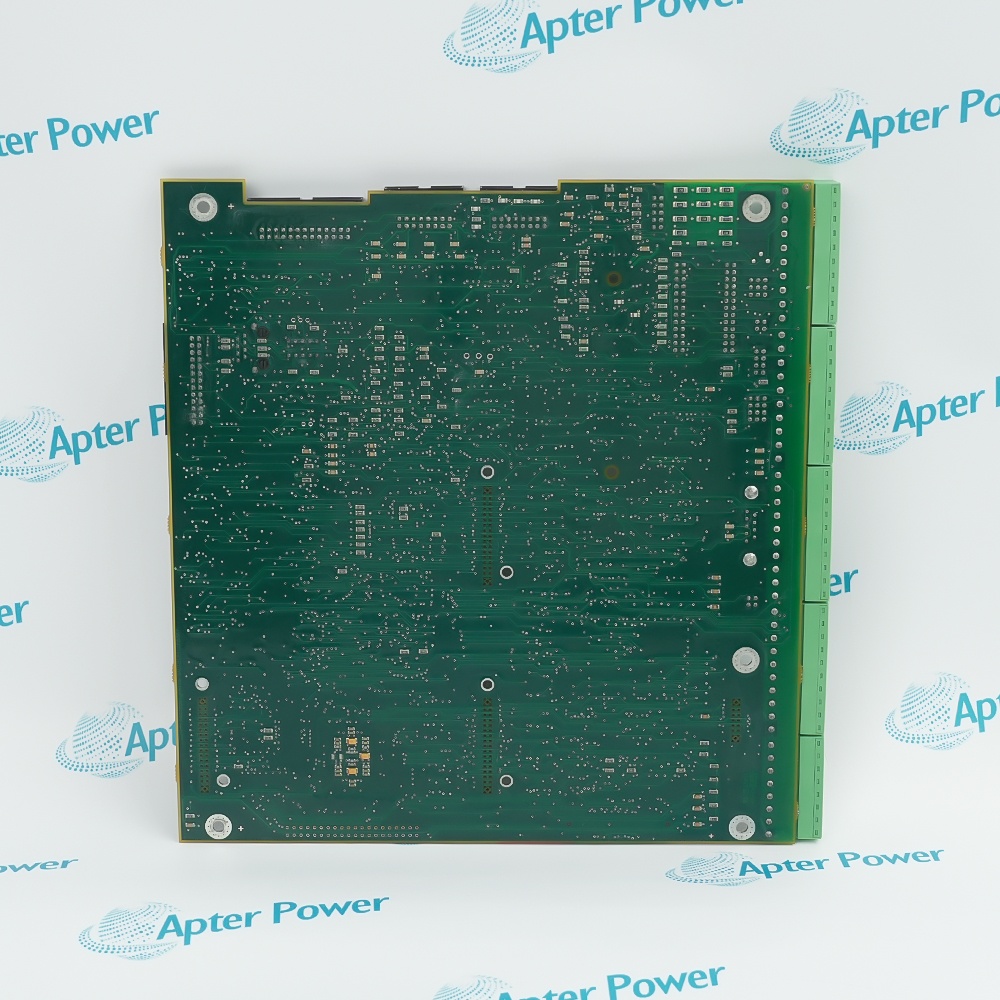

The SDCS-CON-4 3ADT313900R1501 serves as the main electronic command unit within the ABB DCS800 industrial DC drive line. Occupying a specific bay inside the drive housing, this board links directly with the power interface component and fieldbus adapters to handle core operational algorithms.
Environmental Tolerance and Conformance
Central Processing and Drive Control
Gate Pulse Generation and Grid Synchronization
The board utilizes an integrated non-volatile memory structure to hold operational firmware and parameter profiles, allowing hardware swaps without software duplication. Physical connections on the board include multiple analog inputs, analog outputs, digital inputs, and digital outputs to receive commands from emergency switches or master controllers. For wider automation integration, plug-in slots on the board accommodate optional network adapters for protocols such as Profibus-DP, Modbus, and Ethernet. During service operations, personnel must utilize grounded wrist straps to prevent electrostatic discharge when touching the board edges. When active, onboard light indicators show power inputs and faults such as the F543 system interruption error code.
Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description.
ABB SDCS-CON-4 3ADT313900R1501 Control Board Manuals, Datasheets, Drivers, Link
Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description.
Pulp & Paper Industry
Controls the multi-section synchronous drive systems (reels, press sections, dryer sections) of legacy large paper machines, preventing paper breaks through precise speed chain and tension control.
Rubber & Plastics Extrusion
Drives large internal mixers (Banbury mixers) and high-output single/twin-screw extruders in tire or plastic plants, handling the extremely high mechanical resistance during the initial raw material mixing stage.
Oil Drilling & Extraction
Controls the DC motors of the drawworks, mud pumps, and rotary tables on drilling rigs (land or offshore platforms), executing heavy-duty drilling and tripping operations.
Metallurgy & Iron and Steel Industry
Used to control the main winders, unwinders, and roll drive DC motors of hot and cold rolling mills, providing precise tension and speed control under extremely heavy loads.
Cement & Building Materials Industry
Acts as the core controller for the main drive DC motors of rotary kilns in cement plants, ensuring steady constant-torque rotation of the kiln body under continuous low speed and high friction.
When operating the SDCS-CON-4 3ADT313900R1501, you must completely isolate the main power supply and external auxiliary control power before removal, wiring, or replacement, as hot-swapping is strictly prohibited to prevent burning out sensitive microchips. Technicians must wear a properly grounded anti-static wrist strap at all times when handling the board or touching its components, holding the module only by its edges to eliminate electrostatic discharge risks. When swapping the hardware, you must transfer the original memory card to the new board to preserve firmware and motor parameters, and ensure that low-voltage sensor signal lines are segregated from heavy power cables in separate conduits to block industrial electromagnetic interference.
How to correctly use products like the SDCS-CON-4 3ADT313900R1501 in an industrial field?
Acting as the brain of the drive system, it must be installed into the designated control slot of a DCS800 DC drive, linking with the power interface board (SDCS-PIN-4) and fieldbus adapters, and is configured by engineers via a control panel or DriveWindow software with drive parameters to govern heavy-duty DC motor operations.
How to identify the various onboard communication interfaces of the SDCS-CON-4 3ADT313900R1501?
The board features dedicated interfaces for control panel connection and PC commissioning tools (such as DriveWindow), along with expansion slots that support mainstream industrial fieldbuses like Profibus-DP, Modbus, or Ethernet via add-on option cards.
Which heavy industries and machinery rely most on the precise control of the SDCS-CON-4 3ADT313900R1501?
It is widely deployed in heavy-duty DC drive scenarios requiring high dynamic response and massive torque control, such as metallurgy rolling mills, paper mill rewinders, mine hoists, rubber extruders, and harbor cranes.
How to prevent firmware and parameter loss when replacing the SDCS-CON-4 3ADT313900R1501?
The board features a removable Memory Card that retains the firmware, application macros, and fine-tuned motor parameters; during hardware swap, you simply unplug the memory card from the old board and insert it into the new one, avoiding re-commissioning.
