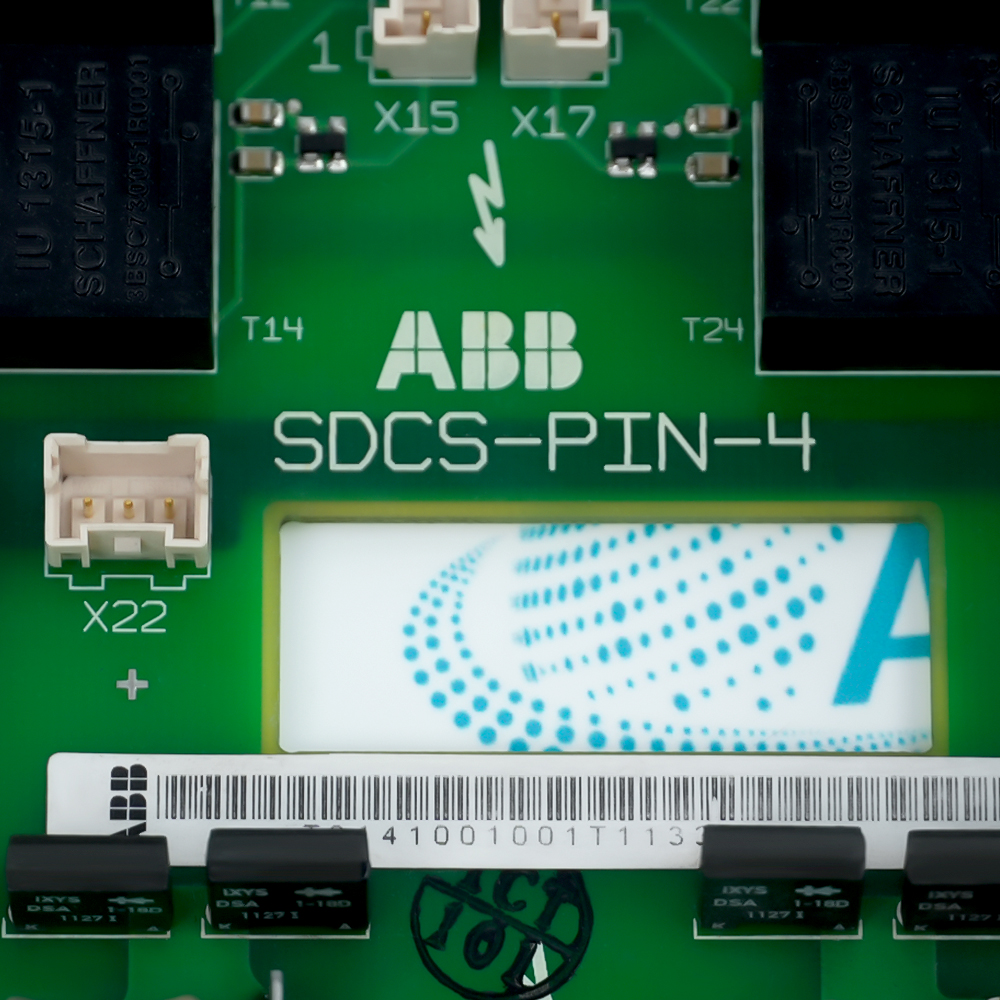

The SDCS-PIN-4 is a core component of the DCS800 series DC drives, primarily responsible for voltage measurement, pulse synchronization, and signal isolation between the power unit and the control unit.
Superior Voltage Versatility
High-Precision Synchronization
Robust Signal Isolation & Safety
In the entire drive system architecture, the SDCS-PIN-4 plays a crucial role as both a "high-voltage sensor" and a "signal relay." Directly connected to the main circuit, it is responsible for accurately monitoring the armature/excitation voltage of the power grid and the motor, and achieving grid phase synchronization through onboard circuitry, providing an absolutely precise time reference for the triggering of the silicon controlled rectifier (SCR). Furthermore, the system board boasts high adaptability through its jumper design, capable of handling a wide input voltage range from 230V to 1000V. As a bridge between the main control board and the power module, the stable operation of the SDCS-PIN-4 directly determines the smoothness of DC motor speed control and the safety of the rectifier bridge, forming the hardware foundation for the efficient operation of ABB's early high-power DC drive systems.
Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description.
ABB SDCS-PIN-4 POWER INTERFACE BOARD Manuals, Datasheets, Drivers, Link
Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description.
Pulp & Paper
Managing multi-unit synchronous operation of paper machine sections to ensure constant paper tension.
Steel & Metallurgy
Controlling rolling mill motors to output massive torque for processing steel plates, requiring precise voltage feedback.
Mining Industry
Responsible for vertically transporting ore or personnel, with synchronization ensuring safe braking and acceleration.
Cement Industry
Maintaining high torque at very low speeds for rotary kilns, with the board monitoring synchronization phases.
Oil & Gas
Providing reliable DC power drive control for high-pressure mud circulation during drilling operations.
Wire & Cable
Managing high-speed winding speeds during metal wire drawing to prevent wire breakage.
When using the SDCS-PIN-4 interface board, especially in multi-drive systems within the Pulp & Paper industry, the primary considerations are the precise matching of jumper voltage levels and the integrity of the measurement circuit fuses. First, the onboard jumpers must be strictly configured according to the site’s grid voltage before installation, incorrect settings will lead to voltage detection errors or even permanent damage to the board.Second, given the humid and potentially dusty environment of paper mills, the board surface should be cleaned regularly to prevent high-voltage tracking that could cause Sync Faults. Additionally, ensure that the ribbon cables connecting to the main control board are securely fastened and routed away from power cables to avoid electromagnetic interference (EMI) affecting pulse triggering. Finally, after replacing the board, it is mandatory to re-verify that the feedback signals for both the armature and field circuits are normal to safeguard the precision and continuity of the paper machine's tension control.
What is the key role of the SDCS-PIN-4 in the system?
It acts as a "bridge." It monitors the voltage signals of the main circuit (armature and field) and converts these high-voltage signals into low-voltage signals that the control board can process, while providing precise synchronization timing for the Thyristor (SCR) firing.
How to use products like the SDCS-PIN-4?
It is typically installed inside the frame of a DCS500/600 DC converter. It connects to the main control board (such as SDCS-CON-x) via multi-pin ribbon cables and links to the DC motor's power circuit through dedicated terminals.
What voltage levels does the SDCS-PIN-4 support?
The board is designed with great versatility. Through onboard jumper settings, it can adapt to AC input voltages ranging from 230V to 1000V to match different industrial power grids.
What are the maintenance points for the SDCS-PIN-4?
Periodically inspect the resistors and capacitors on the board for signs of burning or bulging, check for loose ribbon cables, and use an anti-static brush to clean carbon deposits to prevent high-voltage tracking.
Does the SDCS-PIN-4 have fuses?
Yes. The board is usually equipped with dedicated measurement circuit fuses. If these fuses blow, the control system will lose mains voltage feedback, causing the unit to enter a protection state.
