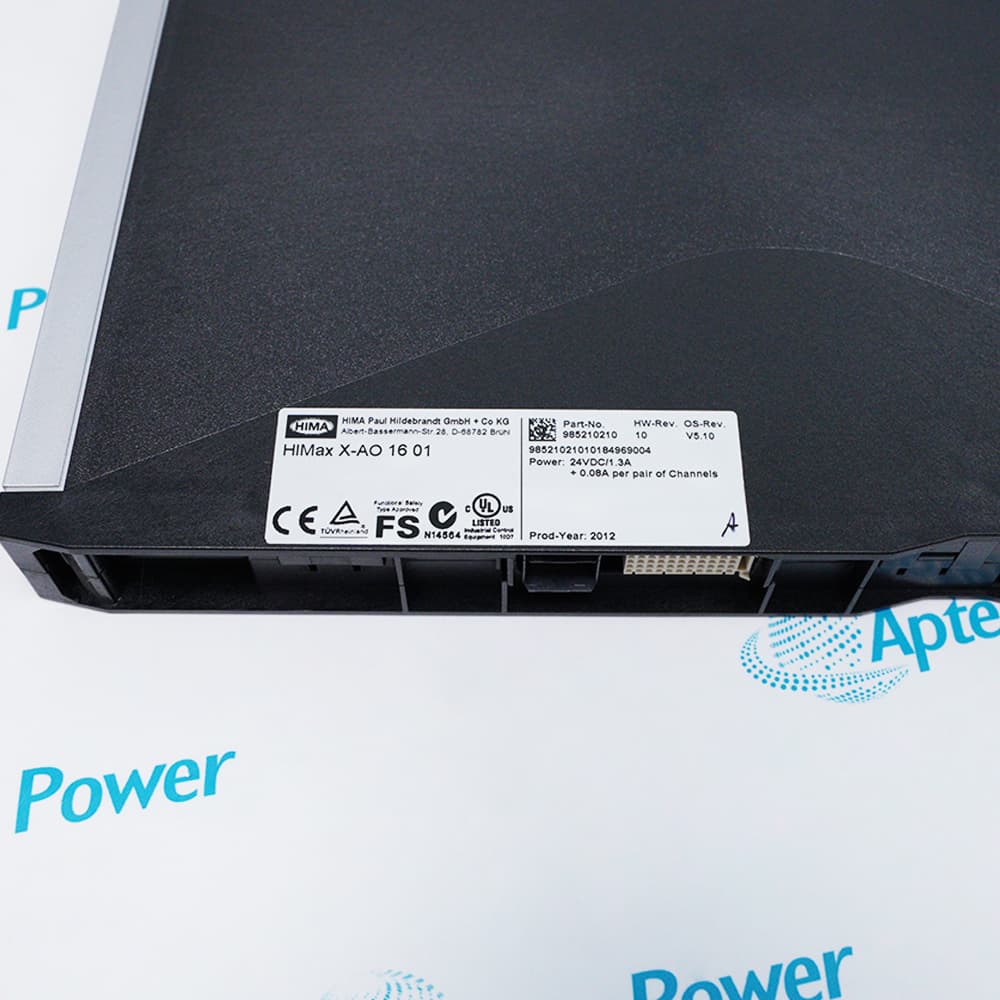

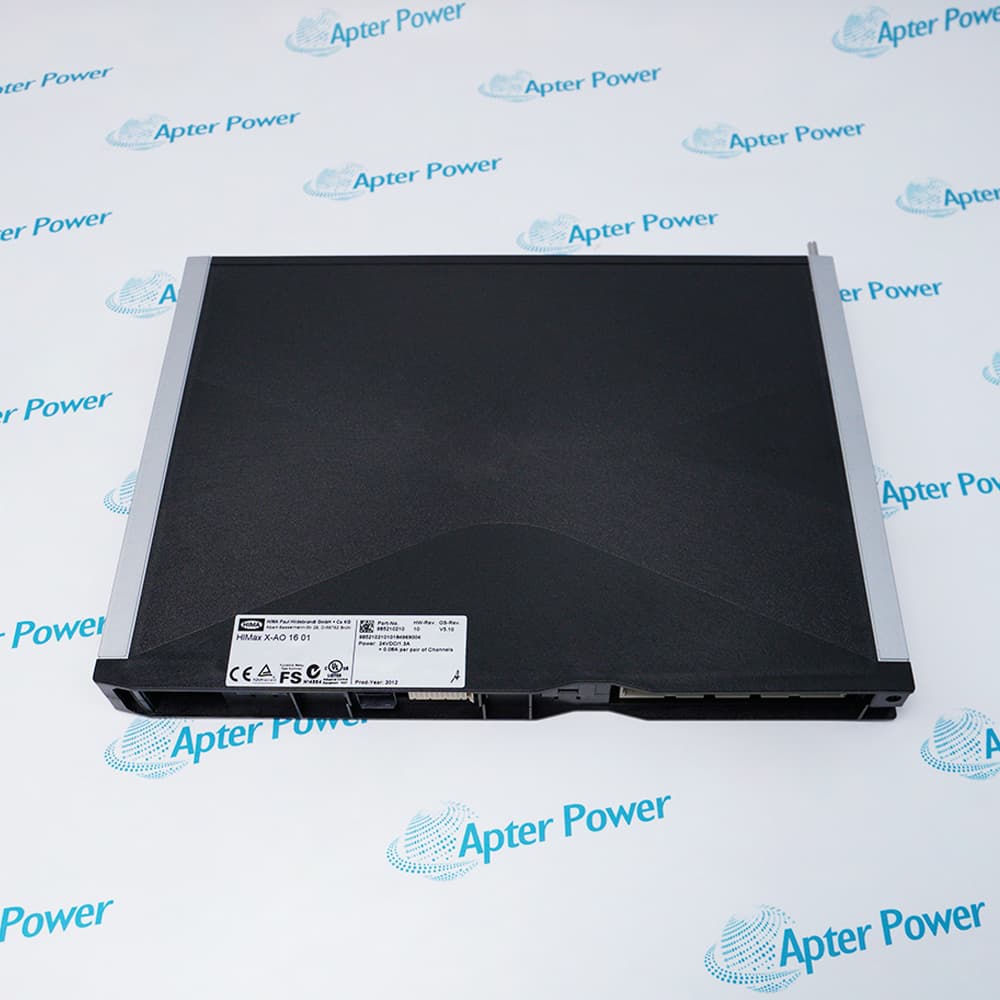

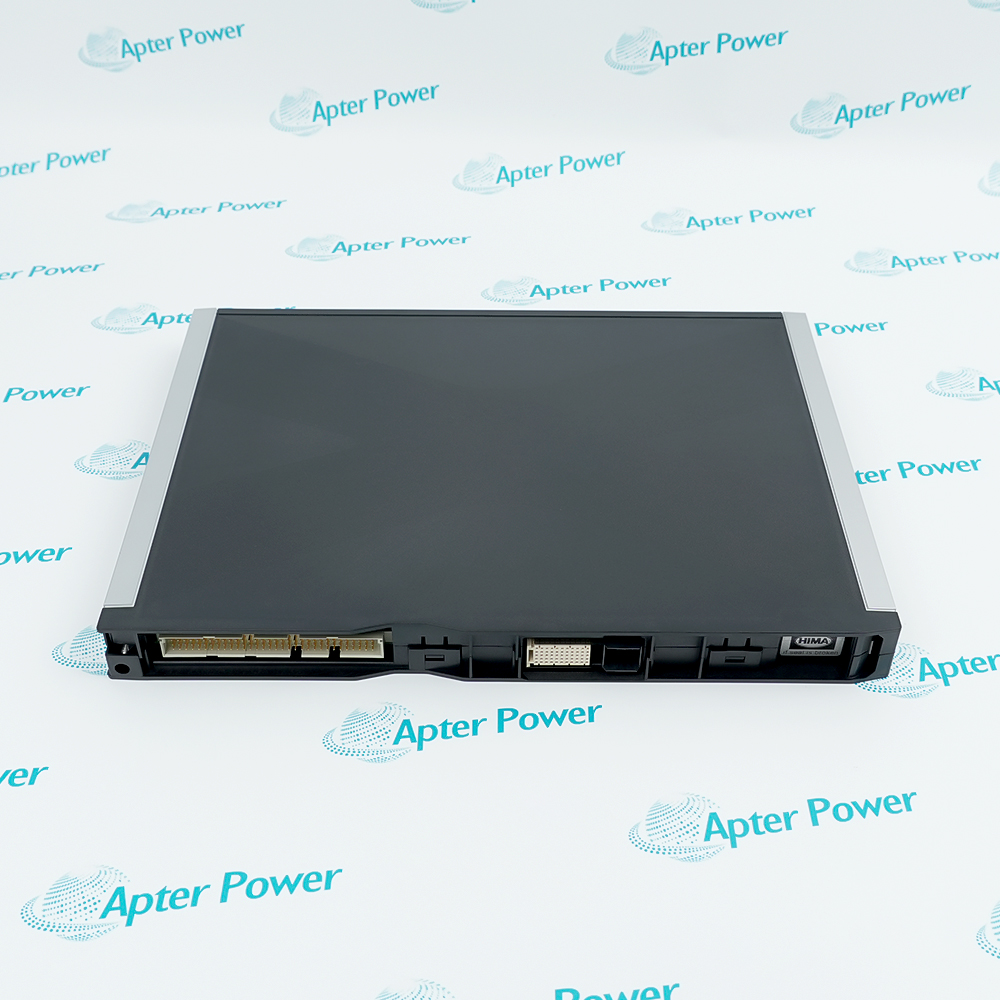

The HIMAX X-AO1601 is a 16-channel analog output module belonging to the HIMax safety control system I/O module series, designed for safety-related applications and compatible with standard HIMax base plates and connector boards.
16-channel design
HART supported
Full diagnostics
HIMAX X-AO1601 provides complete diagnostic functions, supports HART communication, multiple wiring modes and redundant configuration, ensuring high safety, stability and reliability in industrial safety applications.
Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description.
HIMA HIMAX X-AO1601 Analog Output Modules Manuals, Datasheets, Drivers, Link
Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description.
Oil & Gas
Provides safe and accurate analog output signals for process control in onshore and offshore oil and gas facilities, and supports emergency shutdown and regulatory control functions.
Petrochemical
Ensures stable analog signal transmission for chemical and refining safety systems, and meets the safety requirements of continuous production and interlock control.
Power Generation
Applied in power plant safety control systems to deliver reliable analog signals for temperature, pressure and liquid level regulation.
Metallurgy
Suitable for metallurgical production safety control with strong anti-interference performance to ensure stable signal output in harsh environments.
Marine
Used in ship and offshore platform safety systems to provide stable analog control signals for marine engineering equipment.
Machinery Safety
Supports analog control for automated machinery and production lines, ensuring safe and reliable operation of equipment.
The HIMA HIMAX X-AO1601 analog output module must be operated under specified environmental conditions and ESD protective measures during installation, startup, operation and maintenance; unused output channels shall be properly wired, and the module shall only be used with dedicated X-CB 014 series connector boards and matched system cables. All installation, mounting and removal procedures must comply with the official HIMax manual requirements, and module configuration in Silworx software, submodule status monitoring, diagnostic status detection, single-channel or redundant wiring, HART communication application, fault reaction processing, proof test execution and operating system loading must be implemented in accordance with specified safety functions and operating procedures to ensure reliable and safe operation in safety-related applications.
HIMAX X-AO1601 is an analog output module for the HIMax safety control system, used to provide safe analog output signals for field devices and is a standard I/O module for safety-related applications.
What is the channel quantity of HIMAX X-AO1601?
HIMAX X-AO1601 has 16 analog output channels that can be configured independently, and each channel supports single-channel or redundant wiring for different site requirements.
Does HIMAX X-AO1601 support HART communication?
HIMAX X-AO1601 supports HART communication to realize digital communication and parameter diagnosis with HART-compatible field devices in analog output control scenarios.
What are the wiring modes of HIMAX X-AO1601?
HIMAX X-AO1601 supports single-channel wiring, redundant serial connection, closed loop control and field termination assembly connection, and can be used with X-CB 014 series connector boards.
What diagnostic functions does HIMAX X-AO1601 have?

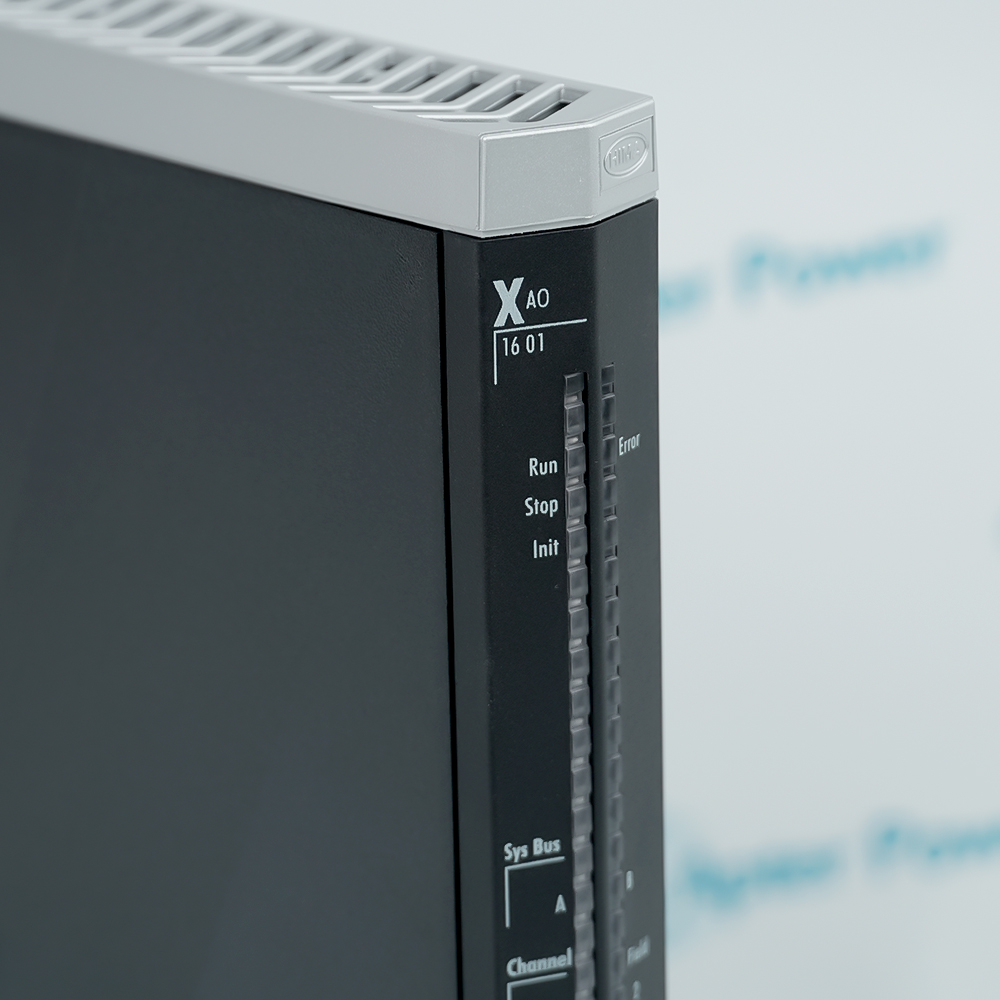

HIMAX X-AO1601 provides complete module and channel diagnosis, outputs submodule status and diagnostic status words, and uses status indicators for real-time operating status monitoring.
