ZCU-14 3AXD50000005164
CONTROL UNI
In Stock
Ships by Tuesday, July 14
Fast Shipping Available
Product Describe：
CONTROL UNI ,ABB ACS880 Series industrial drives
Processes drive control program logic
fieldbus communication
I/O signal routing, and motor regulation loops
The ZCU-14 3AXD50000005164 is an industrial main control unit for ABB ACS880 series industrial drives and multi-drive inverter modules. It functions as the central processing core of the drive system, executing control program logic, coordinating fieldbus communications, and regulating real-time speed and torque motor control loops.
The on-board high-performance processor executes ABB’s Direct Torque Control (DTC) algorithm at a microsecond level
The board integrates standard digital inputs/outputs (DI/DO), analog inputs/outputs (AI/AO), and relay outputs
A dual-channel Safe Torque Off (STO) function is embedded directly into the hardware

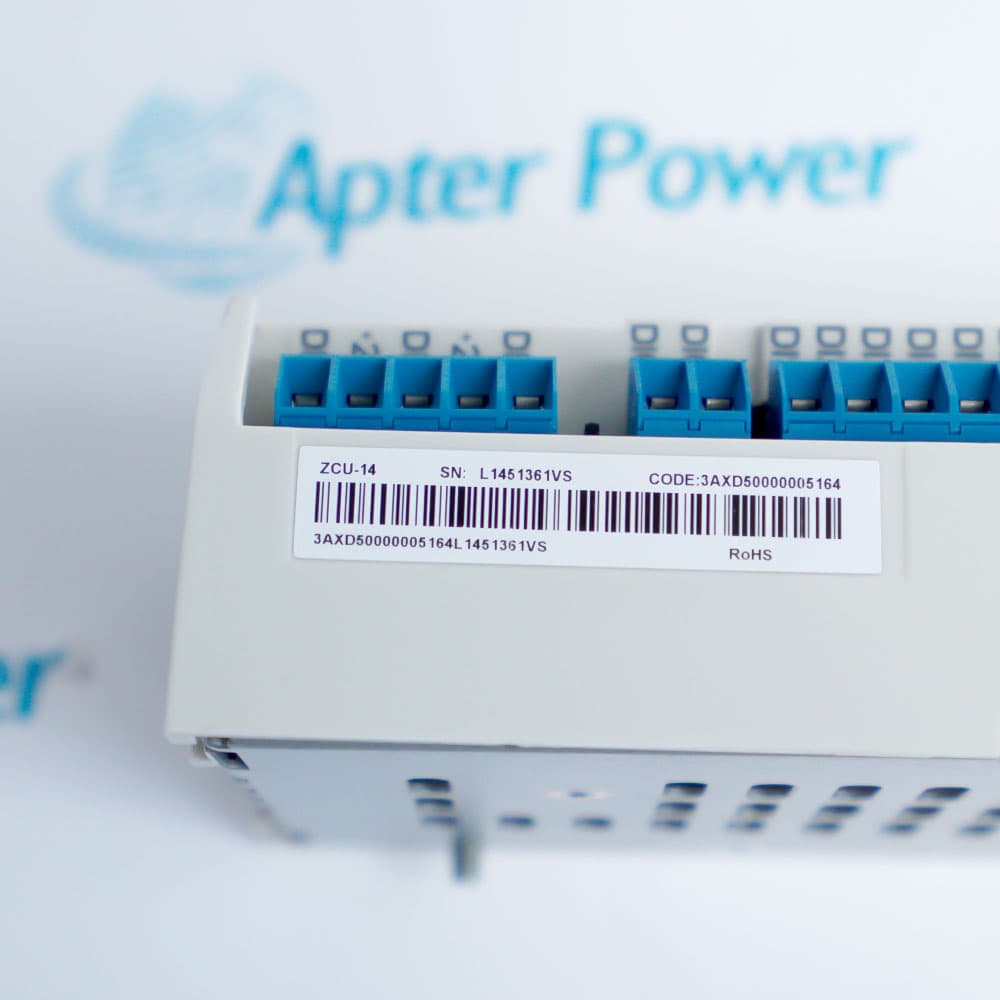

The ZCU-14 unit features a high-density circuit board layout that integrates multiple built-in interfaces, including standard analog and digital input/output (I/O) terminals, relay outputs, and dedicated safe torque off (STO) safety circuit connections.
It is equipped with designated expansion slots that accommodate optional modules such as fieldbus adapters, I/O extension adapters, and speed feedback encoder interfaces. The board runs on a 24 Vdc supply voltage and includes an integrated real-time clock backed up by a standard button-cell battery. Constructed with components designed to meet industrial-grade thermal and electrical requirements, the unit operates across a wide temperature range inside drive cabinets.

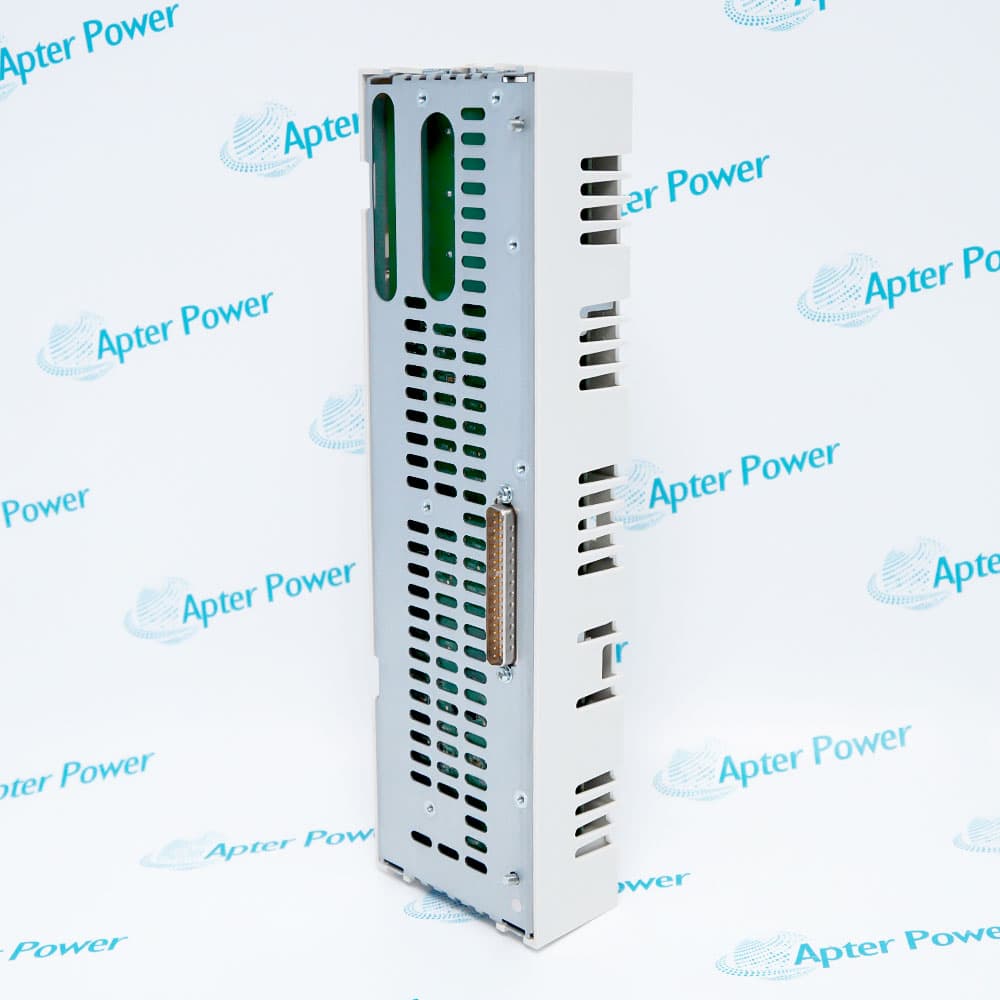

The structural layout promotes airflow to manage heat dissipation during continuous operation. It supports complete backward and forward firmware compatibility within its specified ACS880 modular range, allowing direct interchangeability for breakdown maintenance or planned upgrades without requiring structural modification to the drive's mounting frame.
Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description.
ABB ZCU-14 3AXD50000005164 CONTROL UNI Manuals, Datasheets, Drivers, Link
Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description.
Metallurgical & Steel Industry
Executes Direct Torque Control (DTC) algorithms to precisely regulate the speed and tension of main drive motors in hot or cold rolling mills, ensuring uniform steel plate thickness.
Oil & Gas Exploration & Production Industry
Controls the variable frequency drive modules of deep-well drawworks, mud pumps, and top drive systems, utilizing on-board STO safety functions to respond to on-site emergency shutdowns.
Pulp & Paper Industry
Achieves microsecond-level speed chain synchronization and load sharing control among the wire, press, dryer, and winder sections of high-speed paper machine multi-drive systems.
Mining & Heavy Machinery Industry
Regulates the dynamic torque balancing of multiple drive motors on long-distance, high-capacity belt conveyors to prevent belt tearing during startup and heavy-load operations.
Petrochemical & Refining Industry
Receives bus commands from host DCS systems to regulate the operating frequency of large process pumps or high-pressure compressor motors in petrochemical plants with high precision.
Rubber & Plastics Processing Industry
Regulates the low-speed, high-torque output of twin screws in heavy-duty internal mixers and extruders to prevent material overheating or motor overloading.
The ZCU-14 requires special attention during use because it is an unprogrammed blank board that contains no drive firmware itself, meaning the original ZMU memory unit must be inserted under de-energized conditions during field replacement to restore configuration data and control programs.
The external power terminal must be connected to a stable 24 VDC auxiliary power supply to ensure the control unit maintains communication and diagnostics when the main circuit is de-energized. As it is an exposed electronic circuit board, it must be installed inside an enclosure meeting dust-tight and moisture-resistant requirements, and it is strictly prohibited to plug or unplug control panel cables or any fieldbus expansion cards while energized to prevent permanent hardware damage to the board.
As a central control core, it processes control logic, fieldbus communication, and precise regulation of speed and torque. Featuring a high-density integrated architecture, this unit includes on-board I/O terminals and extension slots, providing industrial-grade interference immunity and heat dissipation. It is used for core control and signal processing in automated drive systems such as industrial frequency converters.
This is a main control unit board within the ABB industrial inverter system, serving as the central processing component dedicated to core logic calculations and control signal processing.
What is the primary purpose of the ZCU-14 3AXD50000005164?
Its primary purpose is to execute motor control algorithms, process input/output signal logic, handle fieldbus communications, and issue power driving commands to the inverter modules.
How to use and wire the ZCU-14 3AXD50000005164 on-site?
Connect external control cables to its built-in analog and digital terminal blocks, supply power through the dedicated external 24 VDC power terminal, and secure it inside the inverter's control unit bay.
How to restore data when replacing a bare ZCU-14 3AXD50000005164 board?
The original ZMU memory unit card must be unplugged and inserted into the slot of the newly replaced board; the system will automatically read the firmware and drive parameters from the memory unit upon power-up.
Does the ZCU-14 3AXD50000005164 come with default drive firmware?
This material code represents a blank, unprogrammed main control board that contains no specific firmware; its internal control program relies entirely on the externally inserted memory unit.
