DSTA002B-3BSE018317R1

Name: DSTA002B-3BSE018317R1
Brand: ABB
SKU: 3BSE018317R1

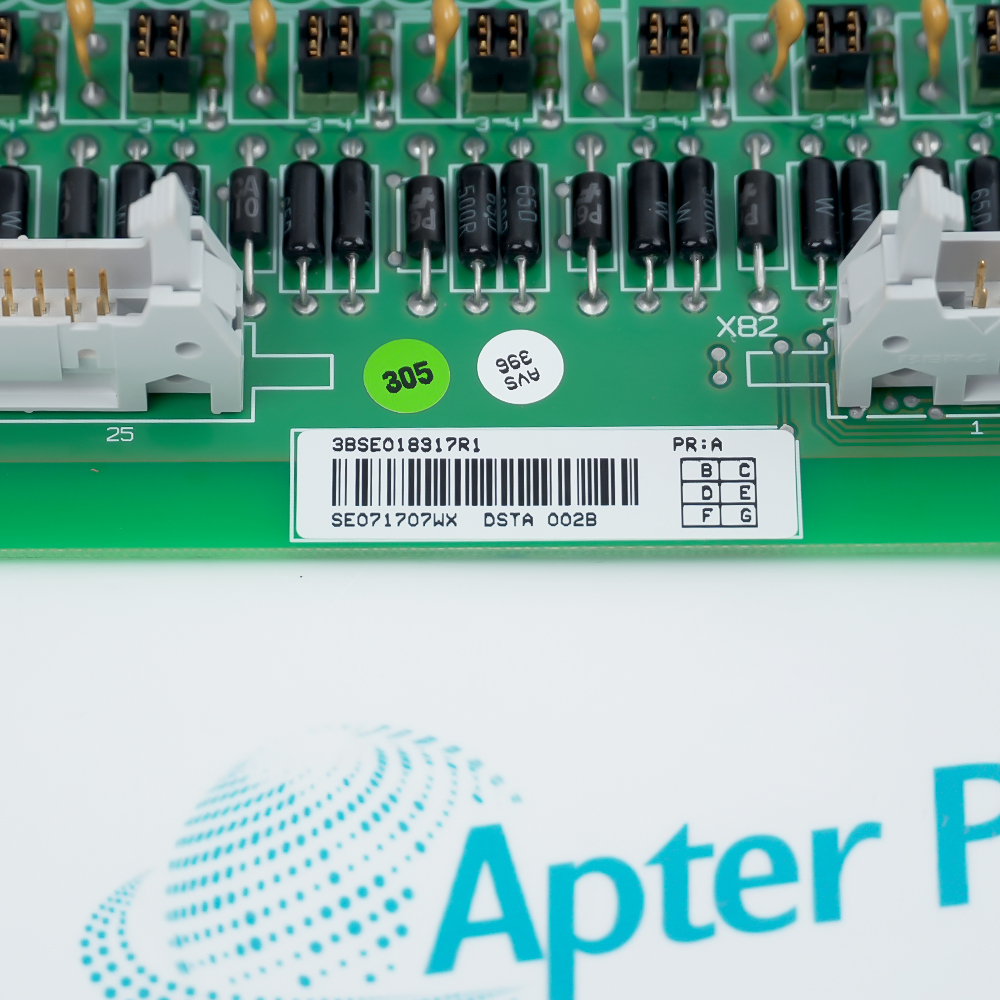

DSTA 002B S100 I/O Connection Unit

In Stock

Ships by Sunday, October 4

Fast Shipping Available

Product Describe：

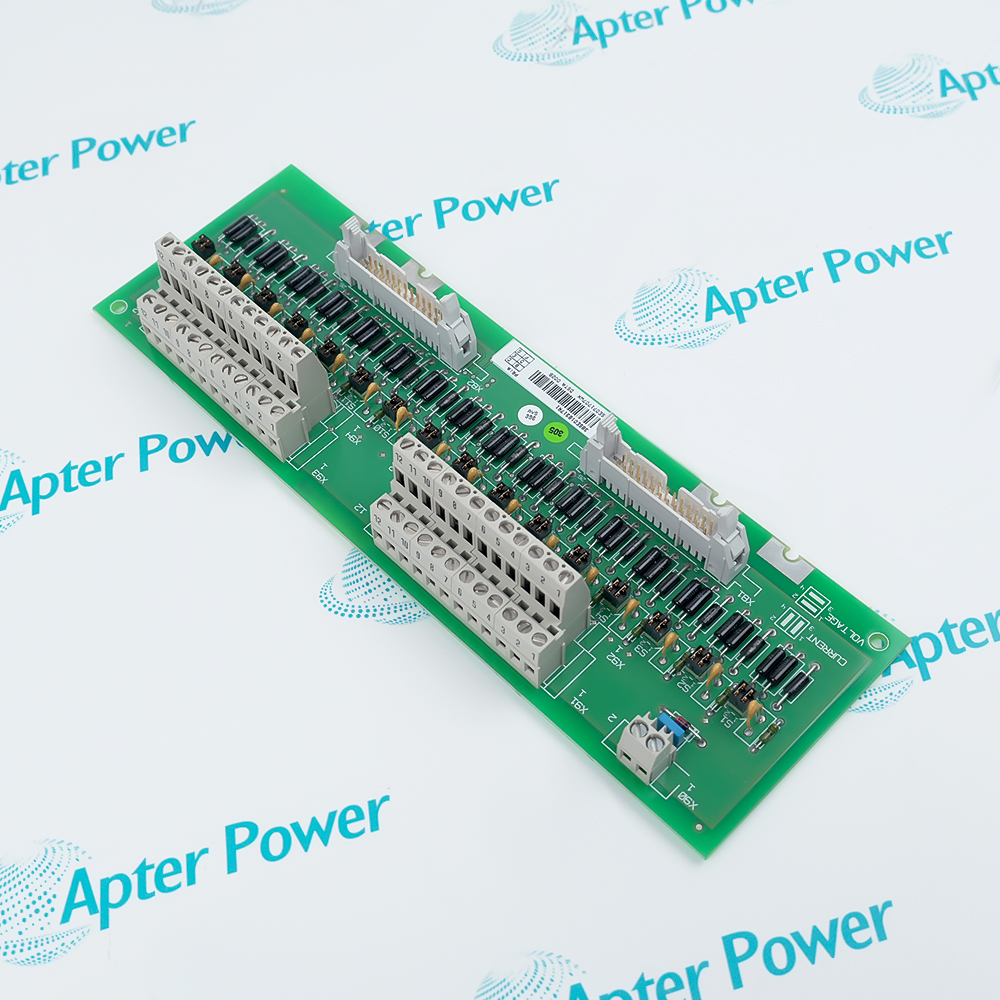

ABB DSTA002B-3BSE018317R1 is the DSTA 002B connection unit used with the DSAI 133A analog input board in a documented S100 I/O installation.

Ask our team:

Phone:
+86 180 3023 5313
E-Mail:
sales13@apterpower.com

Get a quick price for： DSTA002B-3BSE018317R1

Quantity*

Upload (gif, jpg, jpeg, png, bmp, doc, docx, xls, xlsx, ppt, pdf, csv)

Get a Quote

For more information on how your data is processed and stored by Apterpower please read our privacy policy.

Technical specifications Information Alternative names Technical notes FAQ

Technical specifications for DSTA002B-3BSE018317R1

Manufacturer:

ABB
Product Category:

DCS System
Spare Part Number:

3BSE018317R1
Estimated shipping dimensions:

24x8x3.5cm
Weight:

0.2 kg
Tariff Code:

8537101190
Counliy of origin:

Sweden
ABB product ID:

3BSE018317R1
Type designation:

DSTA 002B
Product type:

Connection unit
Associated board:

DSAI 133A analog input board
System family:

S100 I/O / Advant OCS
Exchange number:

7650 055-785
Country of origin:

Sweden
HS code:

8537101190

View as PDF Ask for Quote

Information

Overview Manuals Common Applications Product Precautions

DSTA002B-3BSE018317R1 provides the documented field-connection interface for a DSAI 133A analog input position in ABB S100 I/O.

Identifies the DSTA 002B connection-unit execution
Pairs with the documented DSAI 133A analog input board
Maintains the S100 I/O field termination arrangement
Supports controlled point-to-point analog channel verification

The connection unit remains paired with the installed DSAI 133A board and the approved S100 I/O cabinet wiring. Commissioning preserves the terminal map, shield treatment, channel identity and as-found grounding arrangement.

Important Notice: Confirm DSTA002B-3BSE018317R1, DSTA 002B, DSAI 133A, exchange number 7650 055-785, S100 I/O host, terminal map, shields, grounding and controlled analog-channel test evidence before commissioning.

Apter Power DSTA002B-3BSE018317R1 Manuals and Guides

The first document is the model-specific technical and system reference. The second is a distinct field workbook for installation, wiring, commissioning and acceptance records.

S100 analog input termination

Connects documented analog field circuits to the assigned DSAI 133A input position.

Advant OCS cabinet service

Restores the exact connection unit without changing the approved I/O architecture.

Legacy marshalling refurbishment

Preserves terminal, shield and cable identity during controlled panel work.

Analog channel recommissioning

Supports point-to-point polarity and response checks after maintenance.

Read the applicable ABB installation instructions before work. Verify DSTA002B-3BSE018317R1, the installed host system and all configured field interfaces before isolation, wiring or commissioning.

Confirm DSTA 002B and product ID 3BSE018317R1 on the unit and maintenance record.

Place the controller, process and affected analog loops in the approved maintenance state.

Isolate field and cabinet energy according to the documented S100 I/O procedure.

Record the DSAI 133A position, every terminal, cable identifier, shield and ground point.

Use ESD controls and protect connectors and terminal surfaces from contamination.

Restore the exact connection-unit mounting, terminal map, shielding and grounding arrangement.

Review DSAI 133A and controller diagnostics after controlled energization.

Apply controlled analog stimuli and record every affected channel response before release.

Alternative Names

DSTA 002B; 3BSE018317R1; 7650 055-785

Technical notes

Treat DSTA 002B as the field connection unit for the documented DSAI 133A position, not as the analog input board itself. Record every terminal, cable, shield and grounding point before removal; restore the exact S100 I/O arrangement and verify all affected analog channels before release.
