XVME-976

PMC Carrier Module
In Stock
Ships by Saturday, November 21
Fast Shipping Available
Xycom XVME-976 VME board component side with green mezzanine daughter board and P2 connector at lower right
Xycom XVME-976 VME card rear side view with two cream board connectors and black ejector handles top and bottom

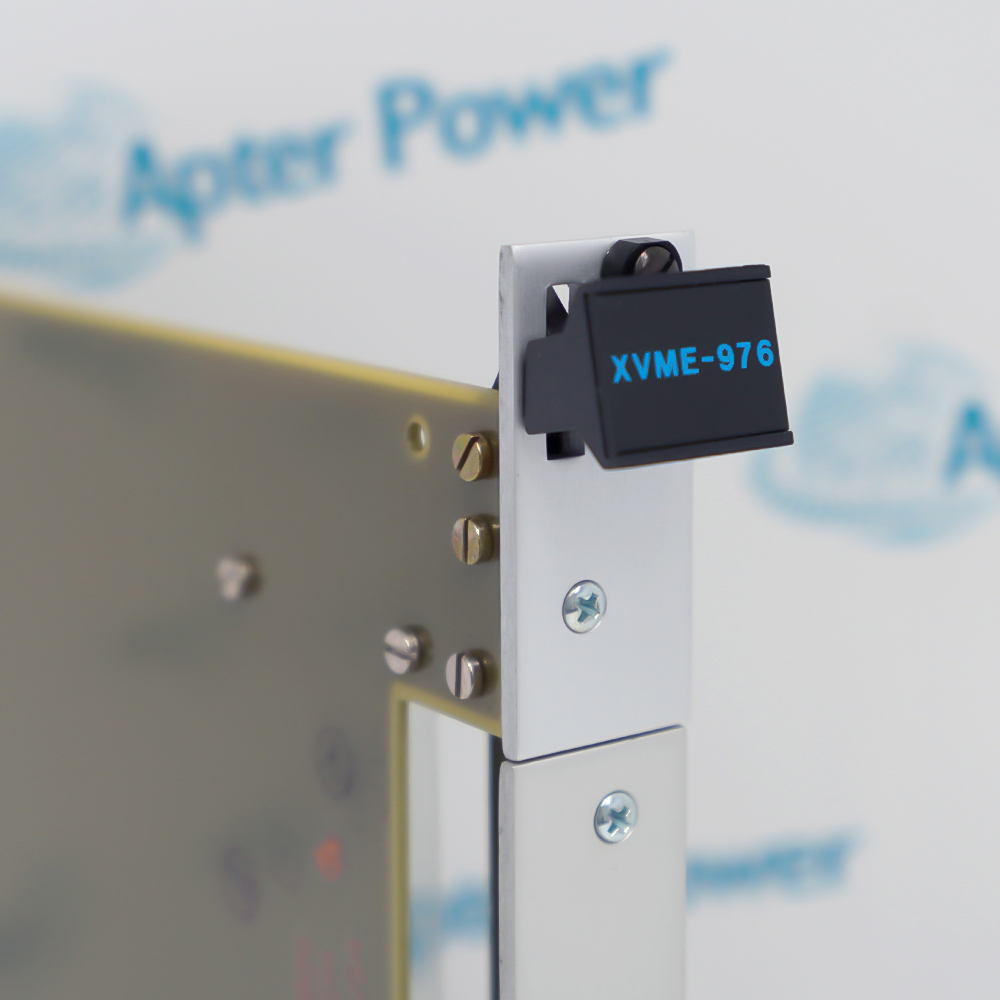

Xycom XVME-976 close-up of black ejector handle with blue XVME-976 label on silver faceplate edge
Xycom XVME-976 VME board component side with green mezzanine daughter board and P2 connector at lower right
Xycom XVME-976 VME card rear side view with two cream board connectors and black ejector handles top and bottom
Xycom XVME-976 close-up of black ejector handle with blue XVME-976 label on silver faceplate edge
Product image is representative; revision or series may vary. Contact us to request a specific version.

Product Describe:

Xycom XVME-976 is a 6U VMEbus dual PMC carrier module designed for use with compatible XVME-689 and XVME-690 processor modules. It provides two 32-bit PMC sites and rear I/O routing through the VME P2 interface.

Get a quick price for XVME-976
E-mail *
Mobile
Company
Content *
Quantity *
Upload (gif, jpg, jpeg, png, bmp, doc, docx, xls, xlsx, ppt, pdf, csv)
For more information on how your data is processed and stored by Apterpower please read our privacy policy

What happens after you enquire

  • 1

    Requirement review

    We review the part number, quantity and delivery requirements and ask for any missing details.
  • 2

    Quotation and availability

    We confirm the proposed item, condition, availability, price and estimated lead time in the quotation.
  • 3

    Order confirmation and dispatch

    Once the quotation and purchasing details are agreed, your contact will coordinate the order and available dispatch information.

Technical specifications for XVME-976

  • Manufacturer:
    Xycom
  • Product Category:
    General Automation
  • Spare Part Number:
    XVME-976
  • Estimated shipping dimensions:
    2x18.5x12.8cm
  • Weight:
    0.25 kg
  • Tariff Code:
    8537101190
  • Counliy of origin:
    USA
  • Module type:
    Dual PMC carrier
  • Form factor:
    6U VMEbus
  • PMC capacity:
    Two 32-bit PMC sites
  • Compatible processors:
    XVME-689 and XVME-690
  • Rear I/O:
    One PMC site through VME P2
  • Power source:
    VMEbus backplane
  • Stacking:
    Two carriers support up to five PMC modules with compatible host
  • Operating temperature:
    -25 to 70 degrees C
  • Storage temperature:
    -40 to 60 degrees C

Information

Overview Manuals Common Applications Product Precautions
Xycom XVME-976 is a 6U VMEbus dual PMC carrier module designed for use with compatible XVME-689 and XVME-690 processor modules. It provides two 32-bit PMC sites and rear I/O routing through the VME P2 interface.
  • Two 32-bit PMC expansion sites
  • 6U VMEbus carrier architecture
  • P2 rear-I/O support for one PMC site
  • Stackable expansion with compatible XVME processors

Verify the XVME-976 assembly and any option suffix, host processor compatibility, PMC voltage keying and P2 rear-I/O assignment before installation. Remove chassis power, use ESD controls and prove both PMC sites after startup.

Important Notice: Verify XVME-976 from the physical marking and current manufacturer documentation before installation or configuration.

Apter Power Xycom XVME-976 Manuals and Guides
Apter Power Xycom XVME-976 Product Technical Reference PDFApter Power Xycom XVME-976 Installation and Verification Workbook PDF

The first document presents model-specific technical and system data. The second provides a distinct installation, connection, commissioning and acceptance workflow.

VMEbus PMC expansion
Adds two PMC sites to a compatible XVME processor platform.
Industrial communications
Hosts approved PMC network or communication adapters in a 6U VME system.
Rear-I/O integration
Routes the documented PMC rear I/O through the VME P2 interface.
Legacy embedded computing
Maintains the approved XVME-689 or XVME-690 expansion architecture.
Read the applicable Xycom instructions before work. Verify XVME-976 and the installed system configuration.
1
Verify XVME-976 and any complete assembly suffix.
2
Confirm compatibility with the installed XVME-689 or XVME-690 processor.
3
Record both PMC modules, option keys and site positions.
4
Confirm PMC voltage keying before insertion.
5
Remove VME chassis power and use ESD controls.
6
Verify P2 rear-I/O mapping before connecting field interfaces.
7
Check total VMEbus and PMC power demand against the system design.
8
Verify enumeration and function of both PMC sites before release.

Technical notes

Verify the XVME-976 assembly and any option suffix, host processor compatibility, PMC voltage keying and P2 rear-I/O assignment before installation. Remove chassis power, use ESD controls and prove both PMC sites after startup.

FAQ View All FAQ

  • What is Xycom XVME-976?
    It is a 6U VMEbus carrier that provides two 32-bit PMC expansion sites.
  • Which processors are documented with XVME-976?
    The Acromag/Xycom catalog identifies XVME-689 and XVME-690 compatibility.
  • How many PMC modules can one carrier hold?
    One XVME-976 provides two PMC sites.
  • Does XVME-976 support rear I/O?
    Yes. The documented design routes one PMC site rear I/O through the VME P2 interface.
  • How is the carrier powered?
    It receives power from the VMEbus backplane.
  • Can multiple carriers be used?
    The catalog describes stacking two carriers with a compatible host to support up to five PMC modules.
  • What temperature range is documented?
    The catalog lists -25 to 70 degrees C operating and -40 to 60 degrees C storage.
  • What confirms successful commissioning?
    The carrier is seated correctly and each installed PMC module enumerates and passes its controlled interface test.
