CPU-314SB-314-2AG13

SPEED7 CPU
Ships by Thursday, November 19
VIPA CPU-314SB-314-2AG13
VIPA CPU-314SB-314-2AG13
VIPA CPU-314SB-314-2AG13
VIPA CPU-314SB-314-2AG13
VIPA CPU-314SB-314-2AG13
VIPA CPU-314SB-314-2AG13
Product image is representative; revision or series may vary. Contact us to request a specific version.

Product Describe:

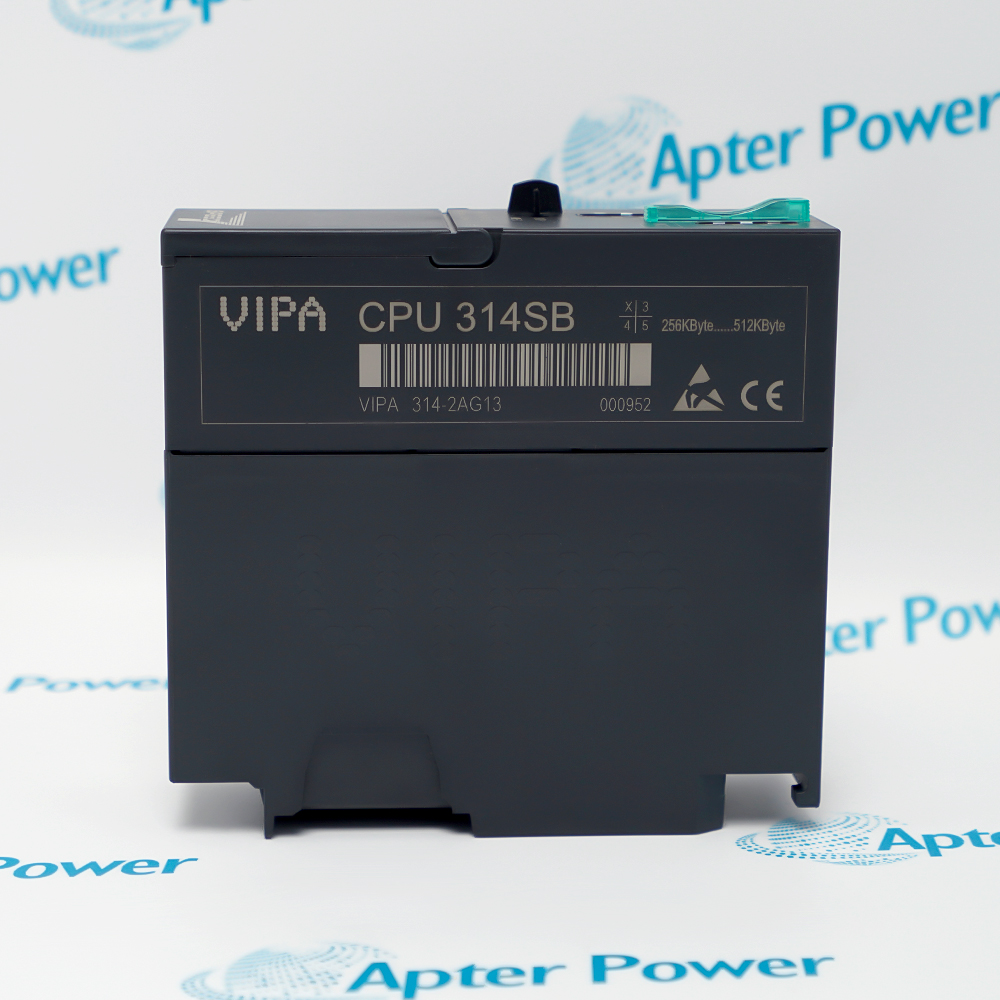

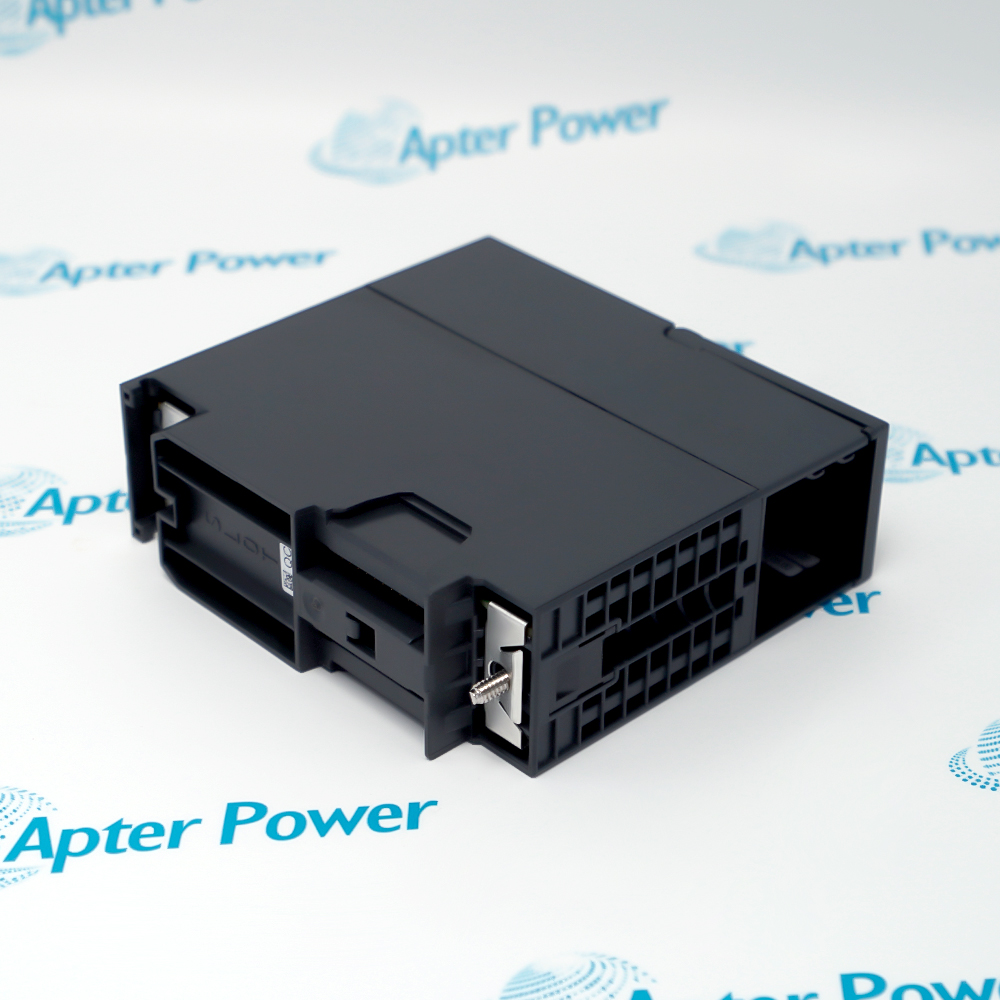

VIPA CPU-314SB-314-2AG13 is a System 300S SPEED7 CPU with integrated PROFIBUS functionality, 256 KB standard work memory and a 24 V DC supply.
  • Manufacturer part number
    CPU-314SB-314-2AG13
  • Shipping
    Swift global dispatch
  • Condition
    New, original product
  • Shipping size (est.)
    8cm x 12.2cm x 12.5cm
  • Country of Origin
    Germany
Get a quick price for CPU-314SB-314-2AG13
E-mail *
Mobile
Company
Content *
Quantity *
Upload (gif, jpg, jpeg, png, bmp, doc, docx, xls, xlsx, ppt, pdf, csv)
For more information on how your data is processed and stored by Apterpower please read our privacy policy

What happens after you enquire

  • 0

    Review your reference

    Send the complete VIPA CPU-314SB-314-2AG13 reference, label photographs and required quantity. Preserve CPU-314SB-314-2AG13 and the installed memory/interface configuration.

  • 1

    Confirm the offer

    Review the offered revision, condition, included items and documents against the confirmed installation.

  • 2

    Arrange dispatch

    Confirm quantity, dispatch date, lead-time start and delivery details in the quotation.

  • Match the complete marking

    Provide the complete VIPA CPU-314SB-314-2AG13 marking. Preserve CPU-314SB-314-2AG13 and the installed memory/interface configuration.

  • Check the offered item before ordering

    Request available label and connector photos. Have your maintenance team compare the offered CPU-314SB-314-2AG13 with the installed equipment and applicable VIPA instructions.

Technical specifications for CPU-314SB-314-2AG13

  • Manufacturer:
    VIPA
  • Product Category:
    PLC Systems
  • Spare Part Number:
    314-2AG13
  • Weight:
    0.4 kg
  • Tariff Code:
    8537101190
  • Supply voltage:
    24 V DC; 20.4–28.8 V permitted
  • Rated current:
    1 A
  • Idle current:
    200 mA
  • Inrush current:
    5 A
  • Power loss:
    6 W
  • Integrated load memory:
    512 KB
  • Standard work memory:
    256 KB
  • Maximum work memory:
    512 KB, supported expansion required
  • Minimum bit/word instruction:
    0.01 µs
  • PROFIBUS rate:
    9.6 kbit/s to 12 Mbit/s
  • DP master slaves:
    124 maximum
  • SPEED-Bus interface:
    Not fitted

Information

Overview Downloads Applications / Compatibility Product Precautions
  • VIPA CPU-314SB-314-2AG13 combines program execution and distributed-I/O communication in a compact System 300S controller, with the communication mode selected for the installed network.
Processing: SPEED7 controller core
Memory: 256 KB standard work memory
Fieldbus: Integrated PROFIBUS master/slave
The controller provides 512 KB integrated load memory and 256 KB work memory, expandable to 512 KB under the supported memory arrangement. Its work memory is divided between program and data, so raw memory capacity is not an unrestricted program-size allowance.

The integrated PROFIBUS interface supports master and slave roles, with point-to-point operation available through configuration. The DP master supports rates from 9.6 kbit/s to 12 Mbit/s and up to 124 slaves within the specified address and data limits.

The power input is 24 V DC nominal with a 20.4–28.8 V range. This 314SB/DPM has no SPEED-Bus interface despite using SPEED7 processing. Configuration must preserve its actual interface set rather than importing another 300S CPU configuration.
Controller platform reference: VIPA System 300S architecture. Match the installed configuration and applicable instructions.
VIPA CPU-314SB-314-2AG13: original manufacturer technical information covering the specified interfaces and operating limits. Installation topics include: identify the 314-2ag13 hardware, check the 24 v input, review dp address allocation, load and compare the application, measure the actual scan behavior.
Original manufacturer pages retain their technical context. Use the Apter Power guide with the applicable manufacturer instructions and approved installation design.
System and supply context: VIPA CPU-314SB-314-2AG13 operates within the following defined system context. Preserve CPU-314SB-314-2AG13 and the installed memory/interface configuration.

Application scope: The applications below describe its technical role. Select associated hardware and configuration for the actual installation.
Prepare VIPA CPU-314SB-314-2AG13 for its configured installation using these checks.
Retain memory and project configuration

Back up the application, data and hardware configuration. Record whether work-memory expansion is actually enabled before assessing replacement capacity.

Restore the selected interface role

Confirm whether the integrated port is used as PROFIBUS master, slave or point-to-point. Restore the corresponding project and field wiring without mixing these operating roles.

Restore the bus termination

Use the installed PROFIBUS cable and termination plan for the selected rate. Check both bus ends and avoid treating an intermediate station as an endpoint.

Interpret CPU and DP indications

Observe CPU state together with PROFIBUS run, error and data-exchange indicators. A CPU in RUN can still have a missing or incorrectly configured slave.

Retain the restored configuration

Save memory allocation, interface role, slave map, diagnostics and the tested application state. Resolve bus or memory discrepancies before returning the controller to service.

Measure the actual scan behavior

Review task execution and communication under representative load. Do not substitute the minimum bit-instruction time for an application-cycle measurement.

Alternative Names

VIPA CPU-314SB-314-2AG13 CPU 314SB 314 2AG13

Technical notes

Operating boundary: DP network capacity, process-image size and per-slave data limits must be checked together; the advertised slave count alone does not validate a project.

Integration details: Match the exact CPU order, actual memory expansion, interface role and software configuration before substitution.

Technical basis: VIPA System 300S CPU 314-2AG13, HB140, revision 14-40. The CPU 314SB/DPM, order 314-2AG13, is the hardware identified by the offered CPU-314SB-314-2AG13 string. Memory expansion and interface mode remain configuration-dependent.

FAQ View All FAQ

  • Does SPEED7 processing mean CPU-314SB-314-2AG13 has a SPEED-Bus connector?
    No. The 314SB/DPM 314-2AG13 uses SPEED7 processing but has no SPEED-Bus interface.
  • How much work memory is standard in CPU-314SB-314-2AG13?
    Standard work memory is 256 KB. The supported maximum is 512 KB; an expansion must not be assumed to be installed.
  • Can the integrated PROFIBUS interface of CPU-314SB-314-2AG13 operate as a slave?
    Yes. Master and slave roles are supported, with the configured role and project determining how data is exchanged.
  • How many DP slaves can CPU-314SB-314-2AG13 manage?
    The DP master supports up to 124 slaves, subject to the available address space and per-slave data limits.
  • What does the 0.01 µs instruction figure for CPU-314SB-314-2AG13 describe?
    It is a minimum execution time for specified instruction types, not the complete PLC scan time including program logic and communication.
  • Why should the 24 V supply for CPU-314SB-314-2AG13 be checked during startup?
    The permitted supply is 20.4–28.8 V and inrush current is 5 A. Startup supply behavior can differ from the 200 mA no-load condition.
  • Can the full 512 KB load memory of CPU-314SB-314-2AG13 be treated as executable work memory?
    No. Load memory and work memory serve different purposes; the standard work memory is 256 KB and has a program/data partition.
  • What distinguishes a missing DP slave from a healthy network on CPU-314SB-314-2AG13?
    The PROFIBUS run, error and data-exchange indicators show different states. Check the actual slave diagnostics and configuration rather than relying on CPU RUN alone.
