214-2BM02

PROFIBUS CPU
Ships by Thursday, November 19

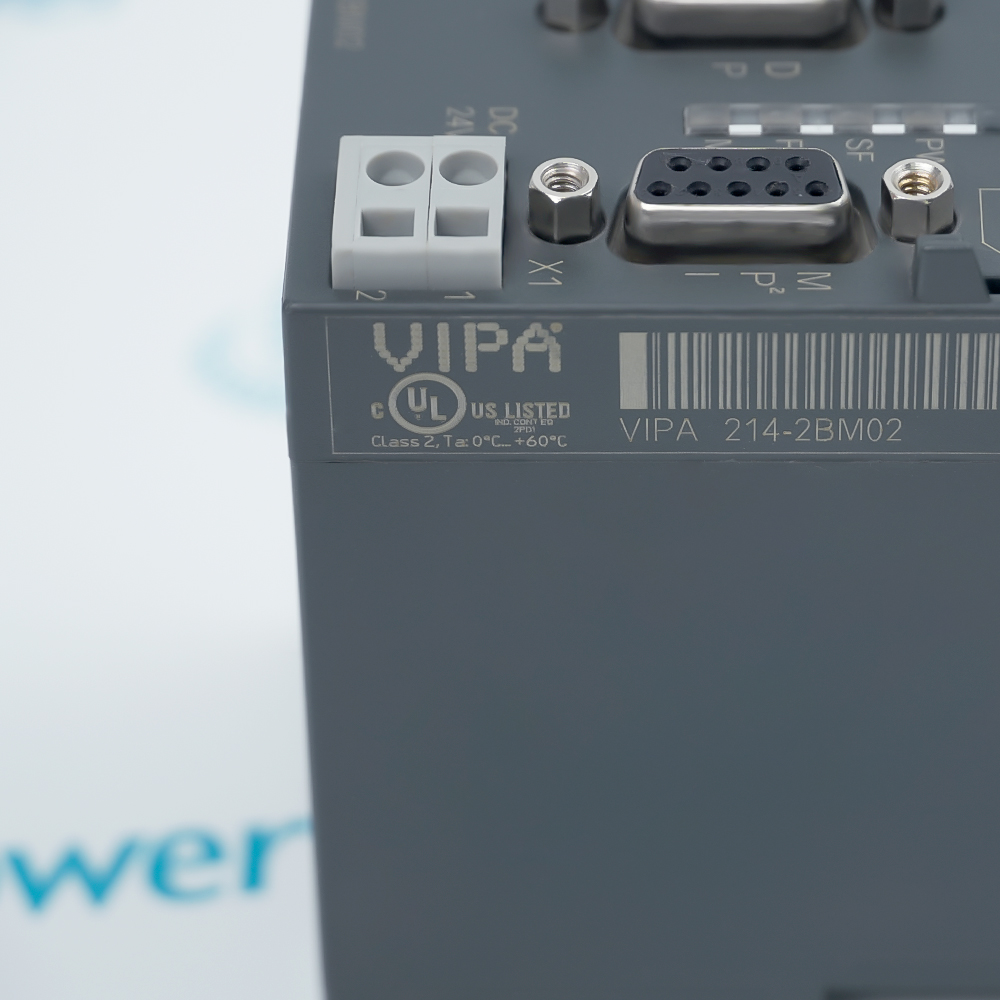

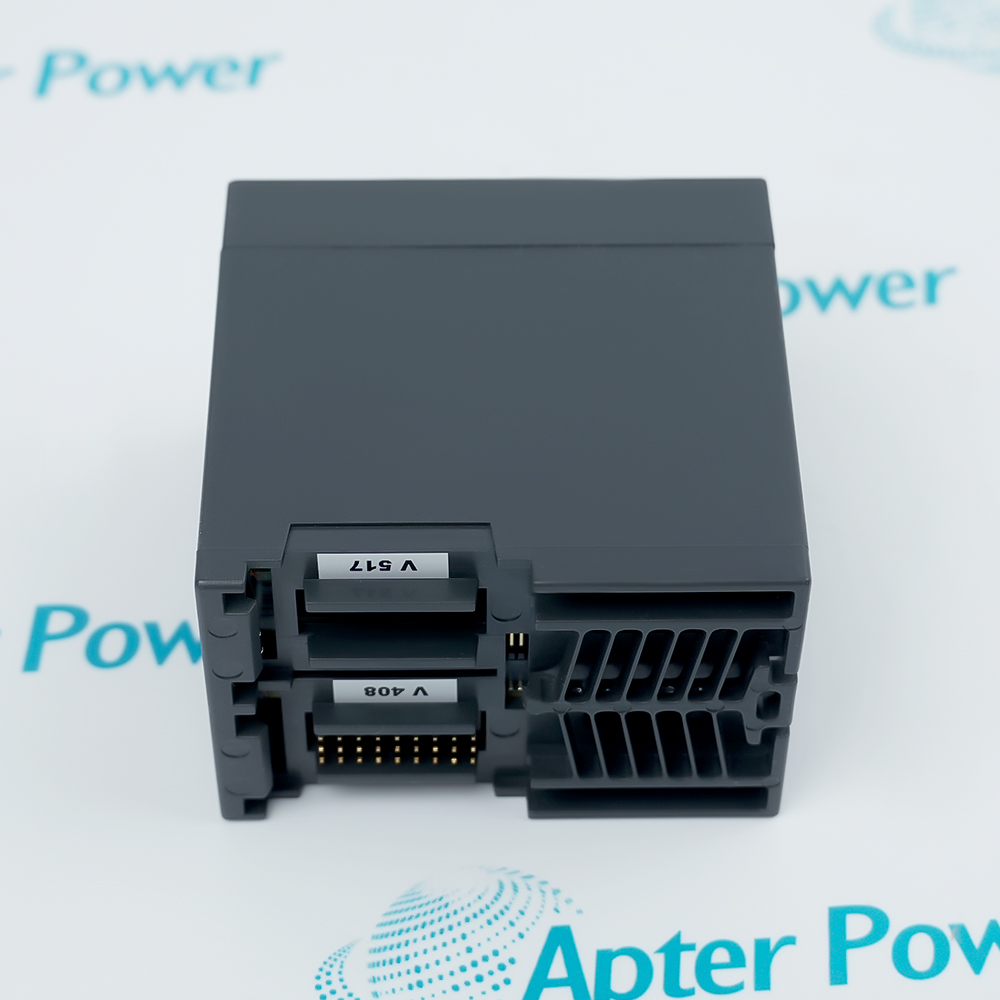

VIPA 214-2BM02
VIPA 214-2BM02
VIPA 214-2BM02
VIPA 214-2BM02
VIPA 214-2BM02
VIPA 214-2BM02
Product image is representative; revision or series may vary. Contact us to request a specific version.

Product Describe:

VIPA 214-2BM02 is a System 200V CPU 214DPM with an integrated PROFIBUS-DP master and 48/80 KB work/load memory.
  • Manufacturer part number
    214-2BM02
  • Shipping
    Swift global dispatch
  • Condition
    New, original product
  • Shipping size (est.)
    7cm x 28.5cm x 25.5cm
  • Country of Origin
    Germany
Get a quick price for 214-2BM02
E-mail *
Mobile
Company
Content *
Quantity *
Upload (gif, jpg, jpeg, png, bmp, doc, docx, xls, xlsx, ppt, pdf, csv)
For more information on how your data is processed and stored by Apterpower please read our privacy policy

What happens after you enquire

  • 0

    Review your reference

    Send the complete VIPA 214-2BM02 reference, label photographs and required quantity. Check 214-2BM02 and the CPU 214DPM memory configuration.

  • 1

    Confirm the offer

    Review the offered revision, condition, included items and documents against the confirmed installation.

  • 2

    Arrange dispatch

    Confirm quantity, dispatch date, lead-time start and delivery details in the quotation.

  • Match the complete marking

    Provide the complete VIPA 214-2BM02 marking. Check 214-2BM02 and the CPU 214DPM memory configuration.

  • Check the offered item before ordering

    Request available label and connector photos. Have your maintenance team compare the offered 214-2BM02 with the installed equipment and applicable VIPA instructions.

Technical specifications for 214-2BM02

  • Manufacturer:
    VIPA
  • Product Category:
    PLC Systems
  • Spare Part Number:
    214-2BM02
  • Weight:
    3.14 kg
  • Tariff Code:
    8537101190
  • Work memory:
    48 KB
  • Load memory:
    80 KB
  • Supply voltage:
    24 V DC; 20.4–28.8 V permitted
  • Maximum current:
    1.5 A
  • Maximum power dissipation:
    5 W
  • PROFIBUS connector:
    9-pin D-sub
  • PROFIBUS rate:
    9.6 kbit/s to 12 Mbit/s
  • Segment length at 12 Mbit/s:
    100 m without repeater
  • Stations per segment:
    32 maximum without repeater
  • DP slaves:
    125 maximum
  • DP input/output capacity:
    1,024 bytes each direction
  • Fieldbus potential separation:
    ≥500 V AC

Information

Overview Downloads Applications / Compatibility Product Precautions
  • VIPA 214-2BM02 controls a local System 200V application while exchanging process data with distributed PROFIBUS stations through its dedicated master interface.
CPU memory: 48 KB work and 80 KB load
DP capacity: 1,024 input and output bytes
Network: Linear PROFIBUS with active end termination
The CPU 214DPM configuration provides 48 KB work memory and 80 KB load memory. It is a distinct variant from the neighboring 215DPM and 216DPM processors, whose larger memory capacities must not be applied to this order number.

The PROFIBUS interface uses a 9-pin D-sub connection and a linear bus with active termination at both ends. Rates extend from 9.6 kbit/s to 12 Mbit/s; at 12 Mbit/s a segment without a repeater is limited to 100 m.

The DP master supports up to 125 slaves and 1,024 input bytes plus 1,024 output bytes. A segment without repeaters supports up to 32 stations, so total network capacity and individual segment limits are different design constraints.
Controller platform reference: VIPA System 200V PROFIBUS architecture. Match the installed configuration and applicable instructions.
VIPA 214-2BM02: original manufacturer technical information covering the specified interfaces and operating limits. Installation topics include: retain the cpu 214 project, count stations by segment, inspect both bus ends, load the correct hardware map, verify application i/o mapping.
Original manufacturer pages retain their technical context. Use the Apter Power guide with the applicable manufacturer instructions and approved installation design.
System and supply context: VIPA 214-2BM02 operates within the following defined system context. Check 214-2BM02 and the CPU 214DPM memory configuration.

Application scope: The applications below describe its technical role. Select associated hardware and configuration for the actual installation.
Prepare VIPA 214-2BM02 for its configured installation using these checks.
Budget DP process data

Total the configured input and output bytes independently. Keep each direction within 1,024 bytes as well as respecting the slave-count limit.

Verify rate and cable length

Compare the selected transfer rate with the installed cable length. At 12 Mbit/s, retain the 100 m maximum for a segment without a repeater.

Restore supply and connector seating

Confirm the 24 V input remains between 20.4 and 28.8 V. Seat the PROFIBUS D-sub and local module connections without changing the retained wiring order.

Check master and slave states

Observe PROFIBUS diagnostics and confirm data exchange with every expected slave. Investigate a missing station before enabling its dependent process outputs.

Save the segment baseline

Retain rate, cable length, repeater layout, termination, station count and I/O allocation. These values define the working DP installation for future service.

Verify application I/O mapping

Exercise representative inputs and outputs in a controlled state. Confirm that changes occur at the intended process addresses rather than only at the field device.

Alternative Names

VIPA 214-2BM02 214 2BM02

Technical notes

Operating boundary: The 100 m cable value applies specifically to 12 Mbit/s without a repeater; it is not a universal distance for all PROFIBUS arrangements.

Integration details: Retain CPU 214DPM memory limits, segment topology, slave data allocation and the approved project during replacement.

Technical basis: VIPA System 200V CPU Manual HB97E, revision 12/02. CPU 214DPM order 214-2BM02 uses 48 KB work and 80 KB load memory. Shared CPU 21xDPM bus ratings apply only to the stated topology and transfer rate.

FAQ View All FAQ

  • How does 214-2BM02 differ from the larger CPU 215DPM and 216DPM variants?
    This CPU 214DPM has 48 KB work memory and 80 KB load memory. The larger variants' memory capacities do not apply.
  • Does the 125-slave limit of 214-2BM02 permit 125 stations on one unrepeated segment?
    No. A segment without a repeater supports at most 32 stations. The total master capacity and segment limit must both be respected.
  • How far can the PROFIBUS segment of 214-2BM02 extend at 12 Mbit/s without a repeater?
    The specified maximum is 100 m. A different rate or repeater arrangement requires its own supported distance assessment.
  • What termination does the bus connected to 214-2BM02 require?
    The linear PROFIBUS bus requires active termination at both ends. Intermediate nodes should follow the installed termination plan.
  • How much distributed I/O data can 214-2BM02 address through its DP master?
    The specified maximum is 1,024 input bytes and 1,024 output bytes.
  • Is the DP connector of 214-2BM02 an Ethernet connection?
    No. It is a 9-pin D-sub PROFIBUS interface and must use the correct bus wiring and configuration.
  • Why can 214-2BM02 be within its slave-count limit yet exceed its capacity?
    The combined input or output data can exceed the 1,024-byte directional limit even when the number of slaves is acceptable.
  • What supply range is permitted for 214-2BM02?
    The nominal 24 V DC input permits 20.4–28.8 V. Check voltage at the CPU while accounting for the installed system load.
