Product image is representative; revision or series may vary. Contact us to request a specific version.
Get a quick price for 6DR5310-0NG00-0AA0
For more information on how your data is processed and stored by Apterpower please read our privacy policy
-
Match the complete marking

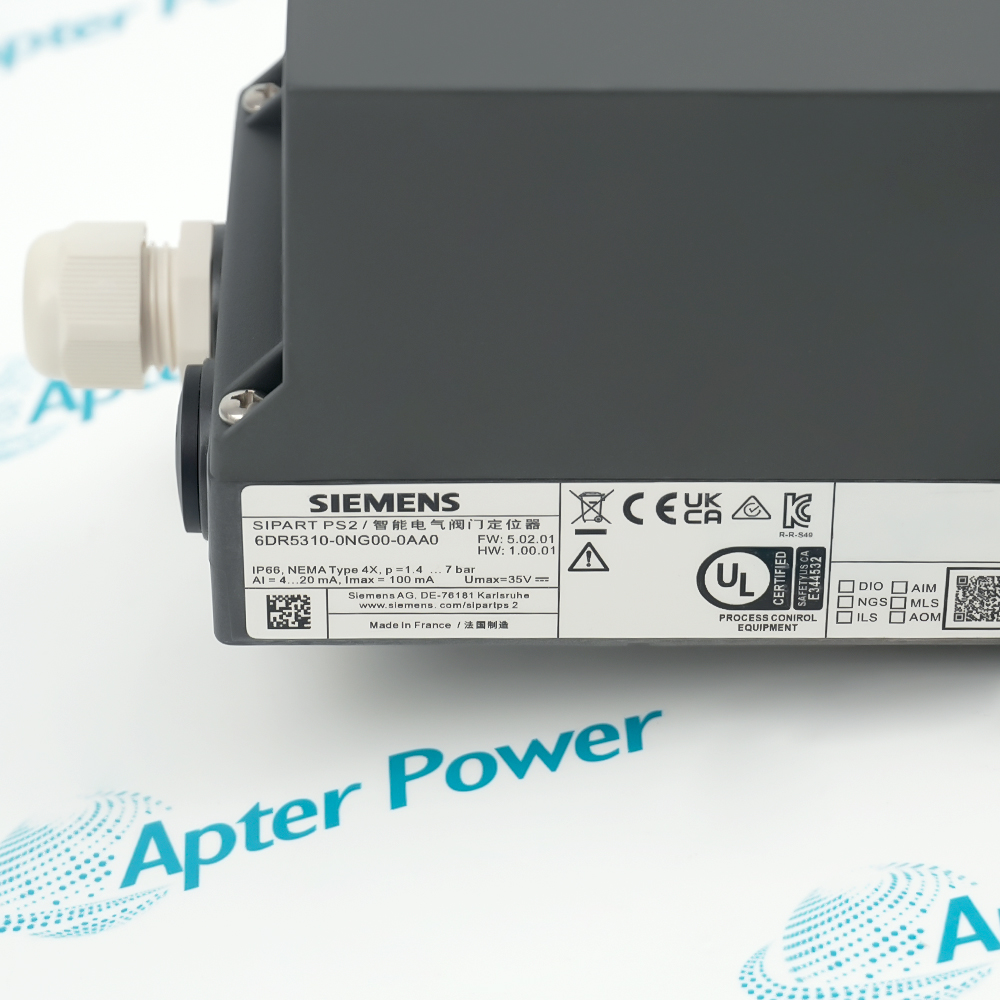

Include 6DR5310-0NG00-0AA0 and any revision or assembly number visible on the item. Keep the exact reference on your enquiry and quotation.
-
Check the offered item before ordering
Request available label and connector photos. Have your maintenance team compare the offered 6DR5310-0NG00-0AA0 with the installed equipment and applicable Siemens documentation.
Technical specifications for 6DR5310-0NG00-0AA0
-
Manufacturer:Siemens
-
Product Category:General Automation
-
Spare Part Number:6DR5310-0NG00-0AA0
-
Weight:1 kg
-
Tariff Code:8537101190
-
Product series:SIPART PS2
-
Product type:SIPART PS2 Positioner
-
Actuator type:Single acting
-
Setpoint signal:0/4–20 mA
-
HART communication:No
-
Explosion protection:No, order-code execution
-
Electrical entry:M20 × 1.5
-
Pneumatic connection:G 1/4
Information
Overview
Downloads
Applications / Compatibility
Product Precautions

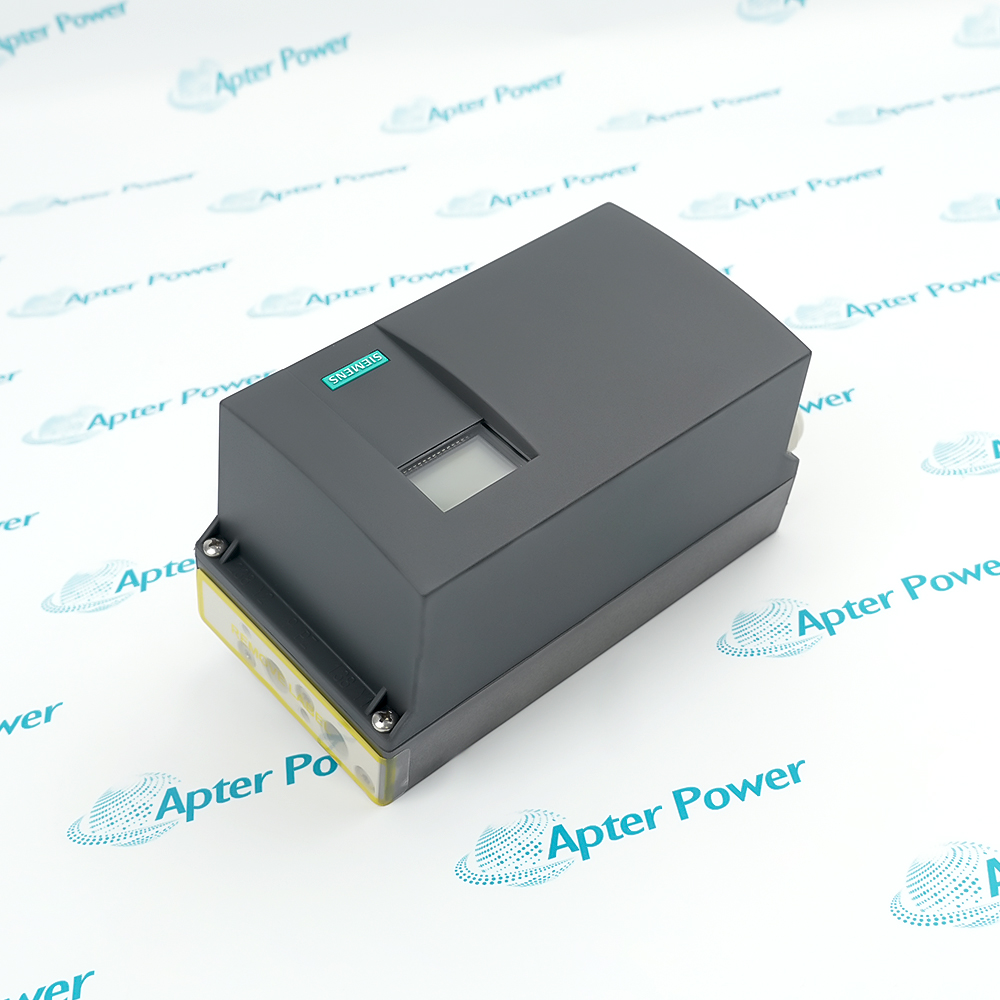

- Siemens 6DR5310-0NG00-0AA0 is a SIPART PS2 electropneumatic positioner for single-acting valve actuators.
Valve use: Position a modulating valve from the controller command
Commissioning: Initialize travel and verify valve response
Replacement: Preserve fail-safe action, linkage and mounting geometry
Commissioning: Initialize travel and verify valve response
Replacement: Preserve fail-safe action, linkage and mounting geometry
Siemens 6DR5310-0NG00-0AA0 is a SIPART PS2 electropneumatic positioner for single-acting valve actuators. It receives a configured 0/4–20 mA command and regulates pneumatic output to position a suitable control valve. The actuator, air supply and linkage establish the usable installation range.
The order-code configuration provides a conventional current interface without HART and uses M20 × 1.5 electrical entry with G 1/4 pneumatic connection. It is the non-explosion-protected execution in the Siemens selection catalogue. Confirm electrical supply, pneumatic pressure and environmental approval against the actual label and area classification before installation.
This positioner serves modulating valves in process-control loops where the actuator needs accurate position response to the controller command. During replacement, preserve the valve's fail-safe action, mounting kit, linkage geometry and commissioning parameters. Calibrate travel and verify response through the site's approved valve test before returning the loop to service.
The order-code configuration provides a conventional current interface without HART and uses M20 × 1.5 electrical entry with G 1/4 pneumatic connection. It is the non-explosion-protected execution in the Siemens selection catalogue. Confirm electrical supply, pneumatic pressure and environmental approval against the actual label and area classification before installation.
This positioner serves modulating valves in process-control loops where the actuator needs accurate position response to the controller command. During replacement, preserve the valve's fail-safe action, mounting kit, linkage geometry and commissioning parameters. Calibrate travel and verify response through the site's approved valve test before returning the loop to service.
Controller platform reference: SIPART PS2. Match the installed system and complete unit marking.
Technical downloads for Siemens 6DR5310-0NG00-0AA0: an Apter Power technical reference and installation verification guide.
-
Siemens 6DR5310-0NG00-0AA0 technical reference
Apter Power technical reference - PDF, 2 pages. Product identity, verified characteristics, system integration and selection checks. -
Siemens 6DR5310-0NG00-0AA0 installation guide
Apter Power installation verification guide - PDF, 2 pages. Identity, host configuration, inspection and functional release checks.
The technical reference summarizes verified product information. Confirm the installed configuration and use the applicable site procedures during installation and service.
Valve-positioning application: Siemens 6DR5310-0NG00-0AA0 is a SIPART PS2 electropneumatic positioner for a single-acting actuator. It uses the configured 0/4–20 mA setpoint to control valve travel through the pneumatic output.
Compatibility scope: The actuator action, mechanical linkage, supply air, electrical entry and G 1/4 pneumatic connection must suit the installed valve assembly. This order-code execution has no HART or explosion-protection option.
Compatibility scope: The actuator action, mechanical linkage, supply air, electrical entry and G 1/4 pneumatic connection must suit the installed valve assembly. This order-code execution has no HART or explosion-protection option.
-
Modulating process valves
Position a compatible single-acting control valve throughout its commissioned travel. The control system supplies the setpoint and the positioner regulates actuator movement. -
Flow-control loops
Support a flow valve where process demand is translated into an analog position command. Valve sizing and actuator action are defined by the engineered loop. -
Pressure-control loops
Drive a suitable pressure-control valve using the same configured position feedback and pneumatic action. The process controller, not the positioner alone, determines loop behavior. -
Valve-service replacement
Restore an existing SIPART PS2 installation after matching linkage, actuator travel and 0/4–20 mA wiring. Reinitialization may be required after mechanical replacement.
Installation and commissioning checks for Siemens 6DR5310-0NG00-0AA0. Make the valve safe before changing electrical or pneumatic connections.
Check the order code
Confirm 6DR5310-0NG00-0AA0, single-acting execution and installed communication options. Record the original positioner and actuator arrangement.
Isolate energy
Make the valve and process safe, isolate the current loop and release pneumatic pressure under the site procedure. Account for stored actuator energy.
Preserve connections
Label the electrical signal, air supply and G 1/4 pneumatic lines. Record the M20 × 1.5 cable entry and tubing route.
Record linkage setup
Document lever position, actuator direction and travel stops before removal. Restore the linkage without binding through full valve stroke.
Initialize the positioner
Apply the approved startup procedure for the fitted actuator and air supply. Check the configured signal range and position feedback after initialization.
Verify valve action
Command safe test positions and confirm direction, full travel, alarms and fail response. Return the control loop to service only after site acceptance.
Alternative Names
Siemens 6DR5310-0NG00-0AA0
6DR53100NG000AA0
Technical notes
System relationship: The order-code configuration provides a conventional current interface without HART and uses M20 × 1.5 electrical entry with G 1/4 pneumatic connection. It is the non-explosion-protected execution in the Siemens selection catalogue. Confirm electrical supply, pneumatic pressure and environmental approval against the actual label and area classification before installation.
Applicability: The characteristics above describe the identified SIPART PS2 execution of 6DR5310-0NG00-0AA0. Optional functions, connected devices and installed revisions must be checked against the complete marking and approved project configuration.
Technical reference: Siemens SIPART PS2 selection catalogue, order code 6DR5310-0NG00-0AA0.
FAQ View All FAQ
-
What is the product type of Siemens 6DR5310-0NG00-0AA0?Siemens 6DR5310-0NG00-0AA0 is a SIPART PS2 intelligent electropneumatic positioner. It uses an electrical setpoint and pneumatic output to position a valve actuator; the complete order code identifies the specific non-Ex, single-acting execution.
-
What is the actuator type of Siemens 6DR5310-0NG00-0AA0?This order-code execution is for a single-acting pneumatic actuator. The positioner supplies the Y1 actuating-pressure output, while the actuator's spring action determines its fail position; match the valve travel, mounting kit and air connections during replacement.
-
What is the setpoint signal of Siemens 6DR5310-0NG00-0AA0?The 6DR53 series supports 0/4–20 mA control in the applicable two-, three- or four-wire arrangements. The actual wiring and supply arrangement must follow the device nameplate and terminal diagram; do not assume that every installation uses the same live-zero setting.
-
Does Siemens 6DR5310-0NG00-0AA0 support HART communication?No. Siemens identifies the 6DR53 execution as SIPART PS2 without HART, and the exact 6DR5310-0NG00-0AA0 catalog entry is the single-acting, non-Ex version. Commissioning and diagnostics should use the interfaces and procedures documented for this execution.
-
What explosion-protection execution is Siemens 6DR5310-0NG00-0AA0?Siemens lists this exact order number as the version without explosion protection. Its enclosure rating or a similar SIPART PS2 appearance does not create an Ex approval; verify the installed area's classification before specifying this replacement.
-
What connections are specified for Siemens 6DR5310-0NG00-0AA0?The Siemens ordering table groups this execution with M20 × 1.5 electrical entry and G 1/4 pneumatic connections. Check the cable gland, supply-air line and actuator line against the actual installation before fitting the positioner.
-
What should be preserved before replacing Siemens 6DR5310-0NG00-0AA0?Record the complete order number, wiring and air-line arrangement, valve travel or angle, mounting linkage, parameter settings and current actuator position. Siemens notes that copied initialization values are only an approximate match, so plan to initialize the replacement on the actual actuator.
-
How is Siemens 6DR5310-0NG00-0AA0 checked after installation?After connecting the setpoint signal and pneumatic lines, initialize the positioner for the fitted linear or part-turn actuator. Check the displayed position, travel direction, end stops and response through the permitted stroke, then review diagnostics before returning the valve to automatic control.
