What is the product 6DR5020-0NG13-0AA0?

It is a smart electropneumatic valve positioner belonging to the Siemens SIPART PS2 series. It receives electrical signals from a control system and converts them into pneumatic pressure to precisely control the opening of pneumatic control valves.

Is 6DR5020-0NG13-0AA0 suitable for single-acting or double-acting pneumatic actuators?

According to the model code digit

What are the electrical and pneumatic connection specs for 6DR5020-0NG13-0AA0?

Its electrical connection thread specification is M20x1.5, while the pneumatic (air supply and output) connection thread specification is a G 1/4 port.

What functional option modules are built into 6DR5020-0NG13-0AA0?

This specific model comes factory-integrated with a Digital I/O Module (DIO), which can be used for remote discrete feedback or interlock control.

How do you mechanically install 6DR5020-0NG13-0AA0 onto a control valve?

It can be mounted either on linear actuators using standard Siemens mounting brackets, or on part-turn/rotary actuators via specific multi-functional brackets.

6DR5020-0NG13-0AA0

Name: 6DR5020-0NG13-0AA0
Brand: Siemens
SKU: 6DR5020-0NG13-0AA0

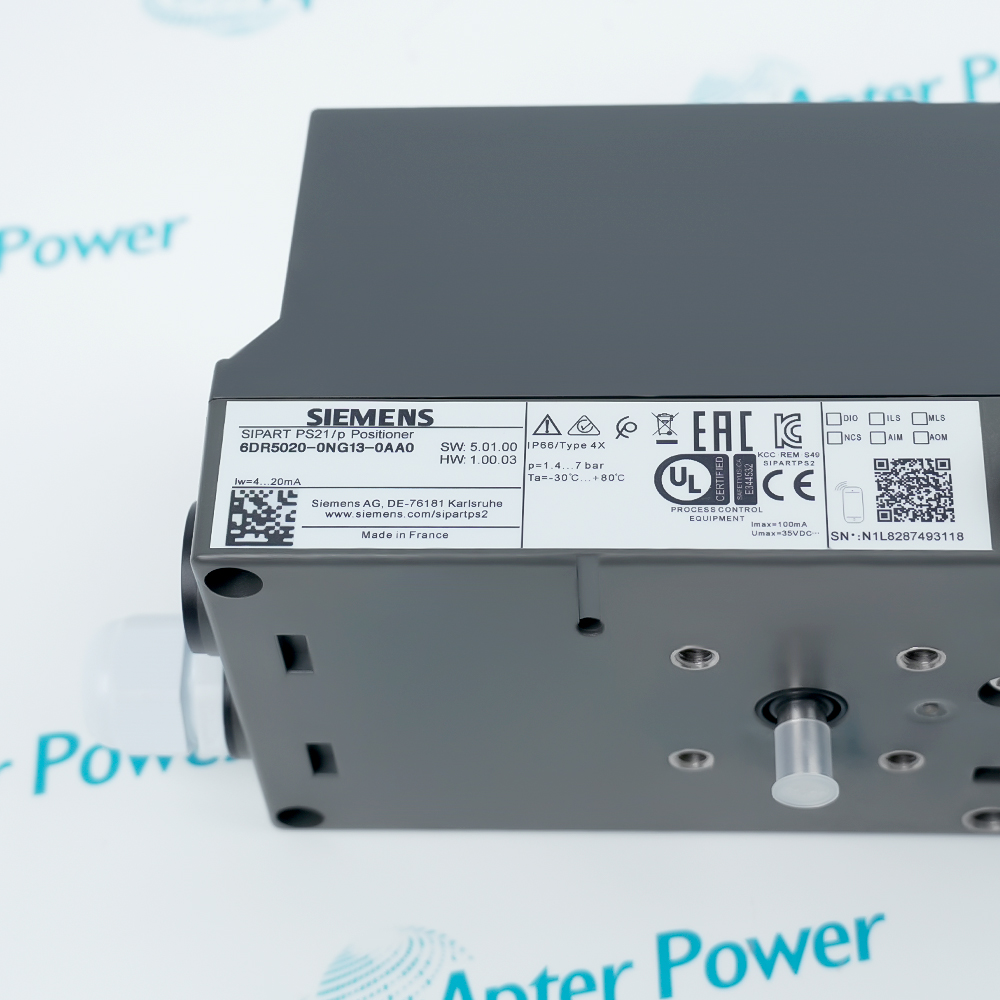

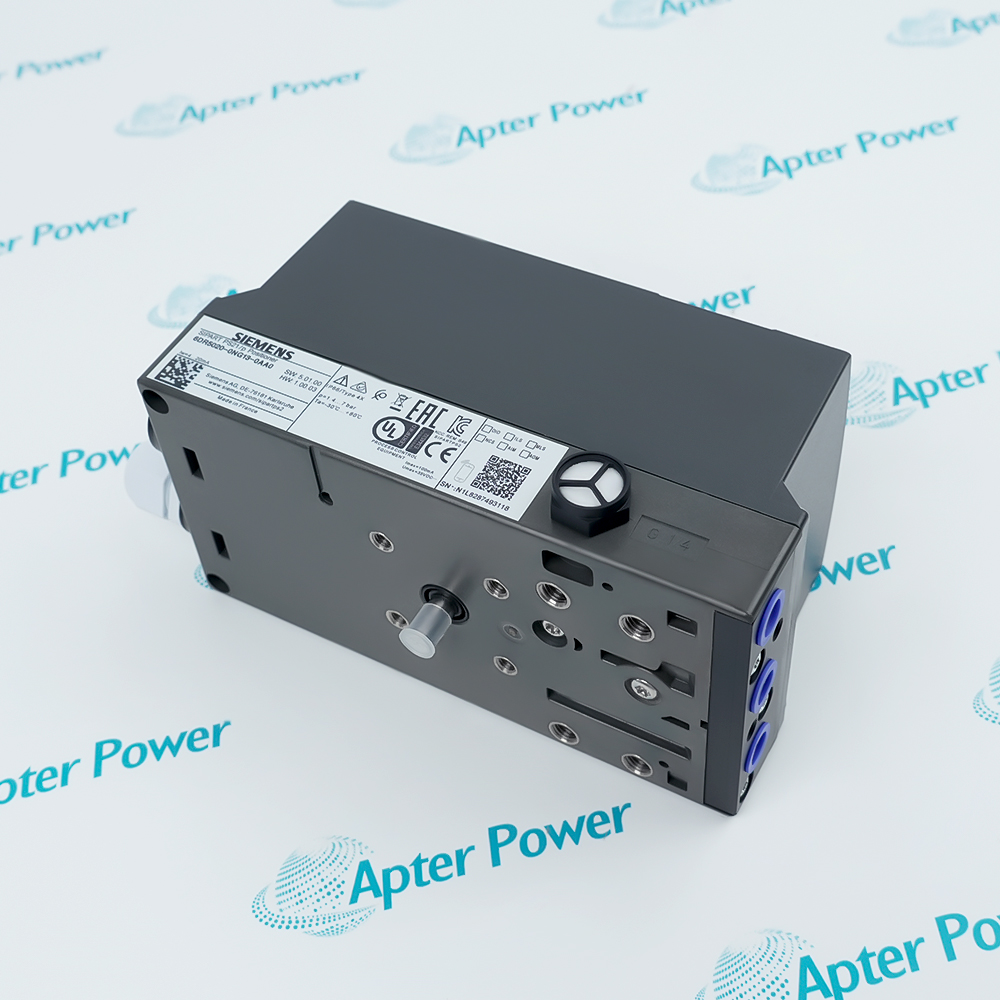

Smart electropneumatic positioner

Product image is representative; revision or series may vary. Contact us to request a specific version.

Product Describe：

SIPART PS2 smart
electropneumatic positioner
for pneumatic linear and
part-turn actuators

Ask our team:

Phone: +86 180 3023 5313 E-Mail: sales13@apterpower.com

Dispatch Planning
Confirm stock and lead time with our team.

Dedicated Manager
Personalized one-to-one VIP service

ISO 9001:2015 Certified
Trusted quality management

Warranty Policy

Review the applicable warranty coverage and claim process.
Return Notice

Check the return process and obtain approval before sending an item back.
Shipping Method

Review shipping arrangements, transit estimates and delivery responsibilities.
Parts Availability

Browse stock listings and confirm current availability with our team.
How to order

See how to submit an enquiry, review a quotation and confirm an order.

Get a quick price for 6DR5020-0NG13-0AA0

E-mail *

Mobile *

Company

Content *

Quantity *

Upload (gif, jpg, jpeg, png, bmp, doc, docx, xls, xlsx, ppt, pdf, csv)

Get a Quote

For more information on how your data is processed and stored by Apterpower please read our privacy policy

What happens after you enquire

1

Requirement review

We review the part number, quantity and delivery requirements and ask for any missing details.
2

Quotation and availability

We confirm the proposed item, condition, availability, price and estimated lead time in the quotation.
3

Order confirmation and dispatch

Once the quotation and purchasing details are agreed, your contact will coordinate the order and available dispatch information.

Technical specifications for 6DR5020-0NG13-0AA0

Manufacturer:

Siemens
Product Category:

PLC Systems
Spare Part Number:

6DR5020-0NG13-0AA0
Estimated shipping dimensions:

21.1x10.2x11cm
Weight:

1.04 kg
Tariff Code:

8537101190
Counliy of origin:

GERMANY
Enclosure Material:

Polycarbonate / Plastic
Connection Thread (Electrical):

M20 x 1.5
Connection Thread (Pneumatic):

G 1/4
Input Control Signal:

2-wire, 4 to 20 mA
Min. Current to Maintain Operation:

≥ 3.6 mA
Air Supply Pressure Range:

1.4 to 7 bar (20 to 101 psi)
Industry Air Quality Standard:

ISO 8573-1 Class 2
Protection Degree:

IP66 / NEMA 4x
Stroke Range (Linear Actuators):

3 to 130 mm
Angular Range:

30° to 100°
Air Consumption (Steady State):

< 3.6 × 10⁻² Nm³/h
A/D Converter Resolution:

12 bit

Ask for Quote

Information

Overview Manuals Common Applications Product Precautions

The 6DR5020-0NG13-0AA0 is a Siemens SIPART PS2 series smart electropneumatic positioner featuring a polycarbonate plastic enclosure and a double-acting configuration to control pneumatic linear and part-turn actuators. Built upon a 2-wire control loop, the hardware operates on a 4 to 20 mA analog signal for control and internal power supply while carrying no explosion protection features.

Equipped with AIM module
Equipped with bidirectional pneumatic output
Employs unique piezoelectric valve pilot control technology

Regarding physical interfaces, this model is configured with M20x1.5 electrical threads along with G 1/4 pneumatic threads. The inner pneumatic circuitry employs unique piezoelectric valve pilot control technology and utilizes a bidirectional pneumatic output to manage air distribution. For internal module integration, the device incorporates a Digital I/O Module containing 1 digital input and 3 digital outputs for limit values and fault indication.

It also includes an Analog Output Module (AOM) and an Analog Input Module (AIM). Its internal potentiometer detection is deactivated by default, relying instead on an external Non-Contacting Sensor (NCS) connected via the AIM module for physical position detection. The factory configuration excludes manometer blocks, venting gauge blocks, boosters, and M12 device plugs. The hardware package is supplied with brief instructions in English, German, and Chinese, accompanied by an EN 10204 type 2.1 certificate.

Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description.

Siemens 6DR5020-0NG13-0AA0 Smart electropneumatic positioner Manuals, Datasheets, Drivers, Link

Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description.

Thermal Power

Deployed in water treatment workshops, boiler feed water systems, and cooling tower return pipelines to precisely adjust the opening of water valves and desuperheater valves, effectively saving energy with its low air consumption.

Oil and Gas

Used on double-acting emergency shutdown valves and control valves at long-distance pipeline transport stations to precisely control the flow direction of crude oil and natural gas, utilizing the external Non-Contacting Sensor (NCS) to resist severe mechanical vibration from long pipelines.

Refining and Petrochemicals

Deployed on control valves of hydrocracking and catalytic cracking units to regulate the flow of high-temperature and high-pressure gases, where the integrated digital modules upload real-time limit values and fault alarms to the control system.

Thermal Power

Applied to boiler feedwater control valves and high/low-pressure bypass systems to precisely control high-temperature steam flow, where the external NCS position detection mechanism effectively handles high-frequency continuous vibration from steam pipes.

Pulp and Paper Industry

Deployed on control valves within cooking, bleaching, and paper machine stock distribution systems to precisely regulate the ratio and flow of high-viscosity pulp and chemical additives.

When using the 6DR5020-0NG13-0AA0 smart positioner you must follow standard operating procedures to ensure stable system operation. Regarding installation and environment as this model features a polycarbonate plastic housing without explosion protection it must be strictly installed in non-hazardous safe areas while keeping the instrument compressed air supply clean and dry to comply with the ISO 8573-1 Class 2 oil-free moisture-free and dust-free standard preventing blockages in the internal precision piezo valves.

On the mechanical and electrical sides you must ensure the feedback linkage stays in the middle horizontal position during mounting and you must execute the local "RUN1" to "RUN5" auto-initialization procedure upon first-time use or after replacing valve parts. Furthermore you should utilize its built-in alarm and limit switch modules to properly configure valve opening interlocks and remote diagnostic feedback.
