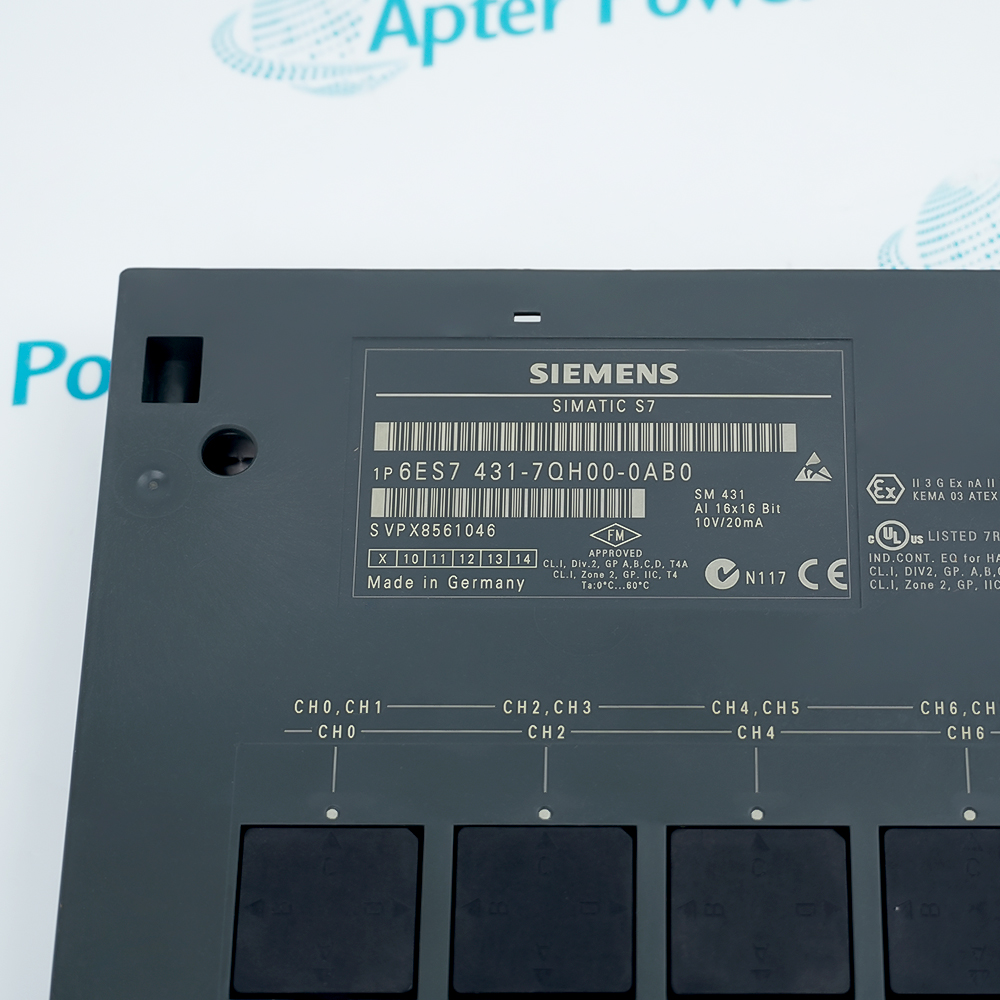

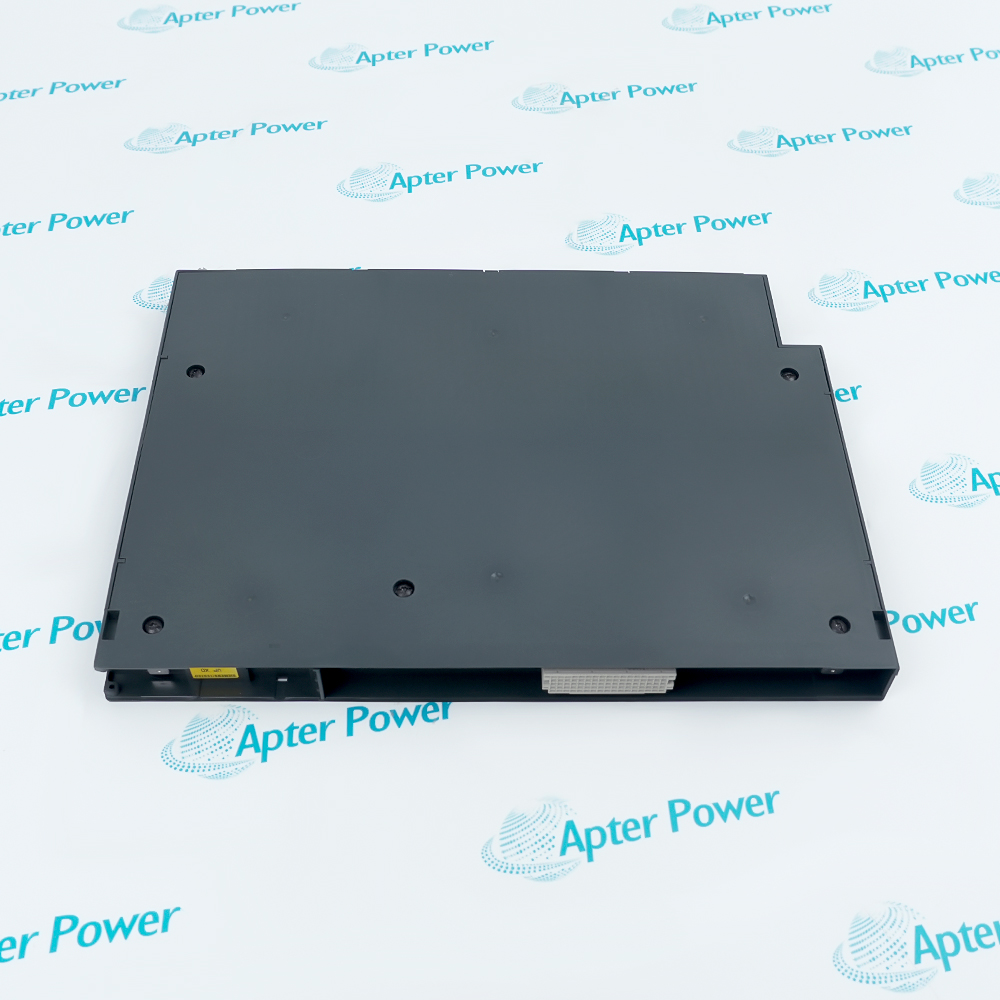

      Siemens 6ES7431-7QH00-0AB0
      Siemens 6ES7431-7QH00-0AB0
      Siemens 6ES7431-7QH00-0AB0
      Siemens 6ES7431-7QH00-0AB0
      Siemens 6ES7431-7QH00-0AB0
      Siemens 6ES7431-7QH00-0AB0
      Product image is representative; revision or series may vary. Contact us to request a specific version.

      6ES7431-7QH00-0AB0

      SIMATIC S7-400 SM 431 16-Channel Analog Input Module
      In Stock
      Ships by Wednesday, September 30
      Fast Shipping Available

      Product Describe：

      Siemens 6ES7431-7QH00-0AB0 is an isolated SIMATIC S7-400 SM 431 analog input module with 16 universal channels. It provides 16-bit conversion, diagnostics and process/diagnostic interrupt support.

      Ask our team:

      Get a quick price for： 6ES7431-7QH00-0AB0
      Quantity*
      Upload (gif, jpg, jpeg, png, bmp, doc, docx, xls, xlsx, ppt, pdf, csv)
      Get a Quote
      For more information on how your data is processed and stored by Apterpower please read our privacy policy.
      Technical specifications Information Technical notes FAQ

      Technical specifications for 6ES7431-7QH00-0AB0

      Technical specifications for 6ES7431-7QH00-0AB0

      • Manufacturer:
        Siemens
      • Product Category:
        PLC Systems
      • Spare Part Number:
        6ES7431-7QH00-0AB0
      • Estimated shipping dimensions:
        2.4x22.3x29cm
      • Weight:
        0.7 kg
      • Tariff Code:
        8537101190
      • Counliy of origin:
        Germany
      • Module family:
        SM 431 analog input
      • Input channels:
        16
      • Isolation:
        Isolated
      • Resolution:
        16 bit
      • Supported measurements:
        Voltage, current, resistance, thermocouple and Pt100
      • Diagnostics:
        Configurable diagnostic functions
      • Interrupts:
        Process and diagnostic interrupt support
      • Host system:
        SIMATIC S7-400
      • Channel configuration:
        Parameter-dependent measurement type and range
      View as PDF Ask for Quote

      Information

      Information

      Overview Manuals Common Applications Product Precautions
      6ES7431-7QH00-0AB0 acquires sixteen universal analog process signals for a configured SIMATIC S7-400 station.
      • Sixteen isolated analog input channels
      • 16-bit conversion
      • Voltage, current, resistance, thermocouple and Pt100 support
      • Configurable diagnostics and interrupts

      The module's electrical behavior depends on the channel parameterization and field wiring. Commissioning restores the STEP 7 hardware configuration, sensor type, measuring range, compensation and diagnostic settings before controlled signal injection.

      Important Notice: Confirm 6ES7431-7QH00-0AB0, S7-400 rack and slot, 16 channel assignments, sensor types, ranges, compensation, connector wiring, diagnostics, interrupt settings and controlled channel-test evidence before commissioning.

      Siemens 6ES7431-7QH00-0AB0 Manuals & Downloads

      These are two different documents: the first consolidates verified technical and system data; the second provides installation checks, commissioning steps and acceptance records.

      Process measurement
      Acquires configured analog field signals.
      Temperature acquisition
      Supports thermocouple and Pt100 inputs.
      S7-400 rack maintenance
      Restores an exact SM 431 slot.
      Channel commissioning
      Supports controlled value injection and diagnostic testing.
      Read the applicable Siemens installation instructions before work. Verify 6ES7431-7QH00-0AB0, the installed host system and all configured field interfaces before isolation, wiring or commissioning.
      1
      Confirm 6ES7431-7QH00-0AB0 and SM 431 on the module label.
      2
      Place the S7-400 process and affected loops in the approved maintenance state.
      3
      Back up the STEP 7 hardware configuration and channel parameters.
      4
      Isolate field supplies and record slot, connector and all 16 channel assignments.
      5
      Use ESD controls and inspect connector keying and wiring condition.
      6
      Restore sensor type, range, compensation, diagnostics and interrupt settings.
      7
      Review module and channel diagnostics after controlled energization.
      8
      Inject representative signals on every affected channel and record response before release.

      Technical notes

      Technical notes

      Match 6ES7431-7QH00-0AB0 to the configured S7-400 rack and STEP 7 hardware configuration. Record the slot, front connector, every channel type/range, sensor wiring, compensation, diagnostics and interrupt settings before replacement.

      FAQS

      • How is the exact 6ES7431-7QH00-0AB0 execution identified?
        Match the full Siemens article 6ES7431-7QH00-0AB0 and SM 431 marking.
      • What documented function does 6ES7431-7QH00-0AB0 perform?
        It acquires sixteen isolated universal analog inputs with 16-bit conversion.
      • Which installed system must be matched before fitting 6ES7431-7QH00-0AB0?
        Match the configured S7-400 rack, slot and STEP 7 hardware configuration.
      • Which interfaces must be recorded for 6ES7431-7QH00-0AB0?
        Record the front connector and every channel's sensor type, range, compensation and wiring.
      • What handling controls apply to 6ES7431-7QH00-0AB0?
        Isolate field supplies and use ESD controls before handling the module.
      • What must be restored after installing 6ES7431-7QH00-0AB0?
        Restore slot assignment, channel parameters, diagnostics and interrupt configuration.
      • What evidence confirms 6ES7431-7QH00-0AB0 is ready for service?
        Retain channel diagnostics and controlled voltage/current/resistance/temperature test results as applicable.
      • Which manufacturer record supports the 6ES7431-7QH00-0AB0 page?
        Siemens SIMATIC S7-400 Module Data manual 109820852 documents the exact SM 431 article and functions.
