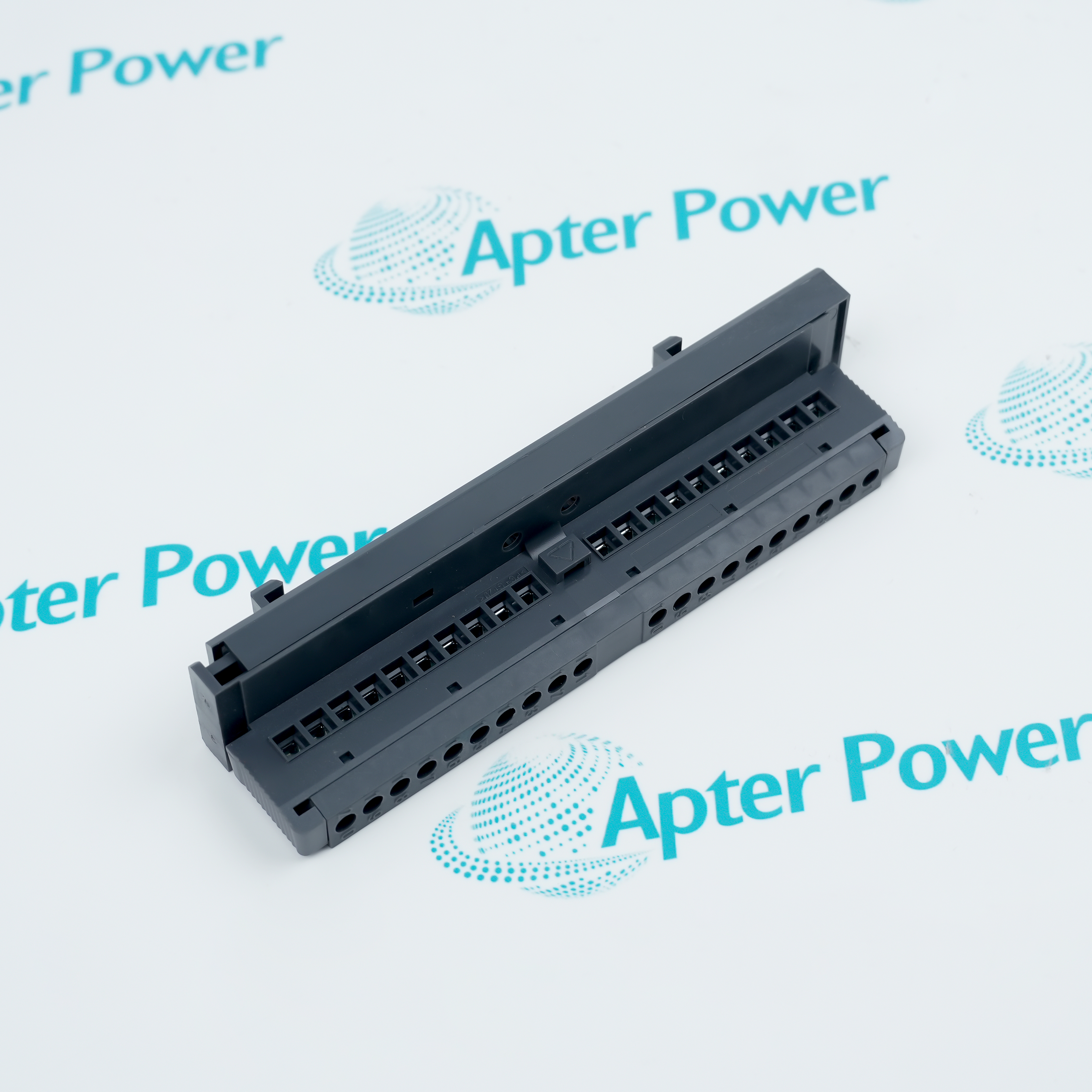

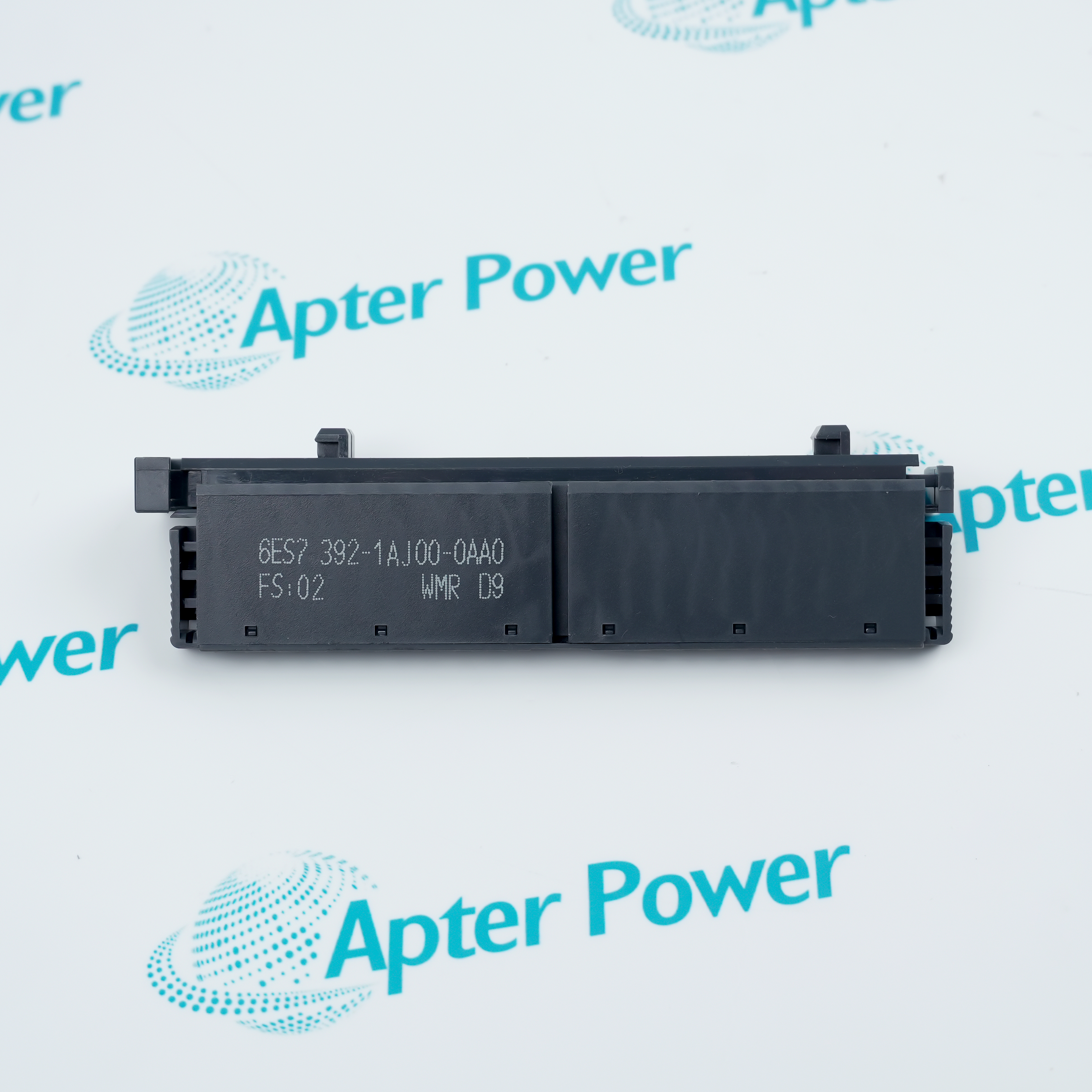

The 6ES7392-1AJ00-0AA0 is an original 20-pin strip-type front connector designed specifically for the Siemens SIMATIC S7-300 control system. Utilizing screw contacts for wiring, it serves as the physical interface within automation cabinets to connect external sensor and actuator signal cables to the PLC modules.
Employs the classic screw-clamp wiring technology
The connector features a unique physical coding and locking mechanism
Utilizes an industrial-grade engineering plastic enclosure with a high flame-retardant rating
The Siemens 6ES7392-1AJ00-0AA0 has strict module alignment restrictions within the Siemens industrial automation product catalog. This 20-pin front connector is dedicated to standard SIMATIC S7-300 signal modules, function modules, and communication processors. During hardware selection and matching, it is typically clipped onto the front of 16-channel digital input modules, 16-channel digital output modules, and standard 8-channel analog input and output modules. It is important to note that this connector is incompatible in terms of slot and pin count with the integrated input and output interfaces featured on later compact CPUs from Siemens, or with high-density signal modules that utilize a full 40 pins per single module, the latter must be configured with a 40-pin connector instead. In system integration and on-site spare parts inventory, this 20-pin hardware is frequently listed alongside standard S7-300 rails and backplane bus connectors as an essential item on the basic bill of materials.
Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description.
Siemens 6ES7392-1AJ00-0AA0 Front connector Manuals, Datasheets, Drivers, Link
Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description.
Automobile Manufacturing
Connects digital I/O modules of stamping and welding robots to transmit control signals.
Food & Beverage Processing
Used for wiring temperature and pressure sensors in filling lines and batching systems to ensure sterile control.
Pharmaceutical Industry
Connects PLC modules of reactors and fermenters to accurately collect process parameters and control heating devices.
Oil & Gas
Connects the control loops of pressure transmitters and emergency shut-off valves in oil pipeline pumping stations.
Metallurgy & Steel Industry
Accesses high-temperature thermocouple signals and high-voltage valve control lines of blast furnaces and heating furnaces.
Paper & Printing Industry
Connects control I/O of paper tension controllers and cutter drives to maintain constant tension.
When using this front connector, you must strictly comply with the maximum and minimum wire cross-section limits of the screw terminals, never forcibly remove the physical coding element after the initial module insertion and locking to avoid disabling the error-proofing function, handle the connector as a single whole during faulty module replacements to protect the internal contact pins from mechanical twisting, and ensure the operating temperature and environmental protection within the cabinet stay fully inside the officially specified indicators.
The Siemens 6ES7392-1AJ00-0AA0 is a 20-pin screw-type front connector engineered for the SIMATIC S7-300 PLC series and ET 200M distributed I/O systems. It acts as a critical electrical bridging hub, facilitating the seamless routing of field-side cables from sensors, actuators, and instruments directly to the PLC's input/output signal modules.
What is the Siemens 6ES7392-1AJ00-0AA0, and what is its role in a PLC system?
It is a 20-pin front connector (screw-type) for the Siemens SIMATIC S7-300 PLC series. Its role is to conveniently connect the electrical signal wires of external sensors and actuators to the PLC's digital or analog input/output (I/O) modules.
Which specific hardware system does a product like the Siemens 6ES7392-1AJ00-0AA0 belong to?
It belongs to the classic and widely used SIMATIC S7-300 PLC system as well as the compatible ET 200M distributed I/O module system.
How do you correctly use the Siemens 6ES7392-1AJ00-0AA0 front connector?
First, insert the stripped external cables into the 20 screw terminals of the connector and tighten them, then plug and lock the connector into the front slot of the S7-300 I/O module.
What is the physical type of the wiring terminals on the Siemens 6ES7392-1AJ00-0AA0?
It features screw-type terminals. Technicians need to use a flat-head screwdriver to manually tighten the screws to secure the wires.
What are the common failure risks of the Siemens 6ES7392-1AJ00-0AA0 connector during long-term operation?
In high-vibration environments, screws may slightly loosen, causing poor contact, or in humid/corrosive air, the internal metal contact springs may oxidize, leading to analog signal distortion.
