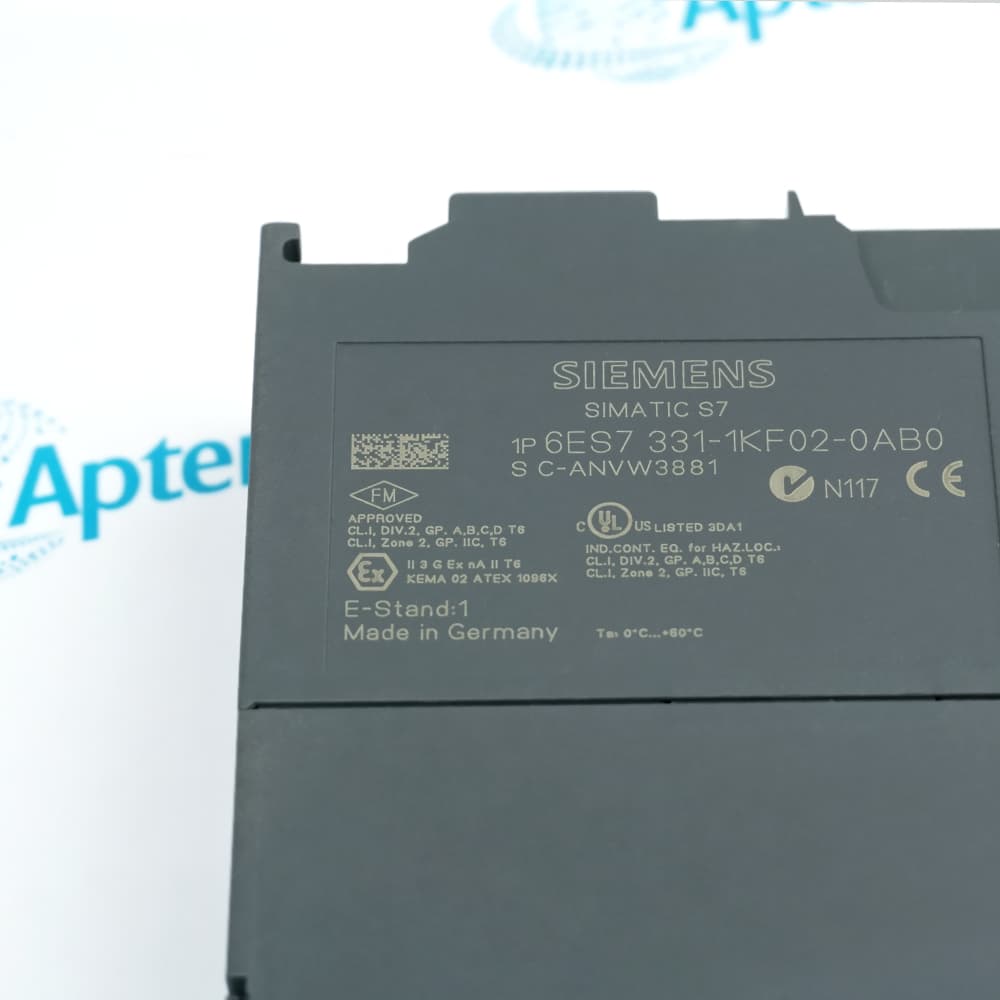

6ES7331-1KF02-0AB0
Analog Input Module
In Stock
Ships by Friday, August 7
Fast Shipping Available
Product Describe：
SIMATIC S7-300, analog input SM 331, isolated 8 AI
resolution 13 bit U/I/resistance/Pt100
NI100, NI1000, LG-NI1000, PTC/KTY
66 ms conversion time; 1x 40-pole
The 6ES7331-1KF02-0AB0 is an 8-channel analog input module engineered for the SIMATIC S7-300 PLC hardware platform and holds the technical designation SM 331. Within modern industrial process control and automation networks, this module serves as a core component for physical-layer data acquisition by connecting to various industrial sensors deployed across the production line.
The module has a hardware-level diagnostic feedback mechanism
13-Bit Analog-to-Digital Resolution
Optoelectronic isolation between channels and backplane bus
It offers 8 independent analog input channels capable of simultaneously receiving and processing multiple electrical signals including voltage, current, resistance, and resistance thermometers like RTD Pt100 or Ni100. This multi-functional signal adaptation enables it to interface widely with devices such as pressure transmitters, level gauges, flow meters, and high-precision temperature probes. By converting these continuously varying field analog signals into digital values for the primary PLC CPU, the module provides precise and real-time data support for complex closed-loop control routines and distributed monitoring systems.
In terms of hardware architecture, this module incorporates Siemens' unique measuring range modules for physical layout switching. The side of the module is equipped with four pluggable square jumper blocks representing 4 channel groups where every two adjacent channels form a group. Each measuring range module features four marked positions labeled A, B, C, and D. Maintenance personnel can physically rotate the block position to directly determine at the hardware level whether that specific channel group processes voltage, 2-wire current, 4-wire current, or RTD signals.
This hardware jumper mechanism works in closed-loop integration with parameter settings in STEP 7 or TIA Portal software. This approach protects internal amplifier circuits on the physical electrical link and endows the module with high field flexibility. When sensor types change on site, engineers only need to adjust the direction of the measuring range module and update the software configuration without replacing the entire hardware module.
Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description.
Siemens 6ES7331-1KF02-0AB0 Analog Input Module Manuals, Datasheets, Drivers, Link
Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description.
Metallurgy & Iron Steel Rolling
Used for pressure and flow monitoring in cooling water loops of blast furnaces and hot rolling lines, receiving 4-20mA sensor signals to prevent equipment damage from overheating.
Thermal Power Plant Control
Used for bearing temperature monitoring in boiler auxiliary systems like fans and pumps, connecting directly to RTD Pt100 sensors to convert field temperatures into digital values.
Petrochemical & Fine Chemical
Used for data acquisition from pressure transmitters on reactor vessels in tank farms, leveraging channel group isolation to prevent ground potential differences from hazardous chemical sites from impacting the primary PLC.
Pulp & Paper Industry
Used for steam pressure and flow regulation sampling in sizing machines and drying cylinder pipelines, stably maintaining channel power and signal conditioning under high-humidity and chemically corrosive workshop environments.
Mining & Ore Beneficiation Lines
Used for oil pressure and oil temperature interlock protection systems in lubrication stations of ore crushers and long-distance belt conveyors, preventing machinery from burning out due to oil starvation under heavy-load high-vibration environments.
Food & Beverage Packaging
Used for multi-channel data acquisition in Ultra-High Temperature (UHT) milk sterilization pipelines and beer pasteurization temperature zones to secure the execution of food safety mandates.
When using the 6ES7331-1KF02-0AB0, ensure that the insertion direction of the hardware measuring range modules on the side strictly matches the signal type selected in the software configuration, and never plug or unplug the module while the system is energized.
Unused channels must be deactivated in the software or physically short-circuited at their input terminals to avoid floating interference and prevent false SF alarms.
Additionally, pay close attention to external power wiring when connecting two-wire current sensors, and always use a standard forty-pin front connector for terminal wiring.
The Siemens 6ES7331-1KF02-0AB0 is an 8-channel analog input module for the S7-300 PLC system featuring 13-bit resolution and optoelectronic isolation. It supports voltage, current, resistance, and RTD signal inputs, utilizing hardware measuring range modules and software configuration to deliver accurate and stable field data acquisition for industrial process control.
The 6ES7331-1KF02-0AB0 is an 8-channel analog input module (SM 331) for the Siemens S7-300 PLC system.
What is the main purpose of the 6ES7331-1KF02-0AB0?
It is used to collect continuously changing physical signals (such as temperature, pressure, and flow) generated by field sensors and convert them into digital values that the PLC can process.
How to use analog input products like the 6ES7331-1KF02-0AB0?
Install it on the S7-300 DIN rail, connect external sensors via the front connector, and configure the corresponding signal types using the measuring range modules on the side of the module along with STEP 7 or TIA Portal software.
What input signal types does the 6ES7331-1KF02-0AB0 support?
It supports voltage, current, resistance, and resistance thermometers (RTD, such as Pt100/Ni100) signals, with every two channels forming a channel group (4 groups in total).
How many sensors can the 6ES7331-1KF02-0AB0 connect to at most?
It has 8 input channels, so it can connect up to 8 single-ended analog sensors simultaneously.
