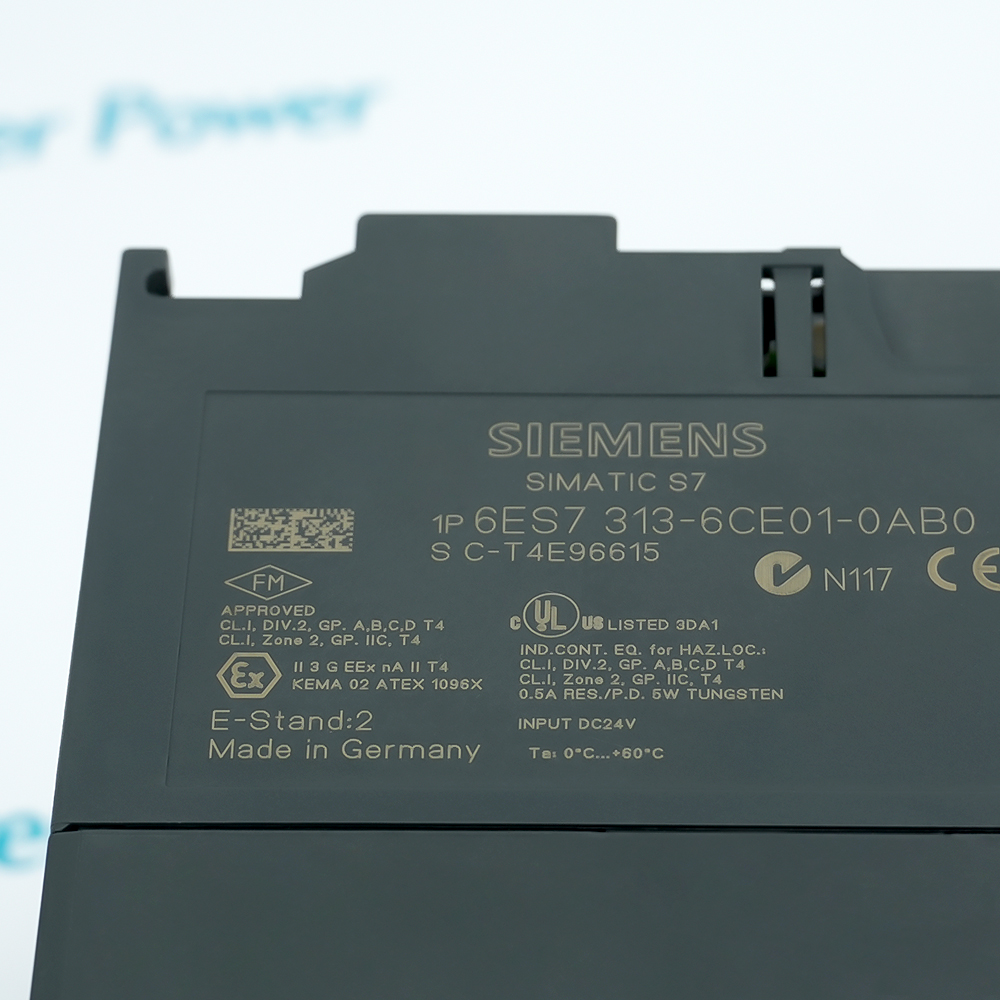

The 6ES7313-6CE01-0AB0 is a compact PLC CPU for high-efficiency automation control. This integrated module features 16 digital inputs and 16 digital outputs, alongside 3 onboard high-speed counters processing frequencies up to 30 kHz.
Integrates 16 DI/DO and 3x30kHz high-speed counters to save rail space
Native MPI and PROFIBUS DP master/slave ports without extra cards
Uses MMC for program storage, eliminating backup battery costs
To energize the internal electronic components and the integrated output loops, a standard voltage supply of 24 VDC is required, ensuring full compatibility with typical power setups found within industrial control enclosures. The operating memory for user ladder logic and variables is specified at exactly 32 KB, allowing for moderate data handling capacities and local logic execution. For continuous data retention and expanded functionalities, a Siemens micro memory card (MMC) is mandatory to complement the module, enhancing the controller's software storage capabilities.
Physical wiring to the integrated input and output channels is facilitated through a single 40-pin front connector, enabling organized point-to-point connections to other devices in the field network. The Siemens 6ES7313-6CE01-0AB0 module establishes a localized control tier that links directly to upper-level supervisory control and data acquisition (SCADA) networks. The integration of its standard multi-point interface (MPI) and PROFIBUS DP pathways enables this module to govern complex sub-networks consisting of multiple remote I/O drops, valve manifolds, and variable speed drives.
Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description.
Siemens 6ES7313-6CE01-0AB0 Compact CPU Manuals, Datasheets, Drivers, Link
Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description.
Automotive Manufacturing
Utilizes onboard 30 kHz fast counters to receive rotary encoder feedback, locking exact positions of car chassis on assembly lines.
Water Treatment
Processes digital float switch inputs to alternate the runtime of localized drainage pumps, preventing motor overheating.
Food, Beverage & Packaging
Employs fast input channels connected to proximity sensors to count bottles at high speeds, triggering batch gates upon reach.
Metallurgy, Building Materials & Heavy Industry
Collects high/low limit switch data to structurally interlock and control cement silo loading gates, avoiding overflow events.
Power, Energy & HVAC Environments
Establishes a PROFIBUS DP network node to command remote variable speed drives based on localized temperature logic.
Warehouse Material Handling & General Automation
Connects to motor encoder pulse streams via high-speed counter pins to calculate lifting heights for precise stacking. Oversees proximity switch arrays to inhibit mechanical hoist movements if physical safety barriers are breached.
When operating the 6ES7313-6CE01-0AB0 central processing unit, wiring the front connector, mounting/unmounting modules, or inserting/removing the MMC card under power is strictly prohibited to prevent voltage surges from frying the onboard integrated I/Os or corrupting data. Because this compact CPU features integrated digital inputs and outputs, inductive loads must be connected in parallel with external freewheeling diodes or RC snubbers to suppress counter-EMF interference.
A genuine proprietary MMC memory card must be inserted prior to operation, never format this card using standard PC tools, as doing so will permanently damage it. Additionally, the CPU grounding terminal must maintain a low-impedance connection to the enclosure ground rail to guarantee high noise immunity for the integrated PROFIBUS DP communication network.
6ES7313-6CE01-0AB0 provides 32 KB work memory with onboard MPI and PROFIBUS DP master/slave interfaces for direct decentralized I/O networking without extra communication cards. Utilizing a Micro Memory Card (MMC) for data storage, this unit enables a maintenance-free setup with no backup battery required, serving as a widely adopted industry-standard controller module for factory and machinery automation.
It is a compact central processing unit (Compact CPU 313C-2DP) belonging to the Siemens SIMATIC S7-300 PLC programmable logic controller family.
What integrated I/O channels are provided by 6ES7313-6CE01-0AB0?
It features 16 onboard digital inputs (DI) and 16 digital outputs (DO) to interface directly with local industrial field field devices.
What networking interfaces are available on 6ES7313-6CE01-0AB0?
It is equipped with one combined MPI (Multi-Point Interface) port and one integrated PROFIBUS DP master/slave fieldbus interface port.
How do you use the 6ES7313-6CE01-0AB0 module in a control setup?
It is used by snapping it onto an S7-300 DIN rail, installing a mandatory micro memory card (MMC), wiring the 24Vdc supply, and programming it via STEP 7 software.
Does 6ES7313-6CE01-0AB0 support fast counting functions?
Yes, it contains 3 integrated fast counters capable of handling input signal frequencies up to 30 kHz for simple positioning or rotary encoder tracking.
