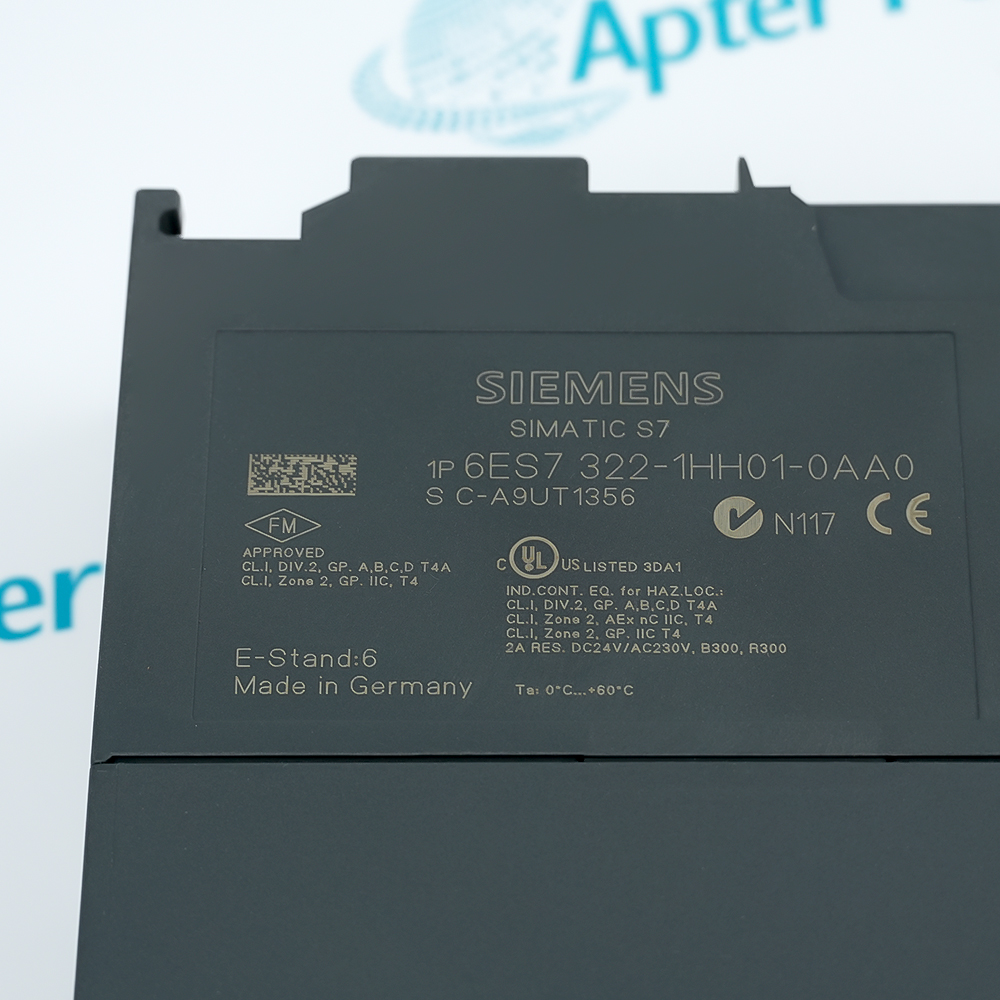

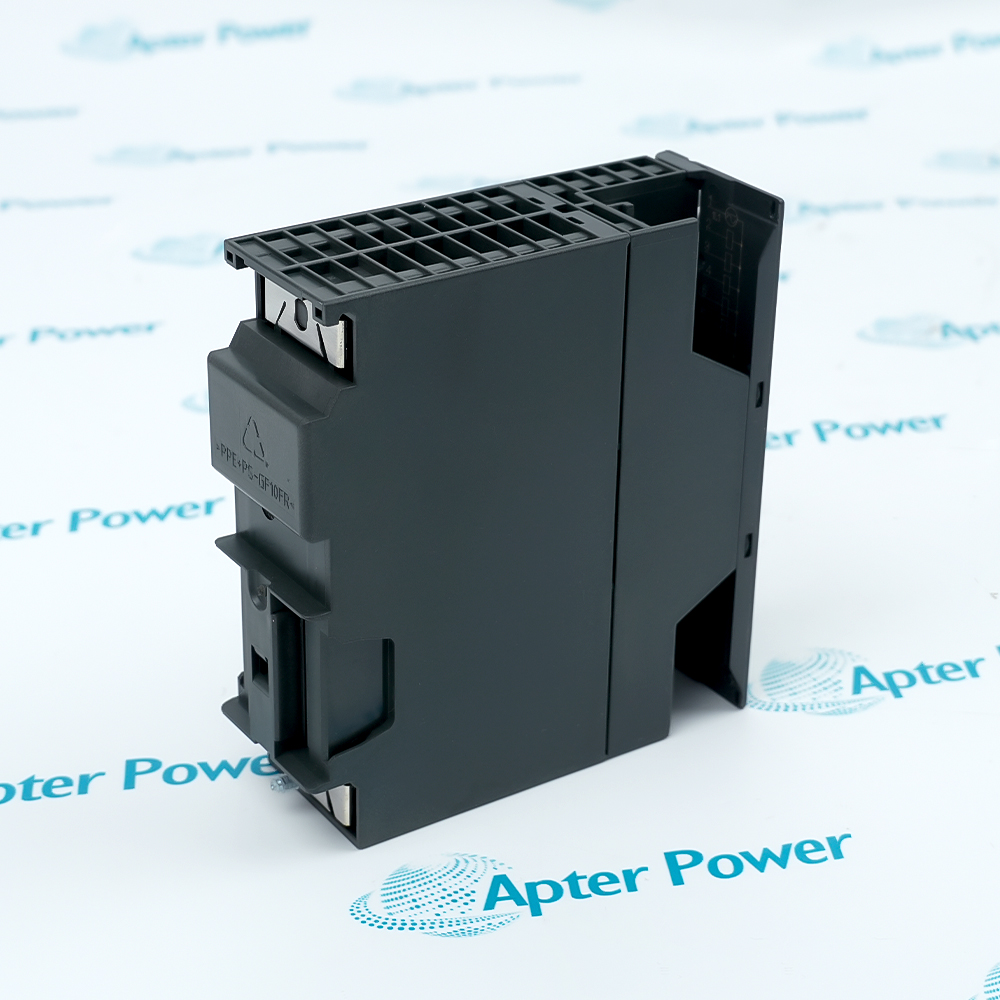

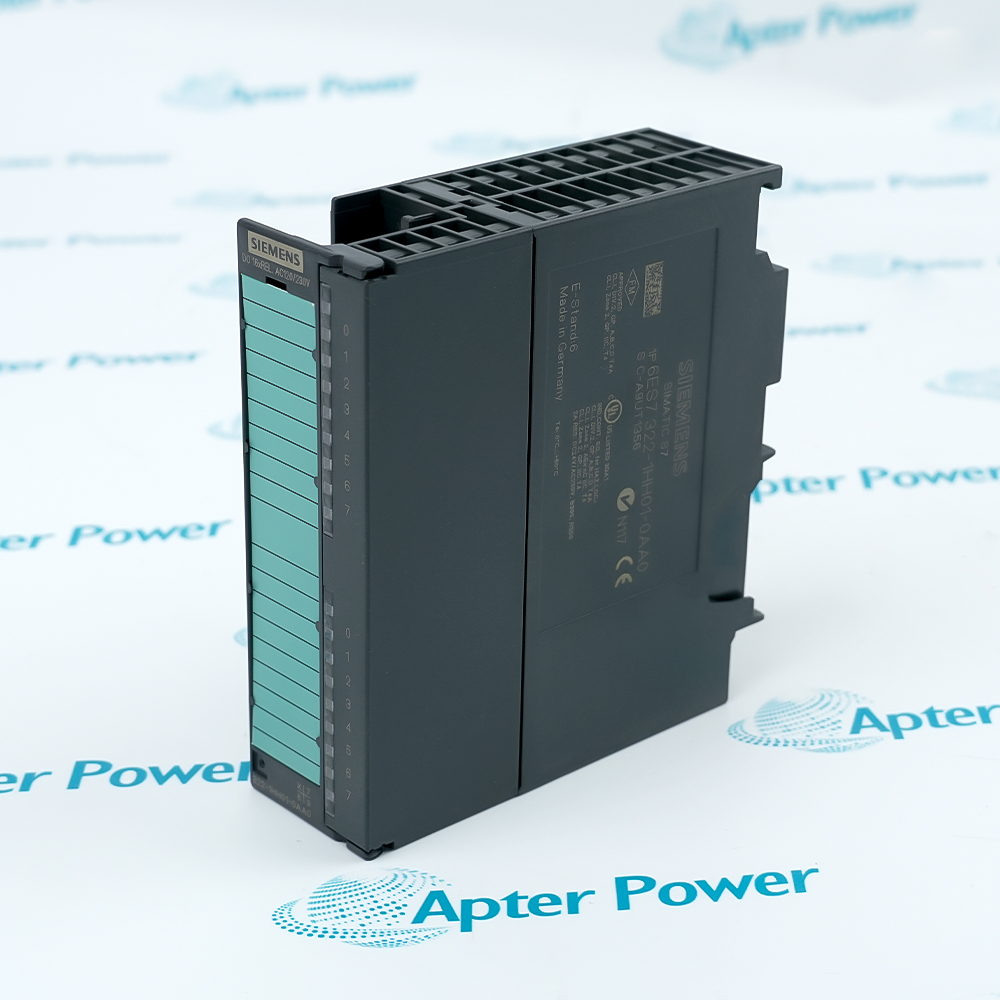

      6ES7322-1HH01-0AA0

      SIMATIC S7-300 SM 322 16-Relay Digital Output Module
      In Stock
      Ships by Friday, October 9
      Fast Shipping Available

      Product Describe：

      Siemens 6ES7322-1HH01-0AA0 is a SIMATIC S7-300 SM 322 digital output module with 16 isolated relay-contact outputs. It uses a 20-pole front connector and switches documented AC or DC field loads.

      Ask our team:

      Get a quick price for： 6ES7322-1HH01-0AA0
      Quantity*
      Upload (gif, jpg, jpeg, png, bmp, doc, docx, xls, xlsx, ppt, pdf, csv)
      Get a Quote
      For more information on how your data is processed and stored by Apterpower please read our privacy policy.
      Technical specifications Information Technical notes FAQ

      Technical specifications for 6ES7322-1HH01-0AA0

      Technical specifications for 6ES7322-1HH01-0AA0

      • Manufacturer:
        Siemens
      • Product Category:
        PLC Systems
      • Spare Part Number:
        6ES7322-1HH01-0AA0
      • Estimated shipping dimensions:
        4x11.6x12.4cm
      • Weight:
        0.24 kg
      • Tariff Code:
        8537101190
      • Counliy of origin:
        Germany
      • Product designation:
        SM 322 digital output module
      • Host system:
        SIMATIC S7-300
      • Digital outputs:
        16 relay contacts
      • Isolation groups:
        2 groups of 8 outputs
      • Front connector:
        1 x 20-pole
      • Load voltage DC:
        24 to 120 V DC
      • Load voltage AC:
        24 to 230 V AC
      • Nominal output current:
        2 A
      • Minimum load current:
        10 mA
      • Relay-coil supply:
        24 V DC
      • Switching frequency, resistive load:
        1 Hz maximum
      • Switching frequency, inductive load:
        0.5 Hz maximum
      • Switching frequency, lamp load:
        1 Hz maximum
      • Mechanical switching frequency:
        10 Hz maximum
      • Backplane current:
        100 mA maximum at 5 V DC
      • 24 V supply current:
        250 mA maximum
      • Power loss:
        4.5 W typical
      • Lifecycle status:
        Product phase-out since 1 October 2023
      View as PDF Ask for Quote

      Information

      Information

      Overview Manuals Common Applications Product Precautions
      Siemens 6ES7322-1HH01-0AA0 provides sixteen isolated relay-contact outputs for a documented SIMATIC S7-300 station.
      • Sixteen relay-contact outputs
      • Two isolated groups of eight
      • 24-120 V DC or 24-230 V AC loads
      • 20-pole front connector

      The module remains matched to its documented S7-300 rack slot, 24 V DC relay-coil supply, two field-load groups, 20-pole connector and STEP 7 hardware configuration. Commissioning restores every output assignment and proves the connected loads under controlled conditions.

      Important Notice: Confirm 6ES7322-1HH01-0AA0, rack slot, 20-pole connector, relay-coil supply, field voltages, two isolated groups, output assignments, protection and controlled test evidence before release.

      Siemens 6ES7322-1HH01-0AA0 Manuals & Downloads

      These documents are different: the first consolidates exact product and system data; the second provides model-specific installation checks, commissioning steps and acceptance guidance.

      Contactor and starter control
      Switches documented AC or DC coils through the approved relay contacts.
      Solenoid-valve control
      Operates field solenoids within the specified load and switching limits.
      Signal-lamp output
      Controls documented indication circuits from an S7-300 output image.
      Legacy SM 322 replacement
      Restores the exact slot, connector, supply groups and output assignments.
      Read the applicable Siemens S7-300 module instructions before work. Verify 6ES7322-1HH01-0AA0, the installed rack, both supply groups and all sixteen field loads.
      1
      Confirm the complete 6ES7322-1HH01-0AA0 marking and SM 322 relay-output execution.
      2
      Place the controller and every affected field load in the approved maintenance state.
      3
      Isolate the 24 V DC relay-coil supply and all AC or DC load circuits.
      4
      Record the rack slot, 20-pole connector and all sixteen output assignments.
      5
      Verify the two isolated groups of eight and their documented supply and protection.
      6
      Restore the STEP 7 hardware configuration and every terminal assignment.
      7
      Energize under control and review rack, module and field-circuit diagnostics.
      8
      Command every assigned relay output and verify the intended field response before release.

      Technical notes

      Technical notes

      Install 6ES7322-1HH01-0AA0 in the documented SIMATIC S7-300 slot. Record the 20-pole connector, two isolated supply groups, all sixteen field-load assignments, protection and STEP 7 hardware configuration before removal, then verify every relay output under controlled conditions.

      FAQS

      • How many relay outputs does Siemens 6ES7322-1HH01-0AA0 provide?
        The SM 322 provides 16 relay-contact digital outputs.
      • How are the outputs of 6ES7322-1HH01-0AA0 isolated?
        The 16 outputs are electrically isolated in two groups of eight.
      • Which field voltages can 6ES7322-1HH01-0AA0 switch?
        The official module data specifies 24 to 120 V DC and 24 to 230 V AC load-voltage ranges.
      • What is the nominal output current of 6ES7322-1HH01-0AA0?
        Each documented relay output is rated at a nominal 2 A, subject to the official load and grouping limits.
      • Which front connector is used by 6ES7322-1HH01-0AA0?
        The module uses one 20-pole S7-300 front connector.
      • What relay-coil supply must be checked for 6ES7322-1HH01-0AA0?
        Confirm the documented 24 V DC relay-coil supply and both output-group supply assignments before energization.
      • What must be recorded before replacing 6ES7322-1HH01-0AA0?
        Record the rack slot, 20-pole connector, two supply groups, all 16 load assignments, protection and STEP 7 hardware configuration.
      • What proves 6ES7322-1HH01-0AA0 is ready for service?
        Verify module diagnostics and command every assigned relay output under controlled conditions while confirming the intended field response.
