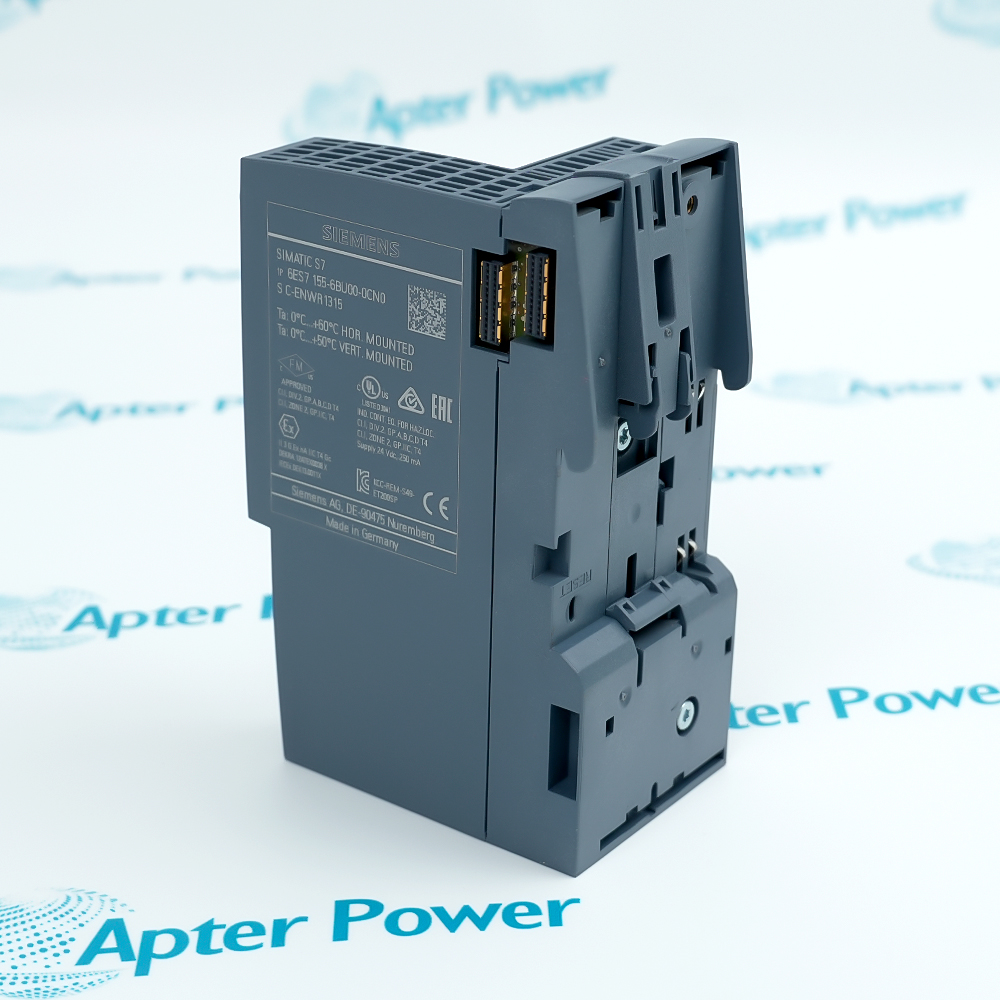

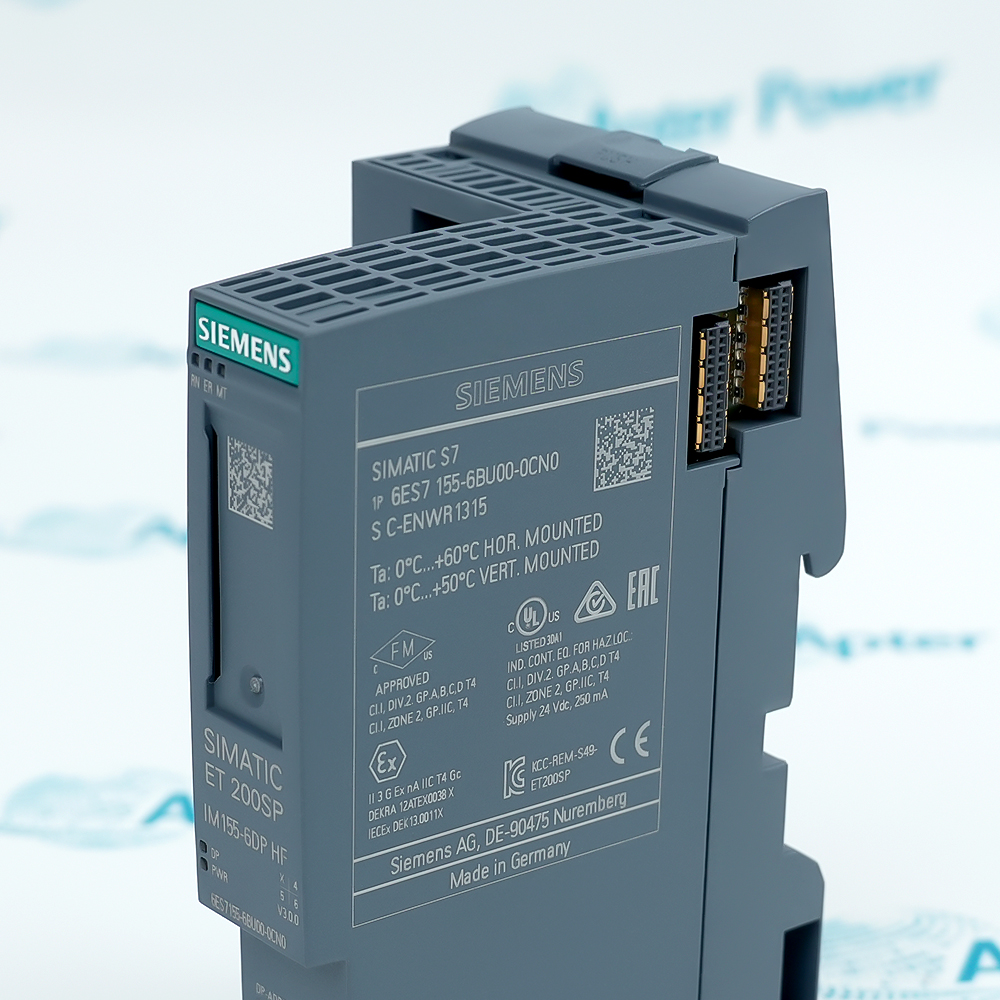

The 6ES7155-6BU00-0CN0 is a high-performance IM 155-6 DP HF interface module designed for the SIMATIC ET 200SP distributed I/O system from Siemens.
- High-Speed PROFIBUS Interface Module For Efficient Distributed I/O Communication.
- Supports Hot-Swap And Modular Expansion In ET 200SP Automation Systems.
- Designed For Reliable Operation In Industrial Environments With Wide Temperature Range.
As the flagship interface component of the ET 200SP series, this module integrates advanced Multi Hot Swap functionality. During the operation of the production line, operators can simultaneously replace up to 4 peripheral modules with power on, without stopping the CPU or interrupting the communication of the entire site, greatly reducing the cost of equipment shutdown maintenance.
Important Notice:
Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description.
Siemens 6ES7155-6BU00-0CN0 high-performance IM 155-6 DP HF interface module Manuals, Datasheets, Drivers, Link
Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description.
1. Advanced Communication Capability (High Feature)
PROFIBUS DP Bridge: As the "brain" of the ET 200SP site, it synchronizes distributed I/O data to the master control system through the RS 485 interface (9-pin Sub-D).
Big data support: Input and output data support up to 244 bytes each, ensuring complete transmission of data from complex sensors and actuators.
Isochronous Mode: Supports isochronous synchronization tasks and is suitable for motion control or closed-loop control applications that require extremely high time accuracy.
2. Powerful system expansion and flexibility
Module capacity: A single station can connect up to 32 I/O modules.
Hybrid Expansion: In addition to the local ET 200SP module, it also supports connecting up to 16 ET 200AL (IP65/67 protection level) modules through a bus, achieving seamless extension from inside to outside the cabinet.
Multi Hot Swap: allows for the simultaneous replacement of up to 4 modules during system operation without causing the entire station to shut down.
3. High availability and diagnosis
Comprehensive diagnosis: supports detailed channel level diagnostic functions such as disconnection, short circuit, and power loss.
Identification and Maintenance Data (I&M 0-3): Electronic nameplate function, convenient for asset management and remote firmware version identification.
Options Handling: allows configuring the maximum hardware solution in the software, and during actual installation, modules can be streamlined according to requirements without the need to change the program.
This module is typically used as the core component of the bundled package 6ES7155-6BA00-0CN0 (or subsequent versions 6ES7155-6BA01-0CN0), and the complete unit should include:
Interface module (IM): 6ES7155-6BU00-0CN0.
Server Module: Used to terminate the backplane bus (model 6ES7193-6PA00-0AA0).
PROFIBUS connector: It is recommended to use FastConnect connector with PG diagnostic socket.
