Product image is representative; revision or series may vary. Contact us to request a specific version.
Get a quick price for 10014/I/F
For more information on how your data is processed and stored by Apterpower please read our privacy policy
Technical specifications for 10014/I/F
-
Manufacturer:Honeywell
-
Product Category:DCS Systems
-
Spare Part Number:10014/I/F
-
Estimated shipping dimensions:4x18.5x12.8cm
-
Weight:0.28 kg
-
Tariff Code:8537101190
-
Counliy of origin:USA
-
Number of channels:16
-
Input voltage:24 Vdc
-
Input current:5 mA per channel
-
Output voltage:24 Vdc
-
Output current:550 mA per channel
-
Maximum load:13 W per channel
Information
Overview
Manuals
Common Applications
Product Precautions

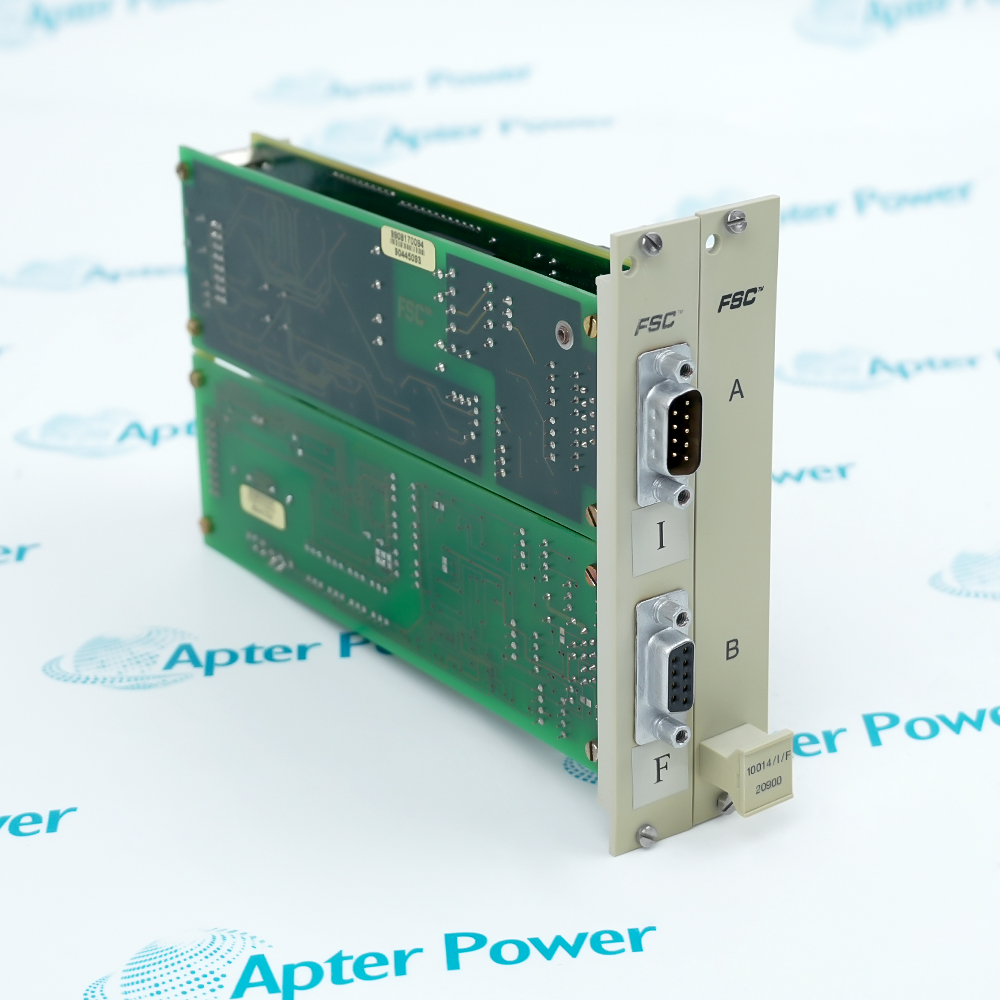

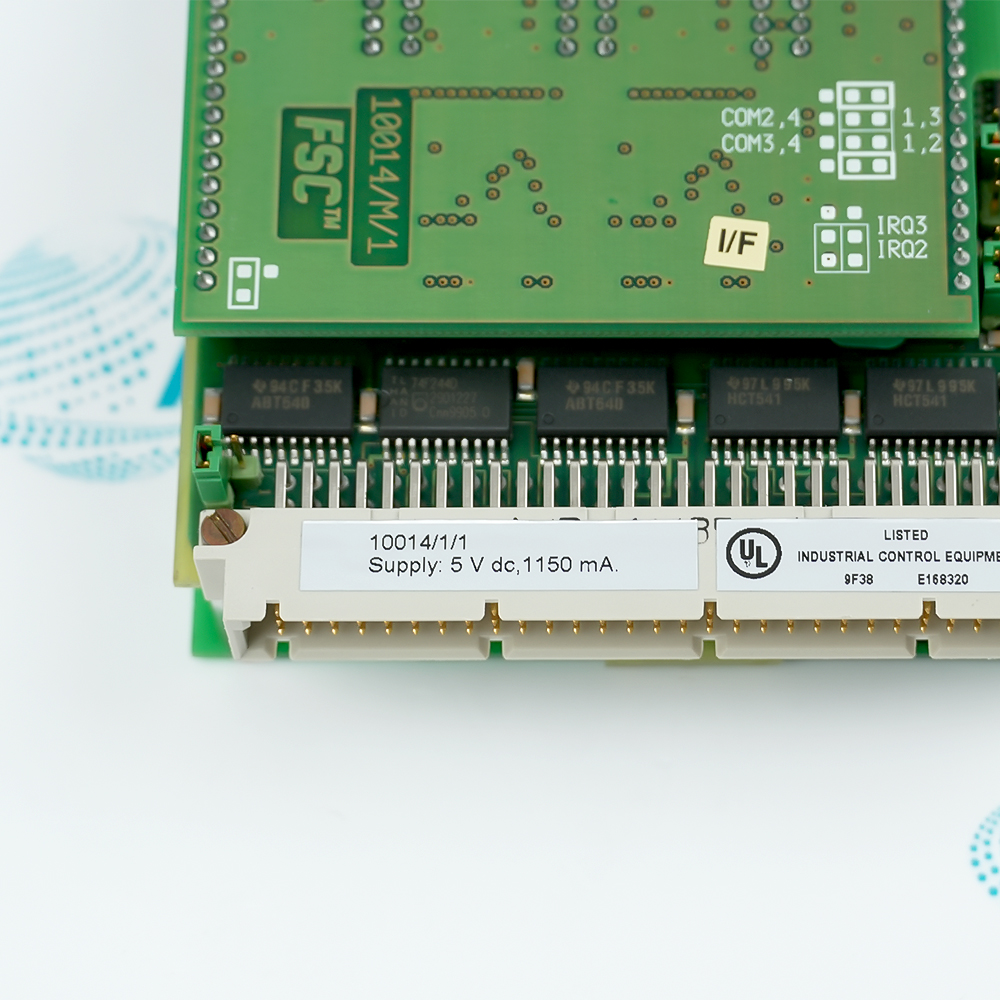

The 10014/I/F is a dual-port communication module containing RS422/485 and tri-state RS232 interfaces. It supports long-distance industrial bus communications and connects to standard RS232 devices.
- DIN rail mountable
- Easy to install and use
- Fast and accurate response time
Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description.
Honeywell 10014/I/F Communication module Manuals, Datasheets, Drivers, Link
Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description.
Oil Extraction
Transmits safety communication data between the offshore drilling platform Emergency Shutdown (ESD) system and the main control room.
Petroleum Refining
Connects to the bus network of the Fire and Gas (F&G) monitoring system in catalytic cracking units.
Chemical Industry
Transmits Peer-to-Peer data between safety interlock controllers of highly exothermic reactors.
Thermal Power Generation
Connects to the serial communication link of the Boiler Management System (BMS).
Nuclear Power Generation
Synchronizes safety signals for critical auxiliary power circuit breaker controllers in the conventional island.
Marine Engineering
Connects to the control network of the machinery space safety protection system on Floating Production Storage and Offloading (FPSO) vessels.
RS422/485 cables require termination resistors to prevent signal reflections, and the 2-wire or 4-wire jumper configurations must match the software setup.
The communication cable shield must have a single-ended ground, and routing next to high-voltage power cables must be avoided.
The communication cable shield must have a single-ended ground, and routing next to high-voltage power cables must be avoided.
Alternative Names
10014-I-F
10014IF
Technical notes
The device features a standard DIN rail mountable design, allowing it to be snapped onto standard rails inside the control cabinet without fasteners.
FAQ View All FAQ
-
Do you offer global delivery services?Yes. We ship globally, and we are able to quickly deliver parts globally to any corner of the world. Unless otherwise specified, we will ship your order via (DHL). We can also ship through FedEx, UPS, and TNT. We can also use your account.
-
How many parts do you have in stock?We have an extensive stock base consisting of ten thousands of new and discontinued automation parts including those from leading manufacturers such as:Control Systems (DCS, PLC, CNC) ,Panel Controllers,HMI and Display Panels,Drives,Encoders and Resolvers,Power Supplies.
-
How many total channels does the 10014/I/F module have?The module has a total of 16 channels.
-
How are the channels of 10014/I/F specifically divided?Its 16 channels consist of 8 input channels and 8 output channels.
-
What is the input current per channel for 10014/I/F?The input current per channel is 5mA.
