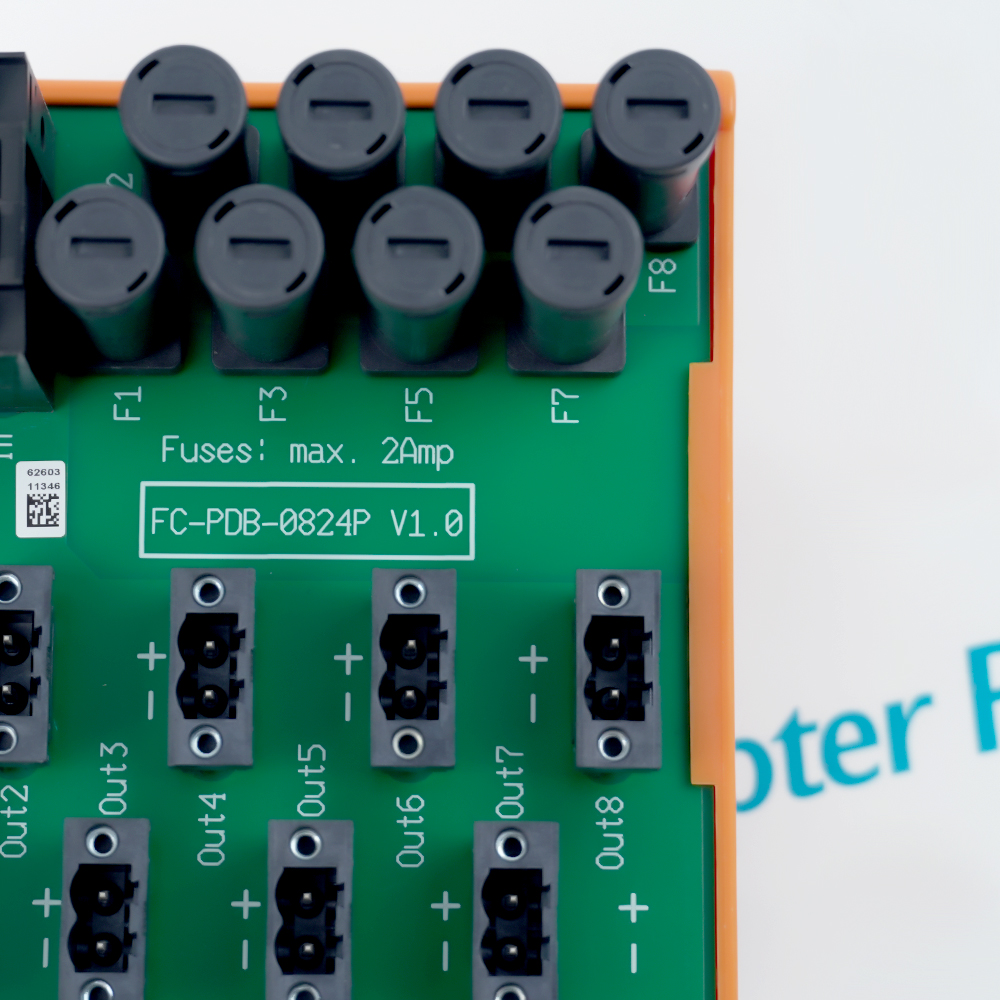

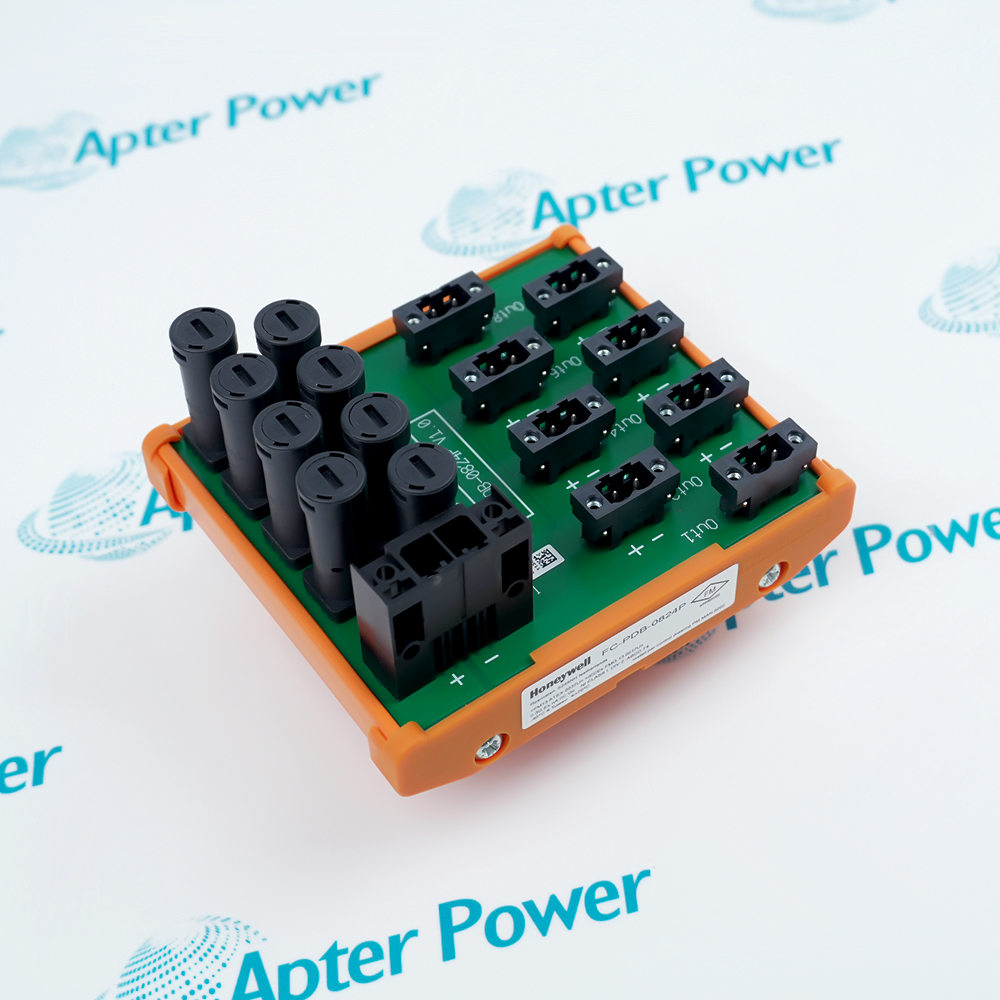

The FC-PDB-0824P is a Power Distribution Board for industrial control cabinets. It enables easy distribution of 24 VDC power from the main power rail to eight individual 24 VDC devices inside the enclosure, such as fan units and Field Termination Assemblies (FTAs).
Features one 24 VDC entry connector (IN) for direct connection to the main bus bar
Equipped with eight 24 VDC field connectors (OUT1 through OUT8) to support up to eight devices simultaneously
Each of the eight output channels is equipped with an individual 2 Amp fuse
The Honeywell FC-PDB-0824P operates as a dedicated hardware component within the Honeywell Safety Manager system environment to supply 24 VDC power directly to Safety Manager Input/Output (I/O) modules and auxiliary enclosure equipment. For environmental limits, this conformal-coated board maintains functionality across a non-condensing relative humidity range of 5% to 95% and within an ambient temperature range from -40°C to +70°C (-40°F to 158°F) inside pollution degree 2 cabinet environments. For hazardous location installations, the hardware is certified under FM13ATEX0037U and IECEx FMG 13.0017U, carrying specific protection markings of II 3G Ex nA IIC T4 Gc and Class I, Division 2, Groups A, B, C, D T4 while maintaining compliance with CE, UL, CSA, and TUV technical safety standards.
Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description.
Honeywell FC-PDB-0824P Power Distribution Board Manuals, Datasheets, Drivers, Link
Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description.
Oil & Gas Exploration
Used in Emergency Shutdown Systems (ESD) for offshore platforms and onshore oilfields to distribute 24V DC power to wellhead control panels, safety valves, and toxic gas detectors.
Petrochemical & Refining
Provides fuse-protected power distribution to critical control loops, explosion-proof solenoid valves, and Field Termination Assemblies (FTAs) in high-risk units like hydrocracking and catalytic cracking.
Thermal & Nuclear Power Generation
Centralizes power distribution for cabinet cooling fans and safety barriers in power plant Burner Management Systems (BMS) or non-safety auxiliary control systems in nuclear power plants.
Pharmaceuticals & Biotechnology
Stabilizes power distribution to critical field sterile transmitters and air flow meters in high-purity reactor and fermentation control systems requiring strict GMP certification.
Metallurgy & Iron and Steel Industry
Provides overcurrent-protected power distribution to high-reliability sensors and alarm control panels in high-temperature, high-pressure blast furnace, converter control systems, and gas recovery units.
Mining & Mineral Processing
Powers FTAs and monitoring equipment within distributed I/O cabinets in large ore processing plants, conveyor systems, and ventilation/gas monitoring systems in hazardous underground mines.
Key precautions when using FC-PDB-0824P: Never hot swap under power to prevent arcing and equipment damage, strictly follow pin definitions during wiring to avoid reverse polarity, ensure individual channel loads do not exceed 2A and the total input current remains under 16A, always replace blown fuses with the exact same specification of 5x20mm 2A slow acting type, maintain a well ventilated operating environment between -40°C and 70°C, and regularly inspect terminal tightness to prevent loose connections.
Alternative Names
Alternative Names
FC PDB 0824PFC-PDB-O824P
Technical notes
Technical notes
Honeywell FC-PDB-0824P is a highly reliable industrial power distribution board designed for the Safety Manager system. Supporting a maximum input of 24V DC and 16A, the module utilizes onboard fuses to safely distribute power into 8 independent 2A output channels for in-cabinet fans and field devices. It supports standard DIN rail mounting, offers robust channel short circuit and overcurrent protection, and complies with international safety and hazardous location certifications, ensuring continuous and stable operation of critical safety loops in harsh environments.
It is an industrial power distribution board belonging to the Honeywell system. It is typically used in industrial automation control systems (such as safety systems like FSC or Safety Manager) to safely and stably distribute input power to multiple field devices or control modules.
How to use FC-PDB-0824P correctly?
First, mount it in a standard industrial cabinet or rail. Then, connect the main 24V DC power supply to its input terminals. Finally, distribute the current by connecting the onboard output terminals to various controllers, sensors, or actuators.
What should be noted when installing FC-PDB-0824P?
Operations must be performed while the power is completely off. Ensure the ambient temperature and humidity meet manual requirements. Wiring must strictly follow pin definitions to prevent reverse polarity.
How to check the working status of FC-PDB-0824P?
You can visually check it through the onboard LED status indicators (e.g., input power indicator, channel fuse status lights) or measure the voltage of the output terminals using a multimeter.
What should I do if a channel fuse on FC-PDB-0824P blows?
First, disconnect the load of that channel, troubleshoot and resolve the short-circuit or overload fault of the field device, and then replace it with a new fuse of the exact same specification (current and type).
