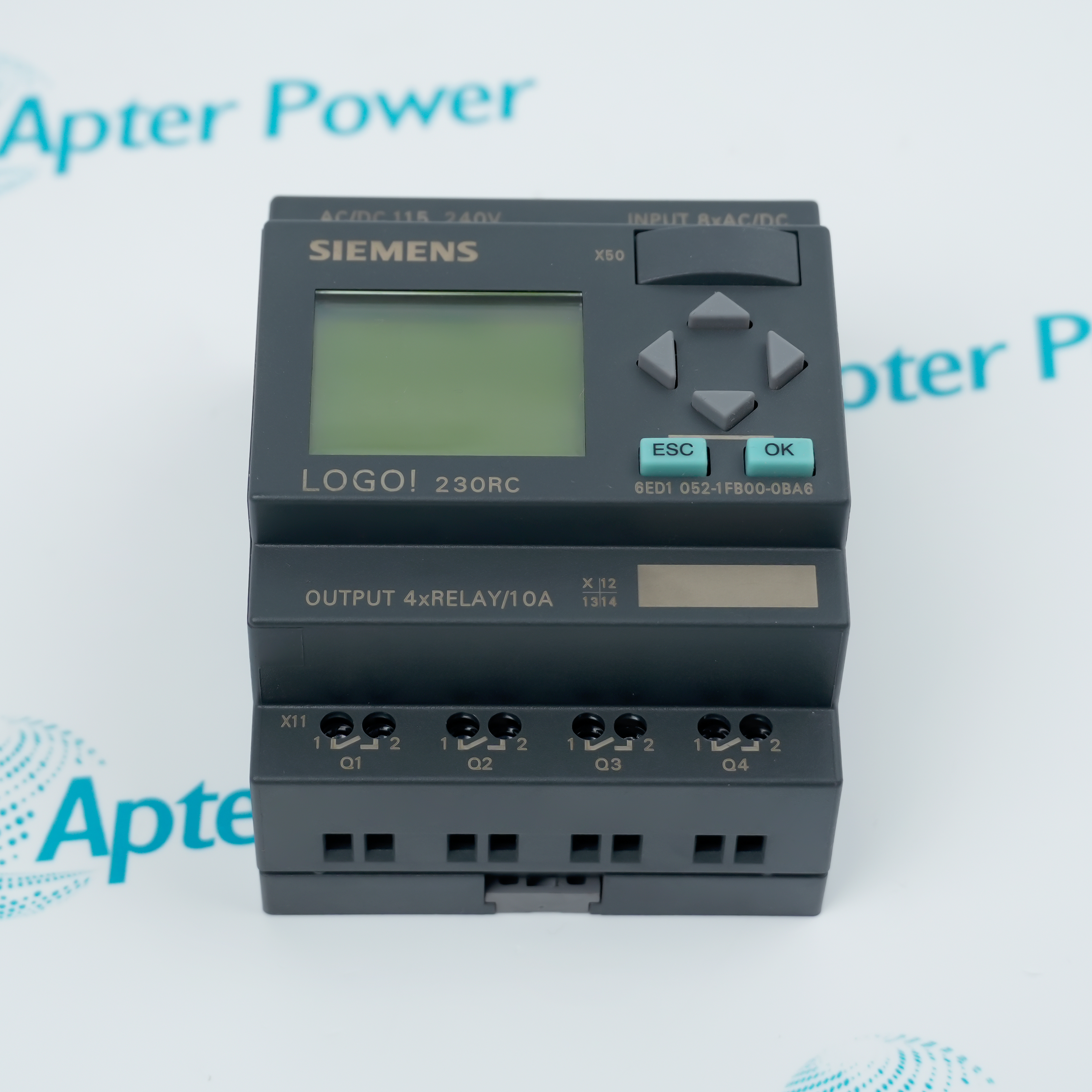

The 6ED1052-1FB00-0BA6 is an integrated LOGO! 230RC logic control module. Featuring a built-in display unit and an operator interface, it is used for small-to-medium automation control tasks.
EEPROM stores 200 blocks, retaining programs during prolonged power outages
Capacitor-backed RTC maintains timekeeping for 80 hours during power loss
In terms of electrical specifications and configurations, it supports a wide voltage range of 115V/230V AC/DC and is equipped with 4 relay outputs. The module provides 8 digital inputs (DI) and 4 digital inputs (DO), backed by a robust memory capacity of up to 200 program blocks. Furthermore, the controller offers excellent system scalability, allowing users to effortlessly expand I/O counts using extra 230V AC/DC expansion modules. It serves as a highly cost-effective and compact control solution for both industrial and building automation applications. In practical industrial and building operational networks, this module is applied explicitly to process small-to-medium-scale automation control tasks, satisfying working conditions that carry specific physical parameter requirements for control logic clarity and operational stability.
Within on-site deployments, this controller directly substitutes structurally complex traditional large-scale PLC systems, utilizing high space efficiency to execute automated data logic interlocking and loop switching management for physical objects—including building automation networks, centralized lighting control systems, HVAC units, industrial pump and fan controls, logistics conveyor lines, and small-to-medium machinery operational lines.
Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description.
Siemens 6ED1052-1FB00-0BA6 230RC Logic Module Manuals, Datasheets, Drivers, Link
Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description.
Water Treatment Industry
Controlling mixers, pump groups, and automatic dosing systems in small-scale wastewater treatment stations.
Packaging Machinery Industry
Driving the cycle operations and temperature interlocks of semi-automatic sealing machines, labeling machines, and small heat-shrink packaging machines.
Automotive Manufacturing
Utilizing for pneumatic fixture control at workstations, simple lifting platforms, and time management of component cleaning lines.
Pharmaceutical Machinery Industry
Executing pressure and time interlocks for Chinese medicine decoction machines, automatic capsule counters, and laboratory sterilizers.
Industrial Laundry Industry
Controlling water inlet, drainage, forward/reverse rotation, and heating logic of large industrial washing machines, dryers, and folders.
Electronics Manufacturing Services Industry
Controlling conveyor workstation stopper cylinders, simple screw fastening machines, and timed spraying of PCB cleaning equipment.

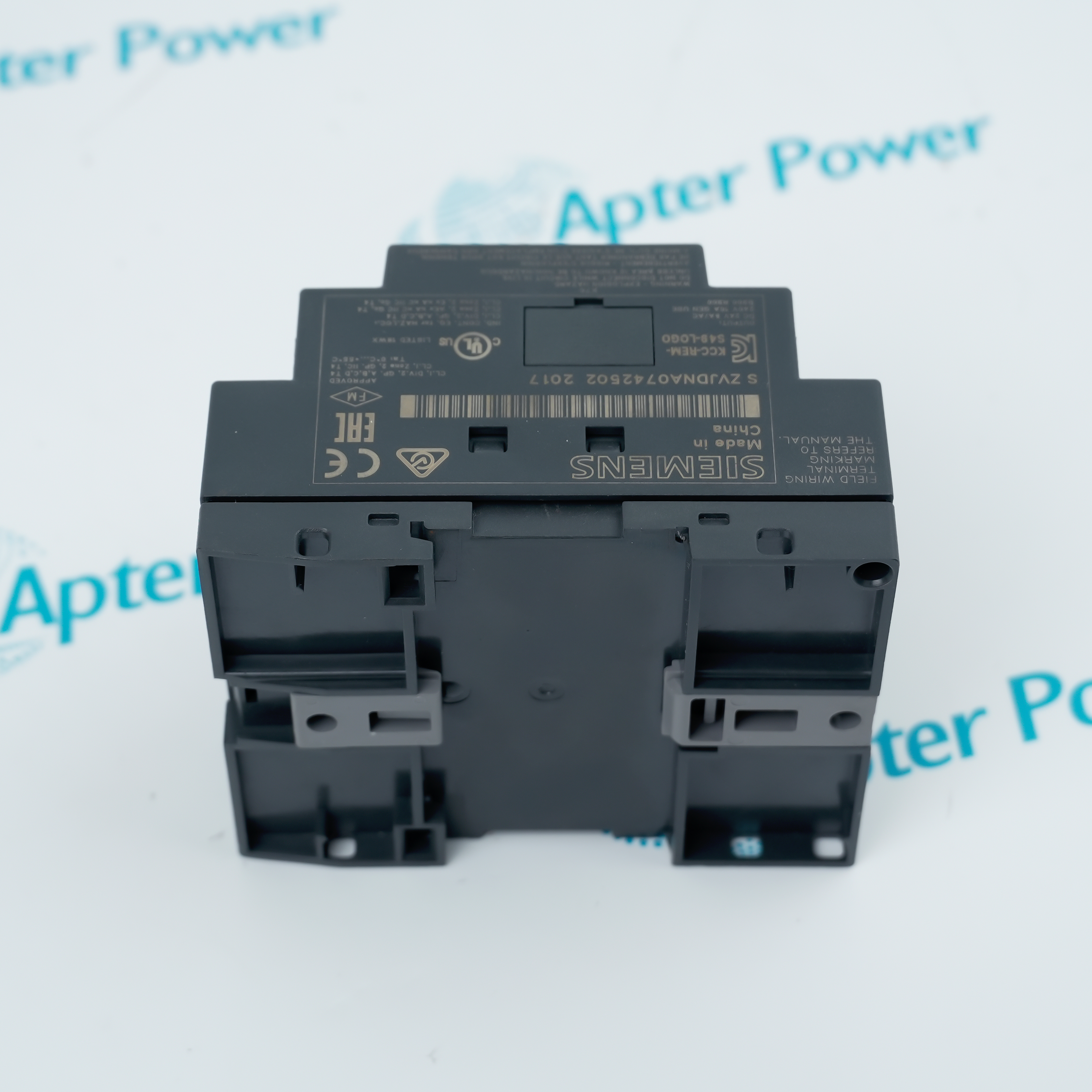

During installation, the module must be vertically fixed using a standard 35mm DIN rail, and the external auxiliary power supply must be strictly confined within the rated range of 115V to 230V AC/DC, making direct connection to low-voltage systems (e.g., 24V) strictly forbidden.
For wiring, the digital input signals (8 DI) must be in the same phase as the supply voltage, and the continuous current upper limit of the integrated relay contacts (4 DO) is 10 A under resistive loads; if inductive loads such as contactor coils or solenoid valves are connected, external fuses and resistive-capacitive (RC) snubber circuits must be installed to extend the physical lifespan of the contacts.
Lastly, the internal capacitor provides a typical 80-hour clock buffer; if a system power outage lasts longer than this limit, the real-time clock must be recalibrated upon power restoration to ensure precise continuity of time-triggered logic events.
1SFB536068D1011 is the PSPCB-LV/T terminal control motherboard within ABB's PST/PSTB series soft starter systems (requiring exactly one piece per starter), functioning as the central processing unit within a compact footprint to dictate the normal operation of the entire motor control path. Utilizing an onboard microprocessor, the hardware executes continuous real-time acquisition of voltage, current, and frequency during the startup sequence to substitute basic discrete controllers, while integrating a five-fold automatic fault detection matrix driven by hardwired logic to trigger microsecond-level loop disconnection and autonomous event logging upon capturing out-of-tolerance parameters. Furthermore, it supports seamless interconnection with optional control-voltage expansion modules, utilizing an internal bus protocol for automatic module recognition and hardware addressing to allow flexible scaling of I/O channels and data synchronization across the power layout.
It is the 230RC logic module within the Siemens LOGO! series, providing relay-based control functions for small-to-medium-scale automation tasks.
What supply voltage class does 6ED1052-1FB00-0BA6 support?
It supports an external auxiliary power supply from 115V to 230V AC/DC.
What is the internal block memory capacity of 6ED1052-1FB00-0BA6?
The module features an integrated storage space supporting a maximum of 200 functional control blocks.
How to perform on-site operation and diagnostics on 6ED1052-1FB00-0BA6?
It is equipped with an integrated LCD display and operation keys to execute local program viewing and system diagnostics.
How can this module extend its input/output (I/O) channels?
It adopts a modular expandable structure, allowing the expansion of channel capacity by connecting extra 230V AC/DC expansion modules via the side bus.
