Technical specifications for 330101-00-63-10-02-00
-
Manufacturer:Bently Nevada
-
Product Category:Machinery Monitoring Systems
-
Spare Part Number:330101-00-63-10-02-00
-
Estimated shipping dimensions:1.6x1.4x114cm
-
Weight:0.1 kg
-
Tariff Code:8537101190
-
Counliy of origin:USA
-
Transducer family:3300 XL 8 mm
-
Measurement principle:Non-contact eddy current
-
Mounting thread:3/8-24 UNF
-
Case construction:without armor
-
Unthreaded section:0.0 in
-
Overall case length:6.3 in
-
Integral lead length:1.0 m
-
Termination:ClickLoc connector without protector, standard cable
-
Approval selection:Not required
-
System rule:Probe plus extension cable equals the selected Proximitor electrical length
Information
Overview
Manuals
Common Applications
Product Precautions

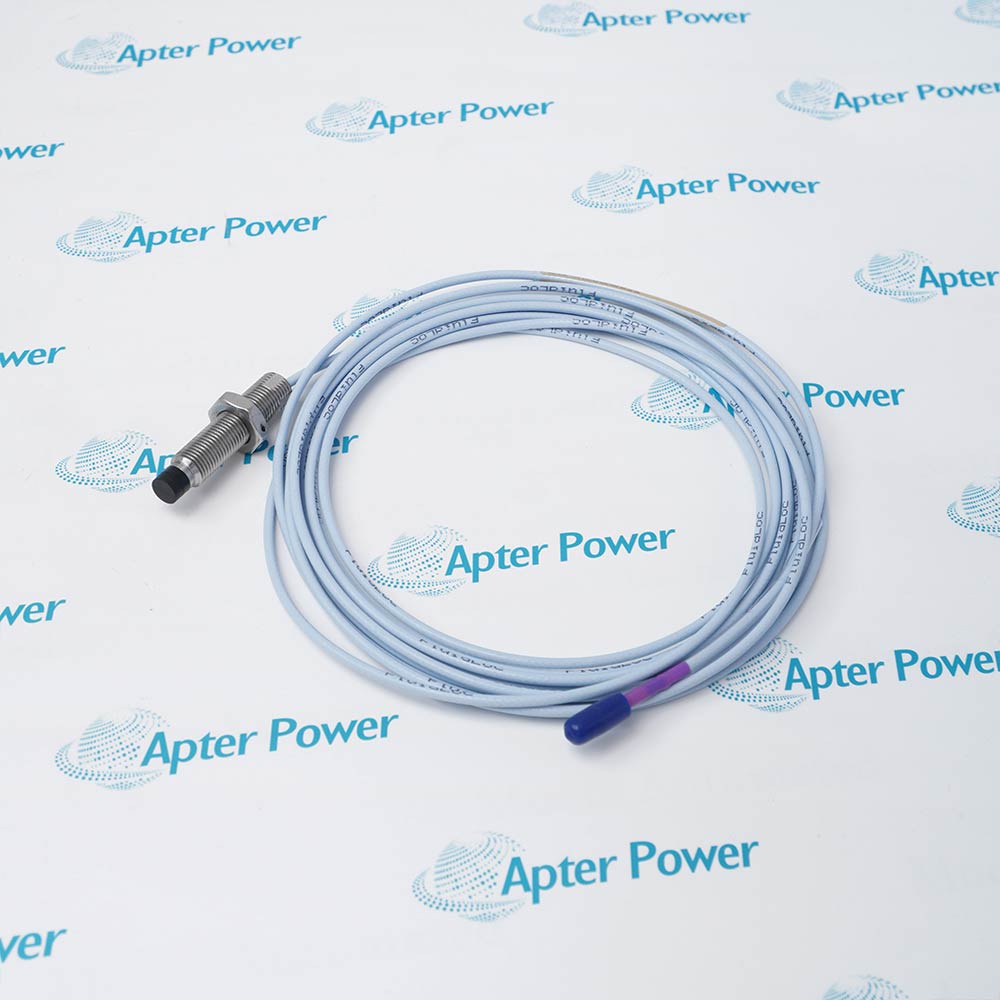

Bently Nevada 330101-00-63-10-02-00 places a 3300 XL 8 mm sensing tip at the machine measurement point through a 3/8-24 UNF without armor case.
- Uses the 3/8-24 UNF case defined for the 330101 probe family.
- Provides 0.0 in of unthreaded case and 6.3 in overall case length.
- Carries a 1.0 m integral lead with clickloc connector without protector, standard cable.
- Operates as one component of the matched 3300 XL 8 mm transducer chain.
The probe converts target clearance into the calibrated electrical response of the complete proximity system. The installed probe, extension cable, Proximitor sensor and monitor configuration must remain matched.
Important Notice: Match the complete 330101-00-63-10-02-00 marking and the assigned machine point before removal. Record bias voltage, signal direction and dynamic response during final acceptance.
Bently Nevada 330101-00-63-10-02-00 Manuals & Downloads
Bently Nevada 330101-00-63-10-02-00 Official Technical Reference Excerpt (PDF)Bently Nevada 330101-00-63-10-02-00 Installation & Commissioning Guide (PDF)
The first document covers the product function, system role and technical selection. The installation guide covers identification, connection checks, commissioning and the acceptance record.
Shaft-relative vibration
Feeds non-contact shaft motion from the 3300 XL 8 mm sensing point into a matched monitoring channel.
Axial or radial position
Tracks static shaft position where the installed target and channel configuration permit.
Machine protection input
Supplies the conditioned transducer chain used for alarms, trips and condition monitoring.
Commissioning response check
Supports gap, polarity and proportional-response checks after installation.
Before installing Bently Nevada 330101-00-63-10-02-00, confirm the documented system, interfaces and controlled configuration.
1
Match the complete 330101-00-63-10-02-00 marking and the assigned machine point before removal.
2
Confirm the 3/8-24 UNF mounting interface and usable thread engagement before tightening.
3
Keep the probe inside a matched 3300 XL 8 mm probe, extension-cable and Proximitor chain.
4
Protect the sensing tip, lead and ClickLoc contacts from impact, contamination and moisture.
5
Route the integral lead away from hot surfaces, rotating parts and sharp bend points.
6
Use only the connector hardware included by the selected cable option.
7
Set the initial gap against the approved target material before enabling alarms.
8
Record bias voltage, signal direction and dynamic response during final acceptance.
Technical notes
Match the complete 330101-00-63-10-02-00 marking and the assigned machine point before removal. Record bias voltage, signal direction and dynamic response during final acceptance.
FAQ View All FAQ
-
What sensing role does the 3300 XL 8 mm 6.3 in probe perform in 330101-00-63-10-02-00?It belongs to the 3300 XL 8 mm proximity-transducer system.
-
Which machine thread accepts the 3/8-24 UNF, 6.3 in case of 330101-00-63-10-02-00?The probe case uses 3/8-24 UNF.
-
What mounting adjustment remains with the 0.0 in plain section on the 6.3 in body of 330101-00-63-10-02-00?The selected unthreaded section is 0.0 in.
-
How should the 6.3 in case reach be checked for 330101-00-63-10-02-00?The ordering string specifies 6.3 in overall case length.
-
What calibrated-length contribution comes from the 1.0 m lead on the 6.3 in execution of 330101-00-63-10-02-00?The probe contributes 1.0 m of integral cable to the matched electrical length.
-
What connector condition is required at the ClickLoc connector without protector, standard cable interface on the 6.3 in case of 330101-00-63-10-02-00?It uses ClickLoc connector without protector, standard cable.
-
Why can the 3300 XL 8 mm 6.3 in/1.0 m chain not be mixed for 330101-00-63-10-02-00?Changing probe or extension-cable length changes the calibrated electrical path to the Proximitor sensor.
-
Which bias-voltage response confirms correct gapping of the 3/8-24 UNF, 6.3 in case on 330101-00-63-10-02-00?A controlled target movement should produce the expected bias change and proportional channel response without diagnostic faults.
