      PWA123447-01

      Transient Data Interface

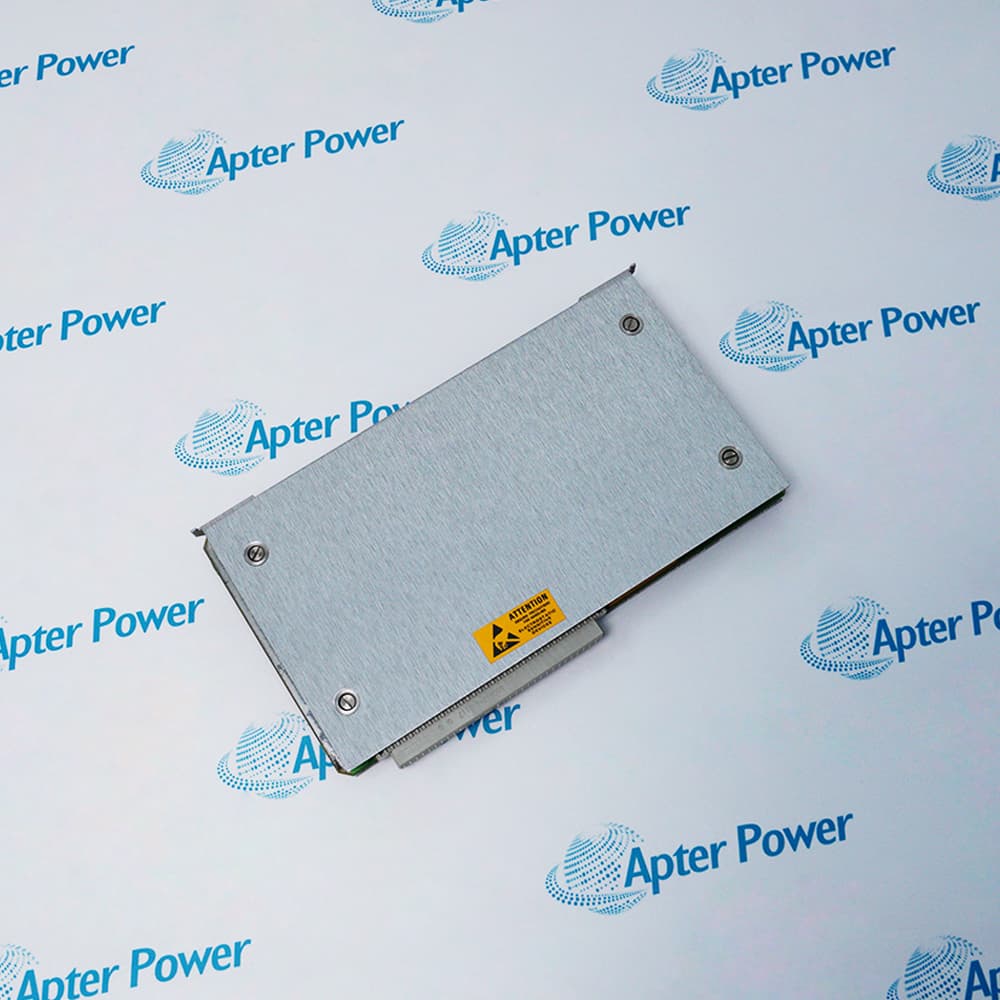

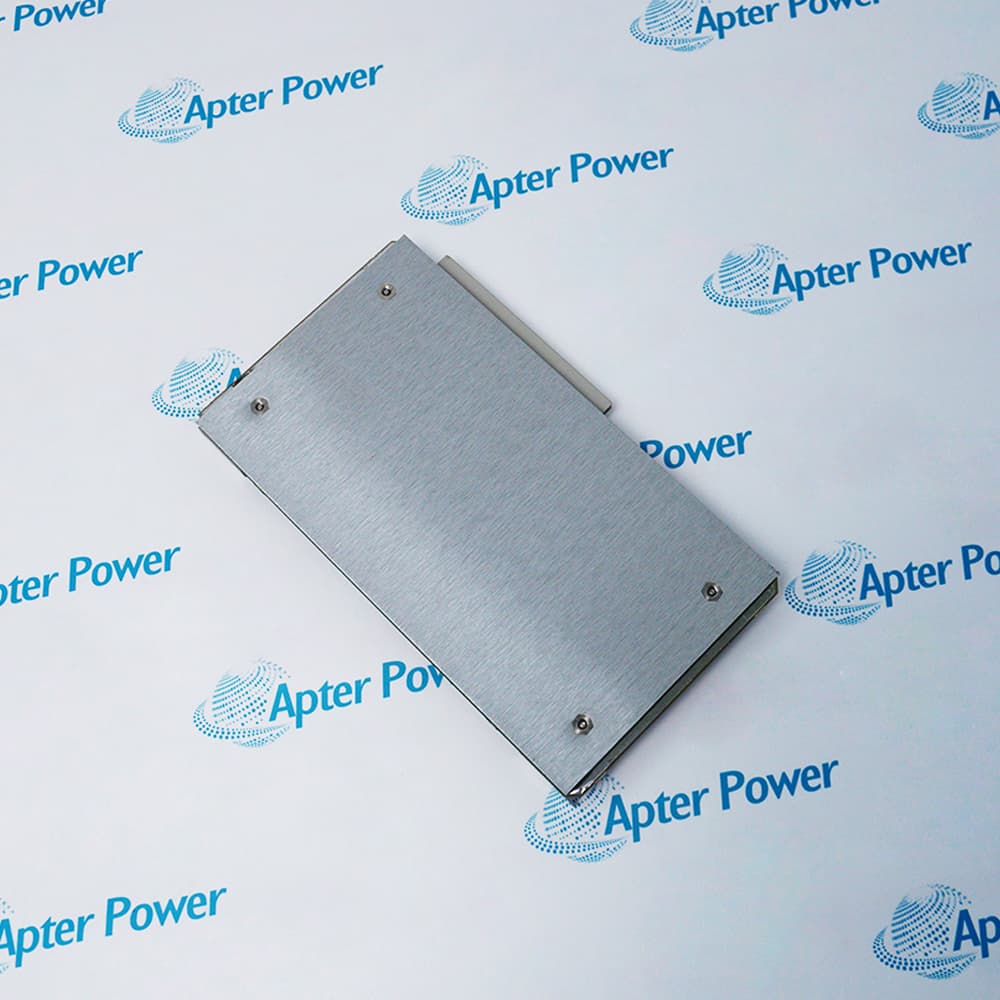

      Bently Nevada PWA123447-01
      Bently Nevada PWA123447-01
      Bently Nevada PWA123447-01
      Bently Nevada PWA123447-01
      Bently Nevada PWA123447-01
      Bently Nevada PWA123447-01
      Product image is representative; revision or series may vary. Contact us to request a specific version.

      Product Describe：

      Transient Data Interface
      High-speed Digital Signal
      Processor (DSP)
      Up to 20 kHz per channel
      TDXnet Proprietary / TCP/IP

      Ask our team:

      Phone: +86 180 3023 5313 E-Mail: sales13@apterpower.com
      Dispatch Planning
      Confirm stock and lead time with our team.
      Dedicated Manager
      Personalized one-to-one VIP service
      ISO 9001:2015 Certified
      Trusted quality management
      Get a quick price for PWA123447-01
      E-mail *
      Mobile *
      Company
      Content *
      Quantity *
      Upload (gif, jpg, jpeg, png, bmp, doc, docx, xls, xlsx, ppt, pdf, csv)
      Get a Quote
      For more information on how your data is processed and stored by Apterpower please read our privacy policy

      What happens after you enquire

      • 1

        Requirement review

        We review the part number, quantity and delivery requirements and ask for any missing details.
      • 2

        Quotation and availability

        We confirm the proposed item, condition, availability, price and estimated lead time in the quotation.
      • 3

        Order confirmation and dispatch

        Once the quotation and purchasing details are agreed, your contact will coordinate the order and available dispatch information.

      Technical specifications for PWA123447-01

      • Manufacturer:
        Bently Nevada
      • Product Category:
        Machinery Monitoring Systems
      • Spare Part Number:
        Series2150/2155
      • Estimated shipping dimensions:
        2.5 cm x 19.1 cm x 10.2 cm
      • Weight:
        0.3 kg
      • Tariff Code:
        8537101190
      • Counliy of origin:
        USA
      • Input Voltage:
        25 V DC (Nominal)
      • Power Consumption:
        Approx. 5.0 Watts
      • Operating Temp Range:
        -30°C to +65°C
      • Storage Temp Range:
        -40°C to +85°C
      • Relative Humidity:
        95% (Non-condensing)
      • Data Buffer:
        16 MB or higher (Config-dependent)
      Ask for Quote

      Information

      Overview Manuals Common Applications Product Precautions
      The  PWA123447-01  is the communication hub of the TDXnet system. It captures dynamic waveform data across all channels simultaneously and computes key parameters such as spectrum, orbit, and centerline in real-time for System 1 software.
        • Immediate Recovery from Power Loss
        • High Resolution Static, Orbit, and Spectrum Data
        • Ethernet Link to Data Manager
      The GE / Bently-Nevada TDXnet Transient Data Interface provides the interface between compatible machinery protection systems and Bently-Nevada's on-line machinery management software. It continuously collects both steady state and startup/shutdown data from all connected channels in parallel, and offers significant improvements in both data collection features and data transmission (Ethernet or serial) over previous communications processors such as TDIX, TDM, and DDM. The GE 2155 TDXnet Transient Data Interface Mainframe may still be available for purchase and support from Artisan Technology Group beyond End-Of-Life (EOL) by the manufacturer (OEM).

      Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description.
       Bently Nevada PWA123447-01 Transient Data Interface, Datasheets, Drivers, Link Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description.

      Petrochemical Refining
      Condition monitoring for critical centrifugal compressors. Identifying coupling misalignment or impeller fouling by collecting high-frequency waveform data.

      Natural Gas Transmission
      Monitoring gas-turbine-driven pump sets at booster stations along long-distance pipelines, ensuring real-time data transmission from remote unmanned sites to central control rooms.

      Steel & Metallurgy
      Protecting large blast furnace blowers. Ensuring vibration data is fully reported to System 1 software for trend analysis in harsh dust and high-temperature environments.

      Nuclear Power
      Monitoring main feedwater pumps and circulating pumps. Providing high-precision diagnostic data via the TDIX interface to prevent unplanned shutdowns under extreme safety conditions.

      Mining & Minerals
      Driving large ball mills and SAG mills. Monitoring low-speed, heavy-duty bearing conditions and utilizing sampling capabilities to identify early-stage fatigue spalling.
       The card contains highly sensitive DSP chips. Always wear an ESD wrist strap before handling. Store the board in its original anti-static shielding bag and avoid placing it on standard surfaces or plastic bags. High-speed data transfer requires pristine connections. Never touch fiber-optic tips with bare hands. For electrical cables, ensure pins are not bent or oxidized. Dust or oil can cause packet loss, leading to "System 1 Data Gaps."

      FAQ View All FAQ

      • What is PWA123447-01?
        It is the core circuit board for a Transient Data Interface (TDIX) module.
      • What is the use of PWA123447-01
        It acts as a "translator" that collects vibration signals from machinery and transmits them to computer software.
      • What kind of data does PWA123447-01 collect?
        It collects static data (like overall vibration) and transient data (like waveforms during startup).
      • Which software does PWA123447-01 connect to?
        It primarily connects to Bently Nevada's System 1 asset management software.
      • What happens if PWA123447-01 fails?
        The computer software will lose real-time vibration waveforms, but underlying protection (like auto-shutdown) usually remains functional.
